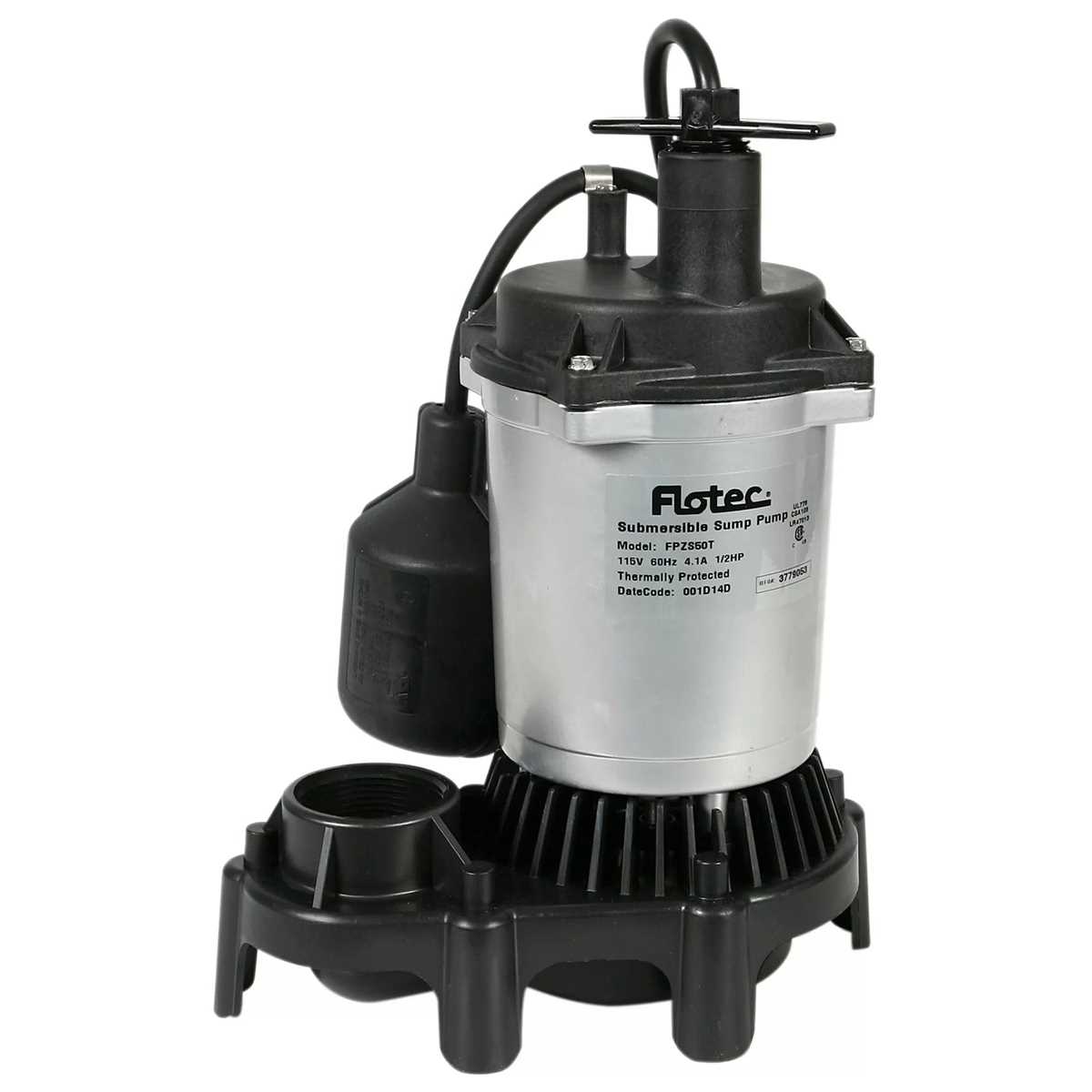

For precise repairs, reference the exploded view schematic specific to your model series–common variants include FP5172, FP4012, or SCV series. Locate the illustration on page 12 of the official service manual or under section 4.3 of the digital repair guide. Key identifiers: impeller housing (item 8), pressure switch assembly (item 15), and diaphragm kit (item 22). Verify the serial number on the motor casing to match the correct revision–earlier models (pre-2018) use a straight shaft, while newer units require a splined connection.
Remove the volute casing by loosening the four 10mm bolts in a crisscross pattern to avoid warping. Inspect the impeller for pitting or excessive wear–replacement tolerances should not exceed 0.2mm clearance. The check valve assembly (item 19) often fails silently; test by blowing air through the outlet port–resistance indicates blockage, while free airflow signals a compromised seal. Replace the O-ring (item 24) if flattened or hardened; use Viton for potable water applications, Buna-N for non-potable.
Reassemble with thread locker on fasteners subjected to vibration (torque to 18 ft-lbs). Test the system at 30 PSI; audible rattling suggests misalignment of the diffuser plate (item 6). If priming fails, verify the foot valve (item 28) isn’t obstructed–submerge the intake line in water and apply vacuum to confirm flow. For models with built-in thermal overload, ensure the reset button isn’t tripped before disassembly–common after power surges.
Understanding Your Water Circulation System Schematic
Locate the impeller assembly first–it’s typically secured with a central bolt and positioned behind the intake grille. Use a 12mm socket for removal, but note the reverse threading on models predating 2018. If corrosion is present, apply penetrating oil sparingly to avoid contaminating the housing.
The pressure switch sits adjacent to the motor housing, connected via a small rubber diaphragm. Test continuity with a multimeter set to 200 ohms; readings above 5 ohms indicate diaphragm wear. Replace the entire switch unit rather than attempting repairs–internal springs degrade unpredictably.
Examine the diffuser vanes for pitting or mineral deposits, especially in hard water regions. Soak components in a 5% white vinegar solution for 90 minutes, then scrub with a soft-bristle brush. Avoid metal tools–they can score the thermoplastic, altering flow dynamics.
Motor windings require inspection for discoloration or insulation breakdown. Measure resistance between terminals: expect 15-25 ohms for primary windings and 3-8 ohms for secondary. Deviations suggest overheating or electrical faults. Clean the capacitor terminals with contact cleaner before reattaching wires.
Check the shaft seal by rotating the impeller manually–a sticking sensation signals wear. Replace seals in pairs (front and rear) to prevent premature failure. Apply silicone grease to the O-rings during reassembly, but avoid petroleum-based lubricants–they cause sealing compound deterioration.
Thermal overload protector trips at 135°C (275°F). If frequent cycling occurs, verify proper voltage supply (±10% of label rating) and airflow around the motor. Overloading often stems from incorrect wiring–match wire gauge to the motor nameplate specifications.
Reassembly sequence matters: impeller → diffuser → nozzle plate → motor housing. Torque bolts incrementally in a star pattern; final tightness should reach 12–15 Nm. Misalignment by even 0.5mm reduces efficiency by 18% and accelerates bearing wear.
Locating Critical Elements in a Water Mechanism Breakdown Schematic
Begin by pinpointing the impeller housing, typically at the front of the assembly. Its curved vanes distinguish it from other components–verify the material (often reinforced thermoplastic or stainless steel) and count the blades (usually 5–7). Check for matching serial numbers etched on the impeller collar with those on the casing’s baseplate; discrepancies indicate potential compatibility issues that could affect performance.
Trace the motor shaft from the impeller hub to the rear seal plate–it should align without lateral gaps. Look for a ceramic or carbon-based mechanical seal (marked by a distinct ring groove) just behind the impeller; corrosion or uneven wear here signals imminent failure. Adjacent to this, locate the thermal overload protector (a small cylindrical protrusion) whose resistance should read 5–15 ohms when tested with a multimeter.
Examine the volute casing’s gasket interface last. The pre-cut rubber or neoprene seal must sit flush against both the casing and motor face, with no visible compression gaps. If replacing, match thickness (±0.2mm) and durometer (typically 60-70 Shore A) to maintain proper chamber pressurization.
Step-by-Step Guide to Locating the Impeller in Fluid Transfer Device Schematics

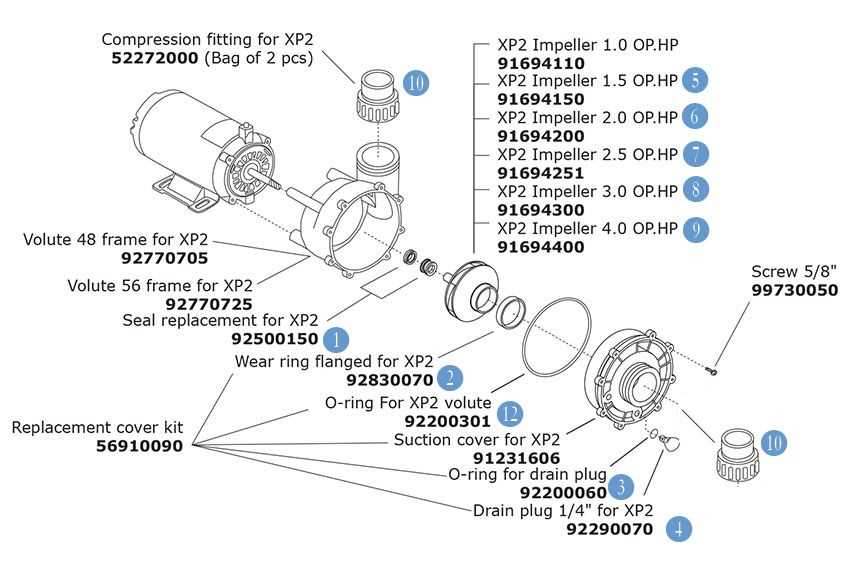

Begin by securing the manufacturer’s exploded view illustration–typically found in the user manual or repair documentation. Identify the hydraulic unit’s central cavity, where the rotating assembly resides. This component is often depicted as a circular or star-shaped element with curved vanes, positioned adjacent to the motor shaft coupling.
Trace the shaft line from the motor housing inward. The impeller will be the first major mechanical element mounted on this axis, distinguished by its blade pattern designed to accelerate fluid. In most schematics, it appears immediately behind the front seal or wear plate, sometimes highlighted in cross-section to reveal internal flow channels.
Key Visual Cues to Confirm Identification
- Vane curvature direction–should align with rotational flow (clockwise or counterclockwise).
- Proximity to the volute casing–directly enclosed by the bell-shaped intake housing.
- Material notation–often stainless steel or reinforced thermoplastic, contrasting with other bronze or cast iron components.
- Fastening method–revealed by threaded shafts, keyways, or press-fit collars near the hub.
Examine lateral cutaway illustrations if available. These views expose the internal passageways, showing how the impeller’s vanes interface with the diffuser or diffuser plate. Look for angled inlet or outlet ports leading to or from this component–critical for verifying pump direction and fluid dynamics.
Compare multiple schematic versions. Older models may depict the impeller as a solid disc with simple radial blades, while newer assemblies often include curved, three-dimensional vanes optimized for efficiency. Note part numbers adjacent to the illustration; impeller variants frequently share a base number with suffixes indicating size or material differences.
Troubleshooting Mismatches
- If the element appears flat or non-rotating, verify it is not the diffuser plate or seal carrier.
- Check for an auxiliary impeller on dual-stage units–ensure consistency with pressure specifications.
- Cross-reference with photographic documentation if the schematic lacks detail–real-world images often clarify ambiguous line drawings.
Replacing Seals and Gaskets in Water Circulation Units: Step-by-Step Visual Guide
Start by disconnecting the power supply and relieving pressure before disassembly. Locate the casing screws–typically 4 to 6 hexagonal fasteners–using the manufacturer’s exploded view for reference. Keep track of each component’s position by organizing screws and small parts on a magnetic tray or labeled containers.
Inspect the worn sealing surfaces for scoring, corrosion, or mineral buildup. Light surface imperfections can be smoothed with 600-grit wet/dry sandpaper, while deeper grooves may require a replacement housing. Clean mating surfaces thoroughly with acetone or a degreaser, avoiding residue that could compromise the new seal.
| Seal Type | Material | Common Sizes (in) | Recommended Tool |
|---|---|---|---|
| O-Ring (Face Seal) | Viton/Nitrile | 0.5–2.0 | Hook pick |
| Gasket (Fiber) | Aramid/Cork | Custom-cut sheets | Utility knife |
| Mechanical Seal | Carbon/Ceramic | 0.75–1.5 | Soft mallet |
Apply a thin layer of silicone-based lubricant to new O-rings before installation. For mechanical seals, ensure the rotating and stationary faces are perfectly aligned; misalignment causes premature failure. Use the exploded view to confirm orientation–some seals have directional grooves or lips.
Reassemble components in reverse order, torquing bolts evenly in a cross-pattern. Over-tightening can distort the seal housing; 8–12 ft-lbs is typical for most residential units. Replace the volute gasket if it appears compressed or brittle–use a razor blade to trim excess material flush with the housing edge.
After reassembly, prime the system by filling the chamber with fluid before restoring power. Check for leaks immediately after startup; minor weeping may resolve as the seal seats. Persistent leaks indicate improper installation–disassemble and inspect again.
Store spare seals in their original packaging at temperatures between 40–100°F. Avoid exposure to ozone or UV light, which degrades rubber compounds. For high-temperature applications, verify compatibility with the manufacturer’s material specifications.
Document each replacement cycle, noting seal type and observed wear patterns. Most residential seals last 2–5 years under normal conditions; frequent failures suggest underlying issues like misalignment, excessive pressure, or abrasive fluid contaminants.
Locating Manufacturer Component Codes in Water Equipment Schematics
Check the exploded view illustrations under the “Reference” or “Item No.” column–most technical sheets list original codes adjacent to each component illustration. These alphanumeric labels typically appear in bold or a distinct font, often near the edge of the sheet or close to the part’s graphical representation. If the schematics are digitized, search for text overlay by zooming in; hidden annotations sometimes reveal themselves at higher resolutions.
Inspect the corner or header of the schematic–some manufacturers embed a legend there, grouping codes by assembly type (e.g., seals, impellers, housings). Look for asterisks or footnotes pointing to this legend, as suppliers occasionally use them to differentiate between standard and upgraded replacements.
Compare multiple sheets if the equipment has staged sub-assemblies. Cross-referencing early-stage diagrams with final assembly views often uncovers codes buried in earlier layers but omitted in the composite overview. Use a small sticky note or digital bookmark to track discrepancies between sheets–minor differences sometimes hide critical identifiers.
Consult the bill of materials section if the schematic includes one. Here, codes align directly with descriptions, offering a concise alternative to scanning every exploded view. Sort this list alphabetically if available–manufacturers occasionally cluster similar items, making rare or obsolete components easier to spot.
Search for barcodes or QR codes on the schematic itself. Some newer layouts embed scannable data linking to extended databases, where original component codes appear in comprehensive tables. If scanning isn’t an option, inspect the periphery of these codes–often, printed text accompanies them with abbreviated details.
Examine the reverse side of physical schematics. Occasionally, manufacturers print supporting documentation there, including condensed code tables or compatibility charts. If working with a folded paper manual, unfold it completely to avoid missing peripheral annotations common in older production runs.
Use a magnifying glass for legacy schematics rendering text in fine print or low-contrast colors. Microfilmed archives or scanned copies frequently distort small fonts, making codes unreadable without enhancement. A smartphone camera’s macro mode can also capture close-ups, revealing previously invisible identifiers.
Verify codes through third-party supplier databases if internal schematics yield ambiguous results. Input the equipment’s serial or model number into major distributor portals–these systems often generate cross-referenced lists with original manufacturer codes highlighted against aftermarket alternatives.
