Locate the assembly guide specific to your model–serial numbers appear on a sticker beneath the seat frame or inside the right armrest. Models released after 2018 use a five-digit code; earlier units carry a four-digit identifier. Cross-reference this code with the official repair manual PDF available on the manufacturer’s support portal under “Mechanical Illustrations.”
Examine the backrest actuation mechanism: dual-motor chairs (series 8000+) show twin levers near the knee pad, while single-motor variants (series 6000-7999) expose a single lever under the right arm. Snap a photo of the lever configuration before disassembly–orientation dictates spring tension settings needed for reinstallation.
Disconnect power before handling the tilt assembly. Pry off the plastic shield over the motor bracket with a flathead screwdriver. Beneath it, you’ll find a triangular steel support linking the footrest to the seat pan–inspect welds for hairline cracks; these fractures require arc welding at 110 amperes with ER70S-6 rod. Keep replacement bearings (6204-2RS) on hand if the footrest drops unevenly.
Trace wiring from the hand control to the junction box hidden behind the left side panel. Use a multimeter set to 200 ohms; expect 45-70 ohms across motor terminals. Readings below 35 ohms indicate a shorted coil–swap the faulty actuator promptly to prevent circuit board damage in the power unit.
Understanding Your Lounge Mechanism Blueprint
Locate the actuator lever near the right armrest–it’s typically concealed beneath a removable fabric panel secured by two Phillips screws. Use a #2 screwdriver to detach the panel, exposing the internal linkage system. The lever connects to a cam roller via a 6-inch stainless steel rod; ensure this assembly moves freely by applying silicone-based lubricant every 6 months to prevent corrosion on the zinc-coated joints.
Examine the backrest pivot at the base of the seat frame. This component consists of a dual-bearing assembly with a torque rating of 45 lb-ft–check for lateral play by gripping the reclining section and applying 20 lbs of downward force. If movement exceeds 1/8 inch, replace the nylon thrust washers (part #FS-8921) in pairs to maintain alignment. The exploded view in the manufacturer’s service manual illustrates these components on page 12, labeled as “Section B, Detail 3.”
For the footrest extension, trace the extension bars from the release latch to their terminus at the ottoman. Each bar should measure 14.5 inches in length; if bent beyond a 1-degree deviation, straighten using a hydraulic press with aluminum dies to avoid weakening the tempered steel. The synchronizing gears (left and right) must mesh at a 22.5-degree angle–verify this with a digital protractor before reassembly. Keep spare cotter pins (part #FS-471) on hand, as they shear under 80 lbs of side load.
How to Read Schematics for Adjustable Seating Mechanisms
Locate the actuator lever first–it’s typically marked near the side panel or under the armrest in most schematics. This component controls the seat’s tilt and is often paired with a release cable, shown as a dotted or dashed line connecting to the base frame. If the lever doesn’t respond, check the cable’s routing for kinks or disconnections, as corrosion or wear here is a frequent failure point.
Examine the footrest assembly next. Split into two main subcomponents–the scissor linkage and the pivot brackets–it should unfold smoothly when operated. Look for numerical labels on the schematic indicating bolt sizes (usually M6 or M8) and torque specifications (typically 20-25 Nm). Missing movement often stems from stripped threads in the pivot brackets, visible as elongated holes in the diagram.
Frame integrity relies on the backrest support rods, depicted as thick rectangular bars in cross-section views. These rods connect to the seat via adjustable knuckles, allowing recline adjustments. If the backrest feels loose, verify the knuckle alignment against the schematic’s measurement lines–misalignment by more than 2mm can cause uneven stress distribution. Schematics often include a table for rod lengths:
| Model Series | Rod Length (mm) | Diameter (mm) |
|---|---|---|
| LS-200 | 450 | 12 |
| RS-400 | 520 | 14 |
| HS-600 | 600 | 16 |

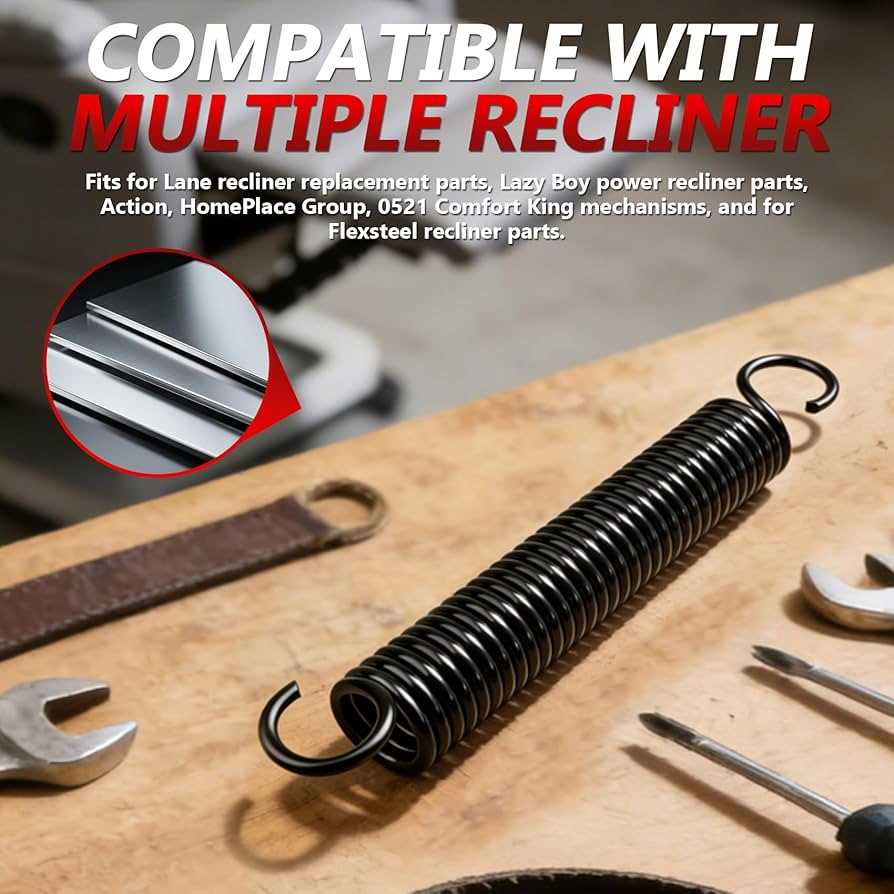

Tension springs, illustrated as coiled lines near the base, maintain balanced resistance when adjusting positions. Schematics usually indicate spring constants (e.g., 15-18 N/mm) near these coils. If the seat snaps back too quickly or fails to hold, test spring tension by comparing installed springs to the diagram’s reference values–weakened springs may need replacement if stretched beyond 5% of the original length.
Lubrication points are critical but often overlooked in visual guides. Focus on hinge pins and sliding tracks, marked with grease symbols or arrows. Use lithium-based grease for metal-on-metal joints and silicone spray for fabric-to-frame contacts. Schematics may specify intervals (e.g., every 6 months) for maintenance–adhering to these prevents premature wear in moving joints.
Electrical components, present in motorized models, include wiring looms and limit switches. Follow the wiring color codes strictly: red for power, black for ground, and blue/yellow for sensors. Faulty operation often traces back to disconnected switches, which appear as small ovals near the actuator motor in diagrams. Check continuity using a multimeter if the motor hums but doesn’t engage.
Finding Component Matches with an Exploded Schematic
Begin by identifying the precise assembly your model falls under–most frames follow a numbered series (e.g., 12000 or 18000) listed in the upper-left corner of the schematic. Each exploded layout splits into subsections (backrest, seat mechanism, base) marked by bold lines or shaded zones; cross-reference these with the item’s physical location on the furniture. If the tag is missing, measure the component’s width, length, and hole spacing–compare these dimensions directly against the callouts near screws, brackets, or levers in the diagram. Note the unique characteristics: a spiral groove on a bolt or a notch on a plastic bushing often matches only one entry, eliminating guesswork.
Use the following checklist to confirm compatibility:
- Trace power lines or hydraulic lines to their connectors–schematics show these as dotted lines with arrows.
- Check color codes on wires (red, black, blue) against the legend if electrical components are involved.
- Verify thread type (coarse vs. fine) and diameter for fasteners; most schematics annotate these with millimeter measurements.
- Look for part numbers etched into metal or molded into plastic–these often appear in tiny text near stress points.
If the schematic lacks a number, contact the manufacturer with photos of the broken piece and the serial plate from underneath–this plate includes a date code and batch identifier that streamlines searches in internal databases.
How to Interpret a Adjustable Seating Unit Mechanism Blueprint
Locate the reference numbers first–each line or symbol on the schematic corresponds to a specific structural element in the assembly. The key, usually found in the lower corner, decodes abbreviations like HNG (hinge), SPR (spring), or LVR (lever). Cross-check these with the exploded view: if a part appears disconnected in the diagram, verify its anchor points before disassembling.
Decoding Motion Pathways
Trace the dotted or dashed lines–they indicate pivot points, sliding tracks, or cable routes. A solid arrow marks rotational movement; a broken arrow signals linear travel. For example, the footrest extension mechanism often shows a zigzag line representing the gas spring’s compression cycle. Measure the angles or stroke lengths directly on the schematic using calipers or a protractor to confirm tolerances before reassembly.
Look for color-coded sections if available–some schematics use red for stressed components, blue for linkages, and black for static frames. Ignore generic hardware labels like screws or washers unless they’re highlighted; focus on the numbered or lettered actuators that control tilt resistance or latch engagement. If two identical parts share a label, the suffix (-A, -B) denotes their mirrored positions.
Resolving Issues with Damaged or Absent Furniture Components Using a Replacement Guide
Locate the product’s serial tag, typically affixed beneath the seat or on the underside of the armrest, to cross-reference the model number with the manufacturer’s inventory checklist. If the tag is illegible, compare the item’s construction–such as wooden frame joints, spring tension, or screw patterns–against verified schematics for matches. For loose screws or stripped holes, apply wood glue to toothpicks inserted into the void before reinserting the fastener; polyethylene plugs work better for larger gaps in pressed-wood bases.
Identify missing hardware by weighing the remaining fasteners–most metric bolts in this line measure 4mm (thread diameter) with a 10mm or 12mm length–and use a thread gauge to confirm pitch. Replace broken levers or tension rods by sourcing OEM equivalents; aftermarket copies often lack heat-treated steel, leading to premature bending. If upholstery tacks detach, heat-not-burn adhesive sticks applied with a low-wattage soldering iron provide cleaner reattachment than staples, which bulge under stress.
