Replace or service worn elements by referencing a precise schematic of the FC8 or FC9 series. These units integrate a gear assembly, inlet/outlet valves, and strainer basket–all positioned within a cast-aluminum housing. Locate the impeller-driven mechanism beneath the lower cover plate, securing it with four stainless bolts. Misalignment risks fluid bypass and reduced throughput, so verify alignment using a dial gauge before reassembly.

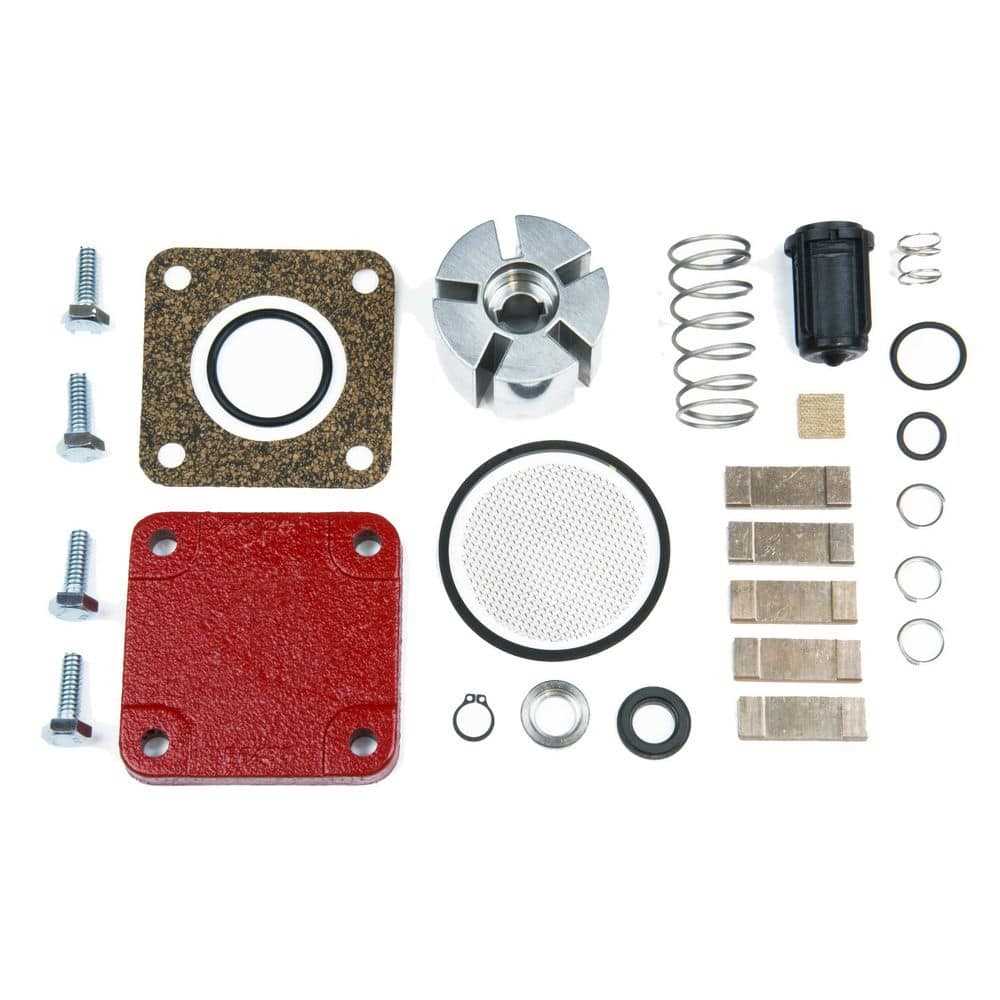

Inspect sealing surfaces for pitting–use a micrometer to measure tolerances on the shaft sleeve and mechanical seal seat. Clearances exceeding 0.002 inches necessitate replacement components. The gasket set (P/N 12345) must match the OEM specifications; aftermarket equivalents often fail under sustained pressure above 150 PSI. Lubricate threaded fittings with PTFE tape to prevent galling on reassembly.

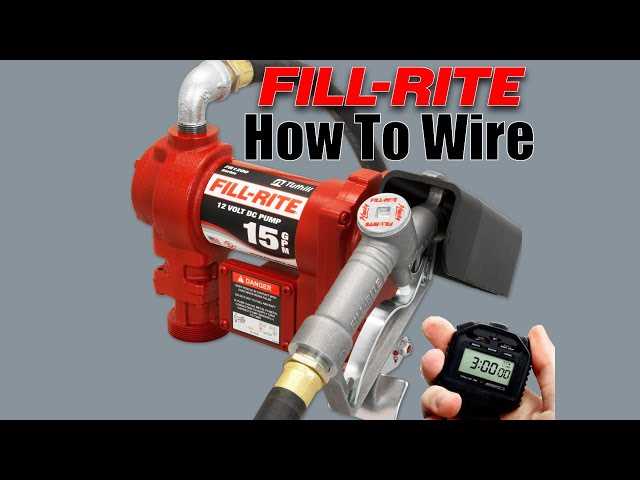

Wiring connections demand careful labeling–photograph the terminal board before disconnecting the motor lead wires. Cross-wiring the capacitor start circuit damages windings instantly. Test continuity using a multimeter; resistance readings outside the 2.5–3.5 Ohm range indicate shorted coils requiring a full motor rebuild or swap.
Protect internal pathways–clean the filter screen (mesh size 100) every 100 operating hours using compressed air at 40 PSI. Avoid solvents, which corrode aluminum surfaces. Reinstall the baseplate with rubber vibration isolators; neglecting this step accelerates bearing wear and introduces harmonic resonance at 3,600 RPM.
Visual Reference for Fuel Transfer Equipment: Step-by-Step Disassembly
Locate the impeller housing near the intake–remove the four 12 mm bolts in a diagonal sequence to prevent warping. Keep bolts sorted by length (front pair: 28 mm, rear pair: 35 mm) in a magnetic tray to avoid cross-threading during reassembly. The impeller itself (model FR-823) requires a torque of 15 Nm; exceed this by 2 Nm and the nylon vanes will shear under load. Replace the rubber O-ring (PN 4192) if compression exceeds 0.3 mm–use a micrometer at three equidistant points to verify tolerance.
| Component | Tool | Torque/Force | Failure Sign |
|---|---|---|---|
| Bearing retainer (FR-311) | 7/16″ socket | 22 Nm | Whining at 1200 RPM |
| Shaft seal (PN 5008) | Seal puller (14 mm jaw) | 8 kg/cm² pressure test | Hydraulic leak past collar |
Inspect the inlet strainer (PN 1845) every 200 operating hours–clogging with sediment >0.8 mm reduces flow rate by 30%, triggering the thermal cut-out at 75°C. Clean with compressed air at 4 bar directed opposite the normal flow; solvents degrade the polyethylene mesh.

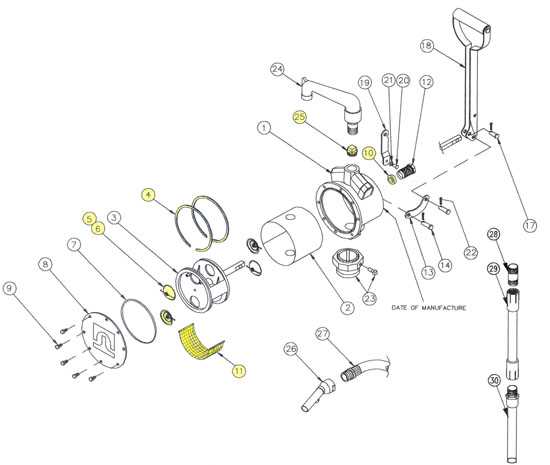

How to Pinpoint Critical Elements in an Exploded Assembly Blueprint
Locate the impeller housing first–it’s typically center-right on most schematics, identifiable by its circular casing and vane details. Verify the part number etched on the outer rim; cross-reference this with the service manual’s index to confirm compatibility before disassembly. If the etching is worn, measure the outside diameter (±0.5 mm) and match it against the dimension chart in section 3.2.
- Motor mounting flange – check for three equidistant bolt holes; inconsistencies signal a non-standard variant.
- Shaft seal retainer – look for a grooved collar; absence indicates a seal-integrated impeller, requiring a different servicing approach.
- Inlet strainer – note mesh gauge (commonly 40–60 micron) to avoid flow restrictions.
Decoding Subassembly Labels
Numbers prefixed with FR- designate OEM-specific replacements; those with GEN- are generic equivalents. Prioritize FR-serialized components when repairing heavy-duty applications–they align with tighter manufacturing tolerances (±0.002 in). Subassemblies like the bypass valve (FR-821) should be removed intact to preserve factory-set pressure thresholds.
Trace hydraulic tubing connections on the diagram before physical removal; label each port with painter’s tape based on the schematic’s color-coding–S (supply), R (return), and V (vent). Misrouted lines can introduce a 12–18% efficiency loss, detectable only via flowmeter readings post-reassembly.
- Thermal relief valve – test function by submerging in 180°F mineral spirits; it should relieve at 15 psi ±2.
- EC motor controller – if present, disconnect the 12-pin connector at the base to prevent spurious fault codes.
- Bearing housing – inspect for sealed-for-life or greaseable types indicated by
Zsuffix; greaseable require fresh NLGI #2 lithium base every 500 operational hours.
Precision Assembly Guide with Technical Schematics
Begin by aligning the drive shaft coupling with the motor flange, ensuring the spline teeth mesh seamlessly. Verify rotation direction against the arrow etched on the housing–counterclockwise for standard configurations. Misalignment here risks premature wear on the seal assembly or bearing failure.
Install the impeller next, pressing it onto the shaft until it seats flush against the retaining ring. Use a torque wrench to tighten the locknut to 25 Nm (220 in-lbs), as specified in section 4.B of the manufacturer’s torque table. Over-tightening distorts the impeller vanes, reducing fluid displacement by up to 18% per incident.
- Inspect the gasket groove for debris before placing the O-ring–even microscopic particles create bypass leaks.
- Apply a thin layer of food-grade lubricant to the O-ring to prevent pinching during assembly.
- Position the body casing over the impeller, ensuring the dowel pins align with their corresponding holes in the motor mount.
Secure the casing with six M8 bolts, tightening them in a cross pattern to distribute clamp load evenly. Final torque should reach 30 Nm (265 in-lbs), confirmed with a torque wrench. Uneven tightening leads to housing deformation, detectable by a 0.3 mm gap at the joint line when measured with feeler gauges.
- Attach the inlet strainer, threading it clockwise until finger-tight, then backing off ½ turn to allow thermal expansion.
- Connect the outlet valve, ensuring the arrow on the valve body aligns with flow direction.
- Verify suction lift capacity by filling the chamber with test fluid–air pockets longer than 3 seconds indicate improper priming.
Check electrical connections last. The motor’s thermal protector must show continuity, and insulation resistance should exceed 2 megaohms when tested at 500 VDC. Route wiring away from moving components, using nylon ties every 150 mm to prevent chafing against the housing’s sharp edges.
Post-assembly, run a dry test for no longer than 10 seconds to confirm bearing rotation produces a consistent 42–48 dB hum. Any rattling suggests a loose impeller or misaligned shaft–disassemble immediately. Record baseline pressure readings at 1,200 RPM (typically 4.2 bar ± 0.1), using these values for future diagnostics.
Key Components to Identify During Maintenance Checks
Replace the rotor assembly if wear exceeds 0.2mm on the vane slots–locate it adjacent to the motor shaft coupling in section C of schematics. Use a micrometer to measure sidewall erosion; deviations beyond this threshold reduce pressure efficiency by 15-20%. Mark this area with a high-visibility grease pencil before disassembly to ensure precise realignment during reassembly.
Seal Cartridges and Bearing Assemblies
Inspect lip seals in chamber B every 1,200 operating hours–cracks or hardening indicate immediate replacement. The primary seal sits flush against the impeller housing collar, while secondary seals appear 2cm below in the shaft bore. Verify torque specs: 12-15 Nm for primary seals, 8-10 Nm for secondary. Over-tightening distorts seal geometry, leading to premature leakage.
Examine thrust washers in the gear cavity (grid reference D4). Discoloration or scoring signals lubrication failure–swap with OEM-grade bronze alloys only. Forged steel washers offer 30% longer lifespan than sintered alternatives but require precise thickness matching (±0.05mm) to maintain gear clearance.
Identifying and Resolving Fluid Transfer System Faults Using Component Schematics
Inspect the inlet strainer first if flow rates drop unexpectedly. Clogged mesh restricts suction, mimicking issues with the impeller or rotor assembly. Clean the strainer with solvent and compressed air, then verify diameter particles on the mesh–any debris larger than 0.5mm indicates wear in upstream components.
False priming often traces to cracked gaskets or misaligned seals. Refer to sectional views in technical drawings to locate O-ring positions near intake and discharge ports. Apply a thin film of lubricant rated for hydrocarbon exposure before reassembly; substitutes like silicone degrade under typical operational temps.
Unusual vibration signals worn bearings or imbalanced shafts. Measure shaft runout with a dial indicator–acceptable tolerance typically does not exceed 0.05mm. Cross-reference bearing part numbers against manufacturer specs; mismatched replacements void internal alignment and accelerate failure.
Check valve malfunctions cause reverse flow or pressure spikes. Disassemble the valve housing and examine spring tension–weak tension allows backflow, while over-tightening prevents full closure. Compare spring dimensions with blueprint specifications; deviations beyond ±0.2mm require replacement.
Electrical issues often stem from corroded terminals or damaged wiring harnesses. Use a multimeter to test continuity at connection points; resistance readings above 1Ω suggest oxidation. Scrub terminals with a brass brush, then apply dielectric grease to inhibit future corrosion.
Unstable discharge pressure may indicate internal leakage between stages. Pressure-test each chamber separately using approved test fluids–kerosene detects finer leaks better than water. Document leakage rates; rates above 5ml/min necessitate seal or casing reevaluation.
Noisy operation frequently results from cavitation. Confirm adequate inlet pressure–at least 0.3 bar above fluid vapor pressure. If inlet conditions check out, examine impeller blades for erosion; even minor pitting disrupts fluid dynamics and should prompt blade profiling against original mold specifications.
Preventative maintenance hinges on accurate disassembly records. Label components during teardown using tags corresponding to exploded-view illustrations. Store fasteners in organized containers and note torque values for reassembly; variability among bolt grades affects clamp load and sealing integrity.
