Identifying the correct replacement elements starts with a clear breakdown of the vehicle’s assembly layout. Locate the manufacturer’s official exploded-view schematics for the 2014–2023 model series–these documents detail every bolt, bracket, and electrical connector by part number. For older units (2000–2013), cross-reference with third-party manuals from Golf Cart King or Buggies Unlimited, as OEM diagrams may lack precision for discontinued models.
Focus first on the drive system. The rear axle assembly (part cluster 10008) frequently requires servicing; its differential housing should match the serial number stamped on the frame rail. Misalignment here causes premature tire wear–verify torque specs (80–90 ft-lbs) before reassembly. Electrical components, particularly the solenoid (item 20302), demand a multimeter test for resistance (0.5–1.0 ohms); replace if readings exceed this range.
Steering and suspension parts degrade unevenly. Inspect the spindle arm (reference 30015) for cracks–hairline fractures often hide near weld points. Polyurethane bushings (40450) outlast rubber alternatives by 30–40% but compress tighter; adjust preload accordingly. For lithium battery conversions, confirm charger compatibility with the BMS board (50500) to prevent voltage irregularities.
Accessory upgrades (lift kits, LED kits) disrupt OEM wiring. Use the aftermarket harness schematics from AllThingsGolfCart to avoid grounding issues–insulate all exposed connections with dielectric grease. Keep a printed copy of the wiring color code (red = ignition, black = ground, yellow = reverse signal) in the maintenance log for quick troubleshooting.
Understanding Your Golf Cart’s Component Blueprint
Start by locating the manufacturer’s official schematic for your model year–older carts (pre-2015) often use a simpler rear suspension layout, while newer ones integrate a multi-link coil system. Compare the frame number stamped near the rear axle housing with the version listed in the service manual to avoid mismatches in replacement components.
Key areas to inspect first in the breakdown:
- Front suspension: Look for the A-arm bushings (OEM part #EZ-0120) and shock absorbers (dual-rate valving on 2018+ models). Corrosion here is common in coastal climates.
- Steering assembly: The tie rod ends (left vs. right thread) require specific torque–25–30 ft-lbs for ⅜” bolts, 45–50 ft-lbs for ½”. A misaligned rack will wear unevenly.
- Electrical: The solenoid (rated 200A continuous) connects to the controller via thick red/black cables–inspect for frayed insulation, especially near the battery tray.
For accurate identification, cross-reference the serial number (found on the passenger-side frame rail) with the manufacturer’s parts catalog. Models produced between 2010–2014 use a 48V motor with a 3.7:1 gear ratio, whereas 2016 onward switched to a 2.9:1 ratio for better torque at lower RPMs. Mismatched gears will cause premature wear or motor strain.
When ordering replacements, prioritize OEM-equivalent specs over aftermarket alternatives. For example, the rear brake shoes (standard 6” diameter) must match the original 45° angle on the friction surface–aftermarket 90° variants will drag. Brake drums should be resurfaced if scoring exceeds 0.015”.
Storage and transport of the schematics matter. Print a laminated copy of the exploded view for the transaxle assembly–label each layer with grease specifications (NLGI #2 lithium for bearings, graphite for splines). Keep a digital backup in PDF/A format to prevent font rendering issues on older devices.
Common pitfalls during repairs:
- Mixing up left/right swingarms–the shock mounting points differ by 12mm.
- Over-tightening the ring gear bolts (max 65 ft-lbs)–use Loctite 242 on threads.
- Ignoring the voltage regulator ground strap (barely visible behind the dash)–corrosion here mimics charging system failures.
Accessing Genuine Cart Component Schematics via Manufacturer Resources
The fastest route to verified schematics is through the official brand portal. Visit ezgo.com, navigate to the “Support” dropdown, then select “Manuals & Literature.” Filter by your model series–look for identifiers like “TXT” followed by voltage or fuel type. The exploded views here are directly from engineering blueprints, matching part numbers with OEM authenticity guarantees.
Distributor portals often host identical schematics with enhanced search tools. Search for authorized dealers who maintain digital libraries–examples include Buggy Parts Depot or Golf Car Catalog. These sites segment diagrams by sub-assemblies (e.g., drivetrain, steering) and allow filtering by serial number ranges, reducing guesswork for older units.
Manufacturer-approved service centers upload schematics to their internal databases, some exposed publicly. Check regional sites; for instance, ezgo.ca mirrors U.S. content but may include localized variants or metric measurements. Contact support via the “Dealer Locator” tool–some shops provide direct PDF downloads upon request, especially if standard downloads prove elusive.
Specialized cart forums compile user-uploaded schematics in dedicated threads, though reliability varies. Websites like Buggies Gone Wild or Golf Cart Report categorize files under “Diagrams & Exploded Views.” Verify uploads against manufacturer-issued PDFs–look for watermarks, high-resolution scans, or file metadata linking to the brand’s domain.
E-commerce platforms selling OEM replacements frequently embed schematics alongside listings. Amazon sellers like “Golf Cart King” or “Cart Parts Plus” attach visual breakdowns; Walmart’s marketplace also shows multi-angle illustrations for components in stock. Cross-reference these with official sources–mislabeling occurs, particularly for aftermarket alternatives.
For immediate access without downloads, mobile apps like “GolfCart Resource” or “CartDoc Pro” store cached manufacturer diagrams offline. These require model input but bypass browser limitations, delivering pinch-to-zoom functionality for intricate assemblies like the transaxle or electrical harness. Confirm app permissions grant data refreshes to ensure schematic accuracy aligns with factory updates.
Locating Critical Elements in Your Electric Utility Cart Schematic
Begin by isolating the battery circuit cluster–typically shown in the upper left quadrant of standard electrical layouts. Verify the main positive (red) and negative (black) leads connect directly to the solenoid, identifiable by its cylindrical shape and mounting near the motor assembly. Misalignment here disrupts power distribution to all subsequent systems.
Trace the ignition switch leads (marked SW or IGN) immediately downstream of the solenoid. These wires–usually yellow or orange–regulate voltage to the controller, activation coil, and accessory circuits. Confirm continuity with a multimeter: readings should drop to near zero ohms when engaged. Resistance above 2 ohms indicates corroded contacts requiring oxide removal or terminal replacement.
Verifying Controller and Motor Connections
| Wire Color | Controller Terminal | Destination | Voltage (Key On) |
|---|---|---|---|
| Blue | M- | Motor negative | 0V |
| Green | F+ | Field coil positive | Battery voltage |
| White | S- | Speed sensor | Pulsed 0-5V |
Connect the motor’s armature leads (thick red and black) to the controller’s M+ and M- terminals. Check for loose crimps–common failure points under vibration. The green field coil wire (F+) must bypass the solenoid to prevent inductive voltage spikes. Install a 30V transient voltage suppression diode across the coil if absent; polarity-sensitive direction marks it.
Focus on the throttle potentiometer cluster. The 5kΩ linear taper sensor uses three wires: power (5V, often purple), signal (variable voltage, typically blue), and ground (black). Measure signal output across pedal travel–0.8V at rest, 4.2V fully engaged. Deviations outside ±0.2V suggest worn resistive tracks; replace the pedal assembly entirely.
Auxiliary Circuit Diagnostic Shortcuts
Inspect headlight circuits by locating the fused 10A branch (pink wire). Voltage should match input at the main relay when activated. For LED upgrades, reroute this wire through a 3Ω 25W ballast resistor to prevent premature bulb failure. Horn activation–traditionally wired to a momentary 16A switch–employs a dedicated path separate from lighting to avoid voltage sag.
Review diode placement on accessory circuits. Rectifiers prevent reverse current flow from charging system back-feeding into illumination or instrument clusters. Typical locations include behind the forward/reverse switch and accessory relay sockets. A single failed diode often manifests as erratic dashboard readings; test forward voltage drop (0.6–0.8V) to confirm integrity.

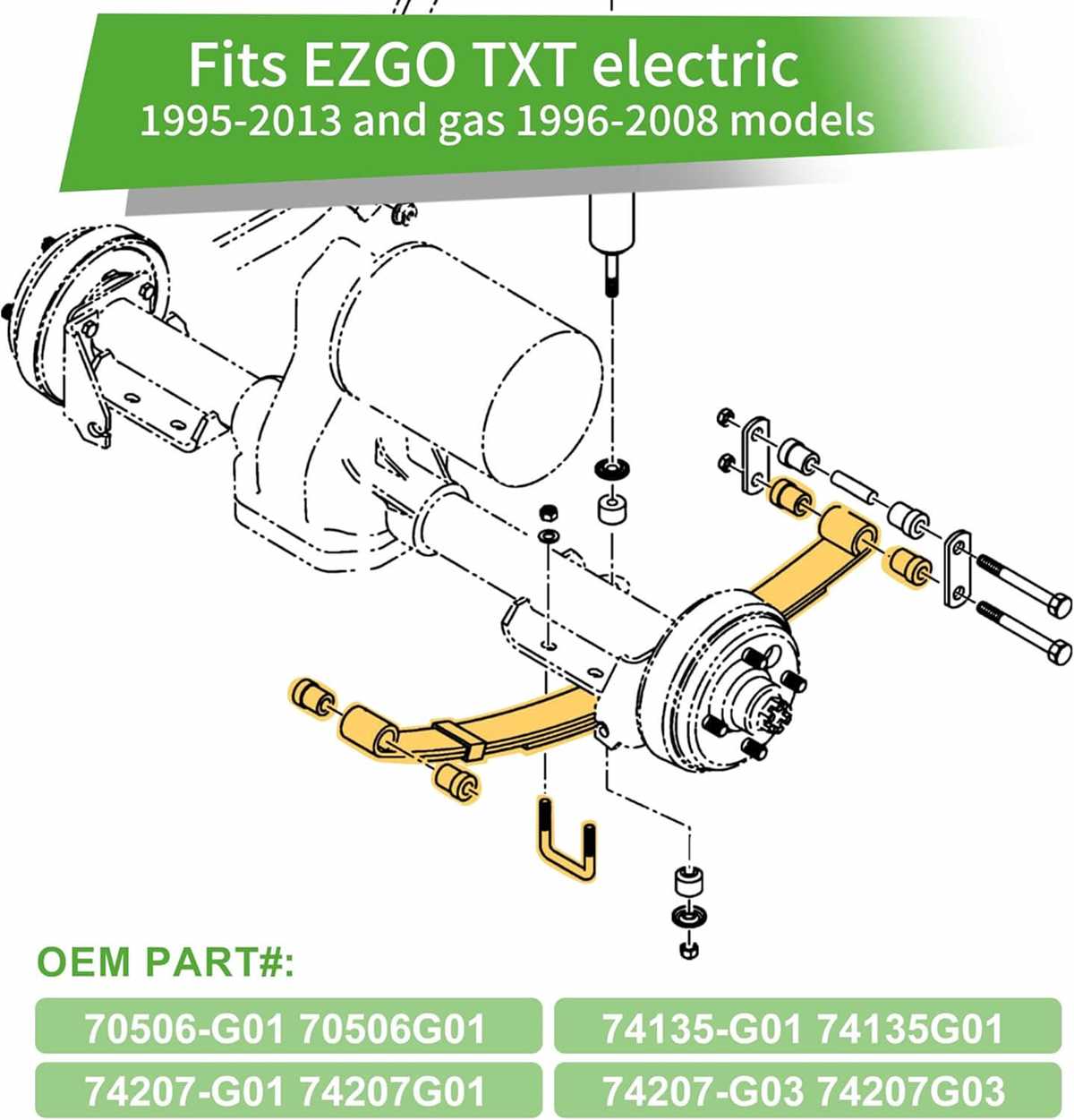

Step-by-Step Breakdown of the Golf Cart Rear Suspension Assembly
Start disassembly by removing the shock absorber lower mounting bolt using a 9/16-inch socket. Support the rear axle with a hydraulic jack to prevent sudden drops–ensure the jack pad aligns with the differential housing’s reinforced section to avoid damage. Label all bolts and bushings by location (e.g., “left trailing arm bushing”) using masking tape to streamline reassembly. Discard any bushings showing cracks or excessive wear; replacement parts must match OEM specifications (durometer: 70A, outer diameter: 2.125 inches).
Detach the trailing arms by loosening the pivot bolts with a 3/4-inch wrench–apply penetrating oil to stubborn fasteners 15 minutes prior. Inspect the pivot bushings for play: if the arm moves more than 1/8 inch laterally when manipulated, replace both bushings and pivot bolt. Clean all contact surfaces with a wire brush and apply a thin layer of lithium grease to prevent corrosion before reinstallation. Torque specifications for pivot bolts are 45 ft-lbs for steel arms, 38 ft-lbs for aluminum variants.
Reinstall the leaf springs by positioning the axle saddle brackets first–misalignment here causes premature spring fatigue. Use grade-8 hardware for U-bolts and torque to 70 ft-lbs in a cross pattern to ensure even clamping. Verify spring arch curvature: the center should sit 1.5 inches above the axle tube when unloaded. For models with sway bars, attach the end links last, ensuring equal tension on both sides to prevent pull during turns.
Prior to finalizing assembly, cycle the suspension manually to confirm full articulation without binding. Check shock absorber travel: compressed length should not exceed 11.25 inches. Apply thread locker (medium-strength) to all suspension bolts except pivot points to prevent loosening. Test drive on a flat surface at 10 mph; listen for unusual noises or resistance, which indicate misaligned components.
