Begin by examining the piston–the primary moving element within the cylinder block. Its design dictates compression efficiency, with forged aluminum alloys offering superior durability under high thermal stress. Modern variants often incorporate low-friction coatings to reduce wear during prolonged operation. Pair this with ring grooves machined to micron-level precision; improper tolerances here lead to blow-by and diminished power output.
Next, assess the crankshaft–the backbone of rotary motion conversion. Counterweights must be precisely balanced to prevent destructive vibrations, especially in high-RPM applications. Forged steel remains the gold standard, though billet-machined shafts provide customization for performance builds. The journal surfaces demand mirror-finish polishing; even minor imperfections accelerate bearing failure.
The valvetrain warrants equal scrutiny. Hydraulic lifters simplify maintenance but introduce parasitic drag at high speeds. Solid lifters require periodic adjustment but excel in forced-induction setups. For camshaft selection, lobe separation angles between 110° and 114° strike the best balance for naturally aspirated torque, while turbocharged configurations benefit from tighter (106°-110°) profiles.
Don’t overlook gaskets and seals. Multi-layer steel (MLS) head gaskets outperform composite types in engines exceeding 8:1 compression ratios. Rear main seals must withstand both heat and crankcase pressure fluctuations; lip-seal designs fail prematurely in high-mileage applications, whereas rope-style seals offer longevity but require meticulous installation.
Turbocharged layouts demand additional components–wastegate actuators should open at 10-15% below peak boost targets to prevent over-spooling. Intercooler core density (measured in fins per inch) directly impacts intake air temperature; aim for 12-16 FPI in street applications, 18-22 FPI for track use.
Critical Internal Combustion System Elements and Their Roles
Begin diagnostics by isolating the air intake system–clogged filters disrupt the 14.7:1 air-fuel ratio, forcing ECUs to compensate, which skews performance metrics. Replace paper filters every 15,000–30,000 km; foam filters require cleaning at 8,000 km intervals using isopropyl alcohol, never compressed air.
The crankshaft’s harmonic balancer must remain within 0.002-inch runout tolerance. Exceeding this threshold introduces destructive vibrations, especially at 3,500–4,500 RPM. Use a dial indicator for verification; replace if grooves exceed 3 mm depth.
- Piston rings seal combustion gases–gap specifications vary by bore size:
- Top compression ring: 0.003–0.004 inch
- Second compression ring: 0.002–0.003 inch
- Oil control ring: 0.010–0.020 inch
- Exceeding these gaps causes blow-by; insufficient gaps risk seizure under thermal expansion.
Camshaft lobes dictate valve timing and lift. Profile wear should not exceed 0.0008 inch; use a micrometer for measurement. Coated lobes last 50% longer–prefer chromium nitride for turbocharged applications, diamond-like carbon for naturally aspirated setups.
Fuel Delivery and Ignition System Precision
Fuel injectors must deliver 5% uniformity across cylinders. Clean ultrasonically if flow deviates by ±2%; replace if leakage exceeds 1 drop per minute at 40 psi. High-impedance injectors (12–16 ohms) suit sequential systems; low-impedance (2–5 ohms) work with saturated switch drivers.
Spark plugs require heat range matching. Copper cores dissipate heat fastest; iridium lasts 100,000 km but risks pre-ignition in forced-induction builds. Gap adjustment:
- Naturally aspirated: 0.035–0.045 inch
- Supercharged: 0.028–0.032 inch
- Turbocharged: 0.024–0.028 inch
Lubrication and Thermal Management
Oil pump relief valves must open at 60–80 psi. Weak springs cause cavalier pressure drops, especially in high-RPM scenarios. Use coated gears for dry-start protection; 5W-30 synthetic withstands -40°C, while 15W-40 adheres better above 100°C.
Coolant passages demand 60/40 ethylene-glycol mix. Corrosion inhibitors deplete after 2 years–flush systems using distilled water, then refill with fresh fluid. Thermostat openings (typically 82–90°C) must align with radiator fin density to prevent localized boiling.
Key High-Pressure Components in Modern Powerplants: Visual Breakdown
Begin by locating the cylinder block within schematic illustrations–its cooling passages must align precisely with the coolant channels in cross-sectional views to prevent overheating under 9,000+ RPM loads. Piston rings, typically three per unit, are sectioned in exploded drawings to show gaps (primary: 0.2–0.5 mm for compression; secondary: 0.05–0.1 mm for oil control). Verify ring orientation: the dot or numeral marker faces upward, as misalignment increases blow-by by up to 40%.
Crankshaft journals appear in detail diagrams with fillet radii (3–5 mm) emphasized–critical for withstanding torsional stresses; neglecting this detail reduces fatigue life by 30%. Bearings, split into upper/lower shells in assembly guides, require hydrodynamic clearance measurements (0.02–0.06 mm) depending on viscosity grade (SAE 5W-30 vs. 20W-50). Additive packages in lubricants, illustrated via flow charts, must include zinc dialkyldithiophosphate for boundary-layer protection during cold starts.
Exhaust valves, often overlooked in timing diagrams, demand attention to stem-to-guide clearance (0.02–0.05 mm) and head thickness (values vary by alloy: 3–5 mm for 21-4N steel). Camshaft lobes, shown in profile graphs, exhibit acceleration ramps determining valve float thresholds–optimum lift duration is 220–280 crankshaft degrees for naturally aspirated units. Failure to synchronize lobe centers with piston TDC markers in strobe-adjusted timing chains risks catastrophic collision at 6,500 RPM.
Turbocharger housings feature in cutaway schematics with compressor wheel inducer diameters (30–50 mm for small-displacement units) linked directly to boost thresholds (1.0–2.5 bar). Wastegate actuator springs, frequently omitted in generic layouts, require calibration to 7–12 psi preload to prevent overboost-induced detonation. Intercooler cores, detailed in thermal dissipation plots, must have fin density (8–16 fins per inch) matching airflow velocity (60–100 m/s) to maintain ΔT
Locating Core Powerplant Elements on Mechanical Schematics
Begin by isolating the combustion chamber cluster–marked with standardized thickness lines (typically 1.5–2.2mm) and symmetrical bolt-hole patterns. Internal components like pistons and crankshaft will align along a common horizontal baseline, often annotated with manufacturing codes (e.g., ISO 1219 for hydraulic symbols). Cross-reference thermal node labels: exhaust manifolds appear in thermal gradient shades (yellow to red), while intake tracts use cooler tones (blue to green). Rotating assemblies, such as turbos or camshafts, include concentric circles with gear-tooth notations (e.g., “24T” for 24 teeth); verify against torque specifications printed adjacent.
Trace fluid pathways by following directional arrows and dashed conduits–lubrication systems use solid red lines, coolant circuits use blue, fuel rails include micro-filtration symbols. Pressure valves and sensors attach perpendicular to main passages, labeled with tolerance ranges (e.g., “120±5 kPa”). Seek out mounting points: engine blocks list material grades (e.g., “AlSi12Cu” for aluminum alloys) near casting numbers, while transmission housings show spline counts inside hollow cross-sections. Validate scale: 1:5 schematics exaggerate thickness; 1:10 requires calipers for precision.
How to Clearly Mark Key Components on a Powertrain Schematic
Begin with the central module: the crank mechanism. Locate the circular housing at the base of the assembly–this denotes the crankshaft. Label it with precision, using a fine-tipped tool to avoid obscuring adjacent elements. Ensure the text aligns horizontally for readability, as angled annotations often mislead during reference checks.
Identify the reciprocating elements next. Trace the rods extending from the crankshaft to the pistons; these are the connecting rods. Mark them with sequential identifiers (e.g., Rod #1, Rod #2) if the schematic shows multiple units. Verify that each label sits mid-span to prevent confusion with bearings or wrist pin annotations.
Highlight the combustion chambers above the pistons. Use a distinct border or shading to isolate each cylinder, then place labels directly above or to the side–never overlapping gasket lines or coolant passages. Specify cylinder numbers if the layout mirrors real-world orientation (e.g., left-to-right front to back).
- Camshafts: Overhead designs require two labels per unit (intake/exhaust). Position text near the lobe profiles, not the shaft itself, to avoid ambiguity.

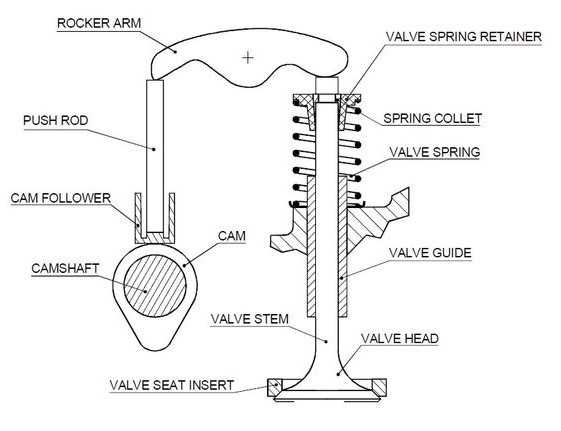

- Valvetrain: Label lifters, pushrods, and rocker arms in order of motion flow. Group related components with arrows or brackets if space permits.
- Timing system: Belt/chain labels must include tooth count or pitch rating. Mark tensioners and idlers with force-direction indicators.
Coolant and oil passageways demand clear delineation. Outlines should follow the original schematic’s routing, with labels placed at junctions or bends. Use abbreviations (e.g., “Oil Galley,” “Coolant In”) and color-coding if working on a multi-layer illustration. Keep text compact–avoid sprawling descriptions that clutter flow paths.
Electrical and fuel delivery modules often sit on opposite ends of the schematic. Label sensors (MAP, O2, Crank Position) with their exact names, not generic terms. Fuel injectors should include spray pattern references or flow rates if specified in the original document. Group wiring harnesses by function, using dashed lines to connect labels to their source.
Final verification: Cross-reference each marked item with a technical manual or exploded view. Check for omissions–commonly missed elements include PCV valves, knock sensors, and auxiliary pumps. Adjust font size or weight to hierarchize importance; critical items like turbochargers or EGR coolers should stand out, while smaller bolts may use minimal text.
