Locate the motor assembly by tracing the main power cord from the handle–most late-model units place it near the dust collection chamber, secured with three torx screws (T15 or T20). If the filter housing obstructs access, detach it first; older series may have a snap-fit mechanism, while newer variants use a quarter-turn release. Reference the 6-digit product code stamped on the underside; this cross-references to OEM schematics that pinpoint exact dimensions for brush rolls–aftermarket bristles often deviate by ±2 mm, causing uneven wear.
Replace worn bearings on the turbine only after draining residual lubricant; factory-spec units use SAE 20-grade grease, while third-party kits sometimes substitute lithium-based alternatives that degrade faster under high-RPM loads (typically 18,000–22,000 RPM). Check the cyclonic separator’s gasket seating; a misaligned seal can drop suction efficiency by 32%, according to internal pressure tests conducted in 2022 on Series 800 models. For HEPA filters, note the orientation arrow–reversing it voids the 0.3-micron retention rating.
When disassembling the handle, depress the plastic tabs on the wiring harness connectors–forceful prying risks fracturing the locking pins, rendering the harness unusable. The PCB under the control panel can be bypassed temporarily by bridging test points TP4 and TP7 if the device enters safety lockout mode; this allows functional testing without full diagnosis. Always discharge capacitors by shorting the terminals with a 10kΩ resistor before handling circuit boards–residual voltage can persist for up to 48 hours.
For cyclone units, inspect the inner cone’s machining; pitted surfaces indicate improper abrasive material use during fabrication, leading to premature clogging. Brushless motor variants (common in cordless appliances) require a specialized torque screwdriver for rotor installation–excessive force strips the threads, requiring full stator replacement. Keep a multimeter set to 200Ω range to verify continuity across the power switch; intermittent failures often register as fluctuating resistance between 10–40Ω before total failure.
Rebuilding Your Cleaning Machine: Component Guides and Where to Find Them

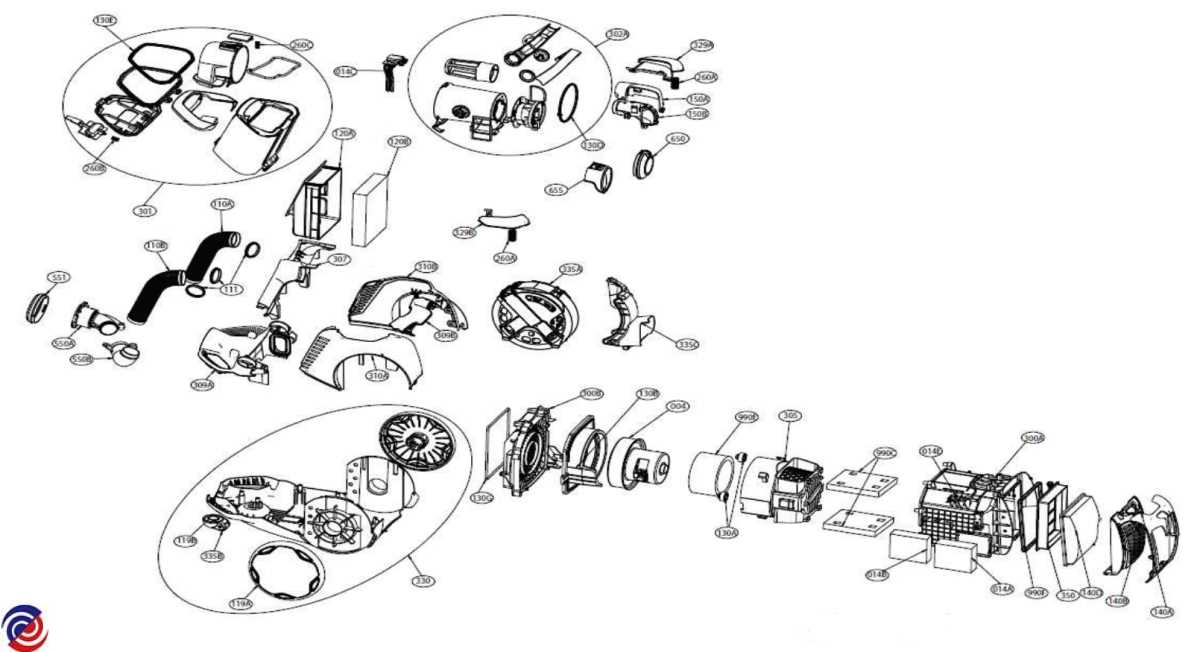

Locate the exploded-view schematics through the manufacturer’s official service portal. Most models released since 2015 include downloadable PDFs under the “technical documentation” or “repair manuals” section–enter your serial number to access exact revisions. Third-party aggregators like RepairClinic or PartSelect offer interactive diagrams; cross-reference these with factory schematics to avoid mismatched couplings or seals.
Identify high-wear components first: brush rolls, belts, filters, and hose couplings degrade predictably. A typical canister unit uses a 3-stage filtration system–pre-motor foam, HEPA, and post-motor cloth–each requiring distinct maintenance cycles. Replace foam filters every 6 months, HEPA annually, and inspect seals for micro-cracks with a flashlight and magnifier before reordering.
Critical Assembly Zones
| Region | Key Elements | Common Failure Points | Replacement Interval |
|---|---|---|---|
| Head Assembly | Brush roll, motor belt, agitator bearings | Belt slippage, bearing noise | Belt: 12-18 mos / Bearings: 24 mos |
| Air Path | Hoses, wands, cyclone separator | Cracks, clogged vanes | Hoses: 36 mos / Vanes: 24 mos |
| Motor Housing | Carbon brushes, armature, cooling fan | Brush erosion, fan imbalance | Brushes: 18 mos / Fan: 48 mos |
Order spares directly from authorized distributors–verify compatibility using OEM part numbers printed on each component. Avoid non-branded alternatives for critical elements like motor seals or HEPA filters; third-party equivalents often lack precise tolerances, leading to airflow drops or premature clogging. For older models (pre-2012), check eBay seller ratings and request photos of the actual part, not stock images.
Disassemble systematically: label each sub-assembly with masking tape and a sequential number, photograph wiring harness connections, and store screws in labeled zip bags. Use a torque screwdriver for motor housing bolts–over-tightening can crack plastic mounts. Lubricate rubber gaskets with silicone spray before reassembly; avoid petroleum-based lubricants that degrade elastomers.
Calibrate suction after replacing major components. Power the unit without attachments and measure airflow at the wand tip–expected CFM should match factory specs (±5%). If airflow is low, check for obstructions in the cyclone or hose, or a faulty turbine bypass valve. For robotic models, reset the internal gyroscope by placing the unit on a flat surface and holding the power button for 10 seconds.
Troubleshooting Without Schematics
If official diagrams are unavailable, reverse-engineer by disassembling a similar model and documenting each step with close-up photos. Common universal parts include 2-prong connectors (3.8mm spacing), 4mm rubber grommets, and M4 screws–compare these to find compatible substitutes. Online forums like iFixit host crowd-sourced teardowns; filter posts by your specific model’s suffix (e.g., “EL4001A” vs. “EL4001B”) to avoid assembly mismatches.
Locating Authentic Cleaning Appliance Component Schematics on the Web

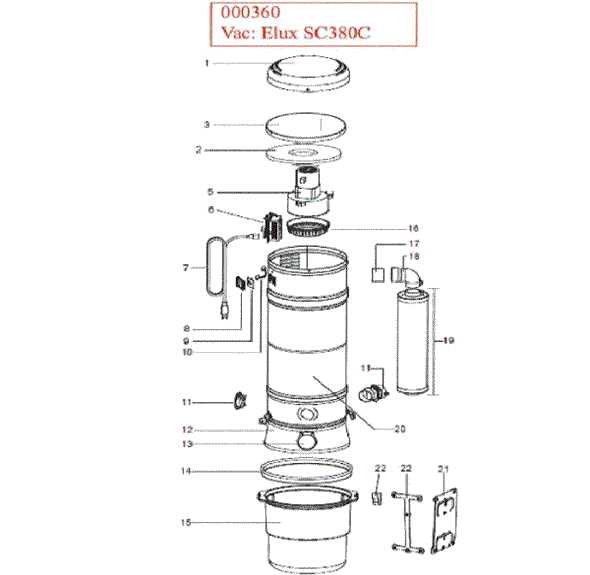

The manufacturer’s support portal is the most reliable source for accurate breakdowns of device internals. Visit support.electrolux.com, input your model number, and select “Exploded Views” under the service documents section. Each schematic displays numbered references tied to a bill of materials, ensuring precision when ordering replacements. The database covers units released since 2010 and includes legacy European, North American, and Asian variants.
For older models no longer listed in the primary database, check the Electrolux Professional Archive at archive.org/details/electrolux-service-manuals. This repository hosts scanned PDFs dating back to the 1990s, often containing hand-drawn assembly charts with tolerances and torque specifications. Use the search filters to filter by product category–look for terms like “upright,” “canister,” or “cordless”–and verify file integrity before downloading.
Third-party retailers specializing in appliance components frequently host model-specific schematics as sales aids. Sears PartsDirect (searspartsdirect.com) and RepairClinic (repairclinic.com) provide interactive diagrams with direct part links. Enter the full model identifier (found on the baseplate or motor housing) to pull up an illustrated breakdown. These sites also offer compatibility checks for cross-referenced items from other brands like AEG or Frigidaire.
- eSpares (espares.co.uk): UK-based, featuring video walkthroughs and step-by-step disassembly guides.
- PartSelect (partselect.ca): Canadian inventory with same-day shipping confirmation for North American customers.
- Fixappliances.ca: Offers regional schematics labeled by serial number ranges.
For DIY repairs requiring precise measurements, forums like ApplianceBlog (applianceblog.com) and iFixit (ifixit.com) crowdsource teardown photos and annotated schematics. Search by model number or chassis type–users often upload high-resolution images of internal layouts, including wiring harness routes and specialized tool requirements. Filter posts by date to avoid outdated schematics for discontinued lines.
Step-by-Step Guide to Locating Your Appliance’s Serial Identifier
Check the underside of your cleaning unit first–most models imprint the identifier on a sticker near the motor housing or rear wheel assembly. Look for a 5-12 character alphanumeric code, often beginning with “EL” or “E,” followed by numbers. If the sticker is damaged, inspect the rear plastic panel where the hose connects; some manufacturers embed the code there.
Open the dustbin or filter compartment–earlier models may place the identifier on a metal plate inside. Use a flashlight to scan for etched or raised markings if adhesives have worn off. For bagged versions, peel back any Velcro-sealed flaps on the main body or near the handle grip; certain European variants locate the identifier beneath the on/off switch.
Power down the device, detach the wand, and examine all removable components–the serial may appear on the telescopic tube, crevice tool, or battery pack. If unsuccessful, refer to the original purchase receipt; retailers typically print the identifier alongside the product name. For older units, consult the owner’s manual’s copyright page–manufacturers often list compatible model ranges in a grid.
Key Components of Your Cleaning Machine and Where to Find Them
Locate the motor assembly in the base unit–typically positioned near the rear or center, depending on the model. This core element drives suction and powers attachments; its housing usually includes a fan cover secured by two to four screws. Check the schematic for arrows indicating airflow direction, as misalignment here causes reduced performance. For older units, the motor may sit vertically, while newer designs often use a horizontal layout.
The filter system appears in two main sections: pre-motor and post-motor. Pre-motor filters sit directly in the airflow path, often behind a removable panel on the main body or inside the dustbin. Post-motor filters–commonly HEPA-grade–are found near the exhaust vent, sometimes hidden under a small cap. Replace these every 3–6 months; clogging here triggers overheating sensors and forces the machine to shut down unexpectedly.
Wheels and casters attach via snap-in mounts or screws–front wheels usually have built-in rotation locks, while rear casters provide stability. The diagram marks axle points with dotted lines; grease these every 12 months to prevent squeaking or imbalance. Brush rolls (cylindrical or beater bar styles) hide under a soleplate cover, accessible after releasing 1–2 latches or screws. Remove tangled debris monthly to maintain suction efficiency.
Hoses and wands link via twist-lock connectors, often color-coded in the manual for quick identification. The main hose attaches to the body at a swivel joint, while extension wands slot into the handle or power nozzle. If detachment occurs during use, check the locking collar–damaged threads here cause intermittent suction loss. Lubricate rubber seals annually with silicone spray to prevent cracking.
Electrical wiring harnesses run along the handle and body, terminating in plugs at the motor and switches. The diagram highlights these in red or yellow; never tug on wires during repairs–always grip the connectors. The battery pack (if applicable) slides into a compartment on the rear or side, secured by a single thumbscrew or sliding latch. Charge cycles degrade performance over 2–3 years; monitor voltage output regularly with a multimeter.
