Locate the thermal fuse on the blower housing–marked TF in most manuals–by removing the rear panel with a Torx T20 or T25 driver. This safety switch, rated for 250V and typically 10A, disconnects power when temperatures exceed 180°C. Failure here often mimics motor or belt issues, leading to unnecessary replacements. Check continuity with a multimeter; resistance should read near 0 ohms if intact.
Inspect the drive belt for fraying or glaze–visible through the front or side access panel. A worn belt, usually part #134163600, slips on the drum pulley, causing extended cycle times. Measure tension by deflecting the belt 25-30mm mid-span; replacement is needed if deflection exceeds 35mm. Always align the belt with the drum’s arrow indicator before securing the pulley assembly.
The heating element, often labeled HE on schematics, mounts inside the exhaust duct near the rear bulkhead. Use an ohmmeter to test for 10-50 ohms resistance; readings outside this range signal coil failure. Disconnect the red and white wires before testing–mistakes here can damage the control board. Replace the element if insulation resistance drops below 1MΩ when tested to the chassis.
For the idler pulley, scrutinize bearing wear by spinning the wheel after disengaging the belt. A faulty bearing emits a grating noise or wobbles during rotation. The pulley (commonly #134513600) should turn smoothly with minimal resistance. Lubricate only if specified in the service manual; over-greasing attracts lint and accelerates failure.
Access the control board by removing the top panel screws–usually two Phillips screws at the rear. Examine capacitors for bulging tops or leaked electrolyte, particularly near the switching power supply. Swollen components require immediate replacement to prevent voltage spikes from damaging the microprocessor. Verify input/output voltages with a scope if cycles abort mid-operation; 5VDC and 12VDC lines should have clean, stable waveforms.
Guide to Locating Components in Your Appliance Schematic

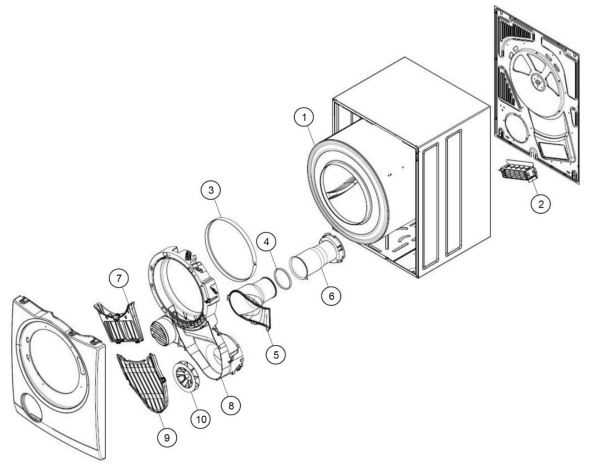

Begin by securing the official technical blueprint for your model–typically found on the manufacturer’s support portal or within the user manual’s appendix. Identify the exploded view section, where components are illustrated in layered order. Key elements to trace first: thermal fuse (mounted on the blower housing), drum belt (wrapped around the cylinder pulley), and motor assembly (positioned beneath the drum support). Misalignment of any of these often triggers heating failures or excess noise.
- Thermal fuse location: Behind the rear panel, adjacent to the exhaust duct–test with a multimeter for continuity before replacement.
- Drive belt routing: Loop over the idler pulley, then under the drum rollers; verify tension by lifting the belt–it should depress no more than 12mm.
- Lint screen housing: Disassemble by pressing release tabs on the upper edge of the door frame–clean weekly to prevent airflow blockages.
For models with reversible doors (e.g., EW8HE or EFME series), note the hinge placement–left-side installations require swapping the door latch mechanism. High-limit thermostat (resets at 93°C) sits near the heater element; ensure wiring harnesses are disconnected before probing with a non-contact voltage tester. Common failure points: corroded terminals on the control board (typically behind the top panel) and worn drum glides (polyethylene strips inside the rear bulkhead). Always cross-reference part numbers with the schematic’s legend to avoid mismatched replacements.
How to Find Your Appliance’s Exact Identifier for Precise Component Matching
Check the inside rim of the door frame–most manufacturers stamp the identifier here, typically in a series of 8 to 12 digits combining letters and numerals. Look for a sticker or engraved plate roughly 2 inches wide, often positioned near the latch mechanism. If obscured by lint, wipe the area with a damp cloth to reveal the full code.
Examine the rear panel next to the exhaust duct; some models affix the identifier on a metallic tag or directly onto the chassis. This location is less prone to wear but may require tilting the unit forward to access. Shine a flashlight along the upper edge where the back meets the top–small print is common here.
For stackable or compact units, search the side walls at waist height. Certain seriesembed the code within a recessed groove or behind a removable trim piece. Gently pry off any plastic covers using a flat-head screwdriver, taking care not to crack the housing. The identifier may also appear on a narrow strip beneath the control knobs.
An alternative location exists beneath the lint trap assembly. Slide the tray fully out, then inspect the cavity’s left or right wall. Some versions place the code on a hinged flap or hidden under a small access door–press firmly to release any clips securing the panel.
If the main identifier is illegible, cross-reference with the serial plate found on the bottom front edge near the kickplate. While less detailed, this secondary tag often includes the first three or four digits required for partial verification. Match these characters against documentation for narrower component filtering.
Record every visible symbol without assuming dashes or spaces are decorative; these delimiters frequently alter search outcomes. Enter the exact sequence into supplier databases–omitting a single hyphen can return incorrect schematics or incompatible substitutes.
Step-by-Step Breakdown of Appliance Internal Component Mapping
Begin by locating the rear access panel–typically secured with 8–12 screws (Phillips #2). Remove it to expose the motor assembly and drum support framework. Label each fastener with masking tape to avoid cross-threading during reassembly.
Identify the heating element enclosure near the blower housing. In most models, it’s a coiled resistance wire encased in a ceramic frame, rated between 4,500–5,600W at 240V. Verify continuity with a multimeter; readings below 20Ω signal a faulty unit.
| Component | Location | Voltage/Wattage | Tool for Testing |
|---|---|---|---|
| Thermal fuse | Adjacent to exhaust duct | 250V/10A | Ohmmeter (OL = failed) |
| Belt tensioner | Mounted on idler pulley bracket | N/A | Visual (cracks = replace) |
| Drum roller | Front/rear drum supports | N/A | Rubber mallet (thumping = worn) |
Disconnect the moisture sensor wires before handling the lint trap assembly. These thin conductive strips (usually 2–4) sit behind the front bulkhead and require cleaning with isopropyl alcohol every 50 cycles to maintain accuracy.
The blower wheel–positioned behind the drum–attaches directly to the motor shaft. Check for debris lodged in the vanes; accumulated lint here reduces airflow by up to 40%, extending drying times. A 10mm socket removes the retaining nut.
Inspect the motor mounting bracket for corrosion. If present, scrape off oxidation and apply dielectric grease to the electrical connectors. Motors in this series often fail at the start capacitor (15–20μF); test with a capacitor analyzer if the unit hums but doesn’t spin.
Reassemble components in reverse order, ensuring the drum belt aligns with the motor pulley groove. Torque screws to 8–10 Nm; overtightening cracks plastic housings. Run an air-only cycle post-installation to confirm unrestricted rotation before reintroducing heat elements.
Key Components of Heat-Pump Tumble Models and Their Roles in Operation
Replace the lint filter every 50 cycles to maintain optimal airflow–clogged mesh reduces efficiency by up to 30%, increasing drying times and energy consumption. The filter housing, typically located behind the door or on the top panel, secures the mesh in place; cracks or warping here indicate potential air leaks, requiring immediate inspection.
Thermal fuses act as critical safety devices, cutting power if temperatures exceed 185°C (365°F). Test continuity with a multimeter–no reading confirms failure. These are single-use components; replace rather than bypass, as tampering voids fire safety certifications.
Drive belts stretch or snap after 800–1,200 hours of use. A slipping belt produces a high-pitched squeal during operation, while a broken belt leaves the drum stationary but motors running. Inspect for fraying: cracks wider than 1 mm warrant replacement. Poly-v belts last longer than standard rubber but cost 40% more.
Heating Elements and Airflow Mechanics
Coil-based heat exchangers in condenser units accumulate lint internally, reducing moisture removal efficiency. Clean the condenser monthly by running it under warm water–avoid compressed air, as it pushes debris deeper into the fins. Units with self-cleaning pumps require less maintenance but may fail silently, so check drainage tubes for blockages annually.
Blower wheels, located behind the rear panel, generate airflow through the drum and exhaust system. Loose or damaged blades reduce CFM (cubic feet per minute) by up to 25%, leading to damp loads. Secure blades with thread-locking adhesive during reassembly to prevent vibration-induced loosening.
Door switches ensure the appliance halts when opened. Test by shutting the door and pressing the switch with a pen–clicking confirms functionality. Faulty switches may cause the drum to spin continuously, posing a safety risk. Replace switches showing burnt contacts or inconsistent operation.
Bearing kits support drum rotation, with sealed bearings lasting 1,500 cycles before requiring service. Rattling or grinding noises indicate wear. Lubricate with high-temperature grease (NLGI #2) before reassembly; avoid petroleum-based products, which degrade rubber seals.
Control boards manage cycles, sensors, and motor speeds. Resetting by unplugging for 5 minutes clears minor errors, but frequent resets suggest faulty relays or capacitors. Diagnostic modes, accessed by pressing specific button sequences (e.g., Power + Start for 3 seconds), display error codes–consult the service manual for interpretations.
