Begin by locating the headstock–this is where tuning pegs (usually 6 on a standard model) adjust string tension. Each peg corresponds to a string, pairing from thickest (low E) to thinnest (high E). Check for cracks or glue failures, especially near the nut, as these weaken stability. If string slippage occurs during tuning, replace the nut with bone or graphite for tighter grip.

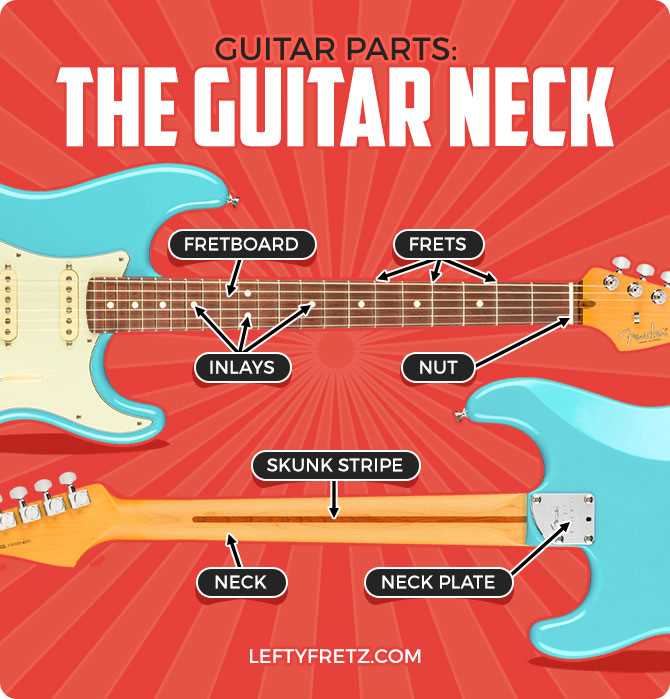

The neck houses the fretboard, marked by inlaid dots or bars (typically at 3rd, 5th, 7th, 9th, and 12th positions). Use these as reference points for accurate fingering. Warped necks cause buzzing; measure relief with a feeler gauge (target: 0.2–0.3mm for most playing styles). Truss rod adjustments are made via an Allen key–turn clockwise to counteract bowing, counterclockwise to reduce relief.
At the body’s core, the pickups (single-coil or humbucker) convert string vibration into signal. Single-coils deliver crisp articulation but pick up interference; humbuckers cancel noise with dual coils but sacrifice brightness. Bridge pickups emphasize treble, neck pickups yield warmth–adjust height by turning screws (start at 2mm from strings). Pots (250kΩ for single-coils, 500kΩ for humbuckers) control tone and volume; scratchy pots require contact cleaner or replacement.
The bridge anchors strings and transmits vibrations. Fixed bridges (like Tune-O-Matic) allow easy string changes but limit tremolo use. Floating bridges (e.g., Floyd Rose) enable dive bombs but require frequent tuning stabilization. Locking tuners (18:1 ratio) reduce slippage during aggressive bending. Saddle height and intonation are set via screws–use a strobe tuner for precision (target: perfect octave match at 12th fret).
Electronics include a switch for pickup selection (3-way or 5-way) and output jack. Loose jacks cause intermittent signal loss–ensure the nut is tight. Wiring diagrams vary by model, but solder connections must be clean; cold joints disrupt sustain. Shielding the control cavity with conductive paint reduces hum. For active pickups, a 9V battery compartment is integrated; expired batteries introduce noise or silence–check voltage (minimum 7V).
Exploring Key Components of a Modern Six-String
To identify worn hardware early, check the fretboard’s inlays for uneven wear–gaps wider than 0.3mm signal fret replacement. Bridge saddles with corrosion or pitting alter intonation; stainless steel models last 3–5 years longer than nickel-plated ones. Volume and tone potentiometers often fail after 1,200–1,500 operational cycles; test resistance with a multimeter–readings above 5% variance demand cleaning or replacement. Pickup pole pieces should sit flush with the bobbin; height deviation beyond 0.5mm causes phase cancellation in humbucker configurations.
Inspect the nut slots every 6 months–graphite or bone materials wear faster than brass. String trees must clamp strings at a 30–45° angle; steeper angles cause tuning instability. Shielding paint inside control cavities reduces interference below -80dB; conductivity below 5 ohms is optimal. Tremolo springs should have minimal rattle–adjust claw screws in quarter-turn increments to maintain balanced tension. Output jacks with loose threading cause intermittent signal loss; gold-plated variants resist oxidation but may need retightening annually.
Critical Elements on an Ax Instrument’s Faceplate
Inspect the front of a solid-body instrument first–focus on the wood’s grain. Maple, mahogany, and alder yield distinct tonal properties; density affects sustain. Maple brightens midrange, mahogany deepens bass, alder balances frequencies evenly. Match wood type to playing style: jazz players benefit from warmer tones, shredders need articulation.
Pickups are the nerve center. Single-coils deliver clarity with crisp treble; humbuckers cancel hum while thickening output. Measure resistance: 6k–9k ohms for single-coils, 10k–16k ohms for humbuckers. Higher resistance increases volume but risks muddiness. Adjust pole pieces to fine-tune string balance–raise or lower screws for even response.
| Component | Function | Material/Type | Impact |
|---|---|---|---|
| Bridge | Anchors strings, transfers vibrations | Steel/titanium, fixed/tremolo | Fixed: stability; tremolo: pitch modulation |
| Tuning pegs | Holds string tension | Die-cast metal, sealed/locking | Sealed: ease of use; locking: tuning stability |
| Strap buttons | Secures strap | Steel, sometimes reinforced | Position affects balance–test with strap on |
Volume and tone knobs react differently per circuit. Audio-taper pots are ideal for linear response; linear-taper suits gradual adjustments. For passive electronics, swap 250k pots to 500k for brighter treble. Active preamps need 25k–50k pots–higher resistance preserves signal integrity. Test with a multimeter: crackling indicates worn pots.
Fretboard radius dictates playability. Compound radii (e.g., 10″–16″) suit shredding; flat radii (12″ or flatter) ease chord work. Rosewood darkens tone, maple brightens it, ebony offers sustain with a slick feel. Lubricate frets with graphite to prevent string squeak–apply sparingly to avoid buildup.
Output jacks often fail first. Use recessed jacks for durability; swivel jacks prevent cable strain. Solder connections with rosin-core wire–avoid acid flux, which corrodes over time. Shield cavities with copper tape or conductive paint to reduce electromagnetic interference; ground all components to a single point for noise reduction.
Nut material alters string interaction. Bone enhances sustain and resonance; graphite reduces friction for tremolo use. Slots should fit strings snugly–1.5x string diameter prevents binding. Lubricate with dry lubricant to avoid tuning instability. Check neck relief–adjust truss rod in quarter-turn increments to avoid over-tightening, which warps the neck.
How to Identify Pickups by Shape and Sound Output
Check the pickup’s silhouette first–single-coils feature slim, elongated bobbins with six adjustable pole pieces (one per string), often visible through the cover. Humbuckers use two wide, rectangular bobbins side-by-side, usually with dual rows of screws or magnets. Stacked designs (mini-humbuckers) mimic single-coil dimensions but include two coils vertically aligned. P-90s stand out with their dog-ear or soapbar housings and a single row of six pole screws beneath a flat, rectangular cover.
- Single-coils: Bright, crisp attack with pronounced midrange punch (e.g., Fender Stratocaster). Noise increases at high gain levels due to 60-cycle hum.
- Humbuckers: Warmer, thicker output with reduced treble and near-zero hum. Bridge models (e.g., Gibson PAF) deliver tighter lows; neck versions offer smoother, bass-heavy tones.
- P-90s: Midrange growl between single-coils and humbuckers–grasping fatter than single-coils but retaining clarity. Noise remains lower than single-coils but higher than humbuckers.
- Active pickups (EMG, Seymour Duncan Blackouts): Flat, high-output response with extended highs and compressed dynamics. Requires battery power; often marked by a preamp circuit casing near the output jack.
Measure the resistance (DC ohms) with a multimeter–values typically range:
– Vintage single-coils: 5–7 kΩ
– Modern single-coils: 8–10 kΩ
– Alnico humbuckers: 7–9 kΩ
– Ceramic humbuckers: 12–16 kΩ
Passive pickups produce organic compression; active models flatten dynamics for consistent volume. Listen for microphonic feedback at high volumes–vintage designs often squeal when tapped, while modern wax-potted versions resist it.
Examine magnet positioning–aluminum-nickel-cobalt (Alnico) magnets under pole pieces emit vintage warmth and softer attack. Ceramic magnets (found in high-output models) deliver aggressive highs and tighter low-end response. Rare-earth magnets (neodymium) offer ultra-bright clarity with reduced bass. Tap the pickup cover lightly–hollow or loose covers indicate possible coil separation, altering tone and sustain.
Tuning the Tremolo Mechanism for Reliable Performance
Begin by locking the vibrato block firmly with the rear cavity cover off. Use a 3mm hex key to tighten the spring claw screws incrementally–half-turn clockwise per screw, alternating sides to maintain balance. Check pitch drift with an electronic tuner after each adjustment. If strings sharpen under tremolo use, reduce spring tension by loosening the screws in 0.25-turn increments. Avoid over-correcting; small changes prevent sudden intonation shifts.
Stabilize the floating bridge by setting its pivot posts parallel to the body. Measure the gap between the baseplate and wood surface at both ends–aim for 1.5mm with light gauge strings (0.009–0.042), or 2mm for heavier sets. Uneven gaps cause binding. To adjust, loosen the two pivot screws slightly, then gently raise or lower the post using a screwdriver as a lever. Re-tighten the screws to 4 Nm torque using a preset driver. Test by depressing the arm fully; the bridge should return to pitch within 3 cycles.
Lubricate contact points with graphite powder after cleaning with isopropyl alcohol. Apply sparingly to knife edges, pivot posts, and saddles–excess causes slippage. For two-point systems, also coat the pivot bushings. Avoid petroleum-based lubricants; they attract debris and accelerate wear. If vibrato response feels sluggish after lubrication, reduce spring tension by 0.5 turns and recheck stability.
For persistent tuning issues, balance string gauge against spring tension. A single spring sustains tension near 8.5 kg for 0.010–0.046 strings, while two springs handle 0.011–0.050 sets. Swap springs in pairs to match stiffness; inconsistent coil diameters alter tension curves. If resonance causes sympathetic string buzz, add a strip of 0.8mm felt between the block and body–this dampens oscillations without affecting pitch return.
