Start by locating the model number–usually stamped on a metallic plate near the engine housing or beneath the fuel tank. This number unlocks access to precise schematics and replacement guides from official manuals or authorized dealers. Avoid generic searches; mismatched components can damage the unit or void warranties.
Key elements to examine include the cutting head assembly, drive shaft, and carburetor. The cutting head often requires periodic maintenance: remove the spool housing to inspect the line feed mechanism for wear. Replace frayed lines immediately–using incorrect diameter or unbranded filament accelerates wear on internal gears.
For engine-related repairs, focus on the air filter, spark plug, and fuel lines. A clogged filter restricts airflow, leading to poor performance; clean with compressed air or replace every 25 hours of use. Spark plugs degrade over time–check electrode gaps (typical range: 0.6–0.7mm) and replace if fouled or eroded. Fuel lines, especially older rubber models, crack under ethanol exposure–upgrade to ethanol-resistant variants during routine service.
Transmission issues often trace back to the gear case. Disassemble carefully: inspect the pinion and ring gears for stripped teeth or excessive grease contamination. Use only manufacturer-specified lubricants–incorrect viscosity causes overheating. Bearings under axial load fail when dirt penetrates seals; pack with marine-grade grease during reassembly.
When sourcing components, prioritize OEM suppliers. Aftermarket parts may fit but often lack precision engineering–for example, third-party starter springs frequently snap under stress. Cross-reference part numbers with the trimmer’s service manual to avoid compatibility errors. Store spare components (e.g., filters, spark plugs) in sealed containers to prevent moisture damage.
Identifying Components of Your String Trimmer: A Illustrated Guide
Begin by locating the engine assembly at the rear of the unit–this section houses the combustion chamber, piston, and crankshaft. Most models feature a two-stroke engine requiring a 50:1 fuel-oil mix; deviations from this ratio risk premature wear or failure. Refer to the serial number stamped on the engine block to cross-reference the exact specifications in your owner’s manual.
The cutting head sits at the opposite end, secured by a plastic or aluminum shroud. Inside, the spool holds the nylon line, which feeds through two or four exit ports. Replace the line when its diameter reaches 0.080 inches (2.03 mm) or breaks down to less than half its original length. Use only manufacturer-approved replacements to avoid jamming the auto-feed mechanism.
Inspect the drive shaft connecting the engine to the cutting head–a flexible or rigid shaft encased in a protective tube. Flexible shafts require periodic lubrication with synthetic grease rated for high temperatures; rigid shafts demand alignment checks every 50 hours of use. Misalignment causes excessive vibration, leading to bearing failure or shaft fracture.
Air filtration systems typically employ a dual-stage filter: a foam pre-filter captures coarse debris, while a paper primary filter traps fine particles. Clean the foam element with mild detergent and water after every 10 hours of operation, replacing it entirely at 100-hour intervals. The paper filter should be replaced, not cleaned, to prevent engine damage from dust ingestion.
Check the throttle trigger and linkage assembly for responsiveness. A stiff or sluggish trigger often indicates gummed-up lubricant or corroded pivot points. Disassemble the trigger housing, clean all metal components with carburetor cleaner, and apply a light coating of silicone-based lubricant to the moving parts. Adjust the throttle cable tension to ensure full return to idle position.
Common Wear Items and Replacement Intervals
| Component | Typical Lifespan | Maintenance Action |
|---|---|---|
| Spark plug | 100 hours | Replace; gap to 0.025 inches (0.64 mm) |
| Drive shaft grease | 50 hours | Reapply high-temperature grease |
| Muffler screen | 200 hours | Clean carbon deposits or replace |
| Fuel filter | 200 hours | Replace if clogged or discolored |
Handle ergonomics rely on vibration-dampening mounts and rubber grips. If mounts crack or grips deteriorate, replace them immediately to maintain operator comfort and control. Use only OEM-grade components to ensure proper fit and vibration attenuation.
The ignition system includes a magneto coil, flywheel, and kill switch. Test the coil’s resistance with a multimeter–values between 2.5 and 3.5 ohms confirm functionality. If resistance falls outside this range, replace the coil. Clean the flywheel fins to prevent overheating and ensure the kill switch stops the engine within 3 seconds of activation.
Exploded View Locations for Critical Assemblies
| Assembly | Reference Page | Key Components |
|---|---|---|
| Engine | 3–5 | Piston, crankshaft, carburetor |
| Cutting head | 6–8 | Spool, bump knob, line guides |
| Throttle assembly | 9–11 | Trigger, linkage, cable |
| Fuel system | 12–14 | Fuel tank, filter, lines |
Locating Critical Elements in Your String Trimmer Schematic
Examine the engine housing first–most schematics label it as the power unit. This section typically includes the cylinder, piston, and crankcase, identifiable by their circular or box-like shapes. Look for annotations like “air filter” or “cooling fins” near this area, as they often connect directly to the engine. If the schematic includes numbered callouts, match these with the legend to confirm exact placement.
The cutting head assembly appears at the opposite end of the engine. Check for three core subcomponents: the spool (where the line exits), the bump knob (used to advance the line), and the gear housing (transfers power from the engine). Schematics often depict the spool as a concentric circle with the line extending outward, while the bump knob may appear as a small triangular or rectangular projection.
Follow the drive shaft–usually a thin, elongated rod running between the engine and cutting head. Its path should be clearly marked, sometimes with annotations like “flexible” or “solid,” depending on the model. Interruptions along this shaft, such as couplings or vibration dampeners, are critical; identify these by their distinct geometric shapes (e.g., hexagons or doughnut-like rings).
Electrical and Fuel System Breakdown
Trace the ignition system starting with the spark plug–typically located near the engine’s top or side. The schematic may label it with a zigzag symbol. From there, follow the wire to the ignition coil (often a small rectangular block) and then to the flywheel (a larger, circular component with fins or magnets). Verify gaps between these parts if the diagram includes measurements.
Fuel system markings include the carburetor (a complex assembly with multiple ports) and the fuel tank (usually a bottle-shaped outline). Look for small hoses linking these components; schematics often use dashed or dotted lines to indicate fuel lines. Identify the primer bulb (a circular button) and check valves (one-way arrows) along these paths.
Structural and Ergonomic Components
Handlebars should appear as elongated grips, sometimes with subtly shaded areas to indicate rubberized pads or vibration absorbers. The throttle and trigger assembly will be attached to one side–schematics often exaggerate these for clarity, showing the trigger as a lever and the throttle lock as a small button. Confirm the routing of the throttle cable, which should connect directly to the carburetor.
- Shrouds and guards: Look for semicircular or triangular shapes near the cutting head and engine. These components protect internal mechanisms from debris.
- Exhaust ports: Typically marked with arrows or shaded areas at the engine’s rear, indicating airflow direction.
- Adjustment screws: Small circles with slots, often labeled “H” (high speed) and “L” (low speed) near the carburetor.
Compare the schematic’s exploded view of the cutting head with the assembled diagram. The exploded view separates the spool, gear housing, and bump knob, showing how they interlock. If maintenance is needed, this view clarifies disassembly steps–pay attention to washers and springs, which can be difficult to reinstall correctly.
Finding the Motor and Fuel Mixer on String Trimmer Blueprints
Begin by identifying the upper third of the technical illustration–most handheld brushcutter schematics position the power unit here, adjacent to the fuel tank. The motor housing is typically a metal shroud with cooling fins, clearly labeled with reference numbers like “M-42” or “ENG-11” in the legend. If the fuel mixer isn’t immediately visible, trace the fuel lines; they always lead directly to the carburetor assembly, which sits between the air filter and the cylinder.
Key Landmarks in the Schematic

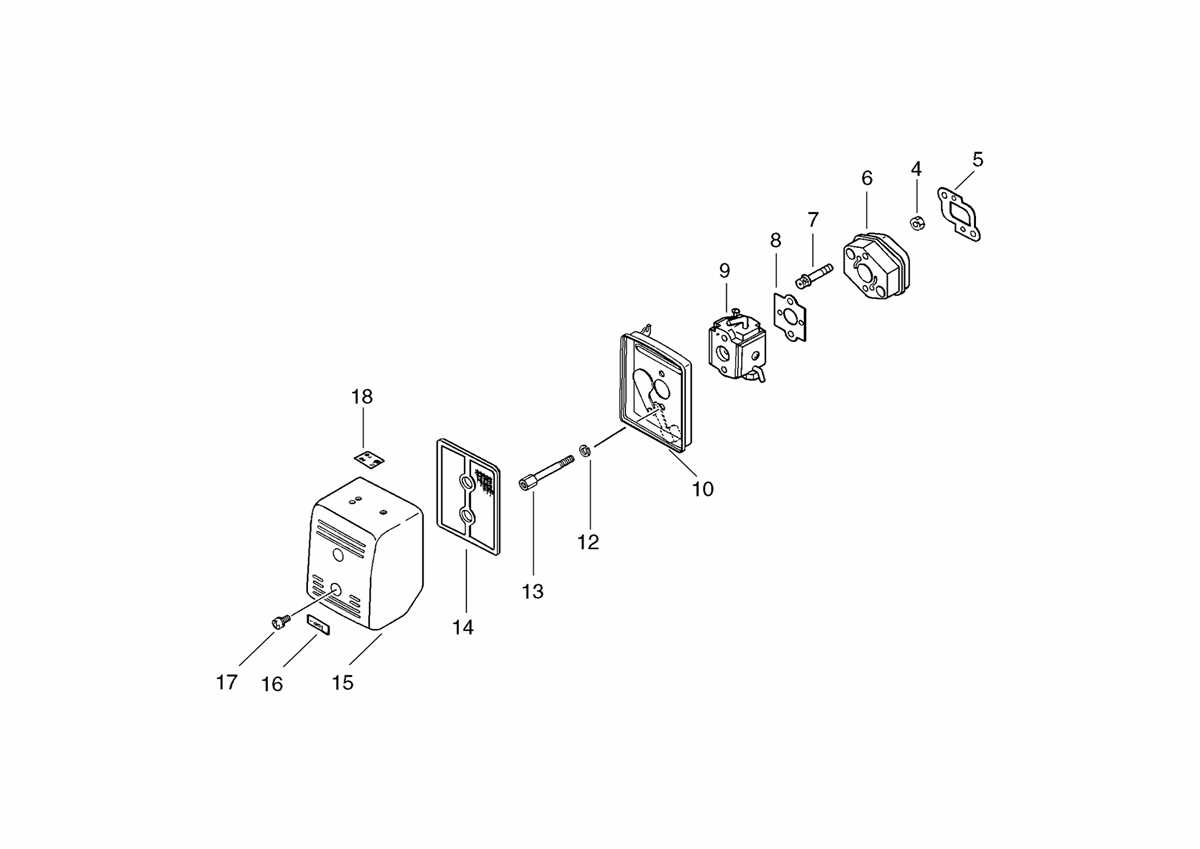

Look for these components to pinpoint the exact location: the spark plug wire (originates from the top of the motor), the air intake (a circular or rectangular opening near the fuel mixer), and the throttle linkage (a slender rod connecting the trigger to the carburetor). On exploded views, the fuel mixer often appears as a compact, box-like structure with two or three adjustment screws–these regulate idle speed and fuel mixture.
Schematics from 2015 onward group the motor and fuel mixer under a single assembly label, such as “Powerhead Unit.” Earlier models (pre-2010) may split them into separate sub-assemblies, requiring cross-referencing with the bill of materials. If disassembly is needed, note the orientation of the fuel mixer’s gaskets; they must align with the intake ports to prevent leaks.
For models with a straight shaft, the motor usually sits just below the drive shaft coupling, while curved-shaft versions place it closer to the rear handle. Always verify the throttle cable routing–it must avoid sharp bends to prevent binding, which restricts engine response.
