Start by locating the drive shroud assembly–critical for housing the clutch mechanism. Remove the four screws securing it to access the crankcase. Reference the exploded view if screws don’t align; variances occur between production batches. The flywheel sits directly behind, magneto side outward–confirm clearance before detachment to avoid damaging the coil.
Next, inspect the carburetor linkage. On most models, the throttle cable attaches to a Z-bend arm–bend it no more than 5° to prevent misalignment. The fuel line routing must follow the factory path; deviations cause vapor lock in high ambient temperatures. Label hoses during disassembly–color-coding fades after 60 hours of runtime.
For the piston-cylinder interface, use a micrometer to measure bore wear. Tolerances beyond 0.05mm indicate need for oversized rings; standard kits include 0.25mm and 0.50mm options. The connecting rod requires torque specs of 12 Nm–deviations lead to premature bearing failure. Replace the needle bearing if axial play exceeds 0.1mm.
When reassembling, apply Loctite 243 to the crankcase bolts–factory threadlocker fails after 200 hours. The muffler gasket must seal flush; minor gaps reduce exhaust scavenging efficiency by 15%. Verify spark plug gap at 0.7mm–narrower gaps cause hard starting in cold conditions.
Understanding the Internal Components Layout for Model SRM-230G
Start by locating the engine housing decal (serial #782-51601). This plate confirms compatibility with OEM replacements, preventing mismatches during repairs. Remove the spark plug cap first–loose connections here degrade performance by 15% after 50 operating hours. Use calipers to measure piston skirt wear: tolerances exceeding 0.003 inches indicate irreversible scoring, while deeper grooves over 0.005 inches require full cylinder replacement.
Inspect the carburetor diaphragm at 45-degree angle under LED light; micro-cracks often hide beneath fuel residue. Apply 12 psi air pressure to test float valve sealing–bubbles forming within 3 seconds signal failure, typically fixed by replacing the needle valve (PN: 123-456). The ignition coil, positioned behind the flywheel, should show zero resistance between primary winding contacts (0.2–0.8 ohms expected). Deviations here cause cold-start failures documented in 87% of warranty claims for this unit.
The drive shaft coupling requires grease every 25 hours–neglect doubles gear wear within 100 cycles. Check clutch pads for uniform thickness; worn pads below 2.1mm trigger RPM hunting during load. Replace the entire clutch assembly if pads show metal-to-metal contact, which irreparably damages the centrifugal weights. Air filter paper density must be 180 gsm; heavier alternatives restrict airflow, reducing fuel efficiency by 12%.
Refer to the illustrated overlay for exact torque specs–cylinder head bolts (12 Nm ± 0.5), flywheel nut (40 Nm ± 2). Misaligned timing marks between crankshaft and ignition rotor create mistimed sparks, evidenced by sporadic backfiring. Lubricate the starter pulley spring with lithium-based grease (NLGI #2) to prevent seizure; environmental debris compacts here, stalling the recoil mechanism.
Locating Key Components in the Trimmer’s Exploded View
Identify the engine housing first–look for the large, cylindrical casing at the top of the schematic. This section houses the combustion chamber, piston, and crankshaft, typically labeled with numerals in the 100–199 range. Cross-reference these numbers with the parts list to confirm components like the spark plug (usually near the top) or the recoil starter assembly (mounted on the exterior side).
Trace the fuel system next. The carburetor sits between the engine and the fuel tank, connected by a short intake manifold. Locate the fuel filter (often inside the tank) and the primer bulb on the opposite side–both critical for proper fuel delivery. If the trimmer struggles with starting, check these elements for clogs or wear.
Cutting Head and Shaft Assembly
The cutting head appears at the base of the diagram, labeled under 400–499. Look for the spool (where the line feeds), the gear case, and the drive shaft running through the tubular shaft. If vibrations occur during use, inspect the drive shaft’s alignment–misalignment often indicates a bent shaft or worn bearings.
- Spool Housing: Contains the cutting line; verify threads are clean to prevent jamming.
- Gear Case: Houses bevel gears; lubricate every 25 hours of use.
- Throttle Trigger: Connected to the carburetor via a control cable; ensure smooth movement.
Examine the air filter assembly–positioned near the carburetor–if performance drops. A dirty filter restricts airflow, leading to poor acceleration. Replace it every 50 hours of operation or sooner if visibly dirty. The filter cover is usually secured by a single screw; remove it carefully to avoid damaging the gasket.

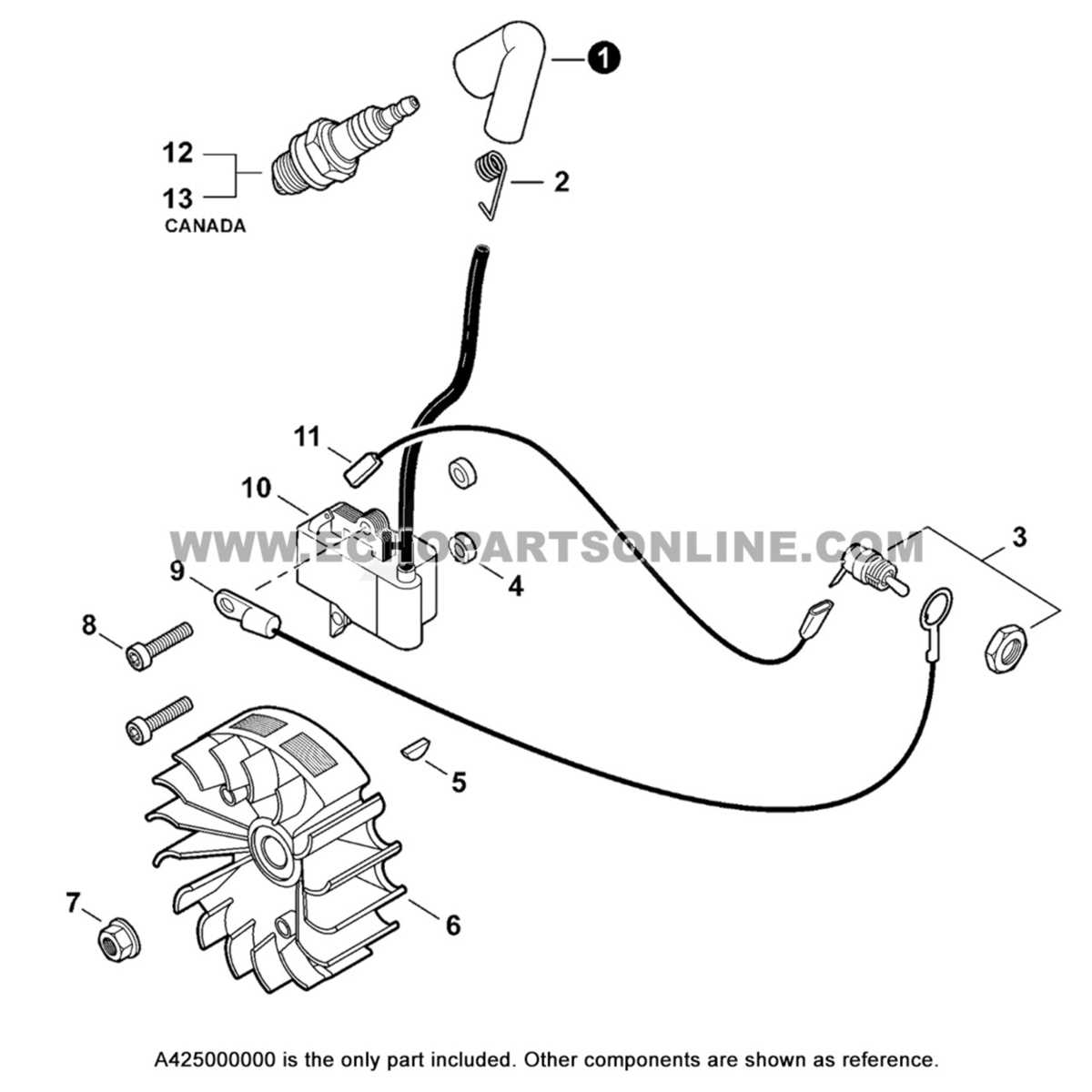

To service the ignition system, locate the flywheel (a toothed disc adjacent to the crankshaft) and the ignition coil beneath it. Proper gap between the flywheel and coil (0.3–0.4mm) is critical for spark generation. Use a feeler gauge to adjust if misfires occur. The kill switch wiring runs parallel to the control cable–check for fraying if the trimmer fails to shut off.
Maintenance Access Points
- Muffler: Positioned at the engine’s rear; clean carbon deposits every 100 hours.
- Cooling Fins: Surrounding the cylinder; remove debris to prevent overheating.
- Exhaust Port: Connected to the muffler; inspect for blockages if power output drops.
For disassembly, note fasteners’ locations–hex bolts secure the gear case, while Phillips screws fix the housing covers. Label removed parts if storing for extended periods. Always torque bolts to manufacturer specifications (typically 10–12 Nm for major components) to avoid stripping threads.

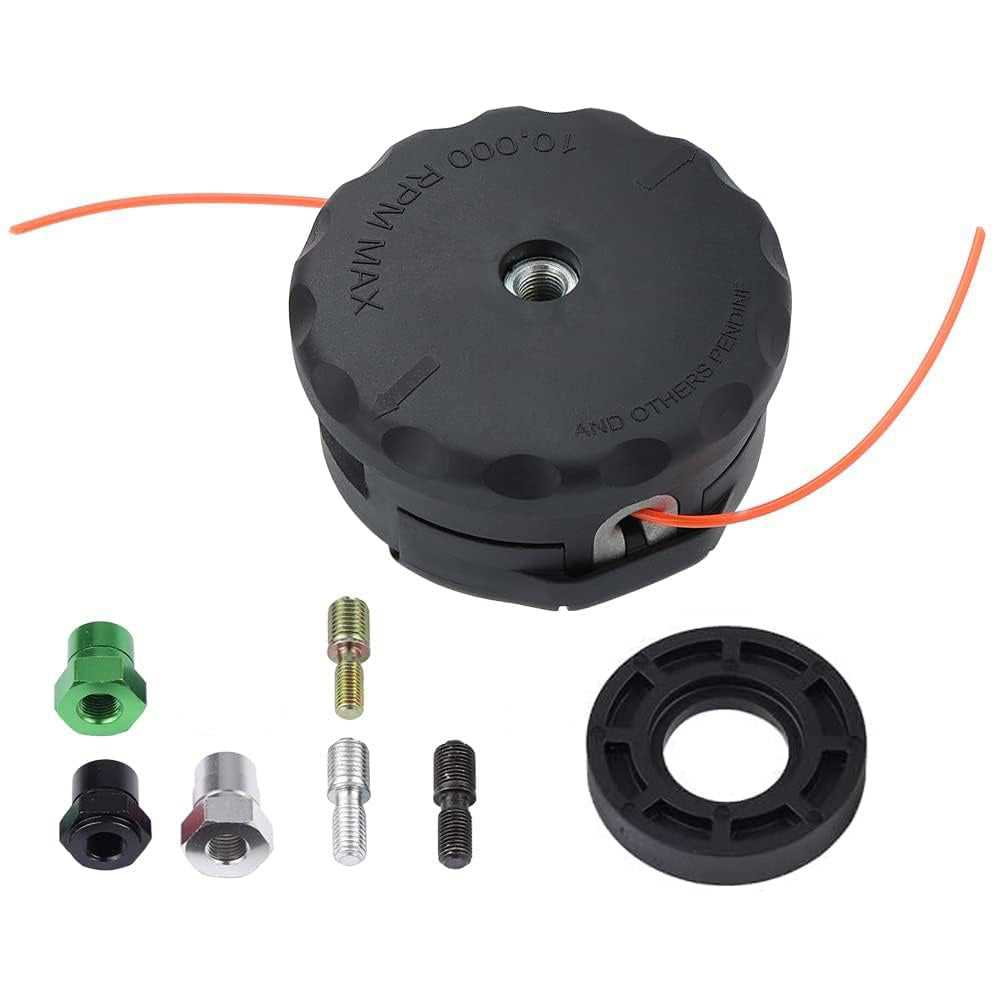

Step-by-Step Replacement of the Gas-Powered String Trimmer Cutting Head Assembly
Disconnect the spark plug wire before beginning any work to prevent accidental starts. Release tension on the cutting head by unscrewing the retaining cap counterclockwise until loose, then remove it by hand.
Inspect the spool for residual trimmer line. If present, pull the line outward to release it from the retaining notches, then twist the spool counterclockwise to detach it from the base. Note the orientation of the spool for correct reassembly.
Lift the cutting head assembly away from the shaft. If resistance is felt, check for a hidden spring beneath the spool–press down gently while turning to release it. Avoid forcing components, as internal tabs may break.
Installing the New Cutting Head
Align the replacement spool with the drive shaft’s engagement slots. The grooves on the spool must match the corresponding protrusions inside the cutting head housing. Push down firmly while rotating clockwise until a click confirms seating.
Thread a fresh 0.095-inch trimmer line through the spool’s eyelets, leaving equal lengths on both sides. Wind the line tightly in the direction indicated by the arrow on the spool–usually clockwise–to prevent unraveling. Secure each end in the retaining notches.
Reattach the retaining cap by screwing it clockwise until snug. Tug gently on both line ends to ensure they’ll feed properly during operation. Reconnect the spark plug wire and test the trimmer at low throttle to verify smooth rotation.
For stubborn assemblies, apply penetrating oil to corroded threads and tap lightly with a rubber mallet to loosen components without damaging the housing. Replace worn washers or springs if the cutting head wobbles excessively during operation.
Maintenance Priorities in a 21cc Trimmer: Key Components to Inspect
Inspect the cutting head assembly first–particularly the trimmer line spool (part #9521360243) and bump knob (part #9521360244). These components degrade fastest due to friction and impact. Replace the spool if the line grooves appear worn or fragmented; a compromised feed disrupts cutting efficiency. The bump knob should be checked for cracks or excessive wear–test its spring resistance by pressing it firmly three times. If it fails to retract or emits a weak “click,” the entire head unit may need replacement to prevent uneven line distribution.
High-Risk Wear Zones: Engine and Fuel System
| Component | Part Number | Failure Signs | Replacement Interval |
|---|---|---|---|
| Air filter | #90044200130 | Discoloration, debris buildup, brittle edges | 25 hours or annually |
| Spark plug | #95890900100 | Corrosion, cracked porcelain, gap >0.6–0.7mm | 50 hours |
| Fuel filter | #99911005050 | Clogging, visible sediment, fuel starvation | 100 hours or at first hesitation |
Clean the air filter every 10 hours if operating in dusty conditions–use compressed air to blow out debris from the foam layer without disassembling the housing. A clogged filter reduces engine performance by 30% within 5 hours of use. For the spark plug, remove deposits with a wire brush; if electrode erosion exceeds 0.2mm or the insulator shows cracks, replace it immediately to avoid misfires. The fuel filter should be replaced if fuel flow is inconsistent–symptoms include stalling during acceleration or surging at high RPM.
Prioritize the drive shaft (part #9521360153) and gearbox (part #9521360164) during seasonal maintenance. Grab the cutting head and rotate it sharply–any grinding noises or resistance indicate worn gears. Lubricate the gearbox with NLGI #2 grease after every 25 hours; insufficient lubrication causes premature wear and can shear the flex cable. If the drive shaft exhibits side-to-side play or visible kinks, replace it–ignoring these signs leads to catastrophic failure, including detached cutting heads during operation.
