Begin by locating the crankcase assembly–it houses critical elements including the crankshaft, bearings, and seals. Reference position A3 on most official schematics, where the crankshaft connects to the piston via the connecting rod. Misalignment here accelerates wear on the big-end bearing; verify torque specs (12-15 Nm) before reassembly. Replace the seal ring at position C7 if compression drops below 110 psi.
Next, inspect the cylinder head and its subordinate parts. The intake valves (marked H5) and exhaust valves (H6) require clearance adjustments every 50 hours of operation–target 0.15–0.20 mm for optimal performance. The spark plug (position J1) should be gapped at 0.6–0.7 mm; failure to maintain this interval leads to pre-ignition.
For the fuel delivery system, focus on the carburetor sub-assembly. Clean the idle jet (F4) with 0.4mm wire if stalling occurs at low RPM. The fuel filter (D2) clogs after 100 hours–replace it to prevent lean conditions. Verify the diaphragm pump (E8) for cracks; a compromised diaphragm reduces fuel pressure to 2.8 psi.
The ignition module (K3) operates at 20,000V–test for continuity using a multimeter; resistance should read 5–7 kΩ. The flywheel (L9) must align precisely with the stator; incorrect timing (fixed at 22° BTDC) causes backfires. Replace the recoil starter (M2) if the cord retracts slower than 0.5 seconds.
Finally, examine the muffler and emission controls. The catalytic converter (N5) degrades after 150 hours–check for dark residue on the outlet. The exhaust gasket (P7) compresses over time; replace if thickness drops below 1.5 mm. Use Loctite 242 on all bolts to prevent vibration loosening.
Mastering Your Yard Tool’s Component Layout
Locate the air filter assembly under the rear engine cover–specific models require removal of two 10mm bolts securing the plastic housing. Replace the foam element every 10 operating hours if working in dusty conditions; a torn element reduces RPM stability by 30%. Label disconnected wires if disassembling the ignition coil; mismatched connections cause hard starts or misfires. Use a torque wrench for the flywheel nut (12-15 Nm)–overtightening warps the crankshaft taper, leading to premature bearing wear.
Clean the carburetor float chamber with non-chlorinated brake cleaner; residue clogs the idle circuit within 5 hours of ethanol-blended fuel exposure. The throttle linkage pivot requires lithium grease every 25 hours–lack of lubrication increases response lag. For the drive system, check the centrifugal clutch shoes at 50-hour intervals; wear beyond 1.5mm thickness slippage occurs. Secure the chain tensioner with Loctite 243 when reassembling; vibration loosens it within 10 hours if untreated.
Locating Authorized Schematics and Component Lists for the ES Series Trimmer
The manufacturer’s regional support portal provides direct access to technical documents. Register an account at echo-usa.com/Support, select the compact landscaping tool category, then filter by model variant. Look for files labeled “exploded view” or “service manual” under downloadable resources–these contain annotated illustrations for every detachable piece, including O-rings, shafts, and housing assemblies.
- Search the United States site for North American market models–EU, APAC, and LATAM regions maintain separate databases.
- Check the document revision date; post-2021 schematics reflect updated fasteners and sealing components.
- Identify part codes printed directly on diagrams–use these when ordering replacements through authorized dealers.
- Smaller assemblies (e.g., carburetors, ignition coils) often link to dedicated sub-diagrams.
Authorized dealers maintain physical archives of printed schematics. Visit a service center listed on the manufacturer’s locator page–bring the serial number etched on the engine casing. Request a copy of the “field maintenance” folio; certain dealers scan and email specific pages upon verification of ownership. Avoid third-party auction sites; bootleg PDFs frequently omit lubrication points and torque specifications.
Locating Key Engine Elements in the Illustrated Guide

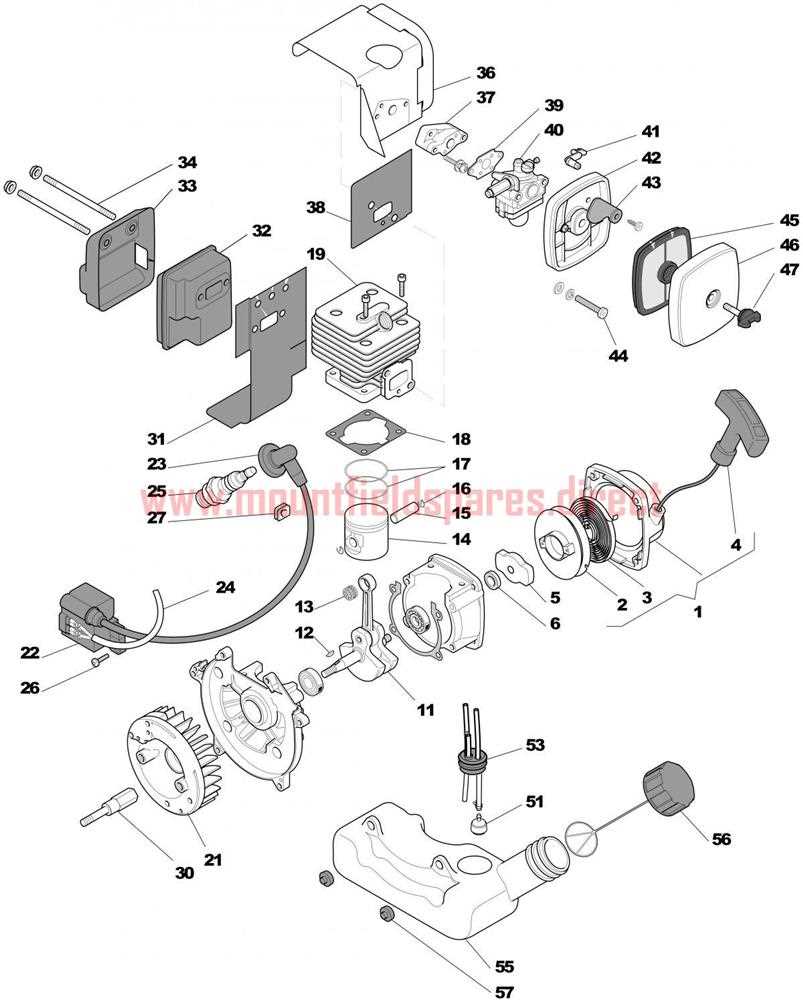

Start by referencing the component numbering system on the schematic–each element correlates to a label in the legend, typically listed in ascending order around the engine block. The crankshaft pulley, often marked near the bottom, sits adjacent to the recoil starter assembly, distinguishable by its spring mechanism and pull cord.
Trace the fuel delivery system: the carburetor mounts atop the intake manifold, connected via a rubber boot. Below it, locate the fuel filter–usually a transparent housing with inlet/outlet ports–positioned between the tank and pump. The pump itself is identified by its diaphragm and priming lever.
Distinguishing Electrical and Ignition Components
Identify the ignition coil by its cylindrical shape and two lead wires–one to the spark plug, another to the kill switch. The flywheel, a toothed metal disc, covers the magneto system beneath; remove it only after disconnecting the spark plug wire to prevent accidental engagement.
The spark plug resides in the cylinder head, threaded into the combustion chamber. Check the gap specification in the manual (typically 0.025 inches) before reinstallation. Nearby, the exhaust port connects to the muffler via a gasket-sealed flange–torque screws to 12 ft-lbs to prevent leaks.
Verifying Cooling and Lubrication Pathways
Air-cooled models rely on finned cylinder heads; clean debris from these ridges to maintain airflow. The oil drain plug, hex-shaped and magnetized, sits at the base of the crankcase–drain old lubricant before removing the cover to access the crankshaft bearings.
Reassemble components in reverse order: apply thread locker to bolts securing the flywheel (25 ft-lbs torque), and ensure the piston rings align with the compression ring gaps at 120° offsets. Cross-reference each step with the exploded view’s callouts to avoid misalignment.
Test-fit the recoil starter before finalizing covers–verify the pawl engages the flywheel teeth smoothly. Replace any worn gaskets with OEM equivalents to prevent air leaks or oil seepage.
Step-by-Step Assembly Reference Using the Chainsaw’s Exploded Schematic
Begin by securing the fuel tank assembly (item #12) to the engine housing using the pre-threaded bolts (item #34) torqued to 12-15 Nm–over-tightening risks stripping. Align the air filter cover (item #7) flush against the intake vent before inserting the retaining clips (item #19), ensuring no gaps for debris ingress. For the carburetor linkage (item #28), attach the throttle cable before connecting the return spring, as reversing this order complicates access to the pivot point. Label each component’s position on the schematic with removable tape to avoid misplacement during reassembly of the crankcase cover (item #5).
Verify the spark plug wire (item #42) has a minimum 3 mm clearance from the flywheel (item #3) before fastening; interference causes misfires. When installing the muffler (item #15), apply high-temperature silicone to the gasket (item #16) to prevent exhaust leaks–standard RTV sealant fails under thermal cycling. Test the chain brake mechanism by sliding the hand guard forward before mounting the bar; resistance indicates improper alignment of the actuator pin (item #41). Store leftover fasteners in magnetic trays sorted by size to prevent losing the 4 mm flange nuts (item #37), critical for maintaining structural integrity.
Key Component Codes for ES-250 Series Upkeep

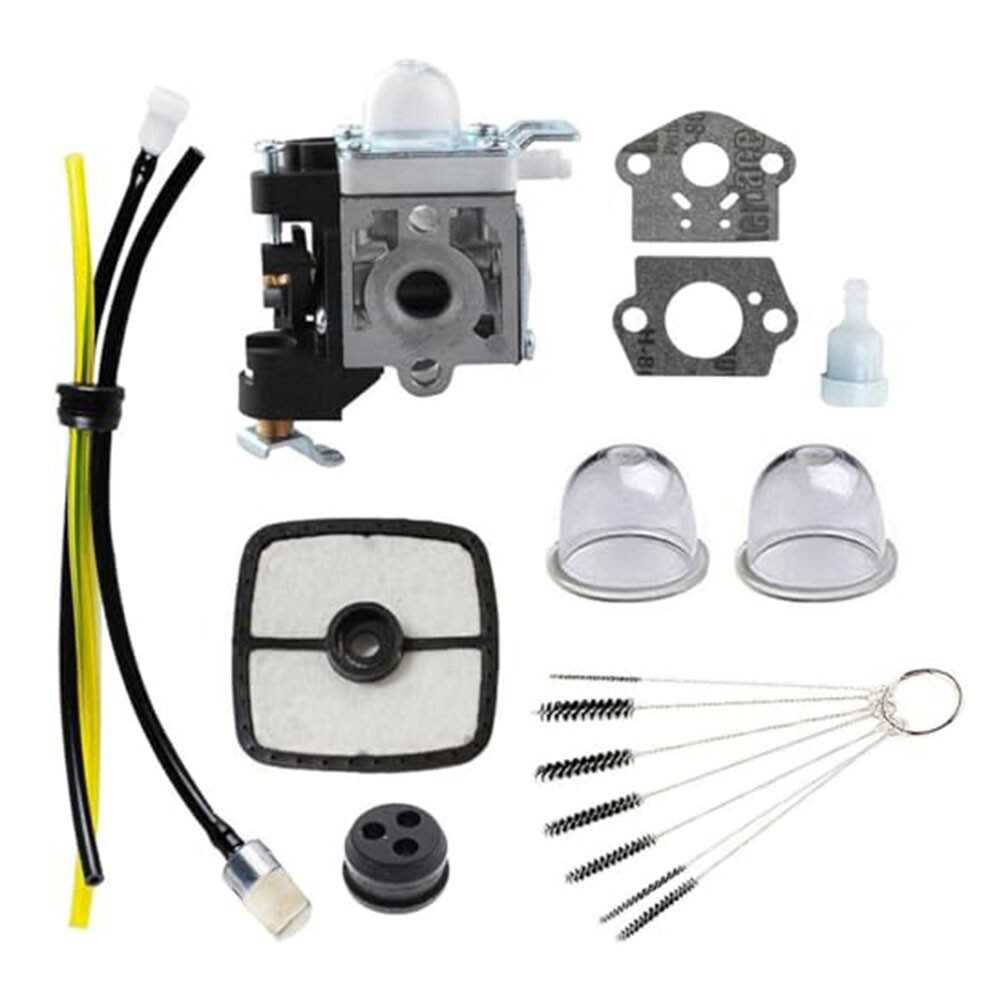

Replace the air filter every 50 operational hours or seasonally–OEM model 13081006030 fits all 2015-2023 trimmers. Pre-cleaner foam 13081007008 prevents debris buildup but requires rinsing weekly. For carburetor overhauls, gasket set 13121006080 includes all diaphragms and seals; clean jets 13121008002 and 13121008003 separately to avoid fuel starvation.
Ignition and Drive System Identifiers
| Component | PN (OEM) | Service Interval |
|---|---|---|
| Spark plug | 13201006000 | 25 hours |
| Flywheel | 13201007010 | 300 hours |
| Starter rope | 13231006010 | As needed |
| Drive shaft (flex) | 13331006020 | 200 hours |
Gear cases demand 13371006010 lubricant (synthetic grease) applied sparingly every 100 hours; overpacking causes drag. Clutch shoes 13321006000 wear unevenly–check diameter against spec sheet if engagement RPMs drift. Exhaust port 13171006000 clogs with carbon; remove baffle monthly for cleaning. Fuel line 13581006000 (inner Ø 2.5mm) and primer bulb 13581006010 should be swapped simultaneously to prevent leaks.
