Replace faulty or worn elements in your upright cleaner by referencing a precise schematic illustration. Start with the motor housing assembly–the core unit typically situated behind the cyclonic separation chamber. Locate the brush roll beneath the suction head: it should spin freely once the base plate is removed. If resistance occurs, inspect the drive belt–this flexible linkage connects the roller to the motor shaft and deteriorates over time.
Examine the dust bin latch mechanism next. Two small plastic tabs secure it; pry them gently to avoid cracking. The HEPA filter, positioned near the exhaust port, must be cleaned or swapped every six months to maintain airflow. Ignoring this step reduces suction efficiency by up to 40%. For the wand and hose, detach the release button on the handle, then slide the segments apart–check for blockages with a straightened coat hanger.
Focus on the circuit board if electronic issues arise. Remove the upper casing screws, then lift the panel to reveal the control module. Look for burnt traces or swollen capacitors; replace damaged components with exact-voltage equivalents. When reassembling, align the clutch mechanism on the wand joint–misalignment causes intermittent power loss during operation. Keep torque consistent on all screws to prevent stripping the plastic mounts.
Store a printed visual guide inside the vacuum’s accessory bin. Mark each step with a highlighter as you disassemble; track screw sizes and locations using labeled containers. Reference the serial number etched on the underside–match it when ordering replacements to ensure proper fit. Test functionality after each repair by running the cleaner on low power before full operation.
Vacuum Cleaner Component Breakdown: Maintenance Simplified
Start disassembly by removing the cyclone assembly–grip the release tab near the handle and lift upward. The pre-motor filter sits beneath the transparent bin; twist counterclockwise to detach. Replace every 3–6 months or when airflow weakens (check resistance: if inlet pressure drops below 25 kPa, clogging is likely). For post-motor filters, locate the two screws securing the base plate–use a T10 Torx driver to remove them. Clean with lukewarm water, never detergent, and air-dry for 24 hours to prevent compression loss.
| Component | Tool Required | Tip | Wear Interval |
|---|---|---|---|
| Drive belt | Flathead screwdriver | Align teeth with roller groove; stretch slightly for snug fit | 6–12 months |
| Brush bar | 13mm socket | Trim hairs with scissors before removing–prevents shaft scoring | 9–18 months |
| Wand release clip | Pliers | Inspect for cracks; lubricate pivot points with silicone spray | 24 months |
Troubleshooting Common Failures
If the unit loses suction mid-cycle, first inspect the hose for blockages–insert a broom handle through the wand and tap the interior to dislodge debris. Power fluctuations (intermittent drops to 850W) often stem from overheated thermal cutouts: let cool for 30 minutes before resuming. For brush motors emitting high-pitched whines, check carbon brush length–replace when wear reaches 5mm; use only OEM replacements (aftermarket brushes risk motor friction).

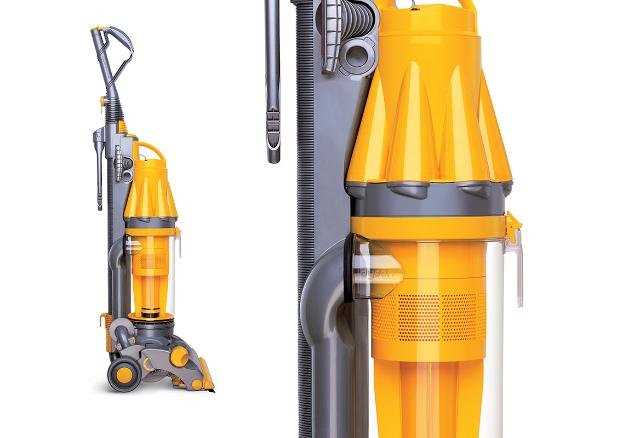

Identifying Key Components of Your Upright Vacuum for Self-Service Repairs
Begin by locating the cyclonic assembly–typically the transparent plastic chamber near the unit’s base. Detach it by pressing the release latches on either side and lift upward. Inside, you’ll find the primary filters: a pre-motor foam insert and a post-motor HEPA disc. Both require rinsing under cold water every 3–6 months, depending on usage. Avoid squeezing the foam; instead, gently agitate it to dislodge trapped dust. The HEPA filter is not washable in most models–replace it if the surface appears discolored or the edges are frayed.
Next, inspect the brush roll housing beneath the suction head. Remove the soleplate by unscrewing the two corner screws (a Torx T10 driver is often needed) to access the agitator bar. Clear hair, threads, or carpet fibers wrapped around the bristles using scissors or a seam ripper. Pay attention to the end caps–these small plastic covers often crack, causing the brush to spin unevenly. Replacement caps typically cost under £8, but ensure the new part matches the original’s clutch mechanism (marked by a gear tooth pattern).
Check the wand and hose connection at the rear of the machine. A persistent loss of suction often traces to this joint–twist the hose counterclockwise to detach it, then examine the rubber O-ring inside the port. If it’s brittle or deformed, swap it for a new one (part number 914567-01). While detached, run a straightened wire hanger through the wand to clear blockages; a single piece of debris here can reduce airflow by up to 40%.
Electrical and Structural Checks
For intermittent power issues, focus on the power cord’s strain relief where it enters the unit’s handle. Peel back the rubber sleeve to expose the internal wires–frayed strands here are a common failure point. Strip and re-solder any damaged sections, or replace the entire cord if damage extends beyond 5cm from the entry point. On the underside, the pivot bearings (small white plastic rings surrounding the rear wheels) wear out over time, causing the vacuum to drag. Lubricate them with PTFE powder or replace the entire wheel assembly if the grooves appear eroded.
Quick-Reference Fault Codes
Flashing red light on the trigger: Thermal cutout activated–unplug and let the motor cool for 20 minutes. Single beep during operation: Blocked airflow path; check the wand, hose, and cyclone for obstructions. No power but LEDs blink: Internal fuse blown; located behind the battery tray on corded variants (replace with a 10A fuse).
Step-by-Step Guide to Taking Apart Your Vacuum Cleaner for Component Swap
Unplug the device and lay it on a clean, flat surface. Remove the clear bin by pressing the release button located on the top rear of the canister. Set it aside, ensuring the filter inside isn’t disturbed–handle it only if replacement is needed. Next, detach the wand by sliding the collar upward and pulling it straight out from the suction hose. This exposes the main body for further disassembly.
Turn the unit upside down to access the base. Remove the brush roll cover by locating the two clips on either side–press them inward while lifting the cover off. The brush roll will now be visible; remove it by unscrewing the small bolt at the end using a T10 Torx driver. Note the orientation of any gears or belts before lifting the brush roll out.

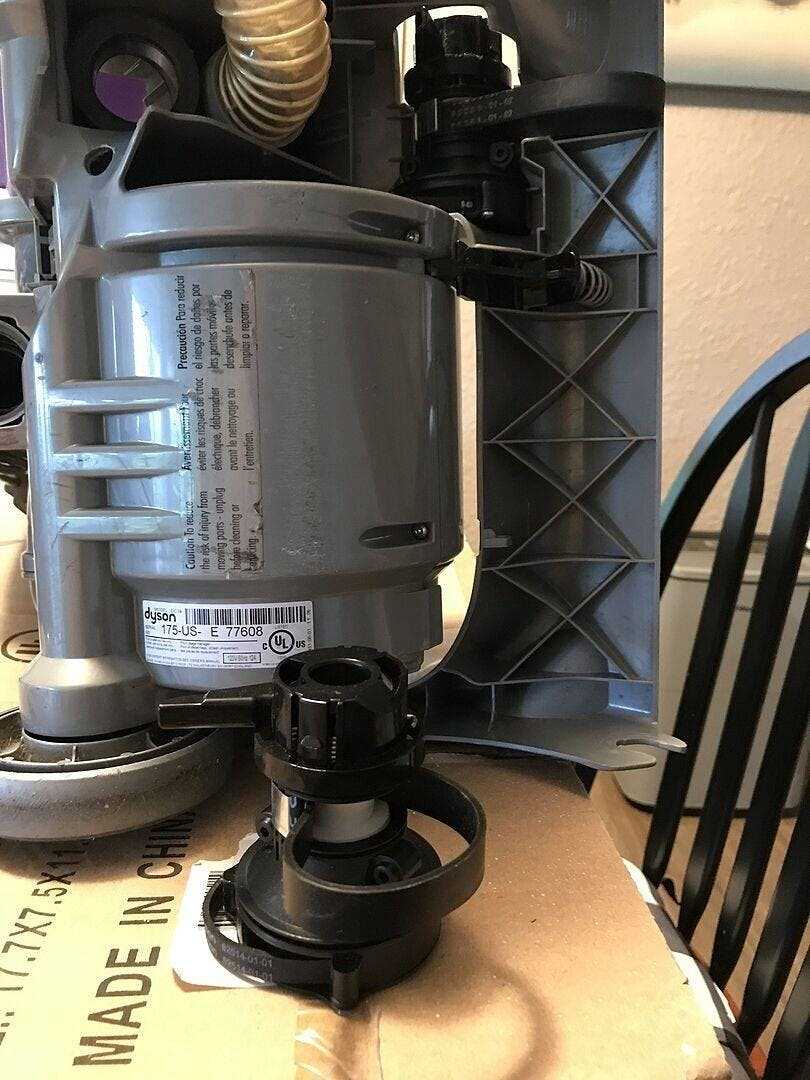

To separate the motor housing from the base, remove the four screws securing the bottom plate–three around the perimeter and one near the rear wheel. Keep these screws organized. Gently pry the base away from the motor housing using a flathead screwdriver, starting at the seam near the power switch. Disconnect the wire harness linking the base to the motor unit before fully separating them.
Examine the motor housing for additional fasteners. Two screws hold the cyclone assembly in place–remove these to lift the cyclones off. Inside, you’ll find the pre-motor filter; grasp it by the edges and pull it out. Inspect it for debris; if clogged, replace it with an identical model. The motor itself is secured by a retaining bracket–remove the three screws to access it.
- Label all removed screws by size and location.
- Photograph each step before disassembly to simplify reassembly.
- Check for worn belts or gears–replace if cracks or slack are visible.
- Measure brush roll length before ordering replacements.
- Verify filter model number before purchasing a new one.
When handling the motor, avoid touching the carbon brushes directly–use a non-conductive tool to lift them if replacement is necessary. The impeller is held by a circlip; remove it with circlip pliers, then lift the impeller off the shaft. Replace only with manufacturer-approved components to avoid voiding warranties or damaging performance.
Reassemble in reverse order, ensuring all seals and gaskets sit flush. Apply light pressure when reattaching the brush roll–excessive force can strip the housing threads. Test the unit after reassembly by running it for 30 seconds on carpet; listen for unusual noises and check suction strength before regular use.
Finding and Purchasing Authentic Replacement Components for Your Upright Vacuum
Begin by visiting the official manufacturer’s online store–this is the only guaranteed source for original spares like filters, brush rolls, and motor housings. The site includes a search tool where you input the model number (found on the underside of the unit or in the user manual) to filter results. Authentic components typically display a holographic sticker with a serial number matching the batch codes printed on the packaging; counterfeit items often lack this detail.
If the official retailer shows limited stock, check authorized resellers listed in the support section of their website. These sellers–often specialized appliance repair shops–must meet strict quality standards and provide receipts with warranty coverage. Avoid third-party marketplaces unless they explicitly state “genuine” in the product description and seller profile, as clones frequently fail within weeks due to substandard materials.
Verifying Compatibility Before Purchase

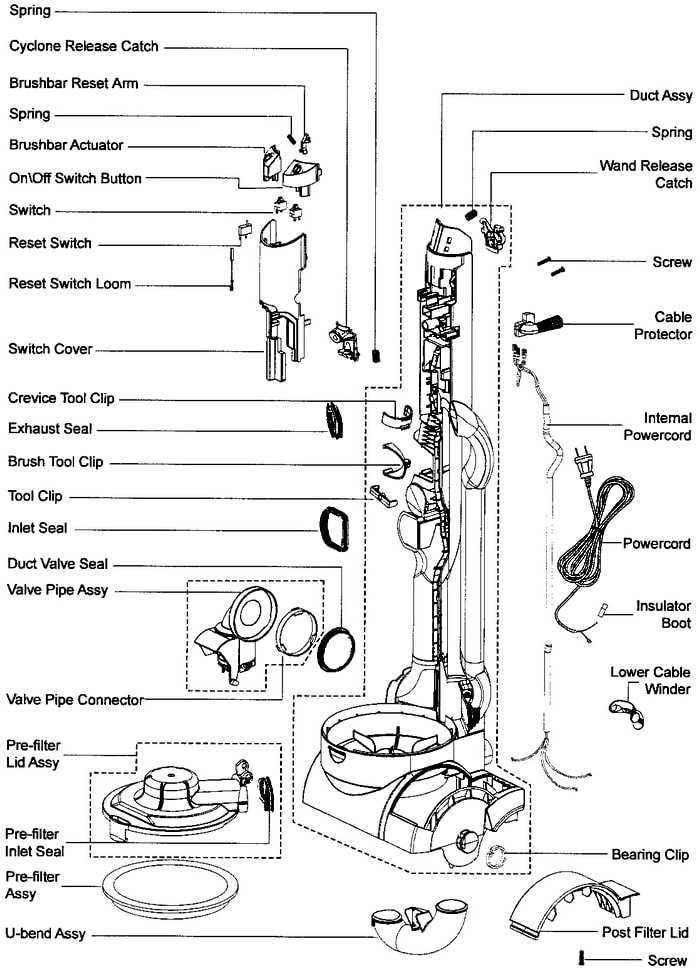

Cross-reference the part number engraved on the original component with the replacement listing. For example, the pre-motor HEPA filter (part #906902-01) only fits specific serial ranges beginning with “AA” or “BB”–mismatches cause airflow restrictions or electrical shorts. Download the exploded-view schematic from the brand’s technical library to confirm placement; each compartment door, wand segment, and battery clip has a distinct identifier.
Contact customer support with photos of the damaged piece if uncertain–agents verify fitment using an internal database. Request high-resolution images of the replacement item before checkout, focusing on seams, molding marks, and material finish; genuine parts use injection-molded ABS plastic with a uniform matte texture, whereas fakes often show rough edges or glossy surfaces.
Order during off-peak hours (weekday mornings, non-holiday periods) to expedite processing–shipments of critical spares like turbine assemblies or circuit boards prioritize 24-hour dispatch over regular accessories. Track the delivery via the courier’s portal to intercept potential delivery errors; insist on signature confirmation for items over $50 to prevent porch theft, which voids return policies.
