For accurate repairs, refer to the exploded view schematic located inside the access panel of your unit. This guide outlines standard components: ignition assembly (model-specific, typically marked IGN-24V or HSI-30), pressure switches (PS-3 or PS-4 for 90%+ AFUE models), and the inducer motor (IM-4 for 1/15 HP variants). Verify connections with a multimeter–ignition probes should read 50–120 ohms, while flame sensors maintain 0.5–10 μA during operation.
Replace faulty parts without altering wiring. The control board (commonly CB-842 or CB-950) routes signals to the gas valve (GV-500 series)–test voltage at the valve terminals (24VAC) before assuming board failure. For heat exchangers, inspect for hairline cracks using a boroscope; carbon monoxide leaks demand immediate shutdown and professional assessment.
Lubricate blower bearings annually with SAE 20 non-detergent oil–dry-running causes premature failure, evidenced by high-pitched noise or amp draw exceeding 2.5A@120V. When reassembling, torque screws to 12–15 in-lbs; overtightening splits plastic housings. Keep a record of part numbers (e.g., HL-17 for limit switches)–generic replacements risk mismatched voltage ratings.
For combustion issues, check the air intake tube for blockages–even partial obstructions trigger error code 3 blinking lights. Clean the flame sensor with 1000-grit sandpaper followed by a lint-free wipe; residue reduces sensitivity by 30–60%. Always reset the unit after servicing–power cycle at the breaker (minimum 30 seconds) to clear false lockouts.
Understanding Heating System Component Layouts
Locate the ignition assembly near the burner ports–it should include a flame sensor, hot surface igniter, and control board connections. Check the schematic for terminal labels (e.g., “W,” “G,” “R,” “C”) to confirm voltage compatibility before testing continuity. Incorrect wiring risks tripping the limit switch or damaging the blower motor.
Inspect the heat exchanger for cracks using a borescope. Even minor fissures allow combustion gases to mix with circulated air, triggering carbon monoxide alarms. Replace compromised sections immediately–repairs with sealants are temporary and unsafe for long-term use.
| Component | Symptoms of Failure | Diagnostic Steps |
|---|---|---|
| Pressure Switch | System shuts off mid-cycle; error code 33 | Verify tube integrity for blockages; test with manometer (should read 0.5–1.5 in. WC) |
| Rollout Switch | Burner flame rolls out; soot accumulation | Check flue passage for obstructions; reset switch only after correcting airflow issues |
| Inducer Motor | Humming without startup; error code 11 | Measure capacitor microfarads (should match label); lubricate bearings if seized |
Blower wheel alignment affects airflow efficiency. Misalignment (often due to loose set screws) reduces CFM by up to 25%. Balance the wheel using a strobe light and wear-resistant shims–do not exceed 0.005″ tolerance.
Gas valve adjustments require a manifold pressure gauge. Natural gas units operate at 3.5″ WC, while propane models demand 10–11″ WC. Never modify settings without confirming input ratings on the unit’s data plate–over-pressurization can rupture the diaphragm.
Condensate drain lines must maintain a minimum 1/4″ per foot downward slope. Clogged drains back up into secondary exchangers, corroding aluminum fins within 3–6 months. Use distilled vinegar for descaling–avoid bleach, which degrades PVC seals over time.
Guide to Pinpointing Critical Elements in Heating Unit Schematics
Check the upper left quadrant of the schematic for the combustion chamber–the heat exchanger sits directly adjacent, marked with sequential numbers or letter codes. Locate the ignition assembly beneath or to the right, identifiable by thick red or orange wiring leading to the control board.
Trace the blower motor path starting from the air intake vent; follow the dashed line until it intersects the squirrel cage fan symbol. The run capacitor appears nearby as a cylindrical icon with dual terminal connections, often labeled “C” or “CAP.”
Find the gas valve by following the fuel line–it’s represented by a rectangular box with inlet/outlet ports. Pressure switches sit beside it, depicted as circles with diagonal lines; test ports face downward or laterally.
Interpreting Control Modules

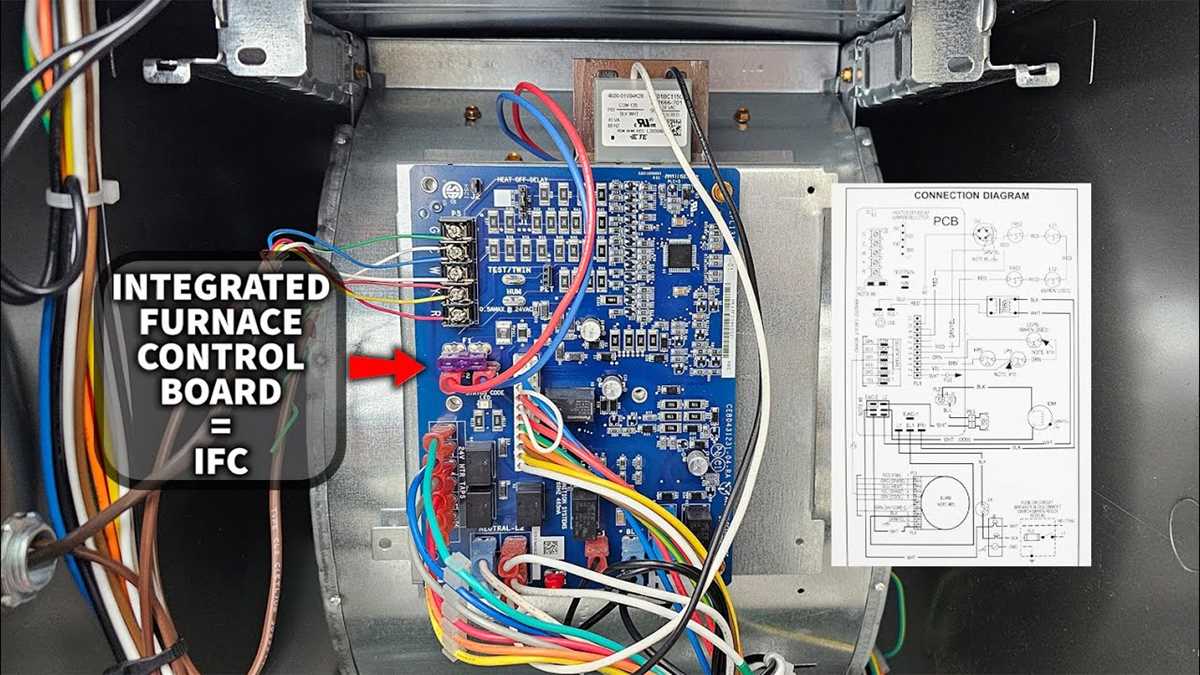

Identify the main circuit board at the schematic’s center, surrounded by thinner lines branching to sensors. Look for the thermostat wire connections (labeled R, W, Y, G) clustering near the upper edge. The inducer motor appears as a smaller shaded rectangle with three-pronged wiring.
Scan for safety limits–flame rollout switches are ovals with internal squiggly lines, positioned above the burner assembly. High-limit sensors share the same symbol but align horizontally above the heat exchanger coils.
Cross-reference numerical labels with the legend; components like sequencers (toothed rectangles) or relays (small squares) include decimal prefixes (e.g., 1.05 for relay #5). Ground symbols appear as downward-pointing triangles adjacent to metal housings.
Use the color-coding: red for power, blue for common, yellow/green for safety circuits. Filters are dotted rectangles near the return air path–replace arrows indicate airflow direction.
Step-by-Step Guide to Reading a Gas Heating Unit Wiring Schematic
Locate the main power disconnect symbol–typically a square or rectangle with a diagonal line–near the top left of the blueprint. Verify its voltage rating matches the system specs (usually 24V, 120V, or 240V) and trace its path to the transformer icon, which looks like two overlapping coils. Cross-reference terminal labels (L1, L2, C, R) with the control board to confirm correct wire colors (red for R, white for C, yellow/green for safety circuits). If discrepancies exist, use a multimeter to test continuity before proceeding.
Identify the sequential firing order components: igniter (glowing element or spark gap), gas valve solenoid (rectangular block with coil symbols), and induced draft blower (fan icon with curved arrows). Check for safety interlocks–pressure switches (semicircles with diagonal lines) must close before ignition. Label each wire with masking tape to track connections if rewiring is needed. For digital interfaces, note PWM (Pulse Width Modulation) symbols feeding variable-speed motors.
Key Components to Identify in Gas Heater Schematics
Replace the igniter assembly if voltage readings drop below 80V AC during startup or if the silicon carbide tip shows cracks. Most mid-efficiency models (92% AFUE and above) use a hot-surface igniter with a 120V input, while older 80% AFUE units often rely on direct-spark ignition. Check the manifold pressure when swapping the gas valve–natural gas systems require 3.5″ WC, LP gas demands 10″ WC. Confirm compatibility by cross-referencing the part number stamped on the valve body with the OEM service bulletin; mismatches cause delayed ignition or incomplete combustion.
- Flame sensor: Clean with 220-grit sandpaper if microamp output falls below 1.5 μA. Oxidation buildup reduces sensitivity, triggering false “no flame” lockouts after 3-5 seconds.
- Pressure switches: Test differential settings–primary switch should trip at 0.5″ WC negative pressure, secondary at 0.3″ WC for high-efficiency units. Replace if response time exceeds 2 seconds.
- Blower motor: ECM models (e.g., 5SDP) require firmware updates via the HVAC control board if rpm fluctuations exceed ±50 rpm. PSC motors need capacitor checks: 5-7.5 μF for 1/3 HP, 7.5-10 μF for 1/2 HP.
- Rollout switches: Reset manually after tripping, but replace if melting is visible. Single-use models lack resettable mechanisms–verify model series before proceeding.
- Control board: Inspect for dried solder joints on relay pins. Error code E2 (open limit circuit) often stems from failed 3A fuses on 24V circuits.
Resolving Heating System Malfunctions with Schematic Guidance
Locate the ignition control module on the exploded view–typically near the burner assembly–and verify its connection to the flame sensor. If the system fails to ignite, remove the module, inspect for corrosion on the pins, and test resistance with a multimeter: readings above 5 ohms indicate replacement. Check the limit switch next; if the blower runs continuously but produces no heat, the switch may be stuck open, requiring a 5-minute cooldown reset or direct substitution with an identical model.
Pressure Switch and Flame Sensor Diagnostics
Disconnect the hose from the pressure switch inlet and blow through it to confirm airflow isn’t obstructed. Reattach and listen for a distinct click when the inducer motor activates; absence suggests a faulty switch or blocked vent pipe. Clean the flame sensor rod with fine-grit sandpaper–accumulated carbon disrupts signal, causing intermittent shutdowns. Ensure the rod aligns within ⅛ inch of the pilot flame; misalignment demands bending the bracket carefully to avoid cracking porcelain insulation.
