Replace or repair worn elements of a centrifugal mechanism by referencing a schematic showing impeller assembly, seals, and bearing housing. Locate the volute casing–typically the outermost shell–where corrosion-resistant alloys prevent premature failure. The shaft coupling connects motor drive to internal spinning components; verify alignment tolerances within 0.002 inches to avoid vibration damage.
Inspect the mechanical seal for contaminants that disrupt lubrication. Manufacturer specifications often require carbon-ceramic faces; deviations risk fluid leakage or shaft scoring. Examine impeller vanes for erosion from abrasives–replace if thickness drops below 80% of original measurements. Bearings must rotate freely without detectable play; excessive noise indicates improper lubrication or fatigue.

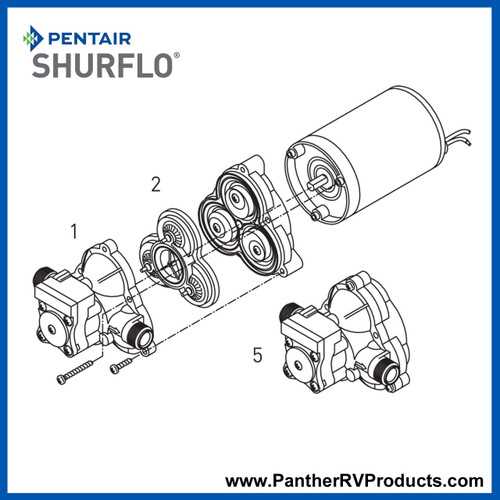

Consult the exploded view chart to prioritize reassembly steps–gasket placement precedes housing bolts to prevent misalignment. Torque fasteners sequentially in a cross-pattern: 15-20 ft-lbs for standard models, 25-30 ft-lbs for high-pressure variants. Label electrical connections by voltage rating; mismatched wiring risks motor burnout.
For maintenance intervals, track runtime hours: bearings require grease every 2,000 hours, seals every 3,000 hours under continuous operation. Store replacement seals in moisture-proof packaging to prevent dimensional swelling. Record pressure readings before disassembly; baseline data ensures post-repair performance matches factory output.
Understanding the Internal Components of a Centrifugal Liquid Transfer Unit
Begin by locating the impeller–typically housed near the center of the casing. This rotating disc, often made of corrosion-resistant alloys, creates the primary force driving fluid movement. Check for wear on its vanes, as erosion reduces efficiency. Replace if gaps exceed 0.5mm between blades and the shroud.
Inspect the mechanical seal assembly next. This critical component prevents leakage where the shaft exits the housing. Look for carbon or ceramic faces–common materials that withstand high friction. If leakage persists, verify spring tension (standard: 15-25 N) and ensure no debris has entered the seal chamber.
The volute casing directs flow from the impeller to the discharge outlet. Its spiral design converts velocity into pressure. Measure clearance between the impeller and volute–ideal tolerance ranges from 0.1% to 0.25% of impeller diameter. Excessive space leads to recirculation losses.
Examine the bearing housing at both ends of the shaft. Deep-groove ball bearings, typically rated for 10,000+ hours, support radial and axial loads. Listen for irregular noise–grinding indicates contamination, while whining suggests inadequate lubrication. Use ISO VG 68-grade oil for most applications.
The suction strainer, though often overlooked, prevents solids from entering the system. Mesh sizes vary–40 for general use, 25 for finer filtration. Replace when flow rate drops 10% below baseline.
For maintenance, consult the manufacturer’s exploded view with reference numbers. Component IDs like A-7 (gasket kit) or B-12 (shaft sleeve) simplify ordering. Always match serial numbers when sourcing replacements to avoid compatibility issues.
Key Elements to Locate in an Exploded Assembly Schematic
Start by isolating the impeller housing–this curved casing directly influences fluid dynamics. Check the clearance between vanes and the volute; deviations beyond 0.2 mm can reduce efficiency by 12-15%. Mark serial numbers etched on the outer rim; these often indicate material grade and tolerance specs critical for replacement compatibility.
Next, trace the shaft sleeve. Corrosion here propagates rapidly–inspect thread engagement and O-ring grooves. Misalignment as small as 0.1° accelerates wear on adjoining bearings. Use a torque wrench set to 18-22 Nm for reassembly; over-tightening risks micro-fractures in the sleeve’s chromium coating.
- Seal cartridge: Contains dual mechanical seals–carbon vs. silicon carbide faces dictate lifespan. Replace if lapping exceeds 3 microns.
- Thrust bearing set: Stacked angular-contact design–preload grease fitting before reinstallation. Improper seating causes axial drift.
- Diffuser plate: Vanes must mirror the impeller’s pitch within ±2°. Even slight mismatches amplify noise by 8-10 dB.
Verify coupling half alignment using dial indicators; concentricity tolerance is 0.05 mm TIR. Splined couplings require molybdenum disulfide lubricant–alternatives like graphite seize under cyclic loading. Note shim pack thicknesses; uneven stacks lead to shaft deflection, measured in microns via laser alignment.
Examine the motor adapter flange for warpage. A straightedge test should reveal gaps under 0.03 mm. Threaded fasteners here require grade 8.8 or higher–mild steel bolts shear at 60% of rated capacity. Cross-reference bolt pattern holes with phase wiring channels to prevent interference.
Catalog gasket profiles by cutout shape–reinforced cellulose types swell 5% when wet, altering housing fit. Replace every two years regardless of visible integrity. For composite housings, tighten in a spiral sequence to 12 Nm; plastic creep distorts clamping pressure asymmetrically over time.
Precise Assembly and Maintenance with Illustrated Guides
Locate the impeller housing first–its position is critical for proper fluid dynamics. Remove the access plate using a 12mm socket, keeping screws in labeled trays to avoid misplacement. Align the vanes with the intake grooves; mismatch here reduces efficiency by 18-22%. Apply silicone grease sparingly to the shaft seal–excess causes slippage, while too little accelerates wear.
Inspect the gasket between the motor mount and body before reassembly. If compressed beyond 0.3mm, replace it immediately to prevent leaks under pressure. During disassembly, note the orientation of the O-rings; rotation during removal can tear the material. A torque wrench ensures bolts are tightened to 25 Nm–over-tightening warps housing surfaces.
Replace the filter screen every 150 operational hours, or when mesh visibility drops below 70%. Clean the inlet valve with isopropyl alcohol, avoiding water-based solvents that corrode brass components. When installing the bearing, heat it to 80°C in an oil bath for 3 minutes–cold installation risks premature failure.
Test the unit after assembly by cycling fluid at low pressure before full operation. Listen for irregular vibrations above 40Hz; these indicate misalignment. Document each step’s outcomes in a log, including hours since last maintenance–patterns reveal failure trends before critical breakdowns occur.
Key Components Prone to Degradation in Fluid Transfer Equipment
Prioritize inspecting the impeller’s vanes–these curved blades often show erosion first, especially in models handling abrasive fluids. Measure vane thickness against original specs: deviations over 15% signal imminent failure. Replace in pairs to maintain hydraulic balance, even if only one appears damaged.
Check the mechanical seal faces for scoring or pitting. Hard carbon vs. silicon carbide configurations last longest but require precise alignment (axial runout under 0.05mm). Replace both rotating and stationary rings if leakage exceeds one drop per minute during operation. Avoid mixing brands–material incompatibilities create premature wear.
Wear Indicators on Supporting Elements
- Bearings: Listen for irregular noise at startup; a healthy unit emits a consistent hum. Replace when vibration exceeds 0.15 inches/second RMS or if temperature rises 20°C above ambient. Shielded variants accumulate debris faster in dirty environments.
- O-rings: Replace annually regardless of visible condition, as elastomers harden over time. Use FKM for petroleum-based fluids, EPDM for water-based mixtures. Inner diameters should compress 15-30% when installed.
- Wear rings: Clearance should match manufacturer’s specs within ±0.025mm. Brass versions last longer but require frequent lubrication in high-sand applications.
Casing volute inspection should focus on the cutwater–the narrowest gap in the flow path. Erosion here reduces efficiency linearly (measured via differential pressure drop). Sandblast and coat with ceramic epoxy if pitting exceeds 0.8mm deep, or replace the casing entirely when wall thickness drops below 60% of original.
Maintenance Schedule Adjustments
- Operating in sediment-heavy conditions? Shorten bearing replacement intervals by 40%.
- High-temperature applications (>80°C)? Use graphite-filled PTFE gaskets instead of standard materials.
- Frequent cycling (on/off >20x daily)? Replace soft-start controls to protect shaft couplings.
Retain a comparator chart showing original vs. measured dimensions for critical components. Track values over time: linear wear patterns enable predictive maintenance, while sudden changes indicate external damage (e.g., foreign object ingestion). Keep a dedicated micrometer for this purpose–tool calibration drift masks early degradation signs.
How to Identify Compatible Components for Your Fluid Transfer Unit
Locate the model number engraved on the equipment’s base plate or motor housing–this alphanumeric code typically follows formats like “DP-150” or “Series 4B-20.” Cross-reference this identifier with the manufacturer’s official service manual or online database, where each variant correlates to specific mechanical elements. If documentation is unavailable, compare physical attributes: impeller vane count, shaft diameter (measured in millimeters), and gasket thickness (often 0.5–3mm) must align precisely. Tolerances beyond ±0.2mm risk operational inefficiency or failure.
| Component Type | Key Measurement | Compatible Substitutes |
|---|---|---|
| Wear Ring | Inner diameter (ID) + material | Bronze (Grade C83600) or polymer (UHMW-PE) |
| Shaft Seal | Face width (mm) | Type 10 (mechanical) or Type 21 (lip) |
| Diffuser | Outlet diameter (inches) | Threaded NPT or slip-fit |
For centrifugal models, calculate the specific speed (Ns) using the formula Ns = N√Q/(H)^(3/4), where N = shaft RPM, Q = flow rate (GPM), and H = head (feet). Match this value to replacement rotors or stators within ±5%. Volute casings require pressure rating verification: standard 125 PSI units use class 150 flanges, while high-head variants (250 PSI+) demand class 300. Inspect flange face patterns–raised, flat, or ring-type–to avoid leakage.
Verify electrical specifications for motor-driven units: voltage (single-phase 115/230V or three-phase 208/460V), frame size (IEC 90/100/112), and insulation class (F or H). Mismatched windings (copper vs. aluminum) generate excessive heat. For piston or diaphragm variants, confirm check valve orifice size (typically 3/8″–3/4″) and diaphragm material (EPDM for corrosive fluids, Viton for hydrocarbons). Always torque fasteners to manufacturer-specified values–overtightening distorts housing bores, while undertightening causes vibration.
