Replace a faulty grip assembly by first identifying the strike plate screws–typically two, located on the inner edge of the frame. Remove these before separating the latch from the jamb. If corrosion appears on the spindle, apply a thin layer of lithium grease to prevent binding. Avoid petroleum-based lubricants, as they attract dust and accelerate wear. Measure the backset (center-to-edge distance) before purchasing a replacement: standard options are 2-3/8″ or 2-3/4″. Incorrect sizing will misalign the bolt with the frame cutout.
Inspect the rose plate for cracks; hairline fractures near mounting holes indicate structural fatigue. Reinforce weakened areas with epoxy resin before reassembly to prevent future failure. For mortise-style assemblies, check the cam mechanism–misalignment here causes inconsistent throw length. Rotate the grip 45 degrees and ensure the cam engages the latch without resistance. If tension feels uneven, adjust the set screw in the housing collar until movement becomes smooth.
Clean internal components with isopropyl alcohol–avoid water, which can cause rust in ferrous metals. Dry thoroughly with compressed air, focusing on crevices where debris accumulates. Reassemble in reverse order, ensuring the spring-loaded pawl clicks audibly into place. Test the mechanism five times before finalizing installation. If resistance persists, disassemble and verify the spindle alignment with a square tool–deviations greater than 2° require realignment of the mounting holes.
Store extraneous fasteners in labeled bags; mix-ups during reassembly lead to stripped threads or improper tension. Use a torque screwdriver for mounting screws–recommended setting is 8–10 inch-pounds. Exceeding this risks cracking the escutcheon. For models with privacy locks, verify the turn-piece engages the latch bolt fully; partial engagement causes accidental releases. If the grip rotates over 90° without resistance, replace the return spring immediately.

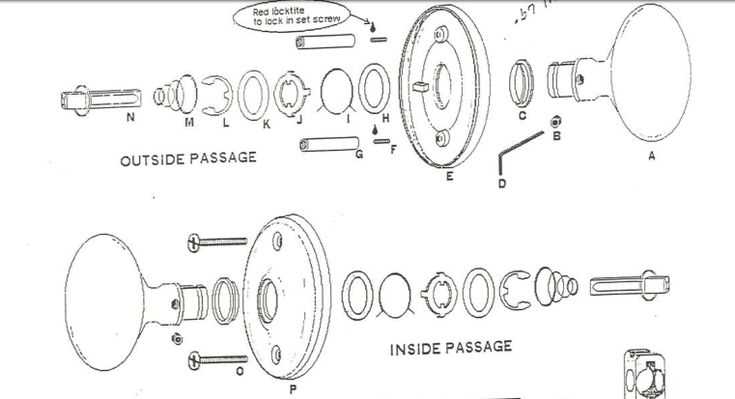

Understanding Mechanical Handle Components
Begin by identifying the spindle–this cylindrical rod connects the interior and exterior mechanisms, transmitting rotational force when engaged. Standard spindles measure 7mm in diameter, though variations (5mm or 8mm) exist for specialized hardware. Ensure compatibility with the latch assembly; mismatched sizes cause misalignment or failure in securing the plate.
Latch Assembly Breakdown
Examine the backset, the distance from the edge of the plate to the spindle’s center. Common residential backsets are 2-3/8″ or 2-3/4″, while commercial setups often use 2-3/4″ or 3-3/4″. The strike plate must align precisely with this measurement–misalignment by even 1/16″ weakens security and creates gaps. Replace corroded or bent plates immediately; stainless steel variants resist wear longer than zinc-coated models.
Check the rose–this decorative ring conceals mounting screws and stabilizes the grip’s rotation. Press-fit roses require careful installation; overtightening cracks interior plates, while loose fitting allows wobble. For high-traffic areas, opt for solid brass or reinforced nylon roses; painted steel deforms under repeated force. Lubricate internal springs with graphite powder, not oil, to prevent gumming that attracts debris.
Recognizing Key Elements of a Handle Mechanism
Begin by locating the spindle, the central rod that connects both grips and transmits rotational force to the latch. Measuring its diameter (typically 7–8 mm for residential units) helps determine compatibility when replacing worn sections. Examine the spindle’s ends–square or rounded profiles indicate distinct mounting methods. Check for corrosion or bending, as these defects prevent smooth operation.
Inspect the latch housing, a rectangular metal case enclosing the bolt and spring. Its width (commonly 64–76 mm) must align with the strike plate cutout. Remove the backplate to access internal parts: the spring (responsible for returning the grip to neutral position) and the bolt (a beveled edge allowing easy closure). Lubricate these components with graphite powder–never oil–to avoid attracting dust.
Critical Surface-Mounted Parts
Identify the rosette (decorative plate covering mounting screws) and thru-bolts securing the assembly to the slab. Thru-bolts often become loose; tighten them with a 1/4″ hex key until snug. Note that European-style mechanisms use concealed screws behind the grip, requiring partial disassembly to access.
Verify the strike plate alignment by closing the barrier–gaps larger than 3 mm signal misalignment. Adjust the plate using a file or wood chisel to deepen the mortise. On mortise locks, confirm the auxiliary latch (a small secondary bolt) engages fully before the main bolt retracts; if not, adjust the strike plate position by 1–2 mm.
Hidden Functional Elements
Trace the tailpiece (a metal extension linking the grip to the locking cylinder), noting its length–standard is 28 mm, but variations exist for high-security models. On privacy variants, locate the push-button or twist knob on the interior side; its mechanism should reset within 1–2 seconds after unlatching. If sticking occurs, disassemble and clean the housing with isopropyl alcohol.
How to Disassemble a Handle Mechanism for Fixing
Begin by locating the small set screw on the rosette’s underside–typically a 2mm hex bolt–using an Allen wrench to loosen it until the plate detaches. Slide off the outer cover plate to expose the spindle assembly and latch components; grip both the interior and exterior knobs firmly and pull them apart with steady force, as they’re often held by friction clips. If resistance persists, check for hidden retaining screws beneath decorative caps–pry these off with a flathead screwdriver, taking care not to mar the finish.
| Step | Tool Required | Critical Note |
|---|---|---|
| Remove set screw | 2mm Allen wrench | Turn counterclockwise; apply penetrating oil if corroded |
| Separate knobs | None (hand force) | Rotate while pulling to release internal clips |
| Extract spindle | Needle-nose pliers | Inspect for bent tangs before reassembly |
| Release latch | #2 Phillips screwdriver | Note orientation–faceplate must align with strike plate |
Once the knobs are off, withdraw the spindle–usually a square metal rod–by pulling it straight out. For mortise-style latches, remove the two screws securing the latch faceplate to the edge of the panel; tap lightly with a hammer if stuck. Document the order of washers, springs, or retaining rings with a quick smartphone photo to avoid confusion during reinstallation.
Key Components to Fix Jammed or Damaged Handle Mechanisms
Replace the spindle if the grip rotates freely without engaging the latch. Standard square spindles measure 5mm to 8mm in width; verify the exact size before ordering. Brass or steel spindles outlast zinc alternatives but cost 20-30% more. Check for stripped threads–cross-threaded spindles require full replacement rather than simple tightening.
Latch Assembly Troubleshooting
Examine the latch bolt for wear or misalignment first. Bent bolts often need complete swap-outs, while slightly crooked ones may realign with pliers–apply minimal pressure to avoid breaking the housing. Lubricate the bolt action with graphite powder rather than oil to prevent dust buildup, which can seize the mechanism within weeks. Retractable bolts sometimes fail due to broken springs; replace these with high-carbon steel coils rated for 50,000+ cycles.
Faceplates and strike plates demand precise screw alignment. Stainless steel faceplates resist corrosion but require countersunk holes to sit flush. Use #8 or #10 screws–length varies by installation depth (typically 1/2″ to 3/4″). If the strike plate doesn’t align with the frame, file the opening incrementally rather than bending the metal, which weakens the structure. For chronic sticking, install an adjustable strike plate with elongated screw slots; this accommodates minor frame shifts without full refitting.
Essential Gear for Handling Handle Assembly Work
Begin with a precision screwdriver set containing both flathead and Phillip’s heads in sizes #1 through #3. Most latch mechanisms and escutcheon plates use screws with shallow recesses, requiring exact bit matches to prevent stripping–especially in older brass or nickel finishes. Include a magnetic-tipped driver to retrieve tiny fasteners hiding behind strike plates or within deep mortise pockets. For stubborn fixtures, apply a rubber mallet to loosen corroded escutcheon rings without damaging adjacent trim; target the outer edge in short, sharp taps before switching to hand pressure.
- Allen wrenches (metric & SAE): commonly embedded in lever collar set screws for rose or rosette adjustments
- Needle-nose pliers: grip retaining clips beneath handles or within latch assemblies where fingers won’t reach
- Non-marring putty knife: pry between strike plate and jamb without gouging wood or painted finishes
- Digital caliper: measure spindle diameters, backset lengths, and mortise depths when replacing mismatched components
- Thread-locking compound: secure set screws in high-traffic environments prone to loosening from vibration
Store tools in a roll-up organizer with transparent sleeves–pre-label slots for spindle gauges, spring tension testers, and retaining ring picks to eliminate guesswork during reassembly. For exterior installations, keep silicone lubricant (not WD-40) to coat latch springs and deadbolt internals before final fastening, ensuring smooth operation through temperature fluctuations. Work on a soft microfiber mat to prevent scratches on polished hardware while corralling loose washers, c-rings, or spindle collars that disengage unexpectedly.
