Begin by examining the lintel–the horizontal load-bearing beam spanning the opening. Steel or solid hardwood variants distribute weight from above, preventing sagging in walls built with brick, concrete, or timber. For standard residential openings, a 4-inch deep lintel suffices; commercial applications require engineered specs based on span length and material density. Precast concrete units offer speed of installation but demand precise leveling to avoid future misalignment.
Inspect the jamb next–vertical elements framing the sides. These consist of stops, thin strips that halt swinging panels when closed, and casings, decorative trim covering gaps between the jamb and adjacent wall. Factory-assembled jambs save time but custom milling accommodates uneven surfaces. Use shims behind hinges to plumb the structure during installation; improper spacing leads to dragging or gaps. Select moisture-resistant materials like PVC or primed MDF for high-humidity areas to prevent warping.
Check the threshold at the base–it bridges floor transitions and seals against drafts. Aluminum thresholds resist corrosion and support rolling loads in wheelchair-accessible designs. For soundproofing, opt for a composite threshold with integrated rubber gasket. Install it flush against finished flooring to prevent tripping hazards, securing with corrosion-resistant screws at 12-inch intervals. In fire-rated assemblies, thresholds must meet flame-spread and smoke-development ratings per local codes.
Verify hinge placement–typically three per swinging assembly, positioned at 7 inches from the top/bottom and 11 inches above the floor. Heavy assemblies benefit from ball-bearing hinges to reduce squeaking and distribute stress evenly. Concealed hinges offer uninterrupted sightlines but limit adjustment options; surface-mounted variants allow easier maintenance. Always use long screws (minimum 2.5 inches) that penetrate the underlying structural member, not just the casing, to ensure stability under repeated cycles.

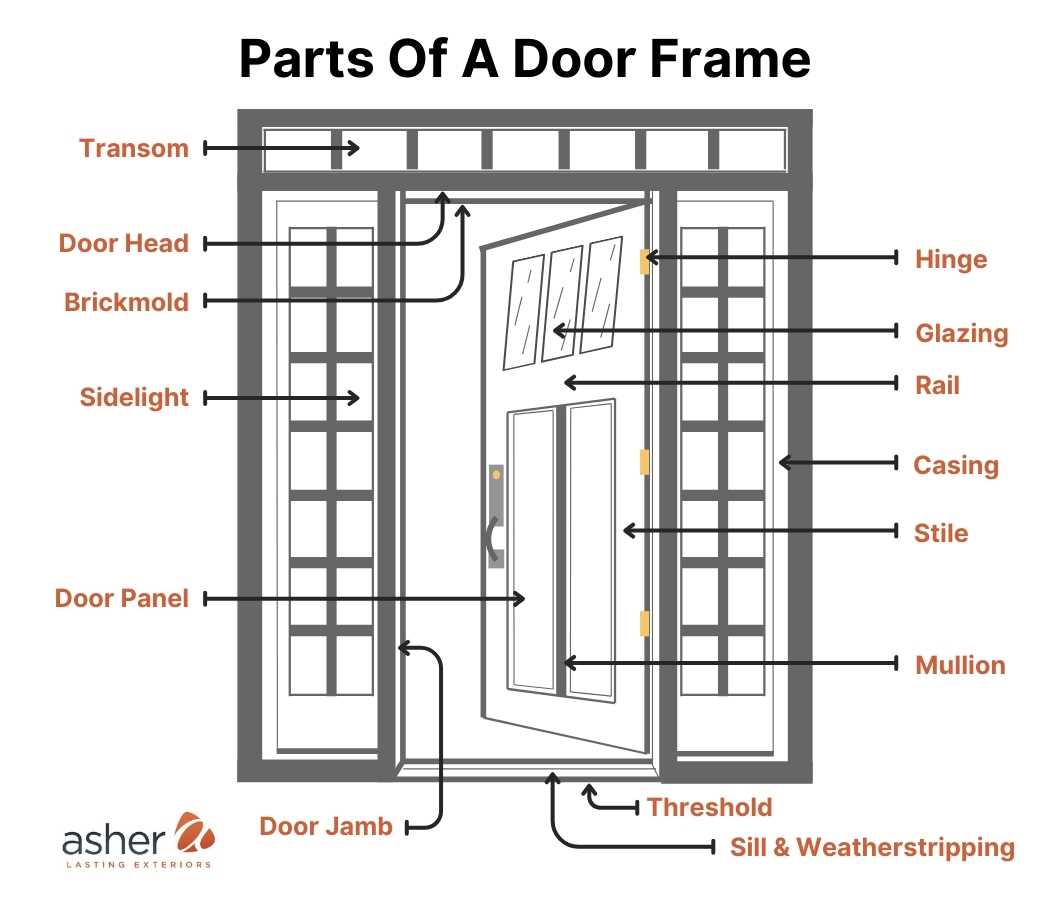

Understanding Entryway Structural Components
Begin by examining the lintel, the horizontal beam spanning the top of the opening. In modern constructions, it’s typically made of reinforced steel or concrete to distribute weight evenly. Ensure the lintel extends at least 150mm beyond the opening edges on both sides to prevent cracking under load. For older wooden structures, check for sagging–a sign of compromised integrity requiring prompt reinforcement.
The jambs–vertical sides of the portal–must be perfectly plumb for proper alignment with hinges and latching mechanisms. Use a spirit level during installation, tolerating no more than 1mm deviation per meter. Hardwood jambs resist warping better than softwood, but both require sealed edges to prevent moisture absorption. Pre-drilling screw holes prevents splitting during assembly.
A critical yet often overlooked element is the threshold, the bottom horizontal strip of the entry. It should form a weatherproof seal while allowing smooth movement. For exterior applications, choose aluminum thresholds with flexible vinyl inserts to block drafts. Elevate the threshold 2-3mm above floor level to prevent water pooling, but ensure it doesn’t create a tripping hazard–compliance with ADA standards mandates a maximum height of 13mm.
The strike plate–metal reinforcement around the latch cavity–demands precise positioning. Locate it by aligning with the latch’s dead center, then mark pilot holes with a nail set to avoid misalignment. Recess the plate flush with the jamb using a chisel, ensuring the latch engages fully. For high-security applications, opt for plates with extended strike boxes and 3-inch screws penetrating the structural stud.
Inspect the architrave or casing trim for gaps exceeding 1mm along the wall interface–these indicate improper installation or settling. Miter joints at 45-degree angles should form tight seams without visible caulk. Select trim thickness proportional to the wall depth; 15-20mm profiles suit standard drywall, while 25mm+ works better for plaster or masonry walls.
The hinge mortise–the recessed area accommodating leaf movement–must be cut to exact specifications. Measure hinge thickness with digital calipers, then set a router or chisel to half this depth for the mortise. Deep mortises weaken structural integrity, while shallow ones prevent full closure. Stainless steel hinges resist corrosion in humid climates, but brass offers superior load-bearing capacity for heavy units.
Hidden elements like shims and fasteners determine long-term stability. Wedge shims at both hinge-side and latch-side jambs, spacing them 300mm apart vertically. Stainless steel screws (minimum #10 gauge) should penetrate the jamb by 38mm for adequate grip. Avoid over-tightening–excessive torque warps jambs, leading to misalignment within months.
Key Structural Elements of a Typical Entryway Assembly
Start by examining the head jamb–the horizontal beam spanning the top of the opening. This component bears the weight transferred from the wall studs above, so verify its thickness matches local building codes (typically 1.5″ for residential projects). Misalignment here often indicates settling or improper installation, leading to gaps at the hinge side.
Lateral supports–vertical jambs–require meticulous measurement of their reveal spacing. The standard clearance between the edge and swinging panel is 1/8″, though fire-rated assemblies demand 3/16″ for proper seal compression. Use a feeler gauge to confirm consistency; irregularities suggest warping or moisture damage.
| Component | Material (Common) | Critical Tolerance |
|---|---|---|
| Head jamb | Softwood (pine/fir) or MDF | ±1/16″ across span |
| Side jambs | Engineered wood or steel | 1/8″ reveal (non-rated) |
| Threshold | Aluminum or composite | 3° slope max for drainage |
Inspect the sill plate for levelness using a 4-foot level. A slope exceeding 1/4″ per foot risks water pooling, which accelerates rot in wooden substrates. For exterior openings, ensure the sill extends 3/4″ beyond the cladding to direct runoff away from the structure.
Check the stop molding–the narrow trim preventing the panel from swinging inward–for secure attachment. Nails or screws should penetrate at least 1″ into the jamb, spaced no more than 12″ apart. Loose stops create security vulnerabilities and drafts.
For prehung units, validate the hinge reinforcement plates. These must align with screw holes, typically positioned 7″ from the top and bottom, and 11″ from the center hinge on standard units. Misalignment here causes sagging over time.
Assess the bead (caulking groove) along the interior perimeter. A properly cut bead measures 1/4″ wide by 1/4″ deep, allowing sufficient sealant volume without voids. Absent or shallow beads lead to air infiltration, reducing energy efficiency by up to 22% according to thermal imaging studies.
Finally, probe the framing studs adjacent to the opening. Strike plates should extend at least 2″ past the rough opening on both sides. For load-bearing walls, king studs must be continuous to the header; trimming these compromises structural integrity under lateral loads.
Precise Measurements for Entrance Assembly Replacement
Grab a steel tape measure and hold it flush against the interior edge of the jamb. Record the narrowest width between the left and right vertical casings–account for seasonal shifts by measuring at three heights: top (2 inches below the head trim), middle, and bottom (2 inches above the sill). If discrepancies exceed 1/8 inch, use the smallest reading for new components. Mark each measurement directly on a scrap of plywood cut to match the jamb’s profile to avoid confusion.
- Remove molding with a flat pry bar, slipping it behind trim 1/4 inch from nail points to prevent splintering. Document nail spacing–most carpenters use 12–16 inch intervals–and preserve intact strips for reuse.
- Check squareness by measuring diagonals from upper hinge corner to opposite sill corner. A variance over 1/4 inch indicates structural settling; shim uneven gaps post-installation rather than forcing alignment during replacement.
- Photograph hinge mortises and latch recesses before disassembly. Note depth with a digital caliper: standard butt hinges recess 3/8 inch into solid wood, while barrel hinges sit 1/2 inch deep.
Assess the sill’s slope angle with a 2-foot level. Ideal pitches range 3–5 degrees; anything steeper than 8 degrees requires trimming the replacement sill or adding tapered shims beneath it. Measure the projection beyond the jamb face–most sills extend 3/4 to 1 inch–but verify against local building codes for threshold accessibility clearances.
Trace existing profiles onto kraft paper, marking rabbet edges and bevel angles (commonly 10–15 degrees on interior stops). Transfer these outlines to replacement stock using a router guided by a flush-trim bit against a template. For irregular openings, contour the top casing with a flexible spline template and a coped joint, ensuring a 1/16-inch reveal at all junctions.
- Verify overall height from subfloor to head trim underside, subtracting 1/2 inch for expansion if using kiln-dried timber.
- Label each recorded dimension with material specifics (e.g., “Pine jamb – 1×4 actual”) to prevent mismatched stock during procurement.
- Double-check hidden fasteners: Count screws in hinge plates (typically three per leaf) and note their length–most are 1 1/4-inch #8 Phillips, but exterior assemblies may use 2-inch corrosion-resistant variants.
