Replace faulty seals and valves immediately–even minor leaks lead to odor buildup and bacterial growth. The foot pedal assembly, often overlooked, wears faster than other components due to constant pressure. Check rubber gaskets every six months; sunlight and dry air degrade them faster than expected. Original manufacturer spare kits include microfiber filters–don’t substitute generic alternatives, as they clog sooner.
Locate the flush pump beneath the base plate; disassembly requires a 10mm socket and needle-nose pliers. The blade valve, positioned near the bowl outlet, should slide freely–apply silicone grease if movement is stiff. Electrical connections, if present, must use marine-grade heat shrink tubing to prevent corrosion in humid environments. Verify the water inlet hose clamp torque: over-tightening cracks plastic housings.
Refer to the exploded view from the manufacturer’s manual for exact part numbers–third-party retailers often mislabel replacements. The rear vent seal, though small, creates a vacuum lock when damaged, causing slow drainage. Store spare O-rings away from petroleum-based products; exposure makes them brittle within weeks. Mark each removed piece with masking tape to avoid confusion during reassembly.
Test the system with a single flush before securing all panels. Low water pressure? Inspect the intake strainer–tiny debris blocks flow despite appearing clean. Backflow issues typically trace to the check valve; remove and soak it in vinegar for 30 minutes to dissolve mineral deposits. Avoid over-tightening the bowl bolts–compression, not force, ensures a proper seal.
Understanding Your Portable Sanitation Unit’s Component Layout
Begin by locating the flush mechanism near the upper left side when facing the bowl assembly. The pedal-driven pump connects via a flexible hose to a 1.5-liter reservoir mounted behind the ceramic base. Check the clamp securing the hose to the pump – loose fittings cause inconsistent water flow. Replace cracked tubing immediately with compatible 10mm ID vinyl.
Examine the blade valve beneath the seat ring. A misaligned gasket creates leaks; rotate the handle clockwise until resistance indicates full closure. If sealing fails, remove the four stainless screws holding the valve housing. Clean mineral deposits from the rubber seal with vinegar before reinstalling.
Key Replacement Elements
- Spray nozzle: Positioned 45° from vertical inside the bowl rim; unscrew counter-clockwise to access. Soak in CLR solution if clogged with calcium buildup.
- Pedal assembly: Contains spring-loaded pin (Part #960096125) – replace if movement feels sluggish. Grease pivot points with silicone lubricant.
- Holding tank: Detach by releasing two rear latches; empty when fluid reaches 1.2-inch mark below rim vent. Use specialized digestive enzymes to prevent odor.
For electrical models, disconnect power before servicing. The 12V motor connects via a two-pin JST connector under the right side panel. Test with multimeter – reading below 11.8V indicates failing pump requiring replacement.
Store spare seals in a cool, dry location away from direct sunlight. O-rings degrade faster when exposed to temperatures above 25°C. Always keep handler’s manual accessible; hidden fuse locations vary slightly between production years.
Replace the flush pedal diaphragm every 18 months. Remove the pedal cover plate with a T20 torx driver. Align replacement diaphragm so the arrow points toward the pump. Reassemble by reversing steps – improper alignment voids the two-year warranty.
Finding the Detailed Breakdown of Your Sanitation Unit
Begin by visiting the manufacturer’s official resource portal–specifically their product documentation library. Search for the model using its exact serial number, often found on a sticker beneath the main housing or near the water inlet valve. This ensures access to the most accurate schematics, including subassemblies like seals, valves, and mounting brackets.
If the official site lacks a downloadable blueprint, explore third-party RV repair databases. Sites specializing in mobile sanitation components frequently host user-uploaded breakdowns. Filter results by model variant (e.g., foot-pedal or electric flush versions) to avoid mismatched references. Verify any downloaded files against the unit’s physical components–discrepancies in bolt placements or gasket sizes can lead to incorrect reassembly.
- RVTechLibrary.com: Offers annotated schematics with torque specifications for critical fasteners.
- MobileSanitationForums.net: User-shared PDFs often include troubleshooting annotations.
- Manufacturer’s dealer portal: May require account creation but provides OEM-approved drawings.
For offline access, purchase a printed service manual from authorized distributors. These typically cost $15–$30 but include exploded views with part numbers cross-referenced to the catalog. Cross-check every part number against your unit’s serial tag–manufacturing revisions occasionally alter component layouts without updating manual editions.

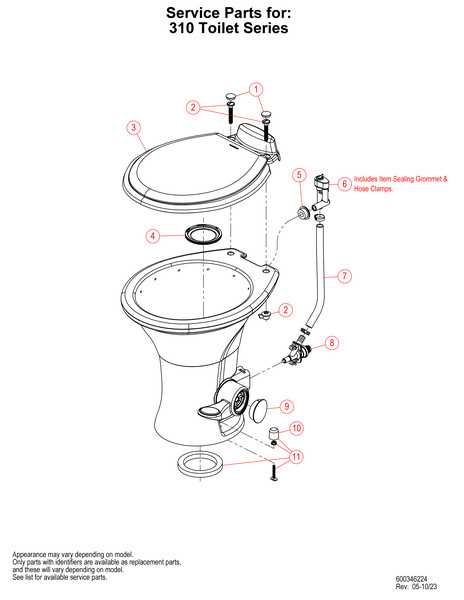

When examining the exploded view, isolate the section matching your malfunction. For example:
- Water inlet valve issues? Focus on the upper right quadrant showing fluid path connections.
- Pedal mechanism failure? Reference the lower mechanical linkage assembly.
- Seal degradation? Locate gasket item numbers in the mid-section, noted with red arrows in most diagrams.
Use a magnifying glass for digital schematics–small text labels (e.g., “O-ring #245”) are critical for ordering replacements. Print the relevant pages at 125% scale to improve readability of fine details like spring placements or alignment pins. Annotate your copy with observed wear patterns to streamline future repairs.
If all else fails, photograph the disassembled unit from multiple angles, then send the images to a mobile sanitation technician for identification. Include close-ups of any worn or damaged pieces. Most technicians will match visual references to their database within 24 hours–far faster than relying on text descriptions alone.
How to Pinpoint the Right Spare Elements for Your Portable Waste System
Start by locating the serial number plate on the base of the unit–typically engraved near the water inlet or underside of the bowl. This alphanumeric code (e.g., 30123456) directly corresponds to compatible seals, valves, and actuators listed in manufacturer-issued service manuals. Cross-reference this number with authorized dealer portals; third-party resellers often mislabel components, leading to leaks or premature failure.
Critical wear items include the flush pedal assembly, blade seal (commonly mistaken for a generic rubber gasket), and microswitch. The pedal’s plastic linkage wears at 300–400 cycles; replace it with OEM-spec plastic (part #47745) to avoid brittle snap-offs. For the seal, measure inner diameter–89mm indicates the standard blade model, while 95mm signals a rare high-capacity variant found in marine units.
Vacuum breaker valves, prone to calcification in hard water zones, require annual inspection. Descaling with a 50/50 vinegar-water soak for 4 hours restores flow; irreversible blockage demands replacement (#67832). Avoid generic check valves–they disrupt the 3-second post-flush vacuum hold, causing backflow. Test functionality by pouring 500ml water into the bowl; proper operation retains liquid for >10 seconds.
Electrical faults typically trace to the 12V fuse or circuit board. Use a multimeter to check continuity across the board’s solder points; corrosion at the white connector strip (#38990) causes intermittent power. Replace corroded terminals with gold-plated spades to prevent oxidation. If LED indicators blink erratically, swap the control module (#90123)–aftermarket boards lack voltage regulation, frying sensors within weeks.
Lubricate moving elements exclusively with food-grade silicone grease (Dow Corning 111). Petroleum-based products swell rubber seals, voiding warranty. Apply sparingly to the pedal shaft and blade pivot every 6 months; excess attracts grime, hindering movement. For older models (pre-2018), replace the brass bushings in the pedal assembly (#54321)–worn bushings increase pedal travel, risking incomplete flushes.
Document all replacements in a maintenance log, noting date, part numbers, and torque specs (e.g., bowl mounting bolts: 25 Nm). Store spares in labeled polyethylene bags away from UV exposure–direct sunlight degrades rubber compounds in under 6 months. Authorized dealers stock 90% of components within 48 hours; expedited shipping through marine supply networks reduces downtime for live-aboard users.
Step-by-Step Guide to Disassembling Your Portable Waste System for Repairs
First, shut off the water supply valve located beneath the unit to prevent leaks. Use a crescent wrench to disconnect the water inlet hose by turning it counterclockwise. Have a towel ready–residual water will drain out once disconnected.
Remove the bowl’s mounting bolts using a screwdriver or socket wrench. These are typically located at the base flange. If corrosion has seized the bolts, apply penetrating oil and allow it to sit for 10–15 minutes before attempting removal. Store bolts in a small container to avoid misplacement.
Accessing Internal Components
| Step | Tool Required | Key Action |
|---|---|---|
| 1 | Flathead screwdriver | Pry off the rear cover panel by gently leveraging along seam edges |
| 2 | Phillips screwdriver | Detach electrical connections for the motor (if applicable) by squeezing release tabs |
| 3 | Needle-nose pliers | Extract the seal ring from the flush mechanism by twisting and pulling upward |
Inspect the seal ring for cracks or deformities. Replace if worn–measure the existing ring’s diameter (common sizes: 60mm, 75mm) before purchasing a replacement. Lubricate the new seal with silicone grease before installation to ensure smooth operation.
Motor and Pump Disassembly
Unscrew the pump housing using a Torx T15 bit. Note the orientation of the impeller–mark it with a permanent marker if necessary. Use compressed air to clear debris from the pump chamber, addressing blockages that impede water flow. Check the motor’s brushes for wear; excessive dust indicates the need for replacement.
Reassemble in reverse order, ensuring gaskets align properly to prevent leaks. Test the unit by activating the flush mechanism before securing the rear panel. If water fails to evacuate, revisit the impeller or motor connections–common culprits include loose wires or misaligned components.
Reattach the bowl using the stored bolts, tightening evenly to avoid uneven pressure on the porcelain. Reconnect the water supply, then open the valve to check for drips. If leaks persist, disassemble the inlet connection and reapply thread seal tape to the hose fitting.
