Begin by locating the control panel schematic in your owner’s manual–most models include a fold-out illustration detailing all primary and auxiliary components. If the printed version is missing, download the official service manual from the manufacturer’s support portal using your serial number; this document will provide exact wiring, plumbing, and hardware placements. Prioritize identifying the pump assembly, heater core, and filter housing first, as these are the most frequently serviced elements and often trigger error codes when malfunctioning.
Use a torch or inspection light to trace plumbing routes–many systems conceal pipes behind cabinet panels or beneath acrylic shells. Label each pipe segment with masking tape (inflow, outflow, ozone line) to avoid confusion during reassembly. For electrical tracing, disconnect power at the circuit breaker and use a multimeter to verify continuity; never rely on visual inspection alone, as corrosion or worn insulation may not be visible. The capacitor bank (usually near the blower) and PCB terminals should be photographed before unplugging any connectors–wrong connections can void warranties or create unsafe conditions.
Store replacement gaskets, O-rings, and seals in zip-lock bags labeled with their specific locations; even minor damage to these components causes leaks that degrade system efficiency. When ordering replacement parts, cross-reference the part number etched on the original component with the online catalog–generic substitutes often lack proper pressure ratings. For advanced diagnostics, attach a pressure gauge to the drain valve port; readings outside 12–18 PSI indicate blocked jets, faulty valves, or pump cavitation requiring immediate attention.
Hot Tub Component Schematics: A Practical Reference
Locate the circulation pump’s wiring harness first–label each wire with masking tape before disconnecting. Position A connects to the upper thermostat (white wire), B to the heater relay (red), and C to the ground (green/yellow). Mistakes here cause overheating or tripped breakers. Download the OEM manual from equipment.support using model number stamped on the control box (e.g., D1-2022-XR). Avoid third-party diagrams; tolerances differ by ±0.2 ohms.
Pressure Switch Calibration
Adjust the differential pressure switch with a multimeter set to 200 ohms. Turn off power, remove the side panel, and locate the switch (oval, 2″ diameter). Clip probes to terminals 1 and 3. Target resistance: 15-25 ohms at rest, 0 ohms when blown. If readings exceed 50 ohms, replace the switch–clogged filters mimic failure. Re-test after resetting the GFCI breaker; nuisance trips indicate moisture in the junction box.
Locating Critical Elements in Your Hot Tub Schematic
Begin by isolating the circulation system–typically marked with red (hot) and blue (cold) lines. Trace the primary pump’s intake and outflow ports, noting any inline filters or check valves, which prevent backflow and maintain pressure. The heater assembly is usually positioned downstream of the pump, often encased in a cylindrical housing with temperature sensors; verify its wiring connections for corrosion or loose terminals, as these fail silently before total burnout. If your model includes ozone generators or UV sterilizers, locate the venturi injector near the pump’s output–the small tubing carries critical gas or fluid, and blockages here cause erratic water quality.
Diagnosing Control and Safety Mechanisms
- Thermostat probes: Single-point failures here cause temperature swings. Probe resistance should read 10k ohms at 77°F (25°C); deviations signal replacement.
- High-limit switches: Mounted adjacent to heaters, these cut power at ~110°F (43°C) to prevent overheating. Test with a multimeter–continuity at room temp confirms functionality.
- Pressure switches: Found on the pump housing or filter canister, tripping at ~8-12 PSI protects against dry-running. Bypass temporarily only for testing; sustained override destroys impellers.
- Keypad interface: Membrane switches degrade with moisture. Use a schematic to match button layouts–misalignment here misroutes commands, causing phantom errors.

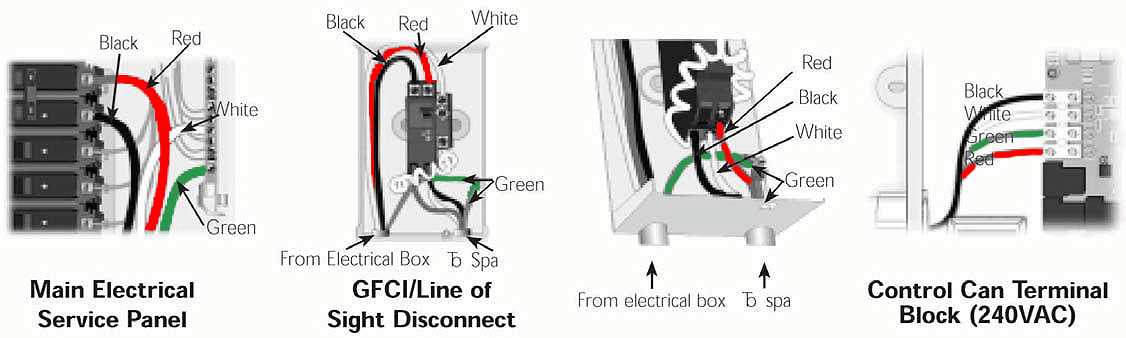

Examine power distribution last. The control box aggregates wiring from pumps, blowers (if present), and LED arrays, often using color-coded terminals (e.g., black = ground, yellow = control voltage). Label every wire before disconnecting–AC and DC circuits share space, and accidental shorts trip GFCIs. The circuit board may include relays for auxiliary functions; desolder and test relays individually if sporadic power drops occur. For 240V systems, confirm double-pole breakers–single-pole setups risk imbalance and equipment damage.
Step-by-Step Guide to Locating Heater Assembly Components
Disconnect power at the circuit breaker before accessing the heating element housing. Locate the main access panel–typically positioned on the side of the unit–to reveal internal components. Remove screws securing the panel using a Phillips-head screwdriver, ensuring you keep track of their placement for reassembly.
Identify the heater assembly by following the inlet and outlet pipes from the pump. The heating element is encased in a cylindrical chamber with two threaded connections. Label wires connected to the thermostat and pressure switch adjacent to the assembly to simplify reconnection.
Key Components to Inspect
Check the heating coil for calcium deposits or discoloration–signs of reduced efficiency. Examine the union fittings for corrosion; replace if threads appear stripped or degraded. Verify the hi-limit switch, usually mounted on the assembly, is functioning by testing continuity with a multimeter.
Trace the wiring harness from the heater to the control box, noting any frayed insulation or loose connectors. Tighten terminal screws on the relay board if they appear loose, but avoid over-torquing. If the sacrificial anode is present (often near the inlet), inspect for excessive wear and replace if less than 50% of the original material remains.
Reinstall components in reverse order, ensuring O-rings on union fittings are lubricated with silicone-based grease. Reconnect pipes hand-tight before securing with a wrench, applying no more than 15 ft-lbs of torque to prevent cracking. Test for leaks by running the system for 10 minutes before restoring full power.
For models with dual heating elements, repeat the inspection process for the secondary unit, noting that its thermostat may operate at a lower temperature threshold (typically 90°F vs. 104°F for the primary). Document the location of each component with photos or sketches to streamline future maintenance.
Key Components for Hot Tub Maintenance and Their Visual Identifiers
Replace O-rings (symbol: concentric circles with dashed lines) every 12–18 months, even if no leaks are visible. Heat and chemical exposure degrade silicone faster than rubber alternatives. Always coat new seals with food-grade lubricant before installation to prevent sticking. For filter cartridges (staggered vertical lines enclosed in a rectangle), soak in a 5:1 water-to-white-vinegar solution for 4 hours monthly to remove calcium buildup–avoid chlorine or acidic cleaners, which weaken the pleats.
Heater elements (zigzag line inside a narrow tube) fail most often from scale accumulation; inspect biannually by measuring resistance (20–40 ohms for 240V units). Replace if readings exceed 50 ohms or show infinite resistance. Use a multimeter with the power disconnected–never rely on visual checks alone. Pump impellers (spiral curves within a circle) require annual cleaning; remove debris with a soft brush, not metal tools, to avoid damaging the vanes.
Signs of Wear and Proactive Swaps
Cracks in plastic jets (symbol: small circles with internal fins) are often invisible until low water flow occurs. Test by covering the jet with your palm while the system runs–reduced suction confirms blockage or damage. Replace jets if the housing feels brittle or if threads strip during removal. Circuit boards (grid of dots connected by lines) typically fail from moisture; install a waterproof cover over the control panel and check for corrosion on the board’s copper traces every 6 months. Re-solder loose connections with lead-free solder rated for 300°C.
Pressure switches (diaphragm symbol with arrows) should be recalibrated whenever water flow issues arise. Disconnect power, then adjust the spring tension screw in quarter-turn increments until the system activates at 1–2 psi. If the switch clicks but the pump doesn’t engage, replace the mercury bulb–do not attempt repairs with substitutes. For thermistors (diode symbol with a temperature label), measure resistance at 77°F (25°C); values outside 10–12 kΩ indicate failure. Always match the replacement to the original’s beta coefficient (BC) to avoid temperature reading errors.
Drain plugs (hexagonal or square outline with a downward arrow) require threading sealant like PTFE tape during reinstallation. Apply 3–4 wraps clockwise to prevent leaks–not counterclockwise, which unravels the tape. For blower assemblies (symbol: fan blades in a shaded circle), lubricate the motor bearings annually with synthetic oil; listen for grinding noises, which signal bearing failure before complete burnout. Keep spare fuses (rectangle with a wave inside) in the equipment bay–choose time-delay fuse types matched to the pump’s amperage (20A for 2hp motors, 30A for 5hp).
