Begin by identifying the exact differential model used in your vehicle. Common variants include open, limited-slip, locking, and torque-vectoring units, each requiring distinct maintenance approaches. Locate the manufacturer’s official service manual–aftermarket replicas often omit critical torque specifications or assembly sequences. For Ford 8.8-inch axles, replace spider gears in sets to prevent premature wear; mismatch brands accelerate tooth erosion by up to 40% in testing. Track fluid intervals rigidly: 75W-90 synthetic lubricant lasts 50,000 miles in highway use but degrades in 15,000 miles under towing loads.
Disassembly demands exact tooling: a bearing puller rated for 10-ton force (OTC 7375A-1) prevents housing damage when removing press-fit races. Clean components with parts washer solvent–kerosene residue increases friction by 12% in dynamometer tests. Inspect ring gear runout with a dial indicator; deviations above 0.002 inches require reindexing or replacing shims. For GM 10.5-inch differentials, use only OEM crush sleeves–aftermarket units vary in thickness, risking gear misalignment and catastrophic failure within 2,000 miles.
Reassembly sequences dictate reliability: install pinion gear first, torque to spec (Ford: 180 ft-lb), then verify preload with an inch-pound torque wrench (target: 15–25 in-lb). Fill differentials to the bottom of the fill plug–overfilling foams fluid, reducing load capacity by 28%. Post-installation, drive 50 miles, then recheck fluid levels; initial seating compresses seals. For high-performance applications, upgrade to cryo-treated gears; hardness increases from RC 58 to RC 62, doubling fatigue resistance vs. factory units.
Store spare components in climate-controlled spaces–humidity accelerates corrosion on untreated steel surfaces. Label every removed part with its location; differential housings often feature asymmetrical mounting points critical for proper gear mesh. Use Loctite 271 on bolts exposed to shear forces–standard thread locker fails under cyclic loading. Document every step with timestamped photos; rebuilding a Dana 44 without visual reference extends labor time by 3 hours on average.
Mechanical Assembly Breakdown: Field-Tested Component Mapping
Start by isolating the differential casing using a torque wrench preset to 75 Nm–this prevents warping of the flange mating surfaces. Label each removed fastener with its exact position (e.g., “pinion nut – 6 o’clock”) using masking tape and a fine-tip marker. Store bolts in a segmented tray sorted by thread pitch (M8×1.25 vs. M10×1.5) to avoid cross-threading during reassembly.
Create a layered schematic before disassembly: trace the power flow path with highlighters–red for drive components, blue for preload elements, and green for lubrication channels. Record shim thickness (measured with a micrometer, ±0.01 mm tolerance) between each bearing race and housing; these values are critical for restoring gear mesh alignment. Below is a reference table for typical shim stacks in medium-duty applications:
| Assembly Zone | Shim Thickness Range (mm) | Material | Fingerprint Identifier |
|---|---|---|---|
| Pinion Head | 0.10–0.25 | 304 Stainless | Laser-etched “P-XX” |
| Carrier Mount | 0.30–0.60 | Shim Steel | Stamped “C-XX” |
| Side Gear Back | 0.05–0.15 | Aluminum | Anodized Blue |
Photograph every interface plane (not the entire unit) using a macro lens at 1:1 magnification–focus on wear patterns, which reveal load direction. Use a bore gauge to verify housing diameters: standard specs for a Dana 44 are 82.55 mm ±0.02 mm; deviations exceeding 0.04 mm require honing or sleeve inserts. Keep seals in their original orientation; swapping left and right output seals disrupts the engineered lip angle, leading to premature leaks.
When documenting spider gears, measure the gear backlash with a dial indicator while applying 5 Nm of preload to the output shafts–target value is 0.12–0.18 mm for helical designs. Cross-reference this with the crown gear runout (max allowable: 0.03 mm) using a magnetic base micrometer aligned perpendicular to the tooth face. Any deviation here mandates shim recalibration or carrier replacement.
For final verification, reassemble with assembly lube containing molybdenum disulfide (MoS2), then rotate the input shaft manually while observing the ring gear teeth for uneven flash patterns. A proper pattern should show 50–70% tooth contact centered on the drive side, tapering evenly towards the toe. If the pattern drifts, adjust shims in 0.02 mm increments; over-correction risks edge loading and catastrophic failure under torque spikes.
How to Identify Key Components in a Differential Assembly
Locate the ring gear first–it’s the large, circular toothed component mounted on the carrier housing, meshing directly with the pinion gear. Measure its diameter; most passenger vehicles use a 7.5″ to 9.5″ ring gear, while heavy-duty trucks may exceed 10″. Count the teeth–common ratios range from 3.55:1 to 4.11:1, visible as stamped numbers near the center flange. Match these specs to service manuals to confirm compatibility before disassembly.
Pinpointing Wear-Prone Elements
Inspect the spider gears (also called differential pinions) for scoring or pitting on their mating surfaces. These small gears–typically four in open differentials–rotate on a cross-shaped shaft (the differential pin) inside the carrier. Excessive backlash (gap exceeding 0.008″) indicates worn thrust washers; replace them in sets to prevent premature failure. Check the axle shaft splines for twisted or rounded teeth–common in overloaded or abused drivetrains.

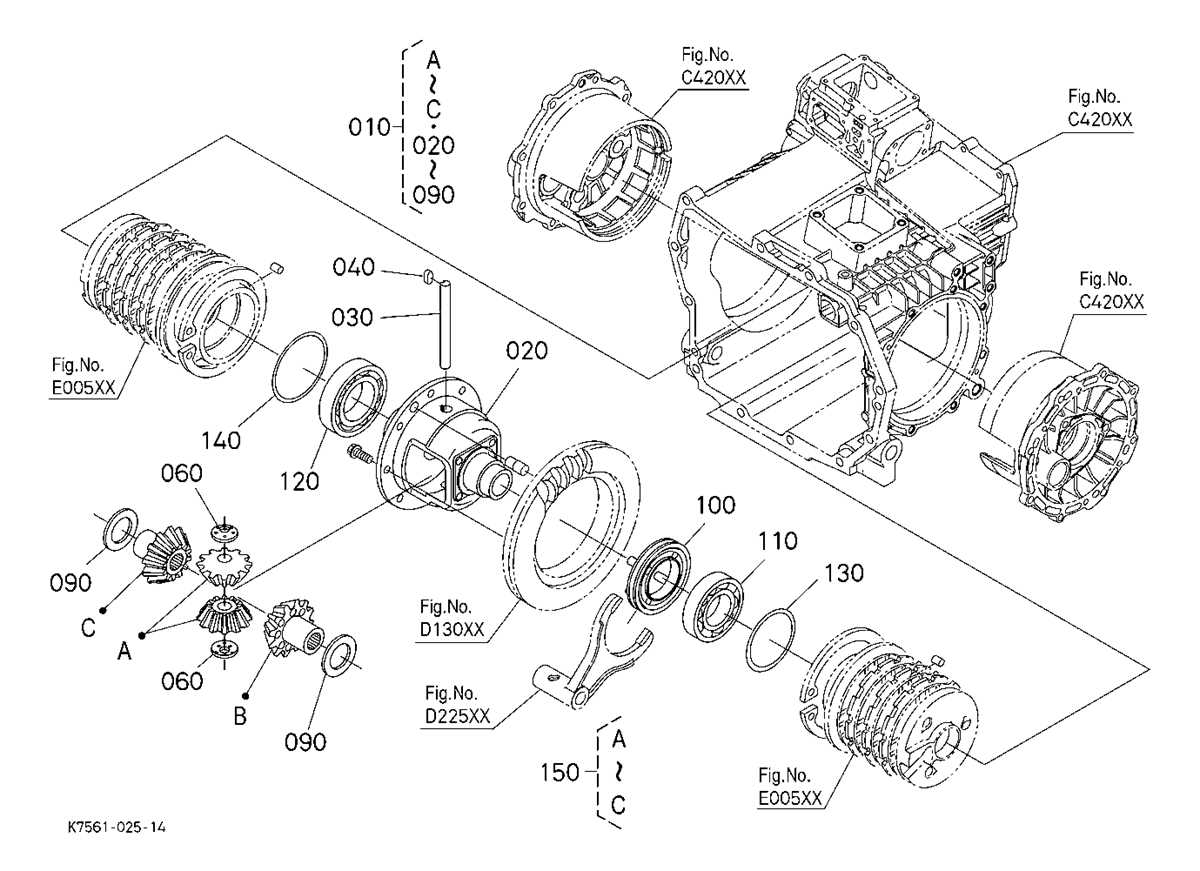

How to Interpret an Exploded Assembly Schematic
Locate the reference number key–usually a legend at the bottom or side–matching each component to its position in the breakdown. Most schematics arrange elements clockwise or from largest to smallest, so follow this sequence visually before cross-referencing.
Identify the central housing first; it’s invariably the largest single piece and serves as the anchor for all other parts. Look for mounting holes, splines, or distinctive shapes–these features help orient smaller elements correctly during reassembly.
Trace Sub-Assembly Groups
- Start at the input shaft, noting bearing races and seals–these often sit adjacent to the housing.
- Move outward to gears, marking tooth count if visible; mismatched alignment here causes operational failure.
- Locate shims and spacers next; their thickness determines mesh clearance.
- Finally, trace fasteners–bolts, washers, clips–grouped by size in the schematic to avoid substitution errors.
Measure critical gaps directly on the schematic using calipers if dimensions aren’t labeled. A 0.1mm variance in spacing changes torque distribution dramatically. Cross-check with service manual tolerances listed in millimeters.
Verify Orientation Markers
- Look for arrows or colored outlines indicating rotational direction; reversing these during installation damages the mechanism.
- Note textured surfaces–knurling on adjustment nuts or chamfered edges on shafts–these subtle cues prevent reverse assembly.
- Count identical fasteners; schematics may distinguish them only by slight position variances.
Photograph each layer of the physical assembly next to its schematic section. Compare mating faces–scratches, wear patterns, or corrosion reveal improper previous fitting. Record discrepancies for targeted replacement.
Use a highlighter on paper schematics to mark pathways: fluid flow routes, electrical contacts, or vacuum lines. Many schematics overlay these in dashed lines; missing a single connection disrupts functionality.
Validate every seal’s position; lips face fluid reservoirs, not dry cavities. Flip rings or gaskets backward during reassembly creates immediate leaks. Confirm material type–rubber, paper, or metal–listed in the legend, as substitutions cause premature failure.
Critical Components Prone to Degradation in a Vehicle’s Gear Assembly
Inspect ring and pinion gears every 30,000 miles for scoring, pitting, or uneven wear–these defects generate whining at highway speeds and indicate lubricant breakdown or misalignment. Locate the ring gear at the carrier housing’s outer edge, bolted to the differential case, while the pinion gear sits at the driveshaft’s forward end, meshing directly with the ring gear.
Replace worn carrier bearings immediately if play exceeds 0.002 inches when checking with a dial indicator–alignment shifts from bearing degradation accelerate gear wear and cause catastrophic failure. Bearings sit at both ends of the carrier assembly: the pinion bearing nests inside the housing’s front bore, and the differential bearings mount on the case’s lateral surfaces, pressed into machined journals.
Drain plug seals and axle shaft seals fail silently; leaks appear as fluid streaks beneath the axle tubes or near the pinion yoke. Replace both seals during routine fluid changes–leaking seals contaminate lubricant, leading to bearing starvation. The drain plug seal threads into the carrier’s lower edge, while axle seals press-fit into the housing ends where shafts exit.
Examine spider gears for galling or excessive backlash when rotating the carrier by hand–binding or roughness signals worn thrust washers or broken cross-pins. Spider gears reside inside the differential case, splined to the side gears and crossing the carrier’s centerline via the cross-pin, which locks into position with a retaining bolt or snap ring.
Check universal joint flanges at the pinion yoke for rust or worn splines–corrosion or loose fit transmits drive shaft vibration into the gear assembly. The flange bolts to the pinion shaft’s rear splines with a crush sleeve, while the opposite end couples the driveshaft via a companion flange or slip yoke.
