Begin by locating the hood release lever beneath the driver’s side dashboard–critical for accessing the engine bay. The outer panel covering the front section is secured with clips and bolts along the fender line; these fasteners often require a 10mm socket for removal. The grille assembly integrates with the headlamp housings via tabs on the upper edge; pry carefully to avoid snapping them.
Identify the door shell by tracing the seam where it meets the pillar–this junction houses hidden screws beneath plastic covers. The rear quarter panel merges with the tailgate frame through a welded seam; disassembly demands cutting tools or spot-weld removal. Side mirrors attach via three bolts behind the door’s interior trim, accessible only after removing the door card.
Label the bumper cover fasteners–typically four along the wheel well and two beneath the fog light cavity. The rear apron connects to the chassis with Torx screws near the exhaust cutout. For accurate reassembly, mark alignment points on the fender and rocker panel before detaching any components.
Use a multimeter to verify ground connections on the trunk lid’s latch mechanism before diagnosing electrical issues. The tailgate hinge springs require periodic lubrication to prevent corrosion–apply lithium grease to pivot points. Always cross-reference fasteners with a torque specification chart; overtightening can warp the adjacent panels.

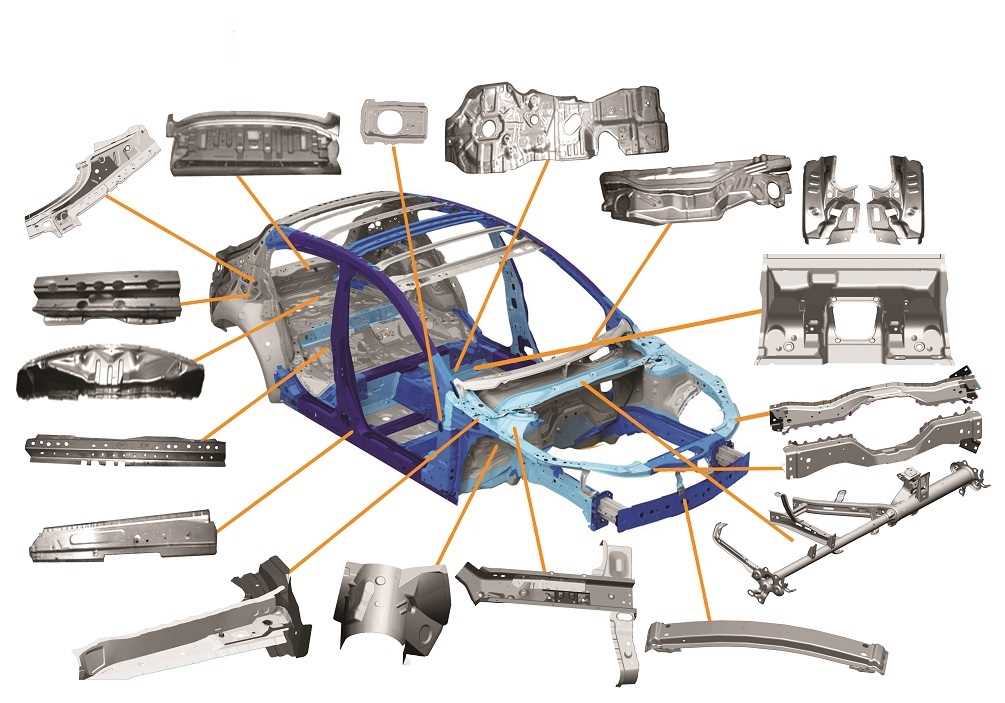

Identifying Key Structural Components of a Compact Sedan
Begin by examining the front fascia, where the bumper cover integrates with the grille assembly. The upper grille panel, often branded with a manufacturer’s emblem, connects to the hood latch support and radiator core support. Inspect the headlamp housings, which should align precisely with the fender flanges to prevent gaps. Misalignment here can indicate collision damage or improper reassembly.
Move to the side profile, focusing on the door assemblies. The front and rear doors share a hinge pillar (A-pillar) and lock pillar (B-pillar) structure, but the rear door lacks a separate rear quarter panel–unlike larger vehicles. Check the rocker panel for rust, especially near drain holes, as these areas trap moisture. The side mirrors attach via a triangular base plate, which should secure tightly to the door frame to minimize vibrations.
The rear end features a combination of the tailgate, deck lid (if sedan variant), and rear bumper assembly. The tailgate hinges integrate with the D-pillars, while the trunk lid uses a dual-hinge system for stability. Ensure the rear lamp clusters align with the quarter panels, as misalignment can signal frame distortion. The rear bumper cover includes an impact absorber, typically foam or plastic, designed to crumple during minor collisions before reaching the rear crossmember.

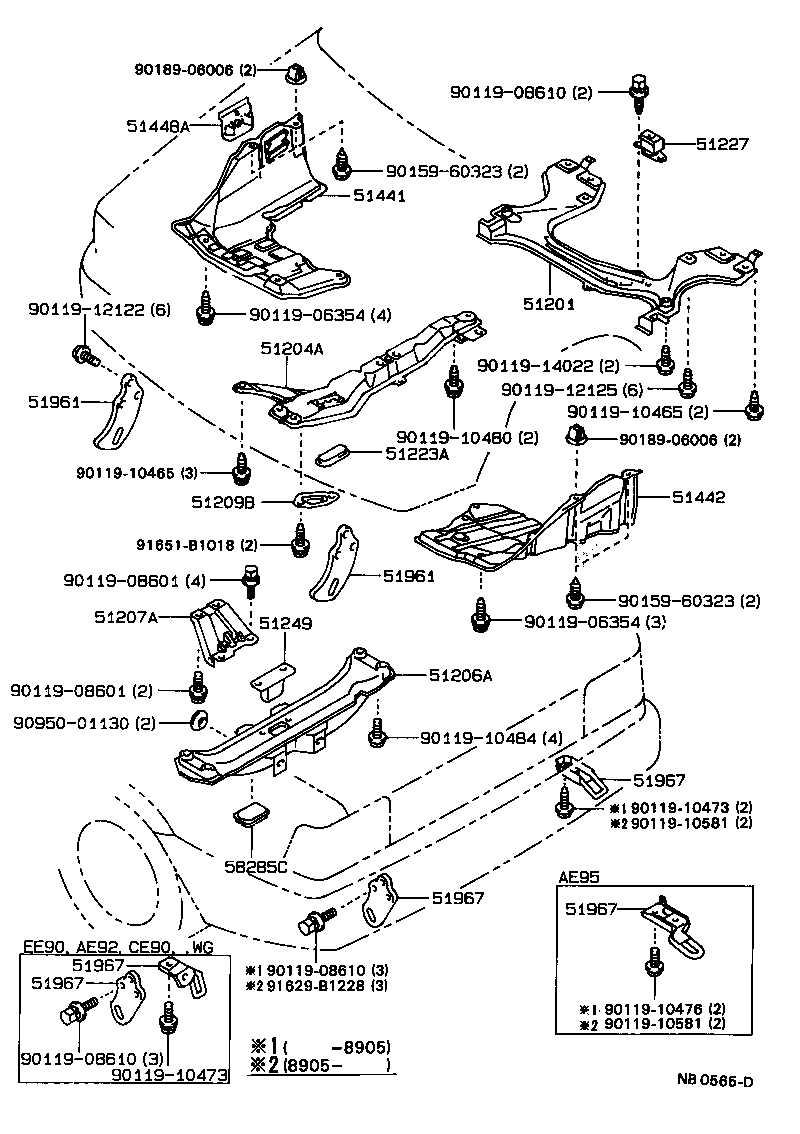

Under the exterior panels, the subframe mounts critical mechanical elements. The front subframe supports the engine, transmission, and suspension struts, while the rear subframe cradles the fuel tank and rear axle. These subframes bolt to the vehicle’s unibody structure at designated points; torque specifications for these fasteners range from 60 to 90 Nm, depending on location. Over-tightening can strip threads, compromising structural integrity.
Inspect the roof assembly, where the headliner conceals reinforcements such as side curtain airbag sensors. The roof panel itself is a single stamped piece, welded to the A, B, and C-pillars. Repairs here require specialized equipment, as improper welding can create weak spots prone to failure in rollover scenarios. The sunroof, if equipped, slides along a track embedded in the roof frame, with drainage tubes running to the rear corners of the vehicle.
Access the engine bay by releasing the hood, noting the gas struts’ condition–they should hold the hood open without sagging. The hood itself includes a reinforcement beam, typically made of high-strength steel, to protect the engine during frontal impacts. Below, the cowl panel separates the engine bay from the windshield; debris accumulation here can block drainage and cause water leaks into the cabin.
For maintenance, refer to the service manual’s exploded views of each assembly. Replace fasteners with equivalent grade bolts (e.g., grade 8.8 for structural components) and use anti-seize compound on threads exposed to heat or corrosion. Aftermarket panels may not match OEM specifications, so verify thickness and material composition before installation. Regularly clean drain holes in door bottoms and rocker panels to prevent rust formation.
Locating Exterior Sheet Metal on a Compact Sedan
Begin with the front fender–located between the headlamp assembly and the leading edge of the front door. This panel curves around the wheel well and connects to the hood at the upper seam. Check for alignment gaps: specifications mandate a uniform 3-5 mm clearance along the entire joint line. Misalignment here often indicates collision damage or improper reassembly after repair.
Examine the rear quarter panel next. This section extends from the rear door’s trailing edge to the taillight cluster and includes the fuel door cutout on most models. The lower portion integrates with the rear bumper cover, forming a continuous line. Use a flashlight to inspect the inner wheel well liner for rust or debris accumulation, a common issue in regions with road salt exposure.
The hood assembly comprises two stamped steel halves bonded along a central seam. Look for paint adhesion irregularities or ripples near the edges–early signs of bond failure. The latch mechanism, mounted beneath the upper radiator support, should engage with an audible click when closed. If the hood fails to seal flush, check the striker plate adjustment first before suspecting hinge misalignment.
Door skins attach via spot welding to an inner reinforcement beam. Modern units use anti-intrusion beams made from high-strength boron steel, visible through the door jamb cutaway. Test the weather stripping integrity by running a fingertip along the seal’s perimeter; gaps larger than 2 mm will allow wind noise and moisture ingress. The exterior mirror mount base should align precisely with the window frame gasket–any offset suggests prior repair work.

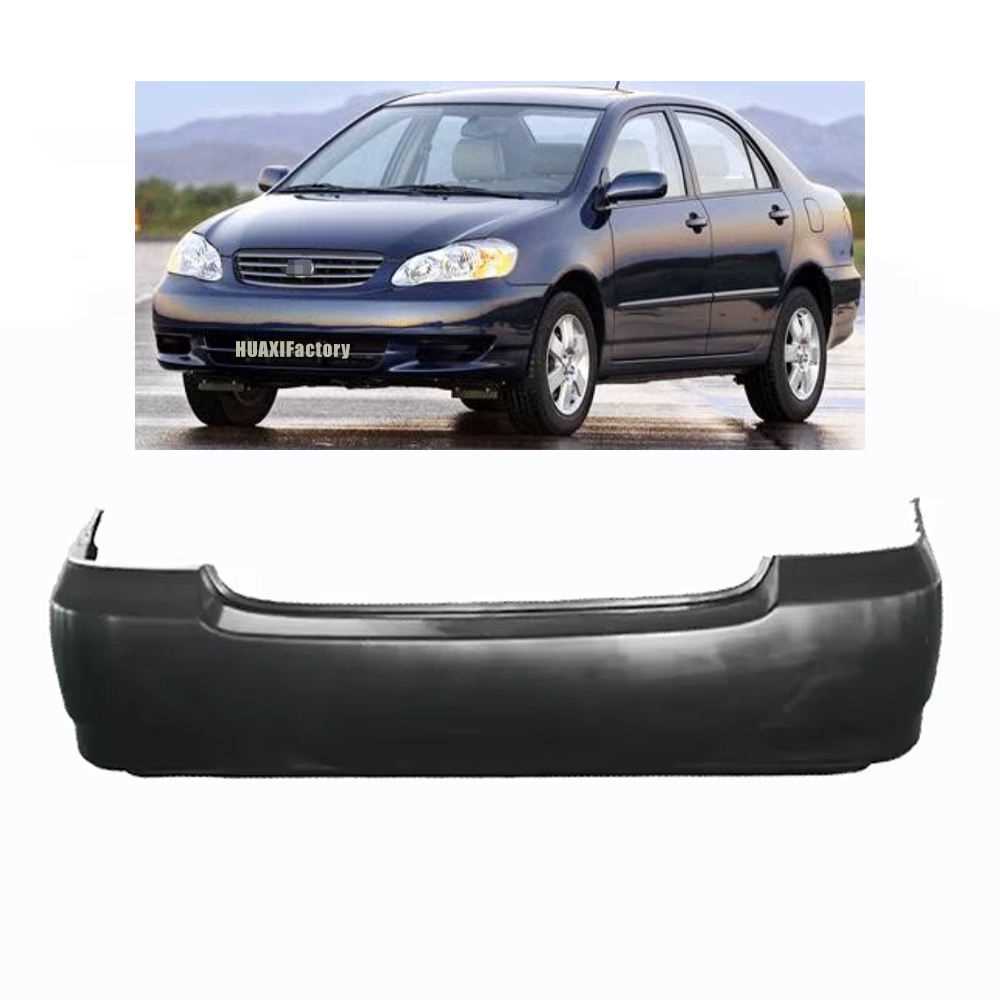

Bumper covers, composed of thermoplastic olefin (TPO), snap onto absorber brackets via integrated clips. Front units feature openings for fog lights, while rear versions include cutouts for the license plate and reverse light housings. Inspect the retaining tabs along the upper edge: brittle or cracked tabs often cause visible sagging, particularly in colder climates. Replace covers showing stress whitening along high-load areas.
Roof panels use a single-piece stamping with integrated rain gutters pressed into the flange. The junction between the roof and the B-pillar is vulnerable to corrosion due to water drainage patterns; probe with a plastic trim removal tool for soft spots before painting. Factory sunroof frames include drain tubes routing condensation to the vehicle’s rocker panels–ensure these remain unobstructed to prevent interior water damage.
Locating Key Structural Components Under the Hood
Start by identifying the radiator support beam–this horizontal reinforcement sits directly above the cooling system framework. It typically features two welded attachment points for the hood latch assembly and may include an integrated brace extending toward the front shock towers. Misalignment here can indicate prior collision damage or subframe misassembly.
Inspect the apron panel, the vertical structural plate connecting the strut tower to the lower chassis rail. This component often houses factory weld spots in a staggered pattern–three on the outer flange and two near the wheel well reinforcement. Corrosion in this area compromises lateral rigidity; probe for rust bubbles along the seam with a screwdriver.
| Component | Location Reference | Critical Failure Signs |
|---|---|---|
| Upper rail extension | Runs parallel to the firewall, terminating near the brake master cylinder mount | Paint cracks along welds; uneven gapping with adjacent panels |
| Cowling brace | Spans between strut towers, beneath windshield wiper motor | Sagging under load; loose fasteners at mounting brackets |
Access the torque box by removing the wheel liner only–it’s the box-section reinforcement directly behind the front bumper beam. Factory spot welds should appear as uniform, circular depressions; irregular or oversized welts suggest aftermarket repairs. Measure dimensions with calipers: standard thickness is 1.2–1.4mm; deviations beyond 0.1mm require structural analysis.
Door Panel Construction and Glass Regulator Component Identification
To correctly label side entry components, begin with the outer shell–typically a stamped metal frame bolted to the vehicle’s skeleton with reinforced weld points at the hinge mounts and latch striker plate. Use torque specs between 28–35 Nm for hinge bolts to prevent misalignment during repeated operation.
The inner trim panel houses the primary control interface. Detach it by prying off plastic clips (usually 8–12 along the perimeter) and unclipping the electrical harnesses for power window switches, mirror controls, and courtesy lights. Label each connector with masking tape to avoid cross-wiring during reassembly.
Behind the trim lies the vapor barrier–a thin plastic sheet sealed with adhesive to the door frame. Peel it carefully to access the internal mechanism. If damaged, replace it with 0.15mm polyethylene film secured with butyl tape to maintain cabin insulation.
- Window regulator: Identify whether it’s a cable-driven or scissor-type system. Cable-driven units use a nylon-coated steel cable looped around pulleys, while scissor designs deploy articulated arms with pivot points. Lubricate moving parts with lithium grease at intervals of 20,000 km.
- Glass channel: The vertical tracks guiding the glass are lined with flocked rubber to reduce friction. Inspect for wear–if grooves exceed 1mm depth, replace the channel to prevent rattling or glass detachment.
- Guide rails: Upper and lower rails secure the glass in the door cavity. Misalignment here causes binding; adjust by loosening mounting screws and sliding the rail until the glass moves smoothly.
Electrical Wiring Breakdown
The door’s wiring harness connects to the main body loom via a waterproof grommet. Common failure points include:
- The window motor–test for continuity (ohms 5–10Ω) and replace if the motor draws over 12A under load.
- Switch contacts–clean with electrical contact cleaner if intermittency occurs; replace the switch if resistance exceeds 0.5Ω.
- Ground points–corrosion at chassis connections causes erratic operation. Scrape paint and secure with star washers to ensure conductivity.
The door latch assembly includes a rotary claw mechanism and sensor for lock/unlock feedback. Disassemble by removing the T30 torx screws (typically 3) to access the actuator. Grease the latch gears with molybdenum disulfide to prevent seizing.
For water intrusion issues, drill a 4mm drainage hole at the door’s lowest point and verify that the vapor barrier’s lower edge laps over the outer panel seam. Seal gaps with silicone-based sealant to prevent wind noise and moisture damage to internal components.
Reassembly requires aligning the glass fully raised to engage the regulator arms correctly. If misaligned, the window may drop unexpectedly–lower the glass, jiggle the regulator into position, then tighten all mounting points in a cross-pattern to distribute pressure evenly.
