Complete Guide to Shower Faucet Diagram Components and Repairs

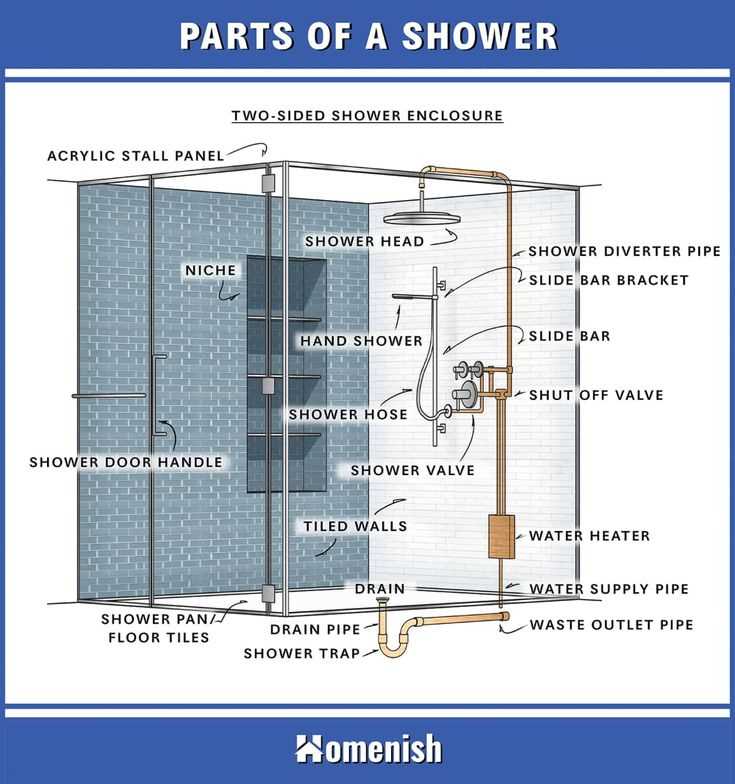

diagram shower faucet parts

Replace a leaking or malfunctioning unit efficiently by identifying the exact piece causing the issue. The internal cartridge–often ceramic–controls water flow and temperature; if water drips through even after shutting off, this $12–$45 component likely needs replacement. Remove the handle (usually secured with a 5mm Allen key or a decorative cap) to access it. Match the cartridge’s spline pattern before purchasing: common configurations include 12, 20, or 24 teeth.

Pressure-balancing valves prevent sudden temperature shifts when another tap is opened. These safety devices, located behind the escutcheon plate, contain a piston or diaphragm that responds to water pressure changes. If your system fails to maintain a steady temperature, the $30–$80 valve may require cleaning or replacement. Shut off the main water supply and disassemble carefully–mineral buildup often clogs the small openings.

O-rings and seals, typically made of rubber or silicone, form watertight junctions between moving elements. A worn $1–$5 seal can cause drips at the spout or handle base. Examine them during disassembly; replace if flattened or cracked. Lubricate new seals with plumber’s grease before reassembly to extend their lifespan. For diverter valves–used in handheld sprayers or tub spouts–a faulty $10–$25 mechanism may fail to redirect water properly. Listen for a clicking sound when toggling; if absent, the diverter likely needs attention.

Escutcheon plates hide mounting hardware and provide a finished look, but corrosion behind them often goes unnoticed. Mineral deposits can seize screws, making removal difficult. Apply penetrating oil to stuck fasteners and use a stripped screw extractor if threads are damaged. Wall-mounted models may require accessing the rough-in valve via the adjacent wall; plan for drywall repair if leaks persist behind the unit.

Understanding Mixer Valve Components

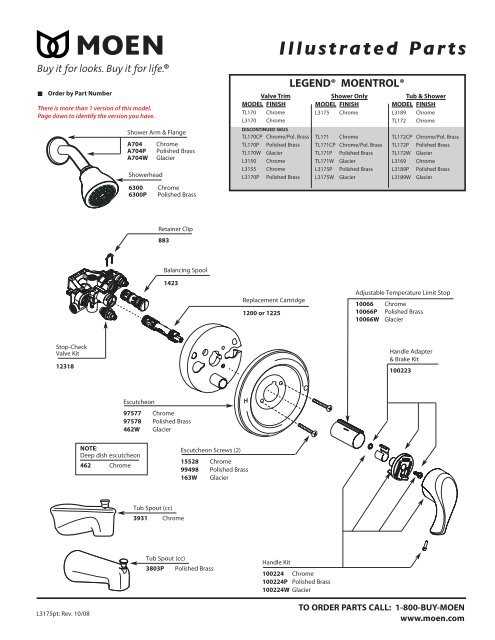

diagram shower faucet parts

Begin by identifying the cartridge assembly–this regulates water flow and temperature. Most modern systems use ceramic disks, which outlast older rubber washers. If leaks persist, check for cracks or sediment buildup in the disks before replacing the entire unit. A faulty cartridge often causes uneven pressure or scalding risks.

Inspect the pressure-balancing spool next. This safety mechanism maintains consistent temperature by adjusting hot/cold water ratios if supply pressure fluctuates. Testing involves turning on multiple fixtures simultaneously–if temperature shifts occur, the spool may need cleaning or replacement. Some models include an anti-scald feature with a thermal limiter.

Handle mechanics vary by brand. Single-handle units rely on a stem connected to the cartridge, while dual-handle versions have separate stems for hot and cold. Look for worn O-rings or corroded stems; these small components fail gradually, causing drips before complete breakdown. Lubricate O-rings with silicone grease during reassembly to extend their lifespan.

Examine the diverter valve if your system controls multiple outlets (e.g., showerhead and handheld sprayer). This component often fails when mineral deposits clog the pathways. Disassemble and soak parts in white vinegar for 30 minutes to dissolve calcite without damaging seals. Avoid abrasive cleaners on plastic or chrome finishes.

The trim plate (escutcheon) hides mounting hardware but also secures internal parts. Misalignment here can lead to leaks behind walls. Ensure screws are tightened evenly; over-tightening strips threads, while loose screws allow water seepage. Use thread sealant tape on threaded connections to prevent future leaks, especially in high-pressure systems.

Rarely Addressed Components

Check the check valves–small one-way springs that prevent cross-flow between hot and cold lines. These degrade silently, causing temperature instability without visible leaks. Installation requires precise orientation (spring-loaded side faces water supply). For troubleshooting, swap suspect valves with known-good spares rather than cleaning, as debris lodged in the spring renders them unreliable.

Key Elements to Recognize in Your Bath Mixer Valve Setup

Start by locating the control handle–usually a single lever or dual knobs. Its position dictates water flow and temperature. Detach it carefully by removing the decorative cap (often threaded or press-fit) to expose the cartridge underneath. Cartridges regulate pressure and mixing; brass or ceramic types last longer than plastic.

Inspect the valve body, the central housing where cold and hot inlets merge. Look for wear on rubber O-rings or seals–replace them if cracked or flattened. A damaged seal causes leaks even when the unit appears intact. Use silicone-based lubricant for reassembly to prevent future corrosion.

  • Escutcheon plate: Secures the valve to the wall; misalignment here indicates loose mounting screws.
  • Retainer clip: A small metal ring holding the cartridge in place; never force it–align slots first.
  • Flow restrictor: Found inside the spout; removes it only if pressure is abnormally low.

Verify inlet pipes are labeled “H” (hot) and “C” (cold). Crossed connections cause scalding or icy water. For concealed valves, mark pipes before disconnection to avoid reinstallation errors. Copper pipes require flux and solder; PEX pipes need cinch clamps.

Check the diverter if your setup includes a tub spout or handheld nozzle. A faulty diverter redirects water when engaged–test by operating the primary control, then engaging the secondary outlet. Lack of diversion points to a worn internal seal or debris blockage.

Reassemble in reverse order: cartridge first, then handle mechanism, escutcheon plate, and finally the trim cap. Tighten screws diagonally to prevent uneven pressure. Run water for 30 seconds to purge air before final leak check. Store spare seals in a dry, labeled container to avoid mixing sizes.

Step-by-Step Breakdown of Valve Cartridge Types and Functions

diagram shower faucet parts

Replace ceramic-disc cartridges every 5–10 years or at the first sign of uneven water flow–whichever comes first. These valves rely on precision-ground alumina or zirconia discs that rarely corrode but accumulate fine debris that scratches sealing surfaces. Turn off the main supply, unscrew the escutcheon plate with a 19mm socket, then pull the cartridge straight out using vice-grip pliers on its brass stem. Inspect for hairline fractures; even 0.1mm fissures cause slow leaks under pressure.

Brass compression valves carry hot-side ratings up to 99°C but require annual stem-packing renewal to prevent drips around the handle. Disassemble by removing the acrylic button with a 5mm Allen key, then unfasten the stem with a pipe wrench (counter-clockwise). Wrap six turns of 3mm Teflon tape clockwise around the threads before reassembly, ensuring torque remains under 18 Nm to avoid distorting the seat.

Thermostatic cartridges regulate temperature within ±1.5°C by using a wax-filled copper cylinder that expands against a spring-loaded piston. If output fluctuates more than 3°C, recalibrate by turning the concealed brass screw behind the temperature-limiting ring–one full rotation equals approximately 8°C adjustment. Always flush the system for 60 seconds after servicing to clear metal shavings that could jam the piston tolerance of 0.02mm.

Single-handle ball valves simplify servicing with captive springs and cam assemblies that snap into place, eliminating loose washers. Lift the handle off the brass spherical cap, then pry the plastic cam and rubber seals out with a flat-blade screwdriver; inspect the ball’s chrome surface for pitting deeper than 0.4mm–replace if worn. Reinstall by aligning the cam’s keyway with the slot in the housing, ensuring the indexing tab clicks into its detent before tightening the cap to 12 Nm.

Glycerin-filled pressure-balancing valves prevent scalding by equalizing inlet surges with dual diaphragms separated by a sealed silicone membrane. Replace only if flow rate drops below 6.5 L/min at 410 kPa; disassembly reveals two brass chambers–scrub mineral deposits from the diaphragm grooves with a brass bristle brush, then refill the chambers with 2 ml of USP-grade glycerin before sealing o-rings with food-safe PTFE grease to maintain the 2:1 pressure ratio.

Common Handle Mechanisms and Their Internal Gear Systems

Replace ceramic disc valves every 5–10 years to prevent sediment buildup from jamming the two alumina plates. Look for models with at least 95% alumina content–the harder the material, the longer the lifespan. Single-lever mixes use a single cartridge with these discs stacked vertically, while dual-handle sets separate hot and cold components into individual housings. Check torque: standard handles require 1.2–1.8 Nm to turn smoothly; anything stiffer indicates mineral deposits or worn grease.

Compression spindles, found in older or budget models, rely on a rubber washer pressed against a brass seat. These require quarter-turn stems with Acme threading (pitch typically 14–20 TPI) to avoid stripping. Thread pitch matters: finer threads (e.g., 20 TPI) offer better flow control but wear faster under torque exceeding 2 Nm. Apply silicone-based plumber’s grease to the stem threads every 12 months to maintain a watertight seal and prevent corrosion that jams the mechanism.

Mechanism Type Key Components Torque Range (Nm) Maintenance Interval
Ceramic Disc 2 alumina plates, silicone seal, brass housing 1.2–1.8 5–10 years (cartridge)
Compression Stem Rubber washer, brass seat, Acme-threaded stem 1.5–2.0 3–5 years (washer)
Ball-Type Polished steel ball, rubber O-rings, cam/camwasher 0.8–1.2 7–12 years (ball assembly)
Cartridge (Thermostatic) Wax element, piston, spring, bypass valve 2.0–2.5 8–15 years (element)

Ball-type actuators use a polished steel sphere with multiple inlet ports; the sphere pivots against rubber O-rings to modulate flow. Over-tightening the dome cap (beyond 2.5 Nm) distorts the O-rings, causing leaks. Lubricate the sphere with non-petroleum grease annually to prevent galling. Thermostatic cartridges employ a wax element that expands when heated, pushing a piston to adjust flow; these fail when sediment clogs the bypass valve. Flush thermostatic units with vinegar every 2 years to dissolve calcium deposits.

Quarter-turn quarter-turn stems operate on a splined shaft linked to a cam; turning the handle rotates the cam, lifting or lowering the stem. These tolerate only 0.1 mm radial play–excess play causes erratic adjustment. Replace the cam if handle movement feels sloppy after tightening the retaining nut. Non-rising stems–common in commercial setups–thread directly into the valve body; these require periodic packing gland adjustments (0.3 Nm) to prevent drips.

Two-handle sets often use diverter spindles with spring-loaded check valves. Test for diverter wear by cycling between outlets 10 times; if backpressure sputters, the springs or seals need replacement. Brass spindles outlast plastic but corrode if exposed to chlorinated water–use dielectric grease during installation. For temperature regulation precision, thermostatic units maintain ±2°C stability, while ceramic discs deliver ±5°C; ball types vary between ±4°C and ±10°C depending on O-ring condition.
