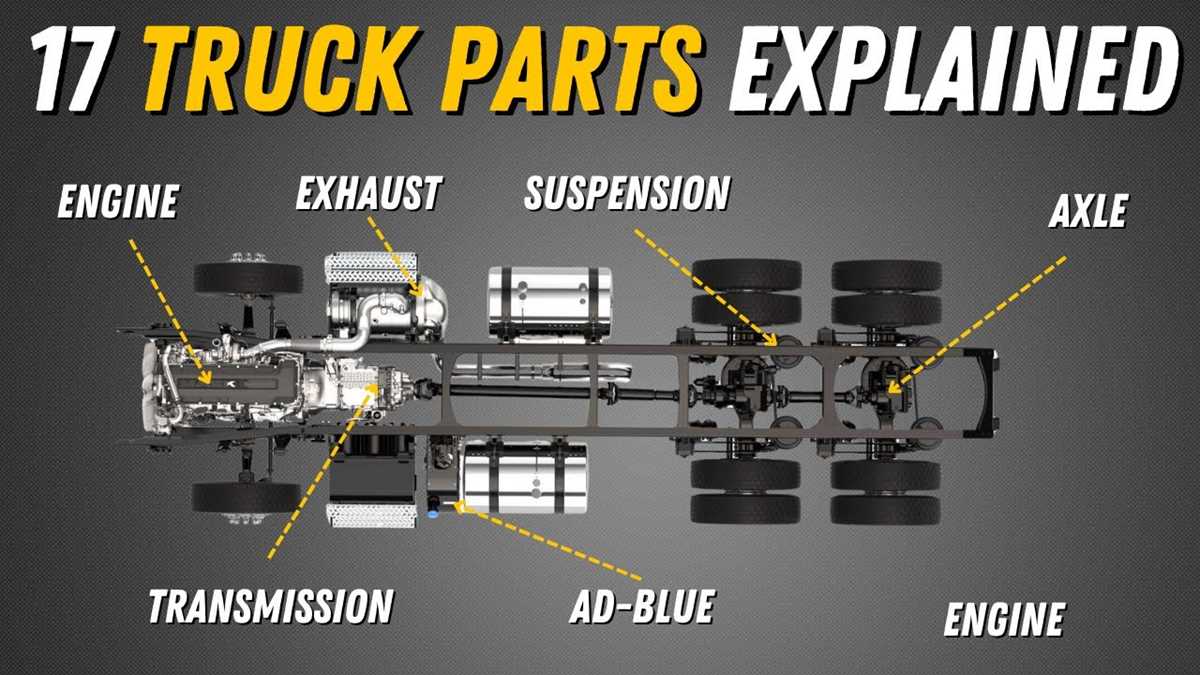

Begin with isolating the powertrain. The engine block, transmission housing, and drive shaft form the mechanical spine. Locate the crankshaft (positioned beneath the cylinder heads) and flywheel (mounted at the rear) before examining external auxiliaries. Turbochargers sit adjacent to exhaust manifolds, identifiable by their coiled piping, while intercoolers–distinguished by finned aluminum cores–rest between the charge air ducts.
Prioritize critical wear items. Steering linkages (tie rods, drag links) show telltale corrosion near ball joints; inspect boots for tears. Air brake chambers (located on axle beams) reveal internal damage via airlines cracking at flex points. Suspension components (leaf springs, torque rods) often fail at shackle connections–check for elongated holes or snapped bushings under load.
Electrical systems demand systematic tracing. Fuse blocks and relay panels cluster near the battery box; label each wire by color code and gauge before disassembly. The alternator output wire (typically 2 AWG red) routes directly to the starter solenoid–verify connections with a multimeter (minimum 13.8V under load). Sensor wires (wheel speed, oxygen) terminate in watermproof connectors; corrosion here mimics intermittent faults.
Cab controls require functional verification. Dashboard gauges connect to senders via 16-pin harnesses–problems manifest as erratic readings rather than total failure. The gear selector interfaces with the TCM through a 24-circuit plug; pinouts vary by manufacturer–consult wiring schematics before jumpering. Air suspension switches (if equipped) bleed system pressure through solenoid valves; listen for pneumatic clicks during diagnostics.
Frame and chassis integrity dictate roadworthiness. Crossmembers (often box-section 1020 steel) develop cracks near welds under torsional stress–inspect with a dye penetrant kit. Fifth wheel mounting plates (thickness ≥ 25mm) must align within 1.5mm tolerance to prevent kingpin wear. Bolts securing axles to subframes require torque verification every 20,000 km–use a calibrated wrench (target: 670-750 Nm).
Key Components of Heavy Vehicle Schematics
Label each section of a commercial vehicle schematic with technical precision, using standardized ISO or SAE designations to avoid ambiguity. Prioritize the powertrain cluster–engine block, transmission housing, and drivetrain linkages–ensuring measurements in millimeters for axle spacing, torque converter placement, and differential ratios. Specify OEM part numbers for critical assemblies like the air intake manifold (e.g., Cummins ISX15 4926534) or braking system calipers (e.g., Meritor EX225), as these impact maintenance protocols. Include failure-prone zones: exhaust gas recirculation ports, turbocharger turbine vanes, and fifth-wheel coupling tolerances (±0.5 mm), with annotations for thermal expansion limits.
Color-code operational systems: blue for fluid circuits (coolant, hydraulic), red for high-voltage lines, yellow for compressed air. Add layer separations for frame rails, cross members, and suspension mounts, noting material grades (e.g., 1200 MPa yield strength steel for cab mounts). For diagnostics, mark sensor locations–DPF pressure taps, DEF injector nozzles, wheel speed encoders–with probe access points. Embed QR codes linking to torque specs or torque-to-yield bolt sequences. Validate schematics against dynamometer test logs to confirm vibrational node alignments.
How to Pinpoint Critical Powertrain Elements in Heavy Vehicle Schematics
Begin by identifying the cylinder block–the central casting that houses pistons and crankshaft. On most schematics, it appears as a large rectangular or oblong shape near the lower center. Note coolant passages (usually hatched in blue) and oil galleries (dotted lines), which confirm its location.
Trace the crankshaft from the cylinder block to the rear, where it connects to the flywheel. Look for a horizontal line with evenly spaced bearing journals–commonly depicted as small circles or rounded rectangles. Adjacent counterweights, if shown, resemble curved protrusions.
| Component | Schematic Markers | Adjacent Indicators |
|---|---|---|
| Turbocharger | Twin scrolls or turbine housing | Exhaust manifold (bold lines), inlet duct (arrowed path) |
| Fuel injectors | Small circles atop cylinder head | Fuel rail (parallel lines), wiring harness (thin dashed) |
| Oil cooler | Compact rectangular heat exchanger | Oil lines (black arrows), coolant inlet/outlet (color-coded ports) |
Locate the camshaft above or alongside the crankshaft in overhead-valve layouts. It’s drawn as a slender rod with lobes–tiny triangular projections spaced at regular intervals. Timing marks (dots or notches) align with crankshaft pulley notches, typically near the front.
Follow the serpentine belt routing from the crankshaft pulley to auxiliary components. The alternator (rectangular with internal fins) sits near the front top, while the power steering pump (circular with fluid ports) mounts closer to the mid-engine. A/C compressors appear as compact, finned cylinders below the alternator.
Inspect the exhaust manifold at the engine’s side–a cluster of individual runners merging into a single outlet. Headers are distinguishable by separate tubes converging into one flange, whereas a log manifold shows a straight pipe with multiple ports.
Find the glow plugs (diesel) or spark plugs (gasoline) atop the cylinder head. Glow plugs resemble small cylinders with a heating coil icon; spark plugs have thicker insulators and a high-voltage wire connection. Both are positioned between fuel injectors.
Verify the EGR cooler (exhaust gas recirculation) on post-2010 models–an elongated tube heat exchanger connected to the intake manifold via braided lines. It’s often shaded differently (light blue for coolant, red for exhaust gases) and sits above the turbocharger on transverse layouts.
Cross-reference the transmission bellhousing–a flared casting bolted to the engine block’s rear. Hydraulic lines (dashed) and the torque converter (stippled circle) distinguish it from other housings. Manual transmissions show a throwout bearing fork, while automatics have a flexplate identifier.
Step-by-Step Guide to Identifying Heavy Vehicle Gearbox and Powertrain Components
Begin by locating the transmission housing on the underside of the chassis–it’s the large, sealed casing bolted directly to the engine’s rear. Trace the output shaft extending toward the rear axle; this connects to the driveshaft via a universal joint. If the housing has cooling fins or an external pump, it’s likely an automatic gearbox; manual units lack these features. Note the shift linkage: single-rod for manuals, complex cable or hydraulic lines for automatics.
Inspect the rear differential to distinguish standard from tandem setups. A single rear axle has a central housing with a pinion gear entering at an angle; dual axles (tandem) show two identical housings connected by a driveshaft. Measure ring gear diameter: 300mm+ typically indicates a heavy-duty locking diff, while smaller gears suggest limited-slip variants. Listen for a distinct hum during turns–this indicates wear in the spider gears or bearings.
Key Powertrain Components to Verify
- Torque converter: Only in automatic systems; it’s a fluid coupling between engine and gearbox. Rotate it by hand–it should spin freely without metallic scraping.
- Transfer case: Found in all-wheel-drive variants, mounted behind the transmission. Look for two output shafts–one to the front axle, one to the rear.
- Propeller shaft: Count the universal joints–two or three indicate a slip joint for axle movement compensation.
- Axle shafts: CV joints at the wheels suggest independent suspension; solid shafts indicate a rigid axle.
Remove the transmission oil pan to check internal condition. Use a flashlight to spot valve bodies (automatic): they resemble a maze of passages. Manual gearboxes show visible shift forks but lack valve bodies. Check the drain plug magnet–excessive metal particles signal internal failure. For air-operated gearboxes, locate the shift cylinder: it’s a cylindrical unit mounted externally with a single air line.
Failure Signs and Diagnostic Steps
- Slipping gears: Test under load–press accelerator at 30 km/h. If engine RPM rises without speed increase, suspect clutch packs or one-way sprag clutches.
- Delayed engagement: Start engine, shift into drive (automatic), and note engagement delay. More than 2 seconds? Check transmission fluid level and condition–dark, burnt fluid indicates overheating.
- Unusual noises: Whining from the rear differential suggests low oil or damaged bearings. Grinding during gear shifts points to worn synchros or clutch.
- Vibration at speed: Feel for pulsations through the steering wheel at 80 km/h. This typically indicates driveshaft imbalance–inspect universal joints and slip yoke.
For heavy-duty rigs with dual-clutch systems, locate the hydraulic actuator module–it’s a separate control unit bolted near the transmission. Electronic gearboxes display error codes through flash sequences; count blink rate for DTC identification. Always cross-reference findings with the service manual torque specs before disassembly–improperly set pins or bearings void warranty.
Key Components of Heavy Vehicle Braking Systems in Technical Blueprints
Prioritize inspecting air compressors every 3,000 miles–failure here cascades into pneumatic system collapse. Schematics show dual-circuit layouts: primary supplies service brakes; secondary feeds parking and emergency mechanisms. Verify reservoir tank diameters match manufacturer specs–12-15 gallons for Class 8 rigs–to prevent premature pressure drops during prolonged braking.
- Brake chambers: Measure push rod travel weekly. Exceeding 1.75 inches (Type 30) triggers automatic slack adjuster engagement; deviations signal misalignment or worn linings.
- Quick-release valves: Test exhaust ports monthly. A 2-3 second delay in air discharge indicates diaphragm degradation–replace immediately to avoid trailer brake drag.
- Relay valves: Locate in rear axle schematics. Their 20-30 psi crack pressure protects contre-pedal springs; calibration errors cause uncontrolled wheel lock-ups.
Examine brake linings via wheel end diagrams. Minimum thickness: 6.4mm for disc pads, 4.8mm for drum shoes. Below these thresholds, thermal conductivity drops 40%, increasing fade risks during 6% downgrades. Pair thickness checks with torque balance tests–unbalanced wheels (>15% variance) mandate equalization adjustment via ABS sensors.
Scheduled air dryer maintenance prevents contaminants larger than 5 microns from entering the system. Replace desiccant cartridges every 100,000 miles or biannually–moisture accumulation freezes valves at sub-zero temperatures. Cross-reference plumbing layouts: nylon lines tolerate 175 psi; steel tubing (1/2″ OD) handles 250 psi for auxiliary circuits. Ignoring corrosion on steel lines–particularly at chassis bends– risks catastrophic ruptures under load.
