For accurate repairs, upgrades, or custom builds, identify each structural component first–begin with the housing (the outer shell, often metal or plastic) and trace inward. The socket, typically ceramic or brass, must match the bulb’s base type–E26/E27 for standard screw-in bulbs, or pin-based (like GU10) for directional units. Measure voltage compatibility: 120V for North American fixtures, 220-240V for European models. Check insulation integrity; frayed wires near the socket cause over 60% of DIY electrical failures.
The reflector or shade holder dictates light dispersion–parabolic reflectors focus beams for task lighting, while frosted diffusers soften output. For LED retrofits, ensure thermal paste between the heat sink (aluminum ridges) and bulb to prevent overheating; degraded paste reduces lifespan by 40%. Examine the cable entry (often rubber-grommeted) for strain relief–loose wires here create short-circuit risks.
Disassemble in reverse order of assembly: remove the finish cap (if present), loosen the mounting bracket, then detach internal components. Label wires before cutting–black (hot), white (neutral), green/bare (ground). For vintage units, test resistance at the switch with a multimeter; values below 0.5 ohms indicate corrosion. Reassemble using thread-locking compound on screws exposed to vibration (e.g., garage or workshop fixtures).

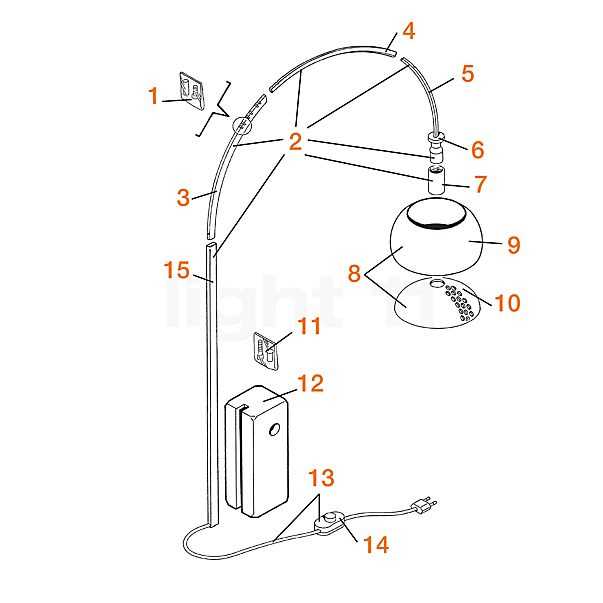

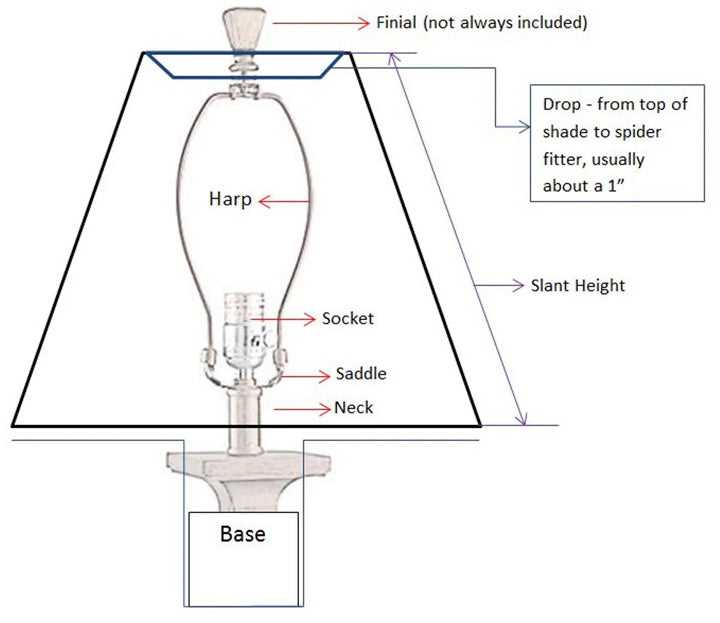

Visual Breakdown of Light Fixture Components
Begin by sketching the base assembly as the foundation–label the socket housing first, noting whether it’s bayonet or screw-type, as this dictates bulb compatibility. Mark the insulating sleeve surrounding the socket to prevent short circuits, especially in metal-enclosed designs. Include the wire entry point, where electrical leads connect; use a consistent color-coding system (earth green, neutral blue, live brown) to avoid miswiring.
For pendant or ceiling-mounted models, identify the suspension mechanism–usually a threaded rod or chain–and measure its adjustable length. Note the canopy trim that conceals junction boxes; ensure it’s secured with tamper-proof screws in commercial settings. If the unit includes a downrod, specify its diameter and material (steel vs. aluminum) to assess load-bearing capacity.
| Component | Material | Typical Dimensions | Failure Points |
|---|---|---|---|
| Socket housing | Bakelite/ceramic | 22–30mm diameter | Cracking under overtightened bulbs |
| Insulating sleeve | Mica/resin | 0.5–1.2mm thickness | Thermal degradation at >150°C |
| Threaded rod | Zinc-plated steel | M6–M8 threads | Stripped threads from overtightening |
Examine the shade or diffuser next–glass diffusers often use frosted coatings to scatter light evenly, while acrylic variants reduce weight but scratch easily. For fixtures with lenses, measure the beam angle (e.g., 30° for spotlights, 60° for floods) and note the reflector type: parabolic for focused output, elliptical for wider dispersion. Document any ventilation gaps to prevent heat buildup, a critical factor in LED longevity.
In adjustable units, trace the internal wiring pathways through swivel joints; lubricate pivot points with dielectric grease annually to maintain smooth movement. For plug-in models, inspect the cord strain relief grommet–it should flex without pinching wires. Record the IP rating (e.g., IP44 for damp locations) and verify rubber seals are intact around entry points to prevent moisture ingress.
Track the mounting hardware separately: toggle bolts for drywall, lag screws for wood, or expansion anchors for masonry. Indicate torque specifications–over-tightening can strip threads or crack porcelain sockets. For outdoor-rated fixtures, confirm the presence of a drainage hole in the base to prevent water accumulation, and apply silicone sealant around seams if absent.
Analyze the power supply configuration: built-in drivers for LEDs versus separate ballasts for fluorescents. Note voltage requirements (e.g., 12V low-voltage systems need transformers); mismatches will cause premature failure. If dimming is supported, specify the compatible control protocol (0–10V, DALI, or TRIAC) and check for flicker-free certification to reduce eye strain.
Color temperature (2700K warm white vs. 4000K cool white) affects ambiance–match it to the intended application (kitchens benefit from 3500K–4100K, bedrooms 2200K–2700K). For decorative elements like finials or glass globes, note fastening methods: threaded rings, set screws, or compression fits. Always disconnect power before handling conductive parts, and use a multimeter to verify no residual voltage remains after switching off.
Core Socket Elements in Household Lighting Fixtures
Select a threaded metal socket (E26/E27 or B22) rated for at least 250V to handle dual-voltage appliances safely. Brass alloys resist corrosion better than aluminum or steel, reducing contact oxidation over time. Check socket depth–shallow mounts (15-20mm) suit ceiling fixtures, while deeper variants (25-30mm) accommodate bulky decorative shades without overheating.
Wiring Materials That Prevent Failure
Use 18-gauge copper conductors with silicone or Teflon insulation for flexible cords, avoiding PVC in high-temperature zones above 80°C. Stranded wire flexes better than solid core, preventing breakage at stress points near plug connections. Secure terminal screws with a torque of 0.5Nm–overtightening cracks porcelain bases; undertightening causes arcing.
Heat-resistant fiberglass sleeves over exposed conductors near halogen bulbs prevent shorts–polyester sleeves degrade at 120°C, fiberglass handles up to 450°C. For dimmable setups, pair integrated drivers with compatible sockets; mismatched current ratings trip circuits or shorten bulb lifespan by 40%.
European fixtures often integrate push-fit sockets–verify contact pressure with a 5N spring test. North American threaded sockets require a 3mm lead extension beyond the base rim to ensure full engagement. Replace cracked phenolic sockets immediately; even hairline fractures absorb moisture, leading to stray current leaks.
How to Identify Socket Types on Lighting Illustrations
Locate the socket area near the connection point where the bulb attaches–typically marked with standardized abbreviations. E26 (Edison screw), E27, and B22 (bayonet mount) dominate household fixtures, while E12 (candelabra) appears in smaller decorative units. Check for these codes directly on the schematic or adjacent labels.
Measure thread diameters if no markings exist: E26 sockets have a 26mm span, B22 bases reach 22mm, and E12s narrow to 12mm. Bayonet types will show twin pins rather than continuous threading. Cross-reference findings with
- ANSI codes (C79.9 for E26)
- IEC standards (IEC 60061)
- Manufacturer specs (Philips, Osram)
Examine the base shape–screw-in sockets feature helical ridges matching bulb threading, while push-and-twist configurations reveal two opposed notches. Ceramic sockets withstand higher wattage (up to 660W), whereas phenolic resin models limit to 250W. The schematic may differentiate materials through shading (ceramic often hatched).
Look for voltage ratings near the socket designation:
- 120V: North American standard (E26/E12)
- 220-240V: European/Asian (E27/B22)
- 12V: Low-voltage halogen systems (GU5.3/G4)
Switching errors risk bulb failure or fire.
Identify specialized sockets using these visual cues:
- MR16/GU5.3: Two narrow pins spaced 5.3mm (spotlights)
- G9: Loop designs (miniature halogens)
- R7s: Linear slot for tube-shaped J bulbs
Schematics depict these with simplified pin layouts rather than threaded designs.
Check for integrated components–modern schematics sometimes include:
- Ballasts (for CFLs)
- Transformers (low-voltage setups)
- Heat sinks (LED arrays)
These appear as boxed regions connected to the socket via dashed lines.
Compare socket symbols against IEEE 315 symbol standards or DIN EN 60617 if working with technical schematics. E26/27 bases use identical decimal notation globally, while B22 uniquely employs a circular symbol with internal slots. LED retrofit designs occasionally mimic E26 threading despite lacking filaments.
Verify socket polarity where relevant–LED and halogen systems often require correct hot/neutral orientation. Schematics denote polarity with
- Wide prongs = neutral
- Thin prongs = live
- Ribbed wires = ground
Reverse connections damage sensitive electronics.
Core Structural Variations: Incandescent vs LED Light Sources
Choose LED filaments for heat-sensitive installations–incandescent bulbs dissipate 90% of energy as heat, while LEDs convert only 10% to thermal output, drastically reducing fire risk in enclosed fixtures. The tungsten coil in traditional designs operates at 2,500°C, requiring robust heat sinks and borosilicate glass to prevent oxidation; LEDs eliminate this need entirely, using aluminum or ceramic substrates that run below 80°C under normal conditions.
Replace incandescent drivers with integrated LED circuits to cut resistance losses–conventional filaments rely on direct current flow through a resistive element, wasting 80% of input wattage. LEDs instead use a semiconductor junction, where electrons recombine with electron holes to emit photons at 80-90% efficiency. The absence of filament vibration or burnout extends operational life from 1,000 hours (incandescent) to 25,000+ hours (LED), eliminating frequent replacements in high-ceiling or outdoor applications.
Prioritize solid-state components over vacuum-sealed chambers; incandescent devices depend on an inert gas (argon/nitrogen) to slow filament degradation, while LEDs require no gas fill–just a phosphor coating on the diode to tune color temperature (2,700K–6,500K vs the fixed 2,200K–3,000K of tungsten). This absence of fragile internal structures makes LEDs resistant to shock and vibration, ideal for industrial or portable lighting.
Avoid tungsten-based spectral limitations–incandescent bulbs emit a continuous spectrum weighted heavily toward infrared (70% of output), producing warm but inefficient light. LEDs, by contrast, generate narrow-band emissions adjustable via phosphor blends, enabling precise color rendering (CRI >80) without wasted energy in non-visible wavelengths. For task lighting, opt for LEDs with RGBW chips to dynamically shift white balance, a capability absent in single-filament designs.
Swap incandescent’s Edison-screw bases for LED-compatible drivers if retrofitting older fixtures. Traditional sockets (E26/E27) deliver raw AC power to the filament, whereas modern LEDs integrate switching regulators to convert AC to low-voltage DC (3–24V), isolating sensitive electronics from power surges. Check for thermal pads on LED arrays; their absence risks overheating, whereas incandescent heat is inherently distributed across the bulb surface.
Disassemble both units to compare internal real estate–incandescent chambers house a single coiled wire suspended by support posts, leaving 60% of volume as inert gas. LED assemblies pack multiple diodes, resistors, and capacitors into a fraction of that space, often with optic lenses (polycarbonate or PMMA) to direct light output. This miniaturized footprint allows LED strips to fit into 2mm profiles, compared to the 60–100mm diameter of comparable incandescent globes.
Failure Mode Contrasts: Why LEDs Outlast Traditional Bulbs
Inspect degradation patterns–tungsten filaments thin unevenly due to evaporation, creating hotspots that fail abruptly regardless of usage cycles. LEDs degrade gradually, with luminosity dropping below 70% (L70 rating) only after 50,000 hours for commercial-grade chips. This predictable performance lets you stagger replacements in multi-bulb installations, whereas incandescents demand immediate attention upon burnout. For critical environments (e.g., cold storage), select LEDs with silicone encapsulants; incandescent bulbs risk internal arcing at sub-zero temperatures due to gas contraction.
