Start by identifying the intake filter–its role is critical in preventing contaminants from entering the mechanism. A clogged filter reduces efficiency by up to 15%, increasing wear on moving elements. Check the filter every 200 hours of operation, replacing it if pressure drop exceeds 2 psi. Neglecting this leads to premature failure of the pump assembly.
The motor and drive assembly must match the system’s power requirements precisely. Overloading the motor by even 10% can shorten its lifespan by 30%. Use manufacturer specs to verify voltage, current draw, and RPM compatibility. Misalignment between the motor shaft and crankshaft causes vibrations, accelerating bearing wear–tolerance should not exceed 0.002 inches.
Inspect the piston and cylinder assembly for scoring or uneven wear. Replace all rings if compression drops below 90% of factory specs. Lubrication type matters: synthetic oils last 2,000 hours, mineral oils degrade after 500–800 hours. Over-greasing bearings generates excessive heat, while under-greasing increases friction–apply 1–2 pumps per 100 operating hours.
The pressure switch and unloader valve work in tandem to regulate output. A faulty switch can cause short-cycling, reducing equipment life by 40%. Test the cut-in/cut-out pressures weekly–deviation beyond 5% indicates calibration issues. The unloader valve should release residual pressure within 3 seconds; delays signal valve wear or stuck components.
Coolers and separators prevent overheating and oil carryover. Check differential pressure across the separator every 500 hours–replacement is needed when it reaches 10 psi. Radiators require annual cleaning to remove dust buildup; blocked fins reduce cooling efficiency by 25%. Verify drain valves are functioning–leftover condensate causes corrosion, especially in humid environments.
Piping and connections often fail due to improper sealing. Use PTFE tape on threaded fittings, applying 2–3 wraps in the direction of threading. Hoses should be rated for 1.5x the system’s max pressure–cracks or bulges mean immediate replacement. Check for leaks monthly with soapy water; even minor seepage wastes 5–10% of output energy.

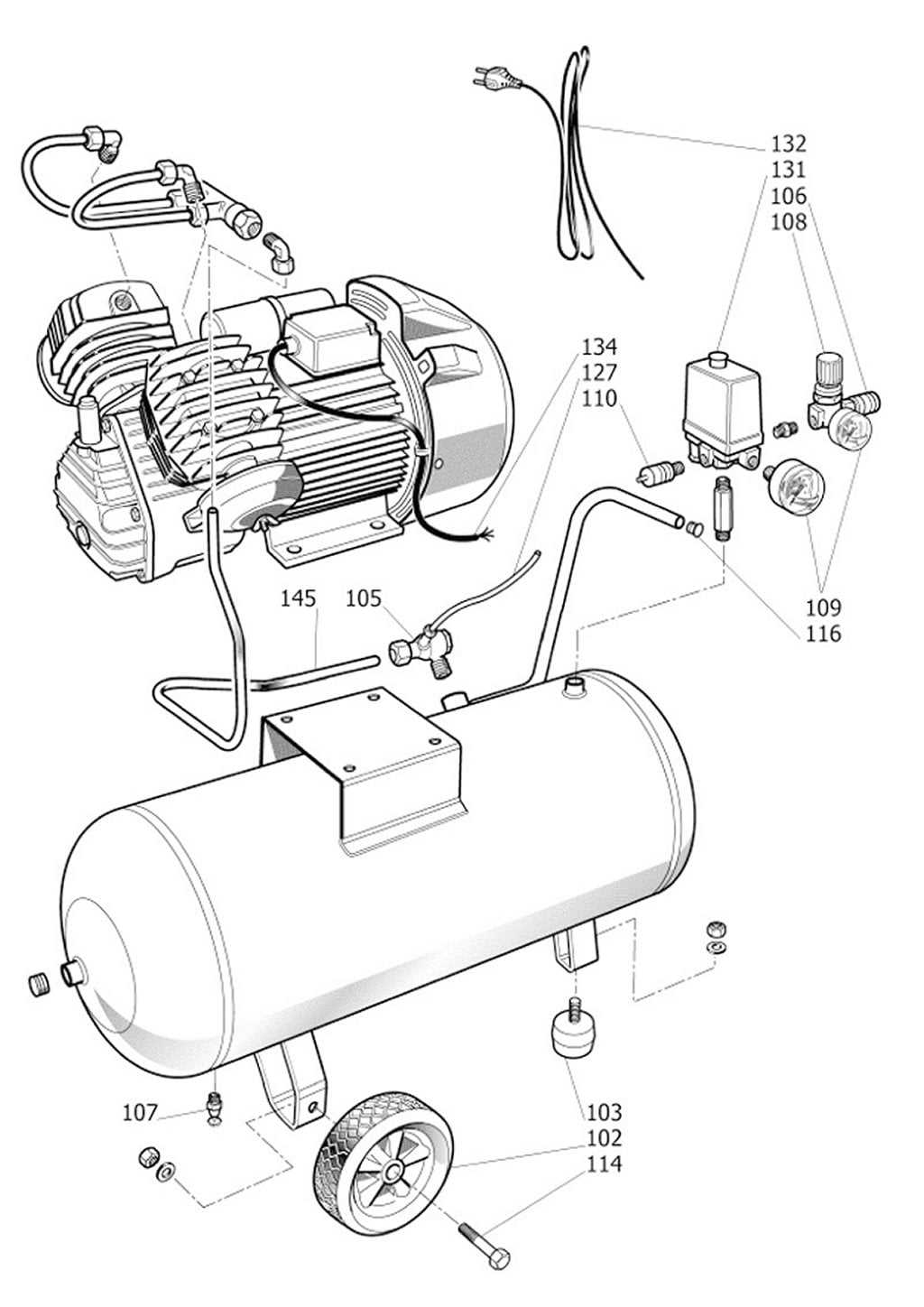

Key Components of a Pneumatic System Visualized
Refer to a schematic showing the intake filter first–it prevents contaminants like dust and debris from entering the mechanism. Optimal models use multi-layered filtration with a 5-micron rating or finer to protect internal elements. Replace filters every 500 operating hours or sooner if clogging indicators activate.
Monitor the pressure switch closely–it controls activation cycles by detecting tank levels. Adjust cut-in (typically 90-100 PSI) and cut-out (125-150 PSI) values for balanced performance. Malfunctioning switches cause excessive cycling or failure to engage; test with a multimeter for continuity before replacement.
- Intake valve: Ensures unidirectional flow during suction. Inspect for cracks or wear every 200 hours–replace if leakage is detected.
- Piston assembly: Check rings and cylinder walls for scoring. Apply synthetic lubricant (SAE 30) every 100 hours to reduce friction.
- Discharge line: Verify check valve integrity to prevent backflow. Clean interior passages with solvent if pressure drops persist.
Tank maintenance demands drainage after each use to remove moisture accumulation–failed drainage causes corrosion. Inspect weld seams annually for rust spots using a borescope. Recoat interior surfaces with epoxy if pitting exceeds 1mm depth. Store units in low-humidity environments when idle.
Key Elements to Spot in Pneumatic System Blueprints
Begin by locating the prime mover–typically an electric motor or internal combustion engine. This component is usually the largest block on the schematic, often positioned at the left or top. Check for label annotations like “Power Input” or “Drive Unit” to confirm its role. Verify voltage or fuel specifications match the system’s requirements; mismatches here will cascade into inefficiencies or failure.
Trace the intake filtration segment next. It’s commonly represented as a small, box-like symbol with arrows indicating flow direction, often preceded by a straight or wavy line denoting atmospheric connection. Look for specifications like “5 micron” or “HEPA-type” in the notes–ignoring these will accelerate wear on internal mechanisms.
The pressure generation chamber appears as a serpentine or spiral shape, sometimes paired with a piston or rotary screw icon. Identify annotations for displacement volumes (e.g., “1.5 CFM”) and maximum PSI ratings. Cross-reference these values with the downstream tools’ demands; overestimating leads to energy waste, underestimating causes performance drops.
Pinpoint the storage reservoir–a simple cylindrical or oval symbol with a pressure gauge nearby. Check for drain valve placement at the lowest point; improper positioning risks moisture accumulation, corroding internal surfaces. Ensure the tank’s volume aligns with usage patterns; a 30-gallon tank suits intermittent tasks, while continuous operations require 60+ gallons.
Safety and regulation devices cluster near the outlet–pressure relief valves, regulators, and automatic shutoffs. Pressure relief symbols resemble a spring-loaded mechanism with arrows pointing outward. Verify settings match the rated PSI; a 125 PSI system needs a relief valve triggered at 130-135 PSI. Overlooking this invites hazardous over-pressurization scenarios.
How to Interpret Pressure Control and Relief Device Markings on Schematic Layouts
Locate the pressure switch symbol first–it typically resembles a rectangle with a diagonal line or zigzag across it, often labeled with a numerical range like “85–110 PSI” or metric equivalents (e.g., “6–7.6 bar”). Check the manufacturer’s datasheet for exact cutoff values, as deviations of ±5% from the printed range may indicate wear or calibration drift. If the diagram shows multiple switches, the lower threshold one (e.g., 85 PSI) usually controls startup, while the upper (e.g., 110 PSI) handles shutdown. Verify the wiring color codes adjacent to the symbol: red usually denotes the live circuit, black the neutral, and green or yellow the ground–cross-referencing these with the legend prevents miswiring that could disable safety overrides.
Common Labeling Anomalies and What They Signal
| Label Text | Expected Meaning | Red Flag |
|---|---|---|
| “NC/NO” | Normally Closed/Open contacts–determines whether the circuit is active at rest or under pressure. | Reversed NC/NO designations may cause unintended shutdowns. |
| “ΔP: 15 PSI” | Pressure differential–minimum gap between cut-in and cut-out points. | Values below 12 PSI risk rapid cycling, damaging the motor. |
| “Max 130 PSI @ 120°F” | Temperature-dependent maximum pressure–adjustments required for ambient heat over 40°C. | Ignoring temperature derating voids warranty and risks vessel rupture. |
Examine the relief valve marking next–look for a spring-loaded symbol (a triangle with an arrow pointing upward) alongside a fixed value like “125 PSI” or “8.6 bar.” This value must never exceed the tank’s certified working pressure, usually stamped on the vessel’s nameplate. If the diagram shows dual relief valves, compare their setpoints: the primary (e.g., 125 PSI) protects the tank, while the secondary (e.g., 135 PSI) safeguards downstream tools. Replace any valve labeled with only a single value without a tolerance (±3%)–omitting tolerance suggests poor manufacturing standards and unreliable discharge behavior.
Tracing Gas Flow Routes: From Inlet Screen to Storage Cylinder
Begin inspections at the suction element–replace pleated media every 500 operational hours or sooner if clogging exceeds 10 psi pressure drop. Verify sealing integrity: misaligned gaskets admit unfiltered debris, accelerating wear on moving internals by up to 40%.
Inspect ductwork between intake and compression chamber for kinks or accumulation of oil mist. Even a 1.5 cm diameter constriction reduces volumetric efficiency by 7%. Use a thermal camera to detect temperature gradients; gradients exceeding 8°C per meter signal localized resistance.
Critical Pressure Zones
Monitor three segments:
- Pre-compression conduit: 0–30 psi
- Screw or piston chamber: 30–150 psi (model-dependent)
- Discharge pipe: 150–200 psi
Each segment tolerates a maximum 5 psi variance from manufacturer specs; deviations above this require immediate valve or gasket inspection.
Aftercoolers demand weekly condensate drainage–retained moisture corrodes aluminum fins, reducing cooling capacity by 12% within six months. Use a hygrometer to log moisture levels; readings above 60% relative humidity mandate drain valve adjustment.
Final conduit pressure should stabilize within ±3 psi of storage cylinder rating before transfer. Install a dual-stage pressure switch: first stage at 175 psi activates cooling fan, second stage at 195 psi cuts motor power. Bypass older mechanical relays prone to 9% failure rate after 3,000 cycles.
Receiver Tank Integration
- Confirm safety valve pops at 220 psi–adjust set screw if response exceeds ±5 psi.
- Attach a differential pressure logger between intake and cylinder: optimal operation maintains ≤20 psi loss over 24 hours.
- Line inlets should slope 2° downward toward tank bottom to prevent condensate pooling near outlet.
Periodic airflow mapping with smoke pens reveals dead zones; correct these with directional baffles. Seal all joints with PTFE tape–each 0.5 mm gap leaks 0.3 CFM, inflating energy costs by 2%.
