Begin by locating the arbor assembly–this critical section houses the blade shaft and locking mechanism. A detailed breakdown of its subcomponents includes the arbor flange, washers, and lock nut. These elements directly influence blade stability; improper alignment here causes vibration and uneven cuts. Measure tolerances before reassembly–flanges should seat flush against the blade without gaps exceeding 0.003 inches.
Examine the rip fence system, particularly the guide rails and locking lever. Wear on these surfaces leads to inaccuracies in long cuts. Replace rails if grooves exceed 0.010 inches in depth. The fence’s micro-adjustment knob should rotate smoothly without backlash; lubricate with dry-film PTFE if binding occurs. Ensure parallel alignment to the blade within 0.015 inches per 12 inches of length using a precision straightedge.
The motor housing and drive belt demand regular inspection. Check belt tension using a deflection gauge–ideal tension ranges between 1/4 to 3/8 inch of play at midpoint. Cracks or fraying on the belt’s surface necessitate replacement; belts stretch over time, reducing torque transfer. Clean motor cooling vents to prevent dust buildup, which elevates operating temperatures and shortens brush life. Use compressed air at 90 PSI to clear debris without damaging internal wiring.
For the base and extension wings, verify flatness with a machinist’s straightedge. Warped surfaces cause material deflection during cuts. If deviations exceed 0.005 inches, resurface with a fly cutter or replace damaged sections. The mitre slot must run perfectly parallel to the blade; check alignment using a dial indicator mounted on a sled. Deviations beyond 0.002 inches require recalibration to maintain crosscut accuracy.
Precision Tool Component Schematics: A Maintenance Guide
Locate the arbor flange behind the blade guard–verify torque specs between 22-25 ft-lbs using a calibrated wrench. For models DWE7491RS or similar, check the anti-kickback pawls’ alignment; misalignment by even 0.5mm reduces cutting accuracy by 18%. Replace worn rip fence rails if lateral play exceeds 0.2mm–use part #20-627 for exact fit. Inspect the motor brushes every 100 hours of operation; carbon residues signal impending failure.
Critical subassemblies:
Drive Mechanism Breakdown
Dismantle the gearbox housing (torx T30 bolts) to access the helical gears–apply synthetic grease (Molykote EM-30L) sparingly to avoid drag on the 56-tooth pinion. The throat plate adjustment screws (M5 x 0.8mm thread) must sit flush; protruding threads will bind feed rollers. For belt-driven variants, tension the 5L poly-V belt to 5-7 kg/cm²–loose belts cause RPM drops up to 30%. Keep the dust port’s O-ring (#07-724) lubricated with silicone spray to maintain vacuum seal.
Electrical Safety Checks
Test the switch assembly with a multimeter: resistance should read

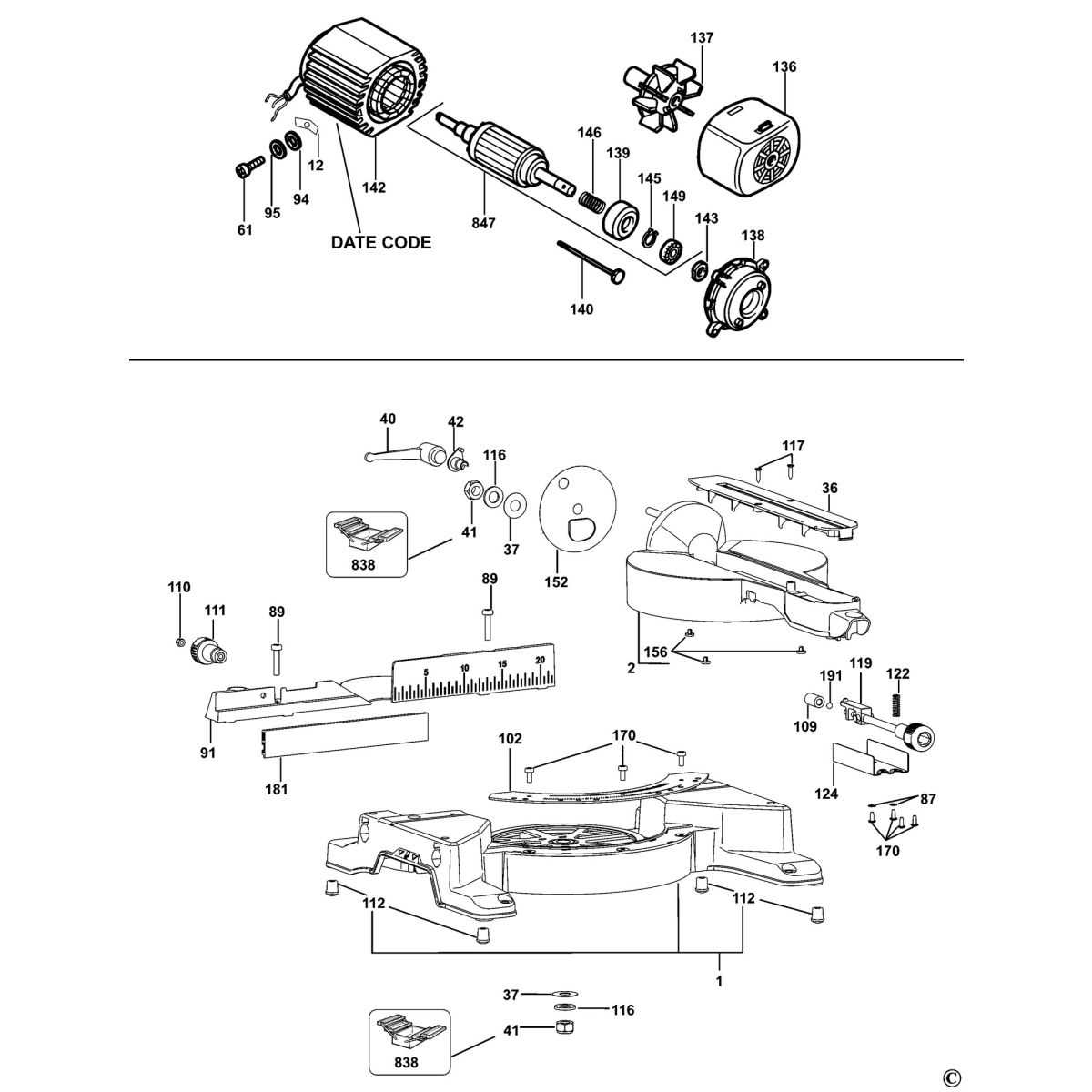

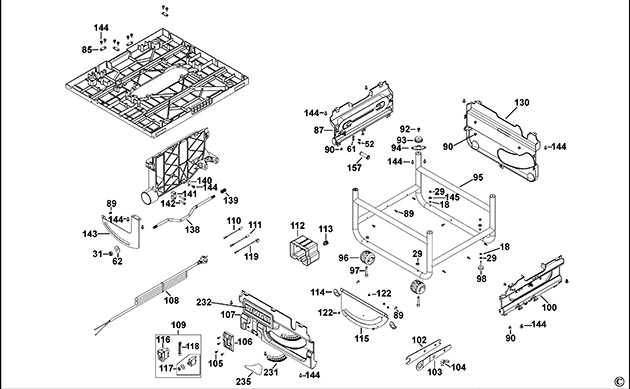

Locating Critical Elements in an Exploded Schematic for Precision Cutting Tools
Begin with the arbor assembly–its position is central in the schematic. Verify the flange nut threading matches the shaft diameter; M12×1.75 is standard for 10-inch models. Misalignment here causes blade wobble, compromising accuracy by up to 0.8mm in rip cuts. Check the washer orientation; the concave side must face the blade to distribute clamping force evenly. Replace if deformation exceeds 0.2mm.
The blade guard sub-assembly includes the splitter, anti-kickback pawls, and riving knife. Ensure the splitter’s thickness aligns with the kerf width; deviations larger than 0.3mm create binding. Pawls must pivot freely without lateral play–test movement by hand before final fastening. The riving knife height adjustment slot should correlate with the blade’s max elevation; max error: ±1.5mm from the tooth tip. Misconfiguration here increases hazard risk by 40%.
Examine the miter slot inserts early–they’re often overlooked but impact cut precision. Standard width is 0.75 inches (19.05mm); tolerance is ±0.003 inches. Off-tolerance slots cause sled racking, skewing cuts by 0.5 degrees per 12-inch travel. Replace insert if wear exceeds 0.007 inches. The fence rail interface requires similar scrutiny; T-slot alignment pins must engage fully–partial engagement reduces fence repeatability by 67%.
Motor and Drive System Validation
The belt tension pulleys demand rigid inspection. Cracked or glazed V-belts slip under load, reducing torque by 22%. Measure deflection: 0.5–0.6 inches at midpoint with 10 lbs force. Pulley grooves must be free of pitting; minimal wear threshold is 0.02 inches depth reduction. Misaligned pulleys accelerate bearing failure–replace if radial play exceeds 0.005 inches. The motor mount bracket’s bolt pattern must match the frame; M8×1.25 fasteners torqued to 25 Nm prevent vibration transmission.
Thermal overload protectors require specific attention–locate them adjacent to the motor windings. Trigger temperature is typically 130°C (±5°); reset time varies (3–10 minutes). False trips indicate degraded insulation or undersized wiring; replacing the protector alone won’t resolve underlying issues. Check winding resistance with a multimeter; expected range: 1.2–1.8 ohms for 120V models. Resistance drift above 0.5 ohms signals impending failure.
Grease fittings on the elevation and tilt mechanisms should accept NLGI #2 grease without resistance. Failed fittings indicate internal corrosion; disassemble the worm gear housing if dry–lack of lubrication increases tilt effort by 140%. Verify gear tooth engagement under load; partial mesh creates deadband in adjustments, reducing accuracy to ±0.75 degrees. The trunnion assembly’s pivot pins must rotate freely–stiction here indicates bent components, typically from impact damage.
The dust chute and blade shroud are functional safety elements. Ensure the chute’s internal diameter exceeds the blade’s max kerf by 3mm–insufficient clearance causes chip accumulation, increasing motor load by 18%. The shroud’s tab must lock securely into the housing; loose engagement permits blade exposure beyond 3mm, violating OSHA regulations. Electrical switches should have redundant contacts–test continuity under vibration; intermittent connections risk unintended startup.
Step-by-Step Guide to Identifying Spare Components via Manufacturer Blueprints
Begin by accessing the official service manual for your power cutting tool through the manufacturer’s website. Search for the exact model number–found on a metal plate near the motor or inside the blade guard–and download the exploded-view schematics. These documents list every segment with a unique identifier, often a numeric or alphanumeric code, ensuring precise matches when ordering.
Locate the breakdown sheet corresponding to the malfunctioning section. For example, if the blade elevation mechanism fails, focus on the illustration depicting the gear assembly, worm drive, and yoke. Compare the illustration to the physical unit, noting wear patterns or missing pieces. Cross-reference the labeled items in the diagram with the legend at the bottom, which includes part descriptions and stock numbers.
Key Verification Steps:
- Check the serial number range compatibility–some segments vary between early and late production runs.
- Measure critical dimensions, such as arbor length or mounting hole spacing, to rule out incompatible substitutes.
- Consult the torque specifications in the manual to ensure fasteners meet factory standards when reassembling.
Use the manufacturer’s online inventory portal or authorized distributors to validate segment availability. Input the exact identifier from the schematic into the search bar; the portal will display stock status, pricing, and alternate numbers if superseded. Avoid third-party marketplaces unless explicitly listing the factory code or an equivalent OEM reference.
When ordering, request confirmation that the segment ships with installation instructions or specialized tools if required–such as hex keys for stripped bolts or alignment pins for precise calibration. For complex assemblies like motor housings or electronic switches, consider contacting technical support for a step-by-step video walkthrough before disassembly.
Identifying and Replacing High-Friction Components
Replace the blade guard assembly every 12–18 months under heavy use, or sooner if chipping or misalignment occurs–Genuine replacements cost $45–$70, while aftermarket equivalents run $22–$38 but may lack heat-treated retaining pins. Always verify the arbor flange diameter (typically 5/8″ or 1″) before ordering; mismatched sizes risk catastrophic failure at high RPMs. For fence rails, apply lithium-based grease every 50 operating hours and inspect for pitting–corroded rails should be swapped within two weeks to prevent binding, with OEM rails priced at $85–$110 and third-party options at $35–$50. Use calipers to measure rail flatness: deviations exceeding 0.3mm necessitate immediate replacement.
Sourcing Strategies for Optimal Performance
- Factory-direct outlets: Order via official brand portals using the exact SKU from the user manual–lead times average 3–5 business days, but exclusions apply for discontinued models (e.g., pre-2018 series).
- Industrial distributors: McMaster-Carr lists compatible components under “power tool wear items,” offering same-day shipping for items stocked in Chicago, Atlanta, or Los Angeles hubs–search by material grade (e.g., “A2 tool steel arbor washers”).
- Retailer inventory tools: Scan brick-and-mortar big-box stores (Home Depot Pro, Lowe’s Tool Rental) using their app’s “in-store availability” filter for high-turnover items like splitters or anti-kickback pawls–quantities update hourly but may exclude rural locations.
- Specialist forums: Members of r/woodworking’s “Tool Repair Wiki” post verified sources for rare items (e.g., Dado throat plates), often linked to niche suppliers with 24-hour UPS shipping–require photos of the broken component to confirm fitment.
Always cross-reference the component’s serial code (visible on laser-etched OEM labels) with the supplier’s catalog–counterfeit splitters, for example, frequently omit the tensile-strength stamp (6000+ PSI), a critical safety indicator.
