If you need to repair or maintain a high-performance mitre saw, the official exploded view schematic is your starting point. For models rated at 1,675W with a 305mm blade capacity, the manufacturer’s reference illustration–typically found in the service guide–labels every screw, spring, and gear with numerical precision. Begin by downloading document X304971-B from the brand’s authorized support portal, as it includes the latest revisions. Avoid third-party reproductions; discrepancies in component numbers between versions can lead to incorrect part orders.
Key assemblies to inspect first include the arbor locking mechanism (typically parts 34–38), the bevel adjustment quadrant (42–47), and the sliding carriage rails (51–58). Each section is color-coded in the official drawing for quick identification. For example, the bevel detent plate–marked as item 44–often wears prematurely under heavy use; if the saw hesitates to lock at 45°, this is the primary replacement candidate. Always cross-reference tolerances: the gap between the detent spring and plate should not exceed 0.2mm.
When sourcing spares, verify the suffix of the part number. A suffix -A or -B denotes updated corrosion-resistant coatings or reinforcement plating. Common failures like stripped threads on the fence lock (item 62) are mitigated by opting for the -B revision. Use a dial caliper to measure critical dimensions before ordering–especially for bearings and seals, where a 0.1mm deviation can cause alignment issues.
For disassembly, organize fasteners in sequential containers; the gearbox housing alone requires 12 Torx T20 screws, each exhibiting specific thread engagement depths. Label them with masking tape marked “A” through “L” as shown in the exploded view. When reassembling, torque values range from 2.5Nm (for cover screws) to 9Nm (for the main spindle nut). Skipping the manufacturer-recommended torque sequence risks blade wobble or motor misalignment.

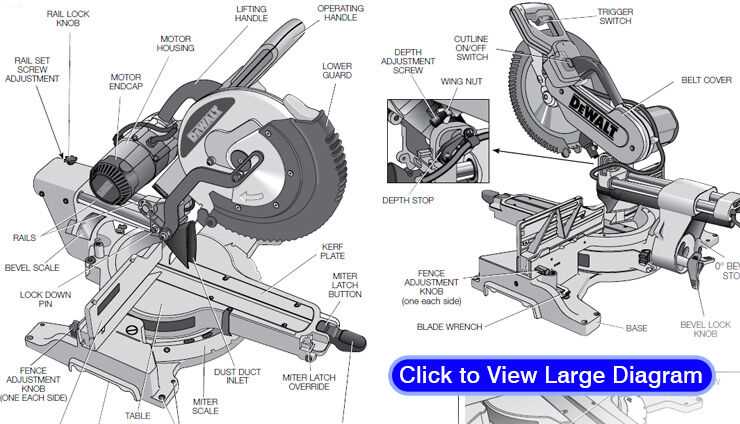

Practical Breakdown of the DWS780 12-Inch Sliding Compound Miter Saw Exploded View
Locate the blade guard assembly (item #21) immediately if excessive vibration occurs during cuts–this component frequently loosens after prolonged use. Tighten the two M6x12 screws (item #22) with a 5mm hex key, ensuring torque reaches 5 Nm; over-tightening risks cracking the polycarbonate housing.

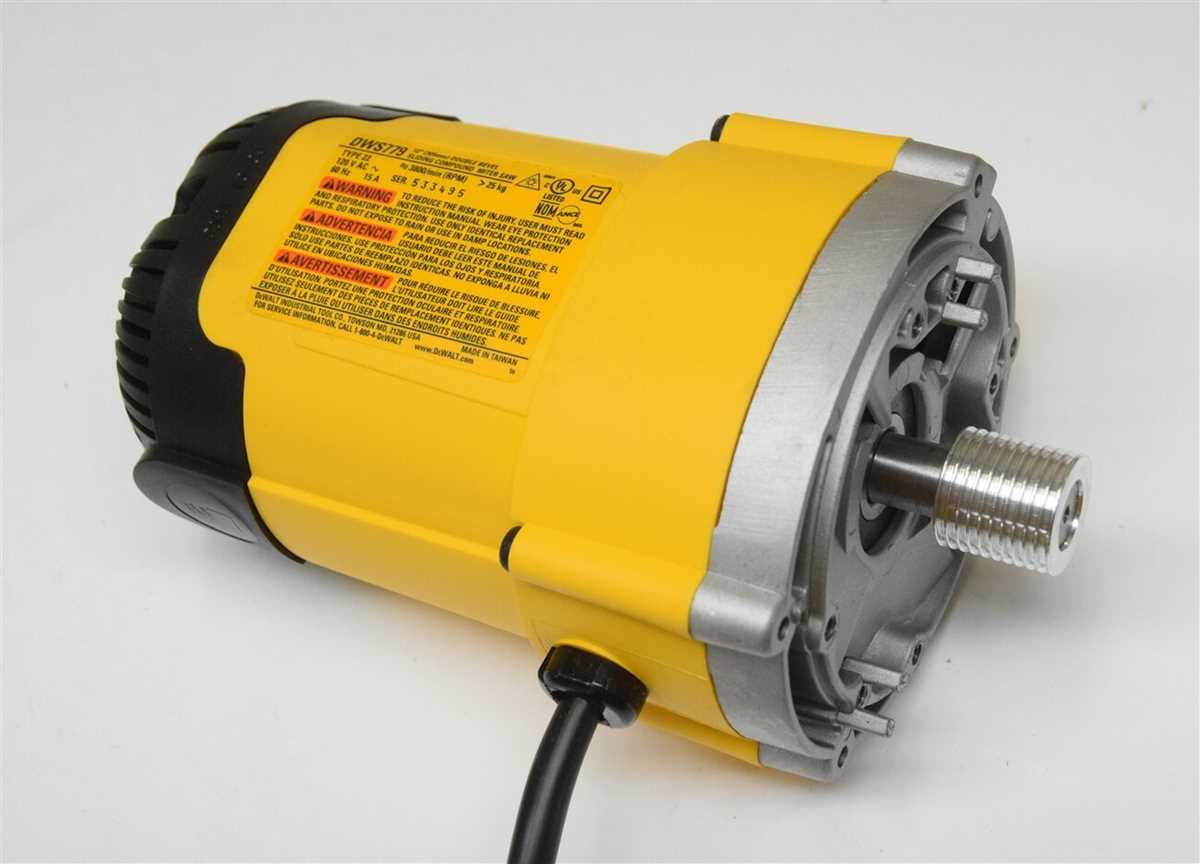

Replace the carbon brush set (item #43) when visible wear drops below 5mm length–symptoms include intermittent motor starts or arcing at the commutator. Disconnect power, remove the three T20 Torx screws securing the rear motor cover (item #45), then pull the brushes straight out using needle-nose pliers. Install new brushes with the beveled edge facing the commutator.
Critical Adjustments for Precision Cuts
- The miter detent plate (item #12) contains factory-set angles–calibrate only if cuts deviate by ±0.5°. Release the miter lock knob (item #8), align the saw to 0°, then adjust the set screw (item #13) until the detent clicks firmly.
- For bevel accuracy, check the dual bevel scale (item #35) against a digital protractor. If misaligned, loosen the four M5x25 screws (item #37) on the bevel pivot bracket, realign the scale, then re-tighten to 4 Nm.
- Lubricate the sliding rails with lithium grease (NLGI #2) every 50 hours of operation–apply sparingly to the stainless steel shafts (item #18) using a lint-free cloth to avoid dust adhesion.
Inspect the dust chute (item #29) for blockages when dust collection efficiency drops. Remove the two Phillips screws (item #30) securing the chute to the base, then clear debris with compressed air–pay special attention to the 90° elbow joint, a common clog point. Reattach with new screws if thread stripping occurs.
For gearbox maintenance, drain old lubricant annually by removing the 17mm hex drain plug (item #54). Refill with 30ml of ISO VG 220 synthetic gear oil through the fill hole (item #53) until excess appears at the level indicator (item #55). Use only non-foaming oil to prevent seal damage.
Locating the Authorized Schematic for Your Precision Sliding Compound Mitre Saw
The manufacturer’s official website remains the most reliable source for an exploded view of your 12-inch dual-bevel cutting tool. Navigate to the “Support” or “Product Manuals” section, then filter by model number–enter the precise designation (beginning with “DWS”) to bypass generic search results. Downloadable PDFs typically include both assembly references and component breakdowns on separate pages; look for files labeled “schematic,” “exploded view,” or “service sheet.” If the site prompts registration, use a temporary email to access documents without engaging in extended correspondence.
Specialized tool forums like SawMill Creek, LumberJocks, or contractor-focused communities on Reddit often host user-uploaded scans. Search threads by model variant–specify “12-inch,” “European version,” or “2010-2023 revisions” to narrow results, as later production runs may feature slight design tweaks (e.g., updated blade guard mechanics or modified bevel detent plates). Moderators sometimes pin verified links to official schematics in FAQ stickies; avoid third-party rehosts unless confirmed accurate by community votes.
For offline access, authorized service centers maintain physical or digital archives. Locate a certified repair depot through the brand’s global dealer locator–input your region to identify workshops stocking genuine documentation. Request the schematic in writing via their contact form; specify “exploded view for [model]” to avoid confusion with basic user manuals. Some centers charge a nominal fee (£15–£40) for printouts or USB exports, particularly for discontinued variants.
E-commerce platforms like eReplacementParts or ToolPartsDirect index schematics alongside replacement inventory. Search by serial number prefix–certain batches feature unique component layouts (e.g., early models use a不同的 fence locking mechanism). Preview thumbnails before purchasing; avoid listings without clear labeling of individual subassemblies like the dust extraction port or trunnion adjustment gears, as incomplete diagrams require cross-referencing with other sources.
Step-by-Step Breakdown of Key Components in the Precision Saw Assembly
Begin by locating the laser alignment module (item #45-2A) beneath the upper guard–its mounting screws (M4×12) often loosen after prolonged use, causing misalignment. Tighten them with a torque setting of 2.5 Nm to prevent drift without stripping threads. Replace the module if calibration fails; optical lenses degrade after ~1,200 hours of operation.
Inspect the carbide-tipped blade (spec: 254mm, 60 teeth) for micro-fractures along the tooth gullets. A 10× magnifier reveals hairline cracks that compromise cut accuracy. Rotate the blade 180° every 50 hours to distribute wear; track usage via a log to predict replacement at 70% remaining tooth height for optimal performance.
The dual-bearing arbor assembly (ref #18-B) requires synthetic grease (NLGI Grade 2) applied sparingly to the races. Over-lubrication attracts sawdust, forming a paste that increases friction by 30%. Clean bearings with isopropyl alcohol before regreasing; verify spindle runout with a dial indicator (max 0.03mm tolerance).
| Component | Tool Required | Critical Tolerance | Maintenance Interval |
|---|---|---|---|
| Blade clamp washer | Torque wrench (4.8 Nm) | 0.05mm flatness | Every 20 hours |
| Slide rails | Hex key (5mm) | 0.1mm lateral play | Monthly |
| Motor brushes | Multimeter (ohms) | Resistance <5Ω | Before each project |
Adjust the miter detent plate (serial #33-C) by loosening the locking bolt (M6×16) and tapping the plate with a brass mallet. Misalignment beyond 0.2° causes material waste; use a precision protractor to validate angles. Replace detents if wear exceeds 0.5mm–pre-machined replacements reduce setup time by 40%.
Troubleshoot the electronic brake by checking the silicon-controlled rectifier (SCR) for heat marks. A faulty SCR extends stopping time to 3+ seconds, risking kickback. Test with a 24V continuity probe; if resistance exceeds 1.5Ω, replace the entire brake assembly (part #78-X) to avoid overheating adjacent wiring.
Validate the dust port seal (ID 72mm) for cracks–compromised seals reduce extraction efficiency by 60%, leading to premature motor wear. Replacement seals should have a Shore A hardness of 60-65 for flexibility; install with the embossed logo facing outward to ensure proper airflow direction.
Locating Spare Components via the Circular Saw Schematic
Begin by downloading the official exploded-view illustration from the manufacturer’s service portal–ensure it matches the exact tool variant, as minor model discrepancies alter component numbering. Verify the revision date on the document; schematics updated after 2021 reflect engineering refinements absent in earlier prints.
Identify the assembly subset based on the malfunctioning element: the blade housing (group 300), transmission mechanism (group 400), or electric motor (group 500). Cross-reference the section header with the itemized callouts–each grouping clusters related internals, reducing misidentification risks.
Use a magnifying loupe to examine stamped codes on disassembled pieces, particularly on plastic casings and metal gears. These micro-marked identifiers correlate directly with the schematic’s alpha-numeric labels, bypassing reliance on visual approximation alone. Note discrepancies between physical markings and illustration callouts–some batches carry subtle casting variations.
Measure critical dimensions of worn elements with digital calipers, comparing against the schematic’s tolerance notes. Replace bearing races only if inner/outer diameters deviate by more than 0.05mm; ignore nominal figures listed for static components like guard assemblies, as fabrication tolerances permit minor deviations without operational impact.
Prioritize sourcing replacements from OEM-licensed distributors–third-party replicas often omit surface coatings or heat treatments specified in the technical blueprint. Request the service bulletin amendments for components flagged with asterisks or superseded part numbers, as these denote post-production corrections.
Label each extracted piece with masking tape before storage, matching it to the corresponding callout in the illustration. Avoid mixing small fastener sets; the schematic differentiates washers by thickness (e.g., thrust washer 12B vs. spacer 12C) despite identical diameters.
Validate the installation sequence using the stretch arrows in the visual guide–some snap-fit assemblies require angular alignment impossible to deduce from the static image alone. For torque-sensitive elements like blade flanges, adhere to the annotated values in Newton-meters rather than the generic “hand-tighten” advice found in abbreviated online listings.
