For repairs or upgrades on a compact 2 HP electric-driven air pump, begin by cross-referencing the model’s serial plate with the official service breakdown. The exploded view will list every replaceable element–from the pressure switch to the piston assembly–with unique alphanumeric codes. Keep these codes on hand when sourcing OEM replacements; third-party vendors often mislabel aftermarket alternatives, leading to mismatched tolerances.
Start disassembly by discharging the tank completely, then remove the outer shroud using a 5/16″ hex driver. Note the orientation of each resealable connection–particularly the discharge valve and check valve–to ensure correct reassembly. The crankshaft and connecting rod are precision-balanced components; replacing them individually without the paired assembly risks vibration-related failures under load.

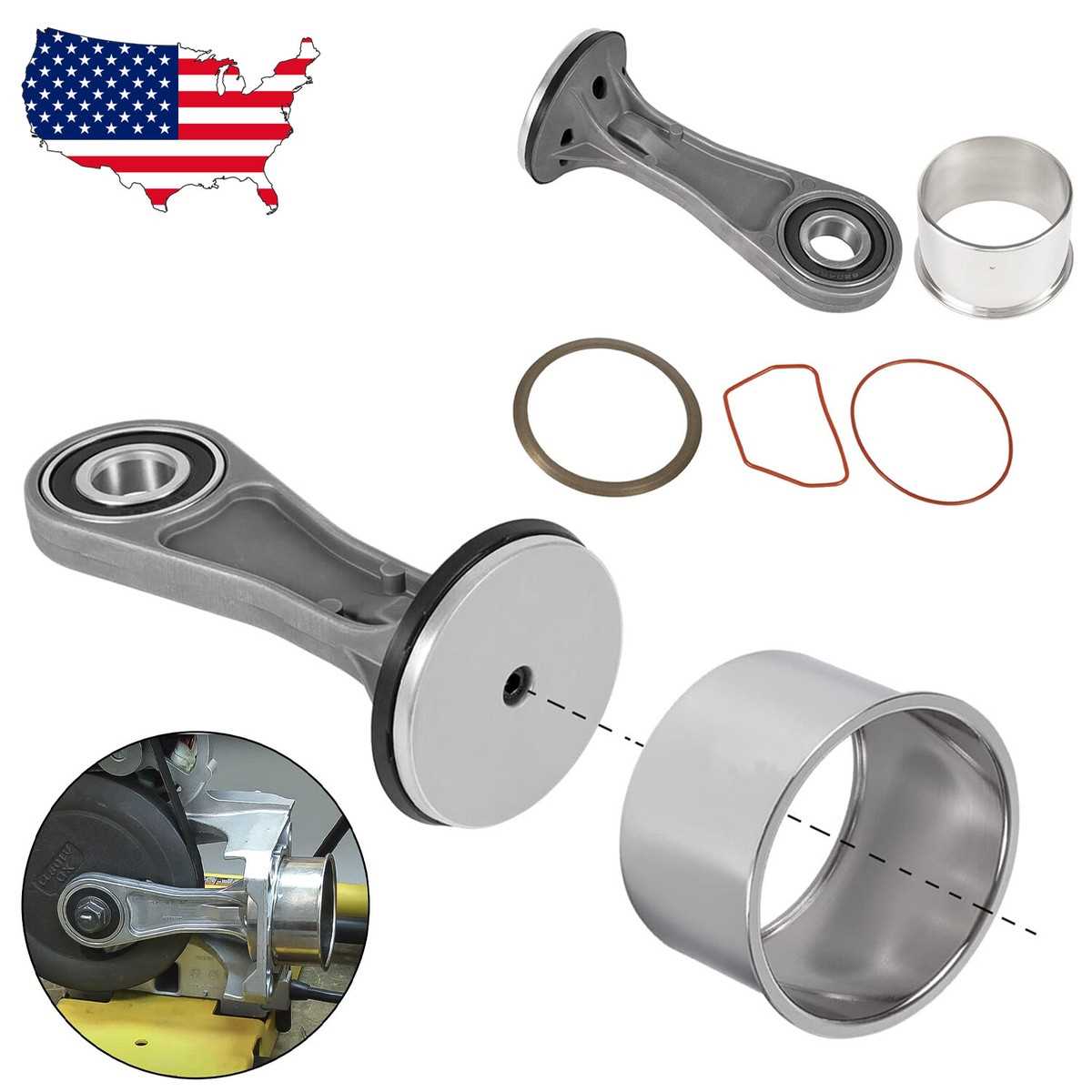

Genuine rebuild kits include seals, gaskets, and bearings sized to ±0.002 inches. Aftermarket kits may omit the crankshaft oil seal or replace it with a standard shaft seal, causing premature lubricant leakage. Always verify the kit contents against the official parts manifest before installation.
For electrical diagnostics, isolate the motor windings from the pressure switch terminals before testing continuity. A faulty thermal overload protector can mimic motor failure; bypass it temporarily during testing to confirm the issue’s source. If the cap starts misfiring, inspect the run capacitor’s microfarad rating–any variance beyond 3% voids the motor’s warranty coverage.
When ordering pneumatic controls, prioritize suppliers offering direct cross-references to the original schematic. The unloader valve and pilot valve require exact pneumatic flow characteristics; even minor deviations in orifice diameter will disrupt automatic cycling. Test the rebuilt unit at half-rated PSI before full capacity operation to confirm leak-free performance under sustained use.
Understanding Your Portable Generator’s Component Layout
Locate the air filter housing by removing the side panel–typically secured with four 8mm bolts. Inspect the foam filter for debris buildup; replace if particles exceed 2mm in diameter to maintain optimal combustion efficiency. The replacement part number for the filter is DF-5168-003, available through authorized service centers.
Trace the fuel line from the tank to the carburetor, noting the inline fuel filter near the tank’s base. Clamp the line with locking pliers before disconnecting to prevent spills; replace the filter if sediment exceeds 1mm or if flow rate drops below 150 ml/min during testing. Use part DF-5168-012 for filter replacements.
Electrical System Breakdown
The control panel houses the voltage regulator, fusible link, and starter relay. Test the regulator output with a multimeter: readings should stabilize at 13.8–14.4V under load. If fluctuations occur, check the brush assembly (DF-5168-008) for wear–replace if contacts measure less than 3mm.
For spark plug access, remove the recoil starter housing first. Gap the electrode to 0.7–0.9mm using a feeler gauge; excessive carbon deposits (over 1.5mm) indicate incomplete combustion. Use NGK BPR8ES or equivalent for replacements, ensuring torque at 15–20 Nm.
Where to Find the Authorized Compressor Model Schematic

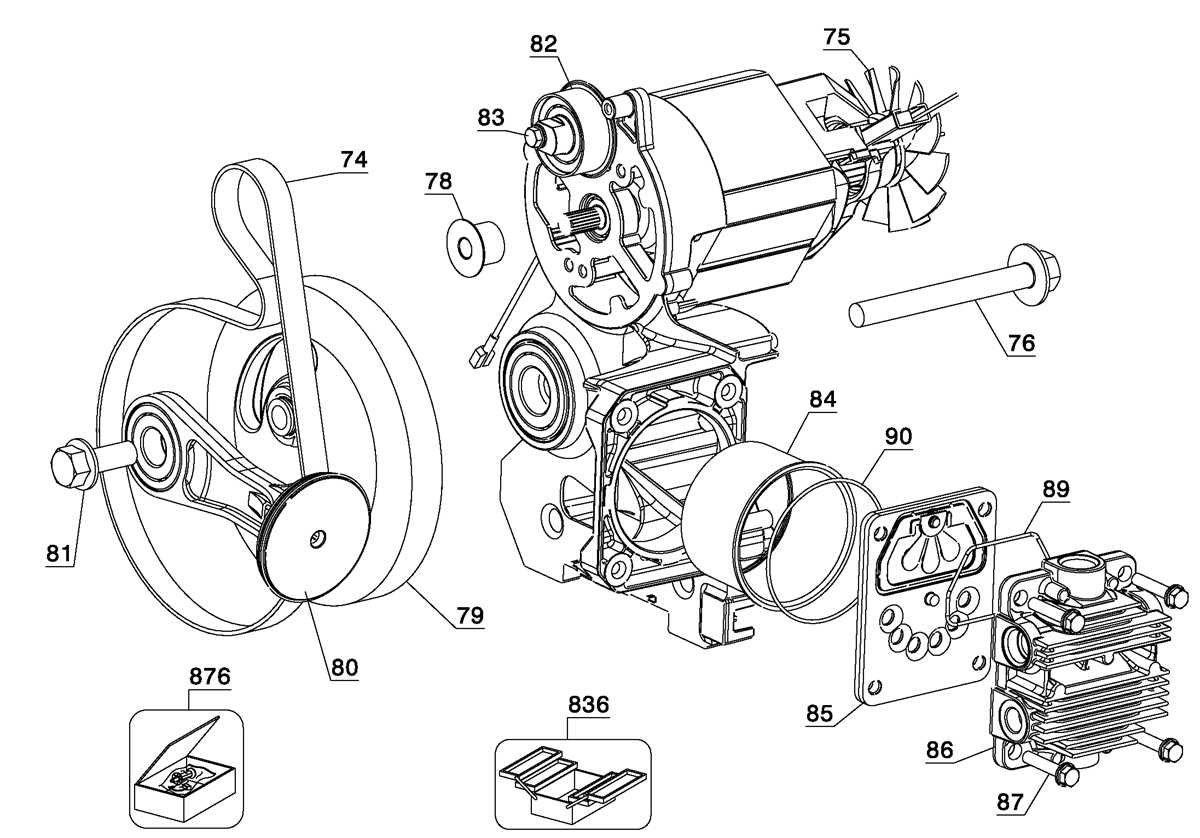

Begin by visiting the manufacturer’s dedicated support portal at DeWalt’s official site. Navigate to the “Manuals & Diagrams” section and enter the numerical identifier (D55168) in the search bar. Filter results by selecting “Exploded Views” to access the precise breakdown of components, fasteners, and assembly sequences. This document includes numbered callouts, torque specifications, and compatible replacement identifiers–critical for sourcing exact matches rather than generic substitutes.
Alternative Validated Sources
- Licensed Distributors: Authorized dealers like Home Depot, Grainger, or MSC Industrial supply provide schematic downloads alongside OEM replacements. Search using the model variant (e.g., “portable 2-gallon compressor schematic”) to bypass counterfeit third-party listings. Verify distributor authenticity by checking for SSL certification and manufacturer endorsements.
- Technical Forums: Professional repair platforms (HVAC-Talk, ElectriciansTalk) often host user-uploaded archives. Prioritize threads with attached files labeled “Factory Exploded View” or “Service Bulletin”–avoid reconstructed images, as missing rivet placements or seal grooves may lead to assembly errors.
- Direct Manufacturer Contact: Use the toll-free support line (+1-800-DEWALT1) or live chat; request the “Service Parts List” by quoting the serial plate’s suffix code (e.g., “Type 3, Revision B”). Response typically includes a PDF link within 24 hours.
For offline access, save the file in PDF/A format to preserve vector-based callouts under magnification. Cross-reference the schematic’s revision date with your unit’s build year (stamped on the motor housing) to ensure compatibility–older variants may feature divergent piston rings or valve assemblies. If the component numbering scheme uses alphanumeric tags (e.g., “A37” for check valve), use these codes verbatim when ordering through suppliers to prevent mismatches.
Step-by-Step Disassembly Sequence Using the Schematic
Begin by unplugging the tool and removing the battery pack to eliminate electrical hazards. Position the unit on a stable workbench with the housing seams facing upward. Identify the fasteners securing the outer casing–these are typically Torx T20 or T25 screws, often recessed beneath rubber grommets. Use a precision driver to avoid stripping heads; note each screw’s length and location in a reference table to prevent mixing them during reassembly.
| Component | Fastener Type | Quantity | Tool Required |
|---|---|---|---|
| Main housing | Torx T25 | 6 | Magnetic driver |
| Motor assembly | Phillips #2 | 4 | Long-reach screwdriver |
| Air intake grille | Snap-fit clips | 8 | Plastic pry tool |
Separate the casing halves using a nylon spatula to gently pry along the seam–avoid metal tools that may damage plastic retention clips. Once opened, disconnect the internal wiring harnesses by pressing the release tabs; label each connector with adhesive tape and a marker. For components like the switch board, lift it using a non-conductive tool to prevent static discharge damage to sensitive circuits.
Critical Subassembly Removal
Extract the motor by unscrewing its mounting bracket (usually two 10 mm bolts) while supporting its weight; the armature may remain magnetized, so keep it away from ferrous debris. Inspect the impeller for debris accumulation–remove any obstructions with compressed air, not sharp objects, to avoid blade deformation. If bearings require replacement, use a bearing puller rated for radial loads up to 150 kg; apply uniform pressure to avoid inner race damage.
Reassembly follows the reverse order, but verify key tolerances before securing fasteners. Torque values for critical screws: 2.5 Nm for housing screws, 4.0 Nm for motor mounts, and 1.8 Nm for switch contacts–use a calibrated torque driver. Prior to closing the casing, test the trigger and motor continuity with a multimeter; resistance should read 4–6 ohms across motor terminals and infinite ohms between windings and the housing.
Matching Component Codes for Quick Repairs

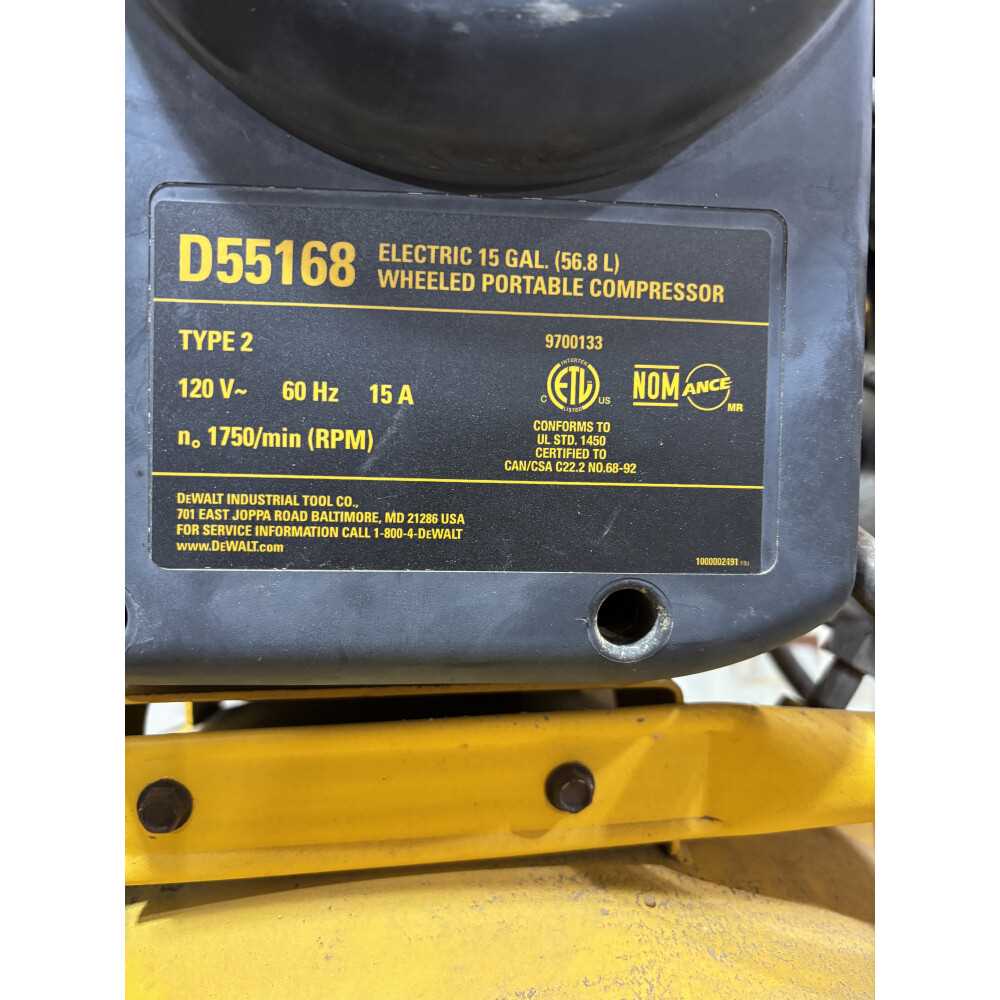

Locate the model sticker under the housing–it lists a 10-digit product identifier. Cross-reference this with the service manual’s exploded view to pinpoint exact components. For example, air filters in portable compressors often follow pattern NNNN-NNNNXX, where the last two digits denote size variants. Replace only exact matches; generic substitutes risk malfunction.
Piston rings carry alphanumeric stamps on their outer edge–typically PR-42 or PR-50–corresponding to bore diameter in millimeters. Mismatched rings increase oil consumption and decrease pressure build-up. Use calipers to verify measurements before ordering replacements.
Pressure switches usually appear as PS-30 or PS-40, indicating cut-in and cut-out thresholds. Swapping a 120 PSI switch with a 150 PSI variant triggers premature cycling or failure to engage. Always test continuity with a multimeter after replacement.
Bearings follow industry-standard codes–6202 or 6303–but check the suffix for seals (e.g., 2RS for rubber shields). Incorrect seals allow dirt ingress, leading to shaft wear within 50 operating hours. Grease new bearings before installation to extend lifespan.
Gaskets and O-rings carry imprint codes like OR-110 for 1/4-inch ports. Verify thread type (NPT or BSP) before procurement; tapered fittings require compatible sealing compounds. Replace copper-washed gaskets annually to prevent leaks under 175 PSI loads.
Valves plates often list an identifier inside the cavity (VP-18). Clogged or cracked plates reduce flow rate by up to 30%. Clean mating surfaces with acetone before applying silicone adhesive during reassembly.
Start capacitors display microfarad ratings on their casing (30 µF ±5%). Voltage tolerance must match the motor’s plate–under-spec capacitors cause hard starts or overheating. Discharge stored energy before handling to avoid electrical shock.
Troubleshooting Missing or Damaged Components
Inspect the housing for cracks near fastening points–even hairline fractures can compromise structural integrity. Check torque specifications for bolts (typically 12-15 Nm) and retighten if they rotate freely under moderate pressure. Replace any fasteners showing thread stripping, using identical grade hardware (ISO 8.8 or higher).
Verify power switch functionality by testing continuity with a multimeter. If readings exceed 0.5 ohms or fluctuate, clean contacts with contact cleaner and a nylon brush. Avoid abrasives–they remove protective coatings. For unresponsive switches, compare resistance values against the schematic; deviations above 10% indicate internal wear requiring replacement.
Examine air filters for clogging. A pressure drop above 0.3 bar during operation confirms obstruction. Wash paper elements in warm water with mild detergent, then air-dry–never use compressed air. Foam filters should be replaced every 50 operational hours under dusty conditions. Store spares vertically to prevent deformation.
Lubricate bearings if audible grinding occurs. Apply NLGI #2 grease sparingly–excess causes overheating. For sealed units, check seal integrity; slight leaks warrant immediate replacement to prevent contamination. Measure bearing temperature with an infrared thermometer; sustained readings above 80°C signal impending failure.
Reset thermal overloads by disconnecting power and waiting 10 minutes. If tripping persists, recalibrate the cutoff to match ambient conditions (factory setting: 115°C). Replace thermal fuses if discolored or blistered–do not bypass them. Test windings for shorts with an insulation resistance tester; values below 2 megohms indicate damaged wire coils.
Electrical Component Checks
Trace wiring harnesses for pinched or exposed conductors. Strip insulation no more than 5mm when repairing to maintain proper creepage distance. Use crimp connectors rated for 20A minimum–solder alone creates brittle joints. Secure connections with adhesive-lined heat shrink tubing to prevent vibration-induced disconnections.
Structural Integrity Verification
Test mounting points for play using a dial indicator. Movement exceeding 0.2mm requires shim adjustment or replacement of worn bushings. For welded frames, grind cracks flush and re-weld using compatible filler rod (AWS E7018 for mild steel). Reinforce with gussets if repeated failures occur at stress points.
