For tractors featuring a 50-inch cutting deck, the drive system relies on two hydraulic pumps connected to the engine via dual pulleys and a serpentine belt. The left-side pump powers the left wheel motor, while the right-side pump controls the right wheel motor–failure in either necessitates referencing the exploded view of assembly Item #750-0617 and its subcomponents in the official service manual (page 42). Retrieve the exact model code from the right-side frame rail near the fuel tank opening (typically a six-digit alphanumeric sequence) to filter search results and avoid mismatched parts.
Hydraulic lines require torque specifications of 18-22 ft-lbs when reconnecting to the pumps; over-tightening risks thread stripping in the cast aluminum housing. Replace both crush washers (Part #923-0542) during any disassembly–reusing worn washers guarantees premature failure. Verify compatibility by cross-referencing the pump identification plate with the manufacturer’s data sheet; revisions ending in -A or -B indicate slight variations in port spacing, though functionality remains identical.

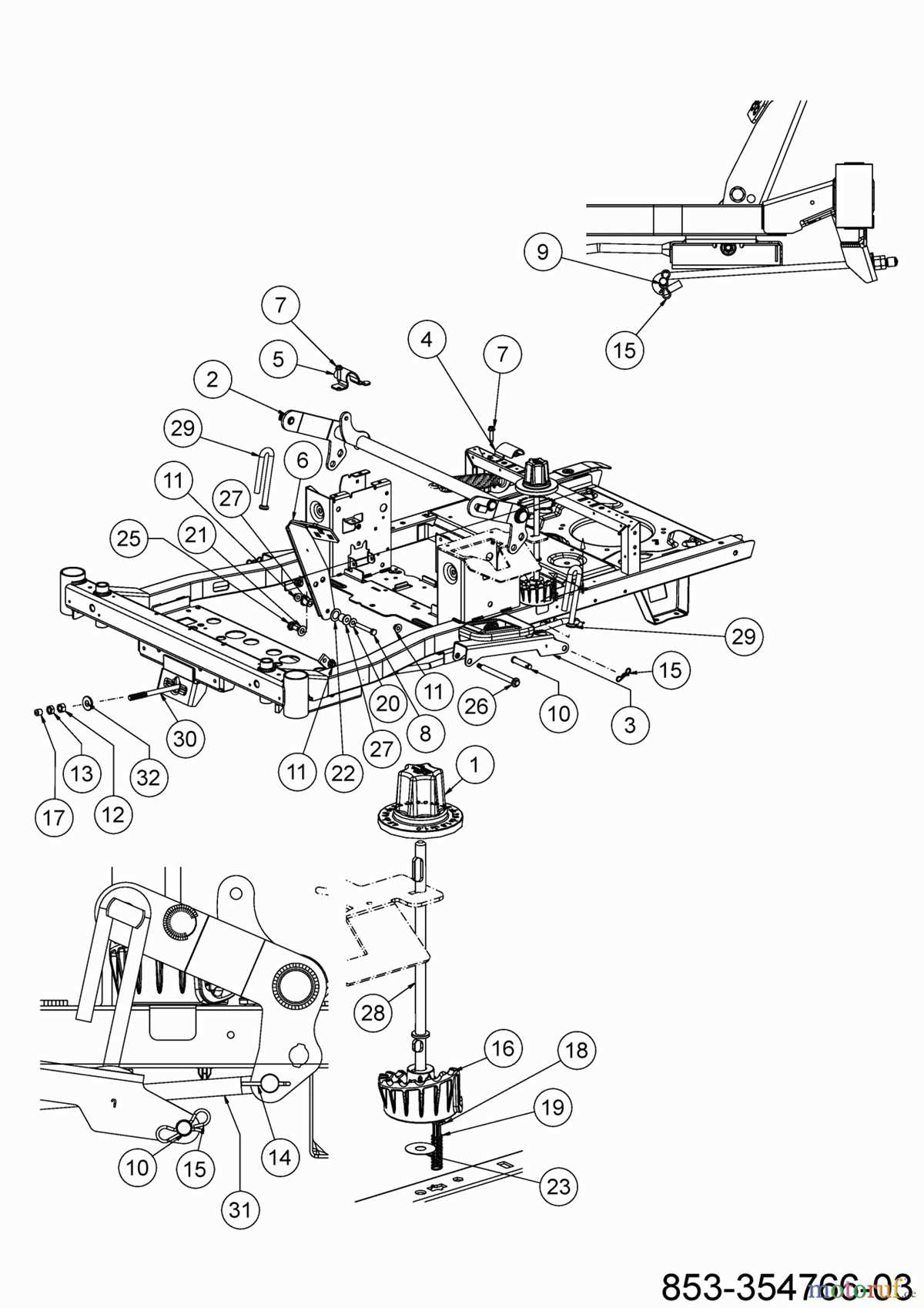

The steering damper linkage (rod, pivot ball, and retaining clip) experiences wear at approximately 300 operational hours under typical load. Inspect the ball joint socket for radial play exceeding 0.015 inches–if found, order the complete damper subassembly (Part #954-0419) rather than attempting piecemeal repairs. Lubricate the new joint with molybdenum disulfide grease before installation to prevent squeaking.
Brake actuators–positioned behind each rear wheel–require adjustment every 100 hours via the jam nut on the actuator rod. Thread length should allow 1/8 inch of free travel before engaging; incorrect settings either prevent full engagement or introduce drag. Remove the actuator cover (Part #917-0501) using a T25 Torx driver to access the internal spring and plunger, but avoid disassembling further unless replacing damaged components.
Electrical schematics for models produced after 2018 incorporate a revised ignition relay (Part #735-0421), distinguishable by its gray-colored housing and 4-pin connector. Pre-2018 units use a black housing with identical pinout but lower current tolerance–never interchange the two. Trace wiring harnesses for cuts or burns, especially at stress points near the fuse box and solenoid terminals; damaged harness sections require full replacement (length-specific kits available as Part #754-0302A).
Locating Original Components for Your ZT1 50 Riders: A Precision Guide
Begin by sourcing the official service manual (model 13AQ11JH599) directly from authorized dealers–this document contains the exploded-view illustrations for every subassembly, including the hydrostatic transmission (part #717-0516) and cutting deck pulleys (753-06030). Avoid third-party scans; inaccuracies in aftermarket reproductions can lead to assembly errors.
For engine components, reference Kohler Command PRO 7000 specifications–key elements like the crankshaft seal (41-055-05-S) and valve springs (27-012-19-S) must match OEM tolerances. Cross-check part numbers against the Kohler master list to prevent compatibility issues with ignition modules or carburetors.

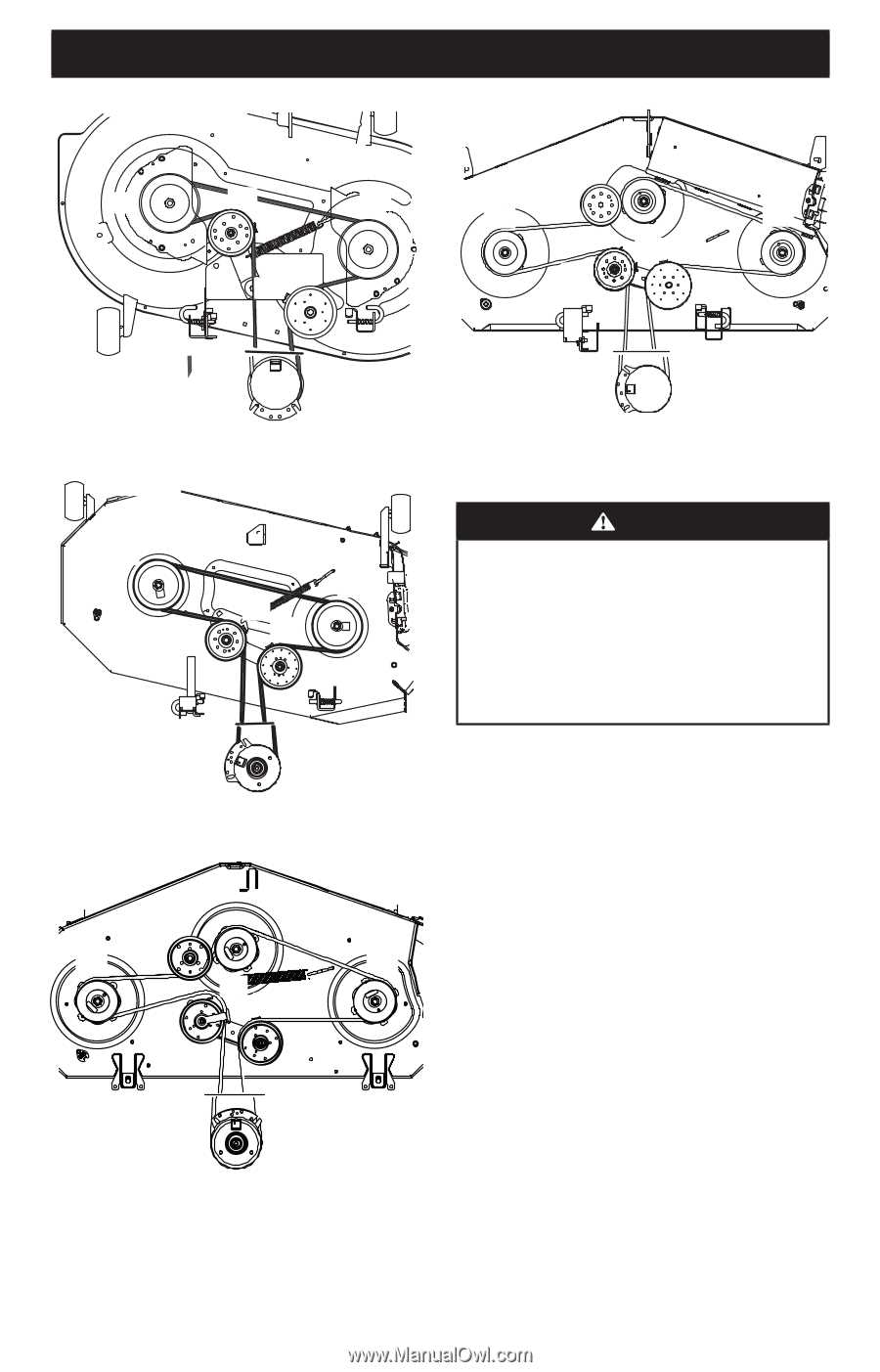

The mower deck requires special attention: blade spindles (918-04711) and belt tensioners (954-04452) wear at different rates. Inspect the belt routing diagram on page 47 of the manual–incorrect tension (optimal: 1/4″ deflection) causes premature wear on the drive belt (#754-04138).
Electrical schematics are organized by color-coded wiring (e.g., orange/black for PTO engagement). Verify fuse ratings (30A main, 20A accessories) before replacing the ignition switch (717-05042)–reverse polarity will damage the 12V solenoid.
For chassis components, prioritize corrosion-resistant hardware. The rear axle assembly (918-05064) uses specific torque values (60 ft-lbs for wheel hubs); over-tightening voids bearing warranties. Lubrication points–listed under “Maintenance Schedule”–require molybdenum grease (NLGI #2) applied every 50 hours.
When ordering, use the full model designation (ZT1 50 48″) to filter results–subtle variations in steering linkages (918-05060 vs. 918-05061) exist between cutting widths. Keep a physical copy of the parts breakdown for field repairs; mobile data coverage may be unreliable in rural zones.
How to Identify Engine Assembly Components in the Zero-Turn Mower 50-Series Schematic
Begin by isolating the engine section in the manufacturer’s breakdown sheet–typically clustered near the top or left side of the exploded view. The Briggs & Stratton or Kohler powerplant (model-dependent) will have its primary housing marked with bold outlines, distinguishing it from drivetrain or deck elements. Look for component labels prefixed with “ENG” or “MOT” to confirm engine-related parts.
Locate the flywheel assembly immediately adjacent to the crankshaft output–this is often depicted as a toothed circular disc with cooling fins. Adjacent components include the starter motor (electric or recoil) and ignition module, both connected via wiring harnesses visible on the diagram as thin, branching lines. The air filter housing and carburetor sit forward of the engine, usually color-coded or hatched differently to separate them from internal moving parts.
- Crankcase cover: Identified by bolt holes and gasket lines surrounding the lower engine block.
- Valve train: Depicted with rocker arms, pushrods, and camshaft components inside a dashed boundary.
- Oil sump: Illustrated at the base, often with a drain plug symbol.
- Exhaust manifold: Shown extending outward with finned or ribbed texture.
Refer to the legend for symbol meanings–solid circles indicate mounting points, while crosses or “X” marks denote pivot axes. The fuel pump, if present, is typically positioned between the carburetor and fuel tank, linked by fuel lines rendered as dashed or dotted paths. Electrical connections for spark plugs and sensors appear as jagged lines or connector icons, often paired with alphanumeric codes (e.g., “SPK-1” for spark plug lead).
Compare the schematic’s reference numbers against the parts list to cross-verify components. Engine internals like pistons, rings, and bearings are seldom labeled individually but can be inferred from internal views (look for cutaway illustrations). Cooling system parts–blower housing, fan blades–are grouped in a shaded or stippled area near the flywheel to indicate airflow direction.
To distinguish engine mounts from deck attachments, note the rubber bushings or vibration isolators illustrated as layered or textured rectangles. The PTO clutch assembly connects the engine to the cutting deck via a belt-driven mechanism, typically shown as a segmented pulley near the rear of the engine. Always prioritize components with warning symbols (e.g., arrows, exclamation marks) as these denote critical safety or maintenance points.
Locating Key Transmission and Drive Components via the ZT1 50 Exploded Schematic
Begin by isolating the hydrostatic transmission housing in the center of the schematic–marked as item 42 on most revisions. The input shaft (item 45) connects directly to the engine flywheel via a splined coupler, while the output shaft (item 51) extends downward toward the differential. Verify the position of the charge pump (item 48) adjacent to the input shaft; misalignment here often causes fluid starvation and subsequent slipping under load. Teflon-coated gaskets (item 50) must form a perfect seal between the charge pump and housing to prevent leaks that degrade performance.
Trace the drive belt routing from the engine pulley (item 12) to the transmission input pulley (item 44). The belt should rest snugly within the grooves without fraying or glazing; replace it if tension measurements exceed 3/8″ deflection under 10 lbs of force. The tensioner assembly (item 37) pivots on a hardened steel pin–check for wear if the belt consistently loosens. Below the transmission, the differential (item 60) splits torque between the left and right axles (items 62 and 63); spider gears (item 61) require periodic lubrication with SAE 90 gear oil to prevent seizing during hard turns.
Examine the wheel hubs for the axle seals (item 70), ensuring they sit flush against the bearing races. A single damaged seal allows debris ingress and accelerates bearing failure, identifiable by grinding noises at speed. The final drive pulleys (item 68) mount externally but hinge on the axle shafts–ensure retaining clips (item 69) are intact to prevent disengagement during operation.
Step-by-Step Guide to Locating Mower Deck and Cutting Components for the ZT1 50 Model
Begin by accessing the official manufacturer’s exploded view documentation. The deck assembly for this zero-turn machine is typically labeled as “Deck Housing” under section 03 in most schematics. Verify the document version matches your machine’s serial number, as variations exist between production years.
Identify the blade spindle assemblies–these appear as elongated cylindrical housings attached directly beneath the deck. Each spindle connects to a pulley on the upper side, driven by the engine’s belt system. Use the table below to cross-reference common part numbers for spindle-related components:
| Component | Part Number | Position |
|---|---|---|
| Blade spindle | 782-0457 | Left & Right |
| Spindle housing | 731-3074 | Central mount |
| Bearing kit | 951-12756 | Spindle interior |
Trace the deck belt path starting from the engine pulley. The belt wraps around an idler pulley before engaging the spindles. Look for part identifiers near the pulleys–these often include small alphanumeric codes stamped into the metal. If the belt appears worn, note its length and width; typical replacements measure 0.5″ in width with lengths ranging from 90″ to 110″ depending on deck size.
Inspect the deck side skirts, which shield the blades and direct grass clippings. These panels detach via bolts along the underside. Check for corrosion or deformation, as damaged skirts reduce cutting efficiency. Replace using the manufacturer-specified torque values–usually 25-30 ft-lbs–to prevent warping.
Locate the anti-scalp rollers at the deck’s rear. These adjustable wheels prevent blade contact with uneven terrain. Each roller attaches via a single bolt and nut; part numbers for these assemblies differ based on deck width (48″ or 50″). Adjust the rollers so they hover 1/8″ above ground level for optimal performance.
Examine the cutting blades individually. Each blade measures 21″ in length and features a unique center bore pattern. Remove blades using a 3/4″ socket or wrench, securing the spindle with a breaker bar to prevent rotation. Sharpen blades at a 45-degree angle, maintaining the original factory balance. Unbalanced blades cause excessive vibration, accelerating spindle bearing wear.
Cross-check all identified components against the parts catalog before ordering. Some schematics group fasteners separately–verify quantities for bolts, washers, and locking nuts, as these degrade faster than primary structural components. Store removed parts systematically to ensure correct reassembly.
