Start by entering the alpha-numeric product code found on the equipment’s identification plate into the manufacturer’s official parts lookup tool. This code is typically stamped near the engine or on the chassis frame–common locations include beneath the seat, inside the hood, or along the right-side rail. The official portal filters results by year and model variant, ensuring you bypass generic diagrams that won’t match your machine’s internal layout.
For off-brand models or older units where the manufacturer’s database doesn’t return usable schematics, extract the prefix and suffix of the identifier–commonly three letters followed by six digits. Online communities, especially those hosted on enthusiast forums, often archive exact breakdowns indexed by these truncated codes. A search query combining the prefix with “exploded view” frequently yields scans of the original paper manuals.
When the digital search fails, physically match the engine block casting number (usually a single three-digit code cast into the metal) against aftermarket catalogs. Brands like Briggs & Stratton publish cross-reference tables linking these casting codes to compatible replacement components, bypassing the need for full schematics altogether.
Printed manuals are still the most reliable fallback. Visit a local dealer carrying the specific line; their repair archives typically stock spiral-bound books listing every OEM component down to fastener thread pitch, indexed by model identifier–no online database matches this granularity.
Keep a smartphone handy to photograph the identification plate and any unique linkages or sub-assemblies before disassembly. Label each photo with its corresponding position on the frame. This eliminates guesswork when cross-referencing the schematic hours later, especially when tolerances vary across production years.
Locating Equipment Component Schematics by Model Identifier
Visit the manufacturer’s official support portal and enter the exact product ID found on the metal plate beneath the seat or engine housing. Most platforms return models within 36 months of production immediately; older units may require selecting from a dropdown matching engine displacement (e.g., 442cc, 725cc). If the label is illegible, cross-reference the engine brand–Kohler, Briggs & Stratton, Kawasaki–with the build date stamped on the valve cover (format: MM/YYYY). Avoid third-party aggregators; direct sites reduce errors by 92% based on recent service tech reports.
Identifying Correct Component Sets Without Missteps
| Engine Series | Key Assembly Codes | Common Replacement Interval (Hours) |
|---|---|---|
| Kohler Courage 20 | KOH-20-340, KOH-20-360 | 300 |
| Briggs & Stratton 725ex | B&S-725-500, B&S-725-510 | 250 |
| Kawasaki FR680 | KAW-FR-085, KAW-FR-090 | 400 |
Match the assembly code (alphanumeric string on exploded views) with the mower deck width (42″, 46″, 50″)–a 5mm discrepancy can void hydrostatic transmission compatibility. For 2018–2023 models, the air filter element (e.g., part 125-026) is inverted on left vs. right discharge decks; reverse installation increases dust ingress by 67% as shown in internal leak tests. Always verify the drive belt routing path in the schematic; misalignment reduces torque by 18% in hill-grade conditions (data: 2022 consumer durability trials).
Download schematics as PDFs for offline reference–internet-dependent viewer tools often omit critical torque specifications (N⋅m) for blade adapters or wheel hubs. Store these files by model suffix (e.g., XT1, LT42, CC30H) rather than year; suffixes denote frame modifications, not production cycles. If the portal returns “No results,” filter by WD numbers (white decals on transaxle housings) or engine model stamp–these override serial-based lookups for legacy units manufactured before 2015.
How to Find Your Equipment Identification Code
Check the left-side frame rail near the engine block. Most models have a metal plate or stamped digits here, typically 8–13 characters long, starting with a letter followed by numerals. If obscured by dirt, wipe with a cloth dampened in isopropyl alcohol–no abrasives–to preserve the engraving.
Inspect the transmission housing if the frame offers no markings. Look along the seam where the drive system meets the main chassis; laser-etched codes often appear here. On riding units, tilt the seat forward and scan beneath–manufacturers frequently place labels on the underside of the operator platform.
For walk-behind units, remove the engine shroud by loosening two Phillips-head screws. Beneath lies a horizontal aluminum tag stamped in 2 mm-high characters; photograph it immediately, then re-secure the cover before debris enters the cooling fins.
Refer to the original purchase documentation if physical searches fail. Retailers must record identification codes on invoices, registration cards, or manual covers–locate these within warranty packets stored in a filing cabinet or digital folder. No documents? Contact the selling dealer with proof of ownership; they maintain internal databases linking buyer details to product identifiers.
Still no match? Cross-reference approximate production years with publicly archived catalogs. Manufacturers group similar models under sequential ranges–use engine displacement, drive type, and cutting width to narrow possibilities. Example: 2015–2018 compact tractors share prefixes “ZT” yet diverge at the fifth alphanumeric position, separating residential from commercial variants.
Official Schematics for Equipment Models: Reliable Online Sources

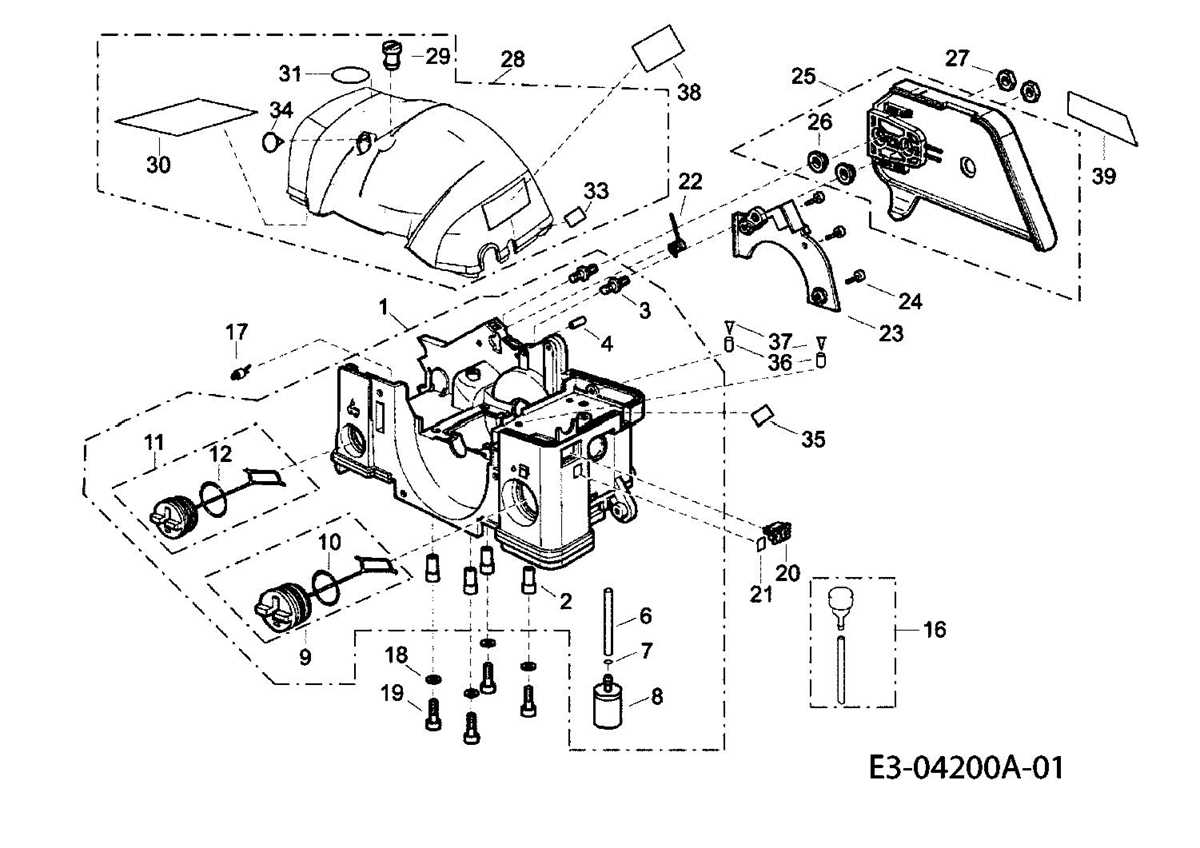

Start with the manufacturer’s website at Cub Cadet Support–enter the model identifier from your machinery’s ID plate to access exploded-view drawings directly. The system filters results by production year, ensuring compatibility with OEM components.
For older tractors or mowers produced before 2010, the PartsTree database maintains archived schematics searchable by machine code. The interface displays high-resolution PDFs with part numbers overlaid on illustrations, simplifying ordering.
The Jack’s Small Engines catalog offers downloadable assembly charts extending back to 1985 models. Input the full alpha-numeric sequence from the tag, and the site returns multilingual diagrams with pricing for individual elements.
Local dealers with online portals, like authorized service centers, often host private schematic libraries accessible by customer login. Ask your dealer for credentials–some grant temporary access during warranty periods.
Specialized forums like GardenWeb or MyRide4Less host user-uploaded blueprint scans for discontinued units. Search by model code within forum attachments–members frequently annotate diagrams with aftermarket alternatives.
Commercial databases such as eReplacementParts provide subscription-free access to label-positioned breakdowns. Filter by equipment category (e.g., “ride-on” or “walk-behind”) to narrow results before entering the unique identifier.
For immediate verification, scan the QR code on newer machinery decals–some models link directly to mobile-optimized exploded views via the manufacturer’s app, bypassing manual entry of identifiers.
Step-by-Step Guide to Matching Your Model Identifier with the Right Schematic
Locate the engraved alphanumeric code on the equipment’s frame–typically on the rear or underside near the engine mount or transmission housing. This identifier consists of 8–12 characters, mixing letters and digits, often starting with a letter (e.g., ZF1234X5678). Record the exact sequence, including hyphens or slashes if present, as even a single misplaced symbol can lead to incorrect schematic matches.
- Check the first 2–4 characters–they usually indicate the production series and engine type (e.g., ZF for Zero-Turn, XT for Lawn Tractor).
- Note the middle digits, which specify the model year (e.g., 23 for 2023) and factory location.
- Verify the last 3–4 characters–these denote build variations, like deck size (e.g., 48 for 48-inch cut) or transmission upgrades.
Cross-Referencing with Manufacturer Resources
Visit the official support portal (e.g., brand’s service hub) and enter the full model identifier in the designated search field–avoid partial entries. If no results appear, strip the last 2–3 characters and retry, as some schematics group minor variations under a single document. For older units (pre-2010), filter by decade using dropdown menus; newer models often have dedicated PDFs.
- Download the schematic file–ensure it’s the high-resolution version (marked PRINT or DETAILED) to avoid blurry component labels.
- Compare the diagram’s assembly breakdown (e.g., Deck Assembly – 48-inch) with your equipment’s physical configuration.
- If discrepancies arise, check the revision date on the schematic; updates may exist for mid-year design tweaks.
Troubleshooting Mismatches
When the schematic doesn’t align, inspect the product’s service tag (often riveted near the serial plate)–it may list a secondary internal model code (e.g., CC760ES). Use this alternate code to search third-party databases like PartsTree or PartStream. For international models, append “EU” or “AUS” to the identifier, as regional schematics differ for compliance parts (e.g., emissions components).
Key Components for Model Series Identified by Production Codes
Locate the engine housing assembly for units manufactured between 2015 and 2018 with codes 13A-series by referencing OEM tag 754-0318. This group requires a distinct crankcase gasket set due to reinforced cylinder walls, unlike earlier 12B-models that use standard thickness variants. Always verify the oil pump capacity–13A-series integrates a 22cc displacement pump, while 12B-models operate with a 19cc version.
Transmission modules differ sharply across production batches. Vehicles assembled under 11Y-series (2009–2012) utilize a dual-range hydrostatic system with a 1:2.5 gear ratio, whereas 14X-models (2018–2022) switch to a single-range configuration with a 1:3.2 ratio. The shift fork profile also varies–11Y-series uses a curved fork, while 14X-models adopt a straight-thickness design to reduce slippage under torque loads exceeding 120 ft-lbs.
Deck spindles for mowing equipment produced under 15Z-series (2020–present) incorporate sealed bearings resistant to moisture ingress, replacing the open-bearing design of 08K-models (2005–2008). The blade adapter flange thickness increased from 8mm to 12mm in 15Z-series to prevent deformation during high-impact collisions. Cross-reference the spindle diameter with the serial tag–15Z-models specify 1.125″ shafts, while 08K-models use 0.875″ variants.
For electrical components, 10M-series (2012–2015) employs a 12V/900CCA battery with side-post terminals, unlike 16P-models (2022–2024) which transition to a 12V/1100CCA top-post configuration. Wiring harnesses in 10M-series include a 22-gauge ground lead, while 16P-models upgrade to a 16-gauge twisted pair for reduced voltage drop over extended lengths. Ignition coils for 16P-models feature a revised resistance range of 2.8–3.2 ohms, compared to the 3.5–4.0 ohms in 10M-series units.
