Begin troubleshooting by locating the tie rods beneath the tractor frame–these link the front wheels and allow synchronized movement. If uneven tire wear or loose handling occurs, check the pitman arm, which connects the steering gearbox to the center link. A worn pitman arm (often made of hardened steel) will cause excessive play; replace it if movement exceeds 1/4 inch when lifted and wiggled.
Examine the sector gear inside the steering column–this meshes with the worm gear to translate rotational force. Damage here manifests as stiff steering or grinding noises. Lubricate lightly with lithium grease; if wear is visible, the entire gearbox may need replacement. For precision alignment, loosen the cam adjuster bolt on the tie rod ends, then turn the rod sleeves incrementally while checking wheel angles.
Upgrade to polyurethane bushings for durability, especially in wet climates where rubber deteriorates quickly. Avoid over-tightening ball joints–snug them just until resistance increases, then back off 1/8 turn. For hydrostatic models, verify the hydraulic fluid level in the reservoir; low fluid mimics steering issues but causes sluggish response instead of mechanical failure.
Use a torque wrench for reassembly: wheel spindles require 35-45 ft-lbs, ball joints 25-30 ft-lbs. Misaligned spindles stress the kingpins and lead to premature wear. After adjustments, test the tractor on a flat surface–if the wheels don’t track straight, recalibrate the toe-in setting (typically 1/16 to 1/8 inch closer at the front than the rear).
Breakdown of Lawn Tractor Wheel Control Components
Begin troubleshooting by locating the pitman arm–it connects directly to the sector gear beneath the tractor’s front dashboard. Disconnect the castle nut securing the arm to the linkage rod, then inspect the tapered joint for wear. Replace if grooves exceed 0.5 mm depth, as slop here causes wandering during turns. Keep a torque wrench set to 45 ft-lbs when reinstalling; overtightening distorts the splines.
The sector gear assembly sits inside a sealed housing; grease leakage signals gear failure. Remove the steering shaft by unbolting the four 10 mm fasteners holding the gearbox to the chassis. Wash the internals with brake cleaner to clear old grease, then pack with marine-grade lithium grease–standard automotive types separate under vibration. Reinstall using new lock washers; crushed washers reduce clamp pressure over time.
Check the tie rods for straightness; bent rods induce toe misalignment that wears tires unevenly. Measure rod lengths with calipers–the left and right should match within 1 mm. Replace rods in pairs if any show corrosion pitting or thread damage. Apply thread locker to rod end nuts to prevent loosening, which progressively increases steering play.
The idler arm pivot bushings deteriorate silently; pry against them with a screwdriver when the wheel is jacked. Movement exceeding 3 mm indicates worn bushings. Press in new Delrin bushings–polyurethane alternatives squeak under load. Coat bushings with silicone spray before installation to ease future disassembly.
Hydraulic cylinder mounts often crack at weld seams; examine them under the frame with a flashlight. Reinforce cracks with JB Weld after cleaning rust with a wire brush–temporary fixes postpone full replacement. Ensure cylinder pivot pins move freely; stiff pins create inconsistent turn radius.
Lubrication Schedule for Control Linkages
Grease zerks every 25 operating hours. Use a grease gun with a shut-off valve to prevent overfilling–excess grease bursts seals. Apply until a small bead appears at each fitting, then wipe it clean to prevent dirt attraction. Skip zerk locations corrode internal bushings, causing irreversible binding within weeks.
Ball joints on rod ends require oil bath lubrication; remove the rubber boot and inject SAE 80W-90 gear oil through the zerk with a needle adaptor. Rotate the joint several times to distribute oil evenly. Replace boots if torn–exposed joints seize rapidly. Monitor rack bushings; swollen bushings push the rack against the housing, increasing steering effort exponentially.
How to Pinpoint Critical Control Elements in Your Garden Tractor
Begin by inspecting the tiller arm located beneath the operator’s seat–this pivot point connects the wheel assembly to the rest of the mechanism and often wears down first. Check for cracks, excessive play, or loose bushings by gripping the arm and applying controlled force; any movement beyond 1/8 inch signals a need for replacement. Lubricate the ball joints at both ends with lithium grease every 25 operating hours to prevent corrosion and stiffness.
The sector gear and pitman shaft form the core of directional adjustments. Locate the sector gear near the base of the column–it meshes with the worm drive to convert rotational input into lateral wheel movement. If turning feels notchy or the wheels drift, the sector gear’s teeth may be stripped or misaligned. Remove the gear cover (usually secured by 3–4 bolts) to access it; clean debris with a wire brush and inspect for chips or flattening on the teeth.
Track down the tie rods linking the front wheels–these slender rods transmit force from the pitman arm to the wheel spindles. Bent or loose tie rods cause uneven tire wear and wandering. Measure their length with calipers; if they differ by more than 1/16 inch, adjust the threaded ends or replace the rod. Always check the jam nuts after adjustment–vibration can loosen them, leading to sudden loss of alignment.
Examine the drag link (also called the relay rod)–this component bridges the pitman arm and the left wheel assembly. Rust buildup here causes sluggish response; disassemble the spherical rod ends annually and pack them with fresh grease. If the drag link’s ball sockets feel gritty or exhibit pitting, replace the entire rod rather than risking failure mid-operation.
The worm drive inside the column housing is responsible for precise directional adjustments. Remove the steering wheel and column cover to access it–signs of failure include excessive slack or a grinding sensation when turning. If the worm gear’s threads appear shiny or flattened, the unit is failing; no repairs are possible–only replacement will restore responsiveness. Pair a new worm drive with a compatible sector gear to avoid accelerated wear.
Front wheel spindles pivot on tapered roller bearings that require periodic tensioning. Jack up the front end, grip the tire at the 12 and 6 o’clock positions, and rock it; any clunking or play indicates worn bearings. Remove the spindle nut, clean the bearing races, repack with #2 grease, and torque the nut to 30–35 ft-lbs–over-tightening creates drag, while under-tightening risks bearing failure.
Finally, verify the steering damper (if equipped), mounted between the frame and front axle. This shock absorber prevents wheel shimmy at high speeds–test it by compressing it manually; if it doesn’t rebound smoothly, drain old fluid and refill with 10W hydraulic oil. A malfunctioning damper can mimic alignment issues, so rule it out before adjusting toe-in or camber.
How to Pinpoint Key Components in Your Garden Tractor’s Helm Mechanism
Lift the seat base to expose the control linkage beneath. Trace the central shaft connected to the helm–this is the pivot column. Check for a retaining pin or bolt at the base where it meets the chassis; remove it with a 10mm socket to detach the assembly. If corrosion is present, apply penetrating oil and tap gently with a rubber mallet to loosen the joint.
Disassemble the helm in this order: grip (pull firmly to release clips), upper cover plate (two screws, typically Torx T20), then the clock spring underneath. Note the alignment marks on the clock spring before removal to avoid calibration issues upon reassembly. Replace the lower bearing if play exceeds 0.5mm–measure with calipers at the column’s midpoint.
| Component | Common Failure Signs | Replacement Tip |
|---|---|---|
| Pivot column | Excessive wobble, grinding noise | Grease splines before reinstalling |
| Tie rods | Uneven tire wear, loose response | Adjust to 1/8″ slack with jam nuts |
| Sector gear | Erratically shaped cuts in grass | Shim with 0.002″ feeler gauge for backlash |
Inspect the Pitman arm–its ball joint should have no vertical movement. If worn, press out the old joint with a 15-ton hydraulic puller and install a new one using a 25mm deep socket as a driver. Torque the nut to 45 ft-lbs. Lubricate all zerk fittings with NLGI #2 grease until a bead forms at the fitting’s edge.
Interpreting and Applying a Lawn Tractor Directional Control Schematic

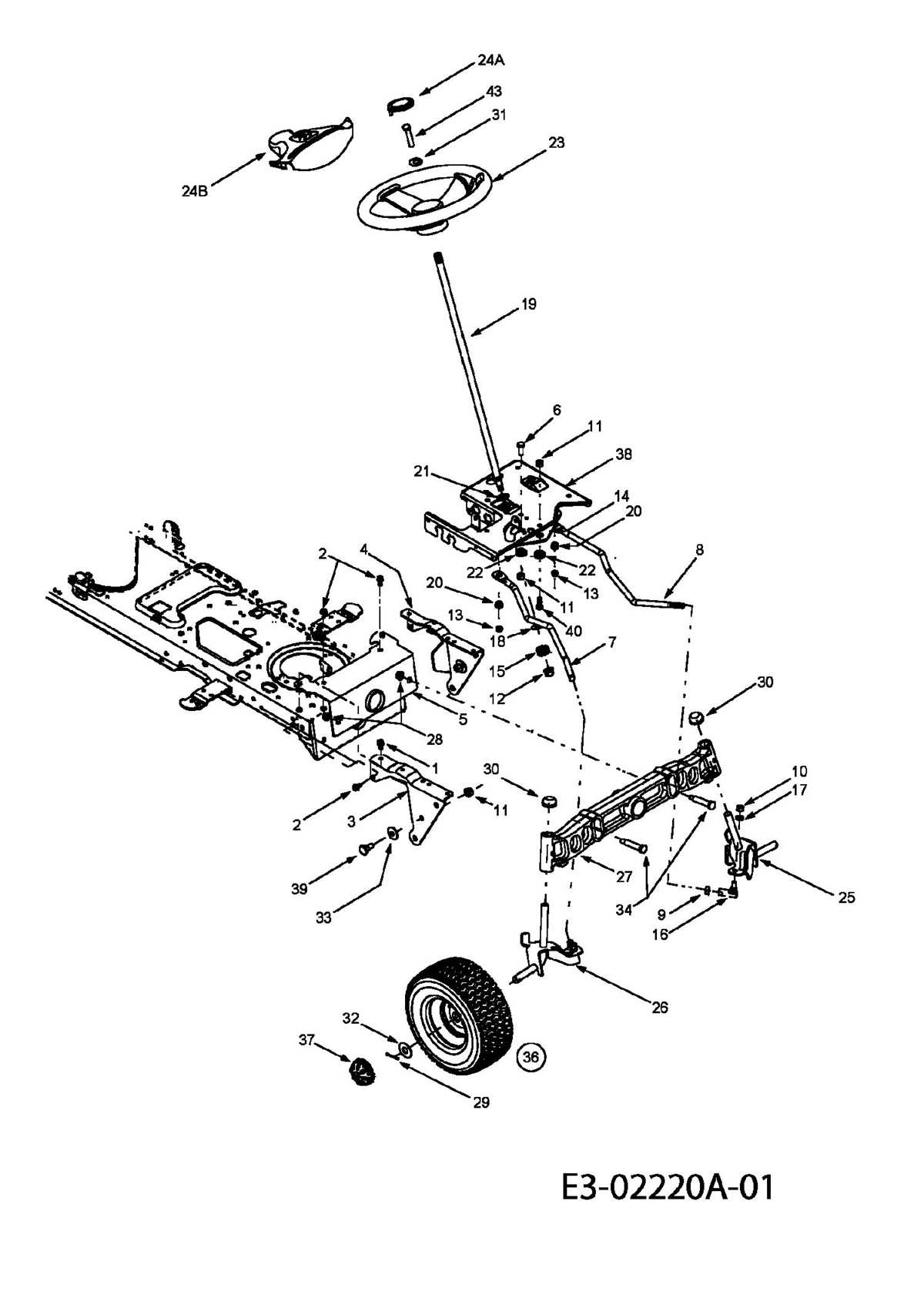

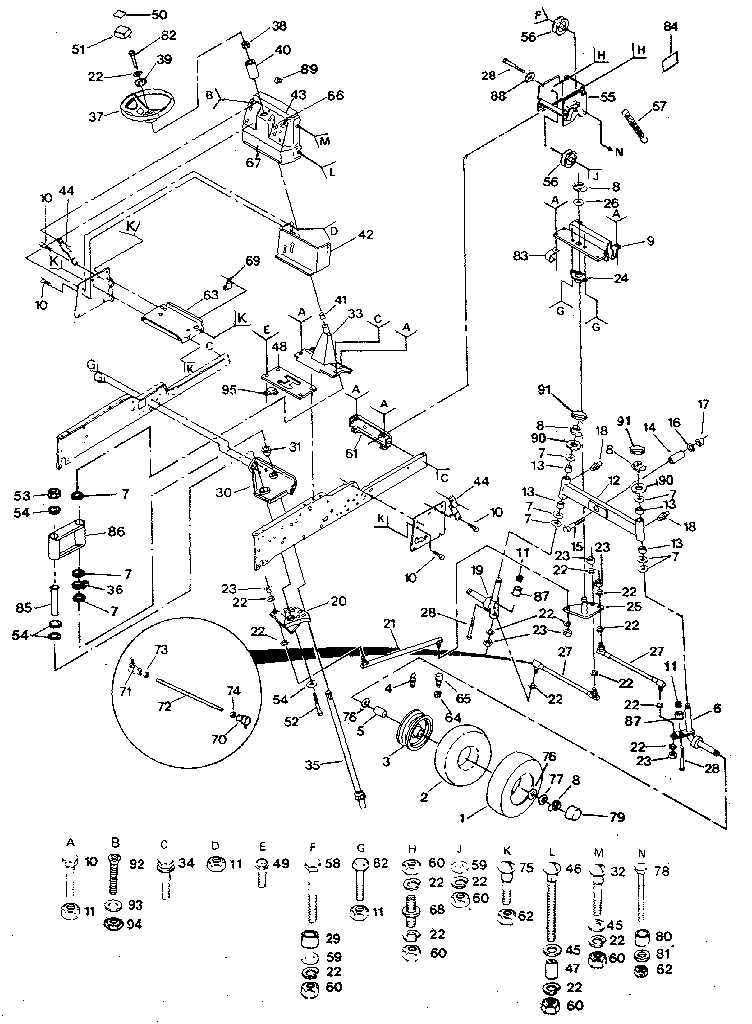

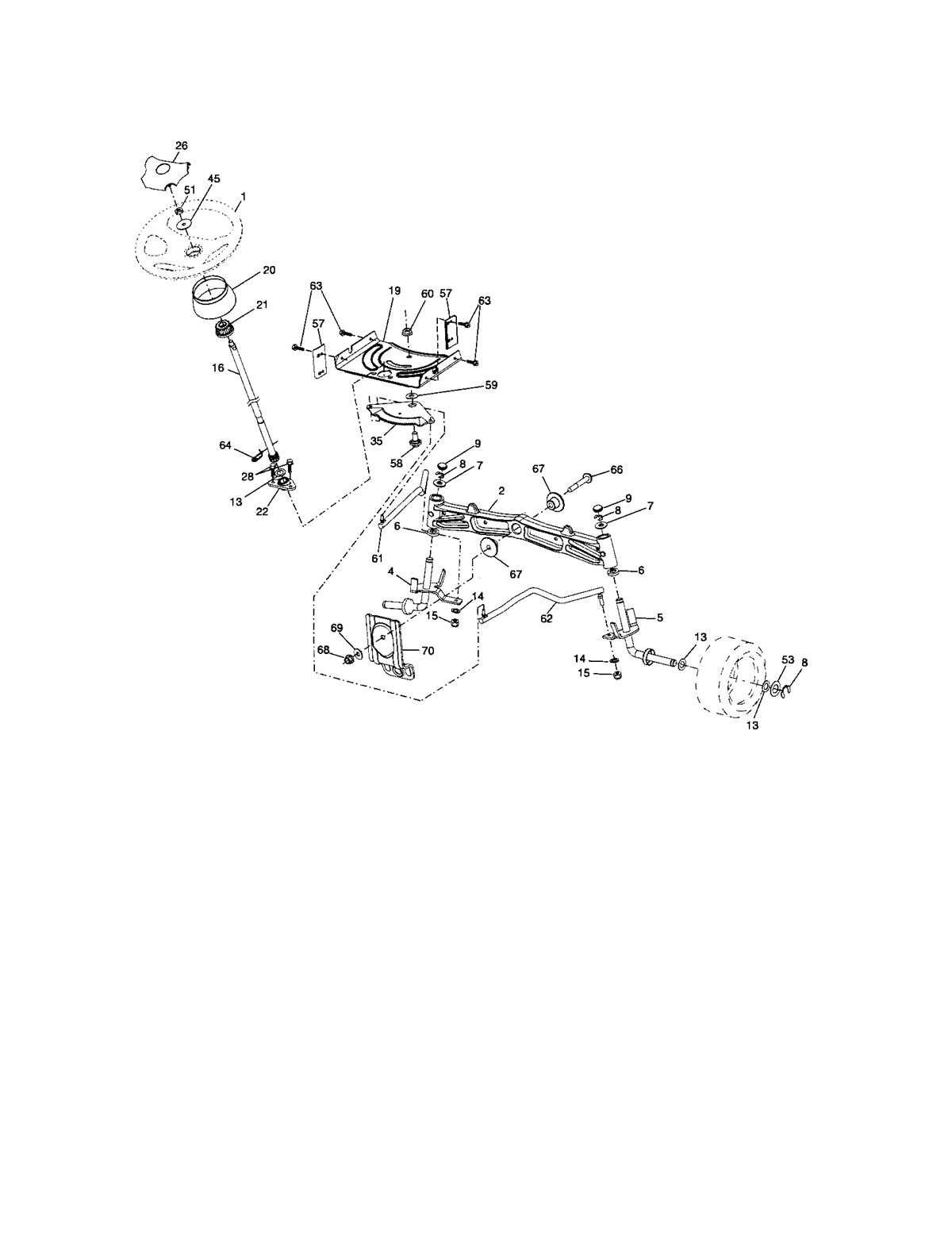

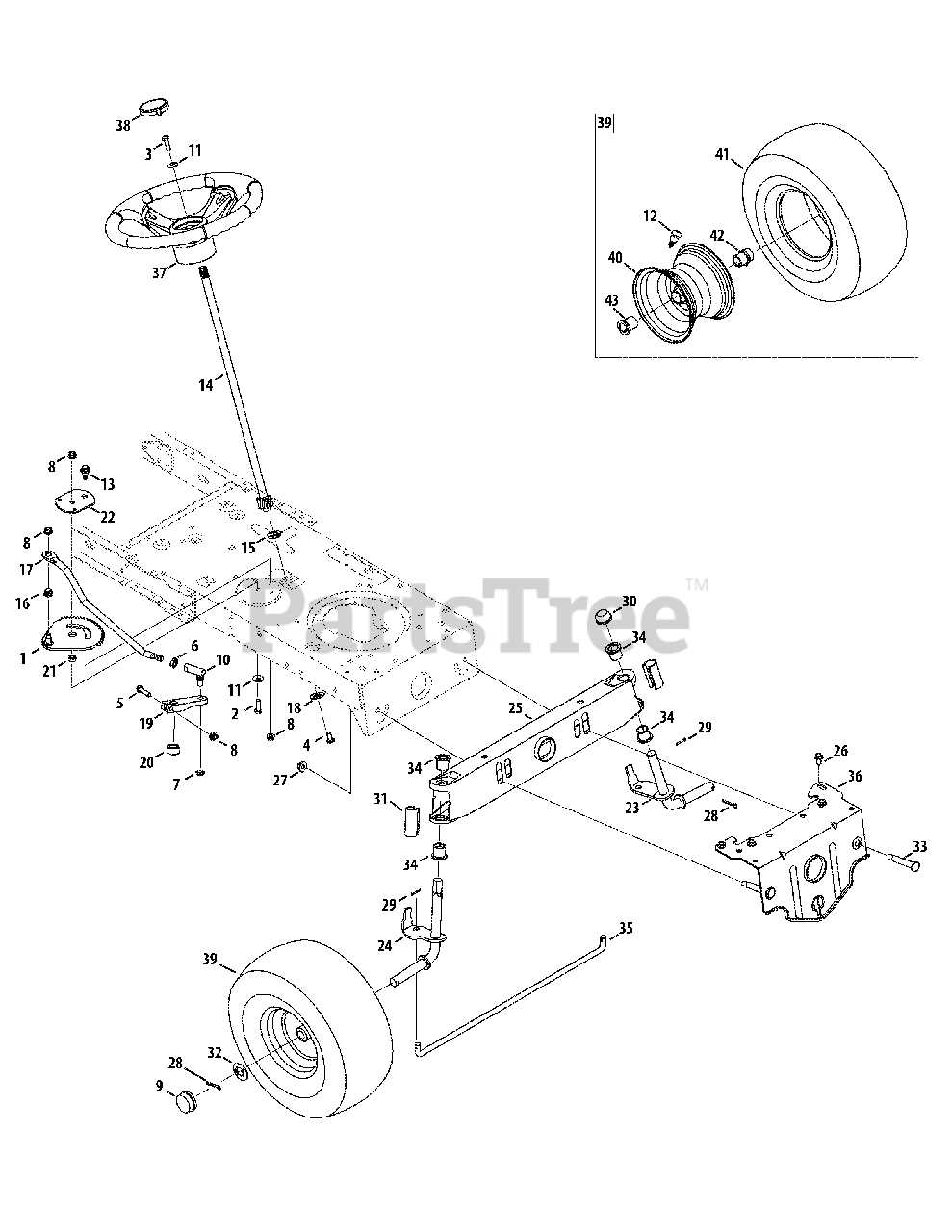

Locate the exploded view section for the front axle assembly–this is typically near the beginning of the manual and highlights every component in sequence. Match the numbered labels on the illustration to the corresponding itemized list below; check every bolt, bushing, and linkage type to confirm its shape, thread pattern, and material. Plastic bushings will display a smooth, slightly glossy surface, while metal bearings show precise machining marks and may include grease fittings. Cross-reference measurements with a caliper if the schematic omits exact sizes; even a 1mm discrepancy can prevent proper alignment.
Trace the flow path of movement by following the dotted or colored lines on the diagram–these indicate rotational axes, cable routes, or hydraulic connections. For systems with a tilt wheel mechanism, note whether the diagram splits into sub-assemblies for neutral-position locks; test each detent spring before removing any panel to avoid missing return tension. If replacing a sector gear, verify the tooth count; most 46″ tractors use 36-tooth models, while wider decks require 40 teeth for adequate travel arc.
Compare in-situ wear patterns against the schematic’s new-condition depiction. A worn idler arm often leaves polished grooves on the mating ball joint; if absent, suspect a loose pivot shaft instead. When reinstalling tie rods, thread them fully until resistance is felt, then back off half a turn to prevent binding–torque specs rarely apply here due to nylon inserts. Use the diagram’s callout boxes for torque values only after confirming fastener material: Grade 5 bolts require 35-40 ft-lbs while Grade 8 demand 50-55 ft-lbs regardless of diameter.
Store digital schematics in a dedicated folder sorted by tractor model year–early 2010s versions cluster hydraulic valves on the left frame rail, whereas post-2018 units relocate them beneath the seat mounting plate.
