Start by locating the model number–typically stamped on a metal plate beneath the seat or near the engine housing. Without this identifier, any repair manual or exploded view remains useless. Most manufacturers host official documentation archives; input the serial code directly into their search tool for exact matches. Third-party databases like PartsTree or eReplacementParts often provide interactive breakdowns, but verify compatibility before ordering.
Blades, spindles, and belt pulleys wear unevenly–inspect these components regularly. A cracked spindle housing or misaligned idler arm can cause uneven cutting or excessive vibration, leading to premature failure of surrounding pieces. Replace worn belts immediately; a snapped drive belt strands the machine, while a damaged cutting belt reduces efficiency by up to 40%. Keep spare shear pins on hand–these small metal fasteners prevent catastrophic blade strikes but often break first.
Use a torque wrench for reassembly. Over-tightening spindle bolts warps the mounting plate, while loose fasteners allow blade wobble. Apply anti-seize compound to threads exposed to moisture, especially in regions with heavy rain or irrigation. Clean the underside after each use; grass buildup accelerates corrosion on uncoated steel components, shortening their lifespan by years.
For hard-to-find pieces–like deck shells or specialized lift linkages–check salvage yards or equipment liquidators online. Many models share components across years; a 2015 gearbox might fit a 2018 variant if dimensions align. Measure critical points–belt lengths, pulley diameters, mounting hole spacing–before purchasing. Document each step with photos; reassembling blindly risks misalignment, voiding warranties if dealers detect tampering.
Identifying Common Components in Your Garden Tractor Cutting Assembly

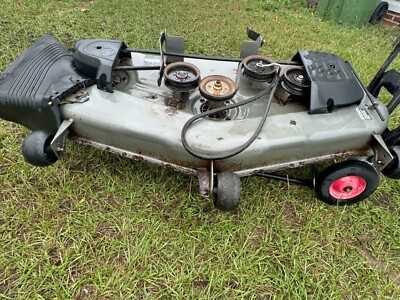

Locate the spindle housings first–these vertical shafts connect the blades to the underside frame and typically include bearings, pulleys, and retaining bolts. Check the model’s manual for specific torque values (e.g., 45-55 ft-lbs for spindle nuts) to prevent premature wear or blade wobble. Replace bearings if play exceeds 0.005 inches or if grinding noises occur during operation. The idler pulley, usually positioned near the engine, should spin freely without resistance; resistance indicates a worn bearing requiring a $12-$20 OEM replacement. Use a socket wrench with an 8mm or 10mm head for most fasteners, but verify thread pitch (typically 3/8” UNC) before reinstalling bolted components.
- Belt tensioner: Apply 10-15 lbs of force to the midspan of the drive belt–deflection should measure ½” to ¾”; adjust if outside this range.
- Blade adapter: Inspect for cracks near weld points; cracked adapters ($30-$50) compromise blade stability.
- Anti-scalp wheels: Set clearance at ¼” above the turf to prevent uneven cuts; use a ¼” washer as a spacer gauge.
- Debris shield: Secure with two clips (PN 532130712) if missing; loose shields risk belt derailment.
- Shear pins: Replace with hardened steel pins (PN 714156) if broken; avoid standard bolts as they won’t shear under load.
Locating Critical Elements in Your Outdoor Power Cutting Assembly Inventory
Begin by isolating the spindle housings–typically three in mid-sized models–mounted beneath the cutting platform. Each contains a bearing assembly (part #175063) and a pulley (often #175601) secured by a hex bolt (usually 5/8″). Check the blade adapter (#175166) for wear; cracks here cause vibration and uneven cuts. The idler pulley arms (#174749) pivot on bushings that degrade faster than bearings–inspect for play before replacing. Note the mandrel assembly (#170519) differs between side-discharge and mulching kits; verify compatibility with your discharge chute or baffle plate (#171166).

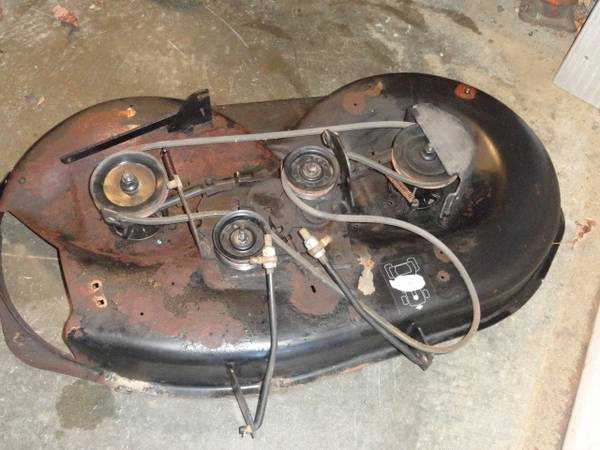

Trace the drive belt path: the primary V-belt (#175752) connects the engine pulley to the transmission input shaft, while secondary belts (#175920) route around tensioners. Replace belts if glazing exceeds 20% or cord fibers are exposed. The anti-scalp rollers (#174747) attach via brackets (#175320) with a 13mm bolt–verify these roll freely without flat spots. For gear-driven models, inspect the pinion gear (#171400) inside the transaxle case; stripped teeth manifest as sudden loss of forward motion. Always match replacement components to your model’s prefix (e.g., 917.XXXXXX vs. 247.XXXXXX)–tolerances vary by 0.3mm between series.

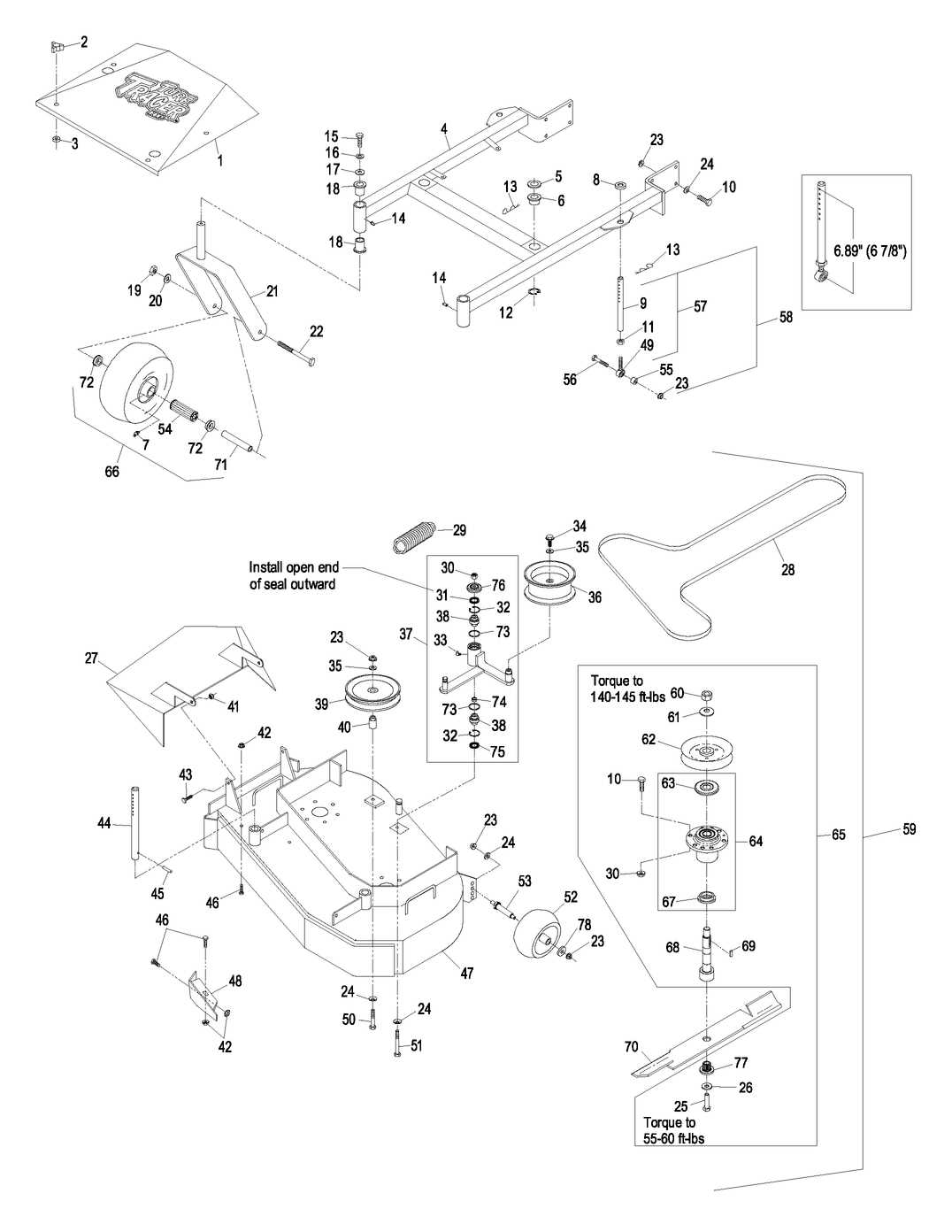

Step-by-Step Guide to Locating the Cutting Mechanism in Schematic Illustrations
Identify the central spindle housing–this component anchors the rotary blades and typically appears as a circular or hexagonal mounting base in exploded views. The schematic often positions it near the underside of the chassis, connected by three or four bolts; trace these fasteners to confirm placement. Look forrotating assemblies marked with dashed lines or shading, as manufacturers distinguish cutting elements this way. If the illustration includes numeric references, cross-check the blade labels (e.g., “item 27” or “component B”) with the legend to avoid misidentifying drive belts or idler pulleys.
Examine the side profile section if available–blades frequently extend horizontally from the spindle, perpendicular to the direction of travel, which helps verify orientation. Search for brake pads or anti-scalp wheels adjacent to the assembly, as these act as visual landmarks in diagrams. When multiple cutting units exist, each will mirror the same base structure but may feature sequential numbering (e.g., “outer blade,” “inner blade”). Avoid confusing debris shields with blades; shields lack sharp edges and appear as solid side panels in schematics.
Matching Belts and Pulleys to Precise Component Codes
Locate the model number stamped on the frame near the engine or beneath the seat–it typically follows a format like “10AXXXXX” or “917.XXXXXX”. Cross-reference this with an OEM parts database, where belts and pulleys are categorized by drive type (transmission vs. cutting assembly) and shaft diameter. For example, a 1/2″ wide V-belt with a 35″ outside circumference on a hydrostatic unit will correspond to a specific SKU, distinct from a 42″ deck’s serpentine belt of similar width but different arc length. Always measure the pulley’s inner bore and outer flange diameter; a 3/8″ bore pulley with a 2.5″ OD on a spindle housing won’t interchange with a 1.75″ OD idler pulley, even if thread patterns align.
| Component | Key Dimensions | Typical Part Prefix |
|---|---|---|
| Primary Drive Belt | Width: 1/2″, Length: 35–45″ | 754-XXX, 943-XXX |
| Spindle Pulley | Bore: 3/8″, OD: 2.5–3.5″ | 131-XXX, 138-XXX |
| Idler Pulley | Bore: 5/8″, OD: 1.5–2.0″ | 130-XXX, 133-XXX |
| Electric Clutch Pulley | Spline Count: 11T, OD: 4.0″ | 115-XXX |
Remove the existing belt and lay it flat against the replacement candidate–verify the cord count and rib profile match; a misalignment here accelerates wear by 40-60%. For pulleys, use a caliper to confirm metric vs. imperial threads; a 10mm x 1.5 pitch bolt won’t secure a pulley designed for 3/8″ UNF. Label each component with painter’s tape noting its position (e.g., “RH Spindle–Front”) before disassembly, as some manufacturers reuse identical-looking pulleys in asymmetrical arrangements. If documentation is unavailable, trace the belt’s path manually; every idle pulley and tensioner alters the routing sequence, impacting the correct length.
Solving Cutting Assembly Problems with Exploded View Schematics
Start by isolating unusual noises from the underside housing. A persistent grinding during operation often points to damaged blade spindles or worn bearings. Using an exploded view chart, locate spindle assembly #47295–check for cracks, stripped threads, or excessive play. Replace bearings (part #68745) if rotation feels gritty; even minor wear causes uneven cutting.
If blades leave uncut patches, examine belt routing first. The drive belt (#33489) must sit flush in grooves without fraying or slack. Compare its path against the schematics–misalignment typically stems from a loose idler pulley (#21986) or tensioner arm (#45821). Tighten or replace components showing more than 1/8″ lateral movement.
Scraper buildup under the housing can distort airflow, pushing clippings toward the blades instead of discharging them. Clean the underside weekly with a putty knife, focusing on chute edges and deflector plate (#74302). If clogging persists, verify the fan rotor (#55611) spins freely–seized blades on this component reduce suction by 40%.
Uneven height across swaths usually traces back to bent linkages or damaged lift rods. Measure height consistency along both sides of the cutting plate using a straightedge. If variance exceeds 3/16″, replace bent lift arms (#83044) or worn bushings (#90215). Torque all mounting bolts (#71835) to 35 lb-ft to prevent future misadjustment.
For excessive vibration, remove blades and inspect mounting flanges for nicks or warping. Balance replacements using a blade balancer–even a 0.2 oz imbalance at 3600 RPM creates destructive oscillations. If vibration continues, suspect warped mandrels (#33876) or cracked welds on the deck shell (#49982).
PTO clutch engagement issues often surface as slow blade spin-up or slipping under load. Test voltage at the clutch coil (#66543)–readings below 11.8V indicate corroded wiring or a failing stator. Replace spline shafts (#22897) if grooves appear worn; damaged shafts cause 60% of premature clutch failures.
