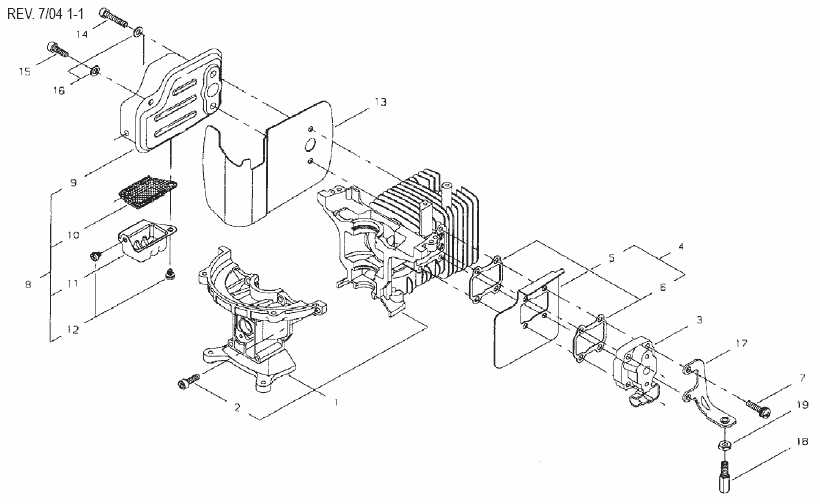

For precise repairs or replacements, reference the exploded view illustrations provided in the official service manual. Focus on the engine assembly section–particularly the fuel system, ignition module, and carburetor linkage. These schematics break down each subcomponent with labeled callouts, making it easier to identify the exact gasket, spring, or housing you need.
Begin by isolating the powerhead, which houses the crankcase, cylinder, and piston. The manual’s numbered breakdown (often page 12–15) details separation points for the starter, flywheel cover, and muffler. If you’re sourcing OEM replacements, cross-reference the part numbers directly from the diagram–third-party suppliers may use variant IDs.
Pro tip: Use a multimeter to test the spark plug lead (item #403-2801) and coil (item #406-1129) before ordering. Faulty ignition often mimics fuel delivery issues. For carburetor adjustments, note the position of the throttle linkage (item #312-0047) in the diagram–misalignment here can cause surging or stall-outs.
When disassembling the shaft housing, pay attention to the gear case (item #512-7903). The exploded view highlights needle bearings and seals critical for smooth cutting head rotation. Replace these as a set if play or vibration develops. For non-metal debris guards, check the diagram’s clip and fastener placements–most models use identical mounting points.
To minimize downtime, order consumables in advance: air filter (item #148-9319), spark plug (item #211-0001), and drive cable (item #305-1234). The manual’s wiring harness diagram (page 22) is essential if the engine won’t prime–trace each lead to rule out shorts or corroded connectors.
Locating the Right Components for Your Gardening Power Tool
Begin by identifying the engine’s model number stamped on the housing–typically near the carburetor or pull-start assembly. This sequence unlocks access to the precise schematic for your 24.5 cm³ gasoline-powered cutter. Manufacturers often encode revisions in the last three digits; disregard these unless troubleshooting a recall-specific issue.
Critical wear items like the spark plug, air filter, and fuel line require replacement every 25 operational hours under heavy debris conditions. Use NGK BM-6A or equivalent for the ignition source, pairing it with a 0.6–0.7 mm electrode gap. Filter media should be oiled foam, not paper, to prevent clogging from wet grass particles.
Examine the shaft coupling (flexible or rigid) for hairline fractures–these fail suddenly and can eject debris at 8,000 RPM. Replace with OEM-spec polyurethane, not generic rubber, which degrades under ethanol-blended fuel. Tighten all M6 fasteners to 8–10 Nm; overtightening strips threads in magnesium casings.
Fuel system diagrams isolate the primer bulb, carburetor, and tank vents as first points of failure when starting issues arise. The bulb primes with 3–5 pumps maximum; excess flooding requires draining the bowl via the drain screw beneath the carburetor body. Vent hoses must be clear of kinks to prevent vapor lock.
For clutch assembly inspection, remove the trimmer head and drive cover. The clutch shoes should retract fully when idling; drag indicates worn springs or damaged shoes. Replace springs in pairs to maintain balanced engagement. Grease the bearing (6001-2RS sealed) with lithium-based moly grease, not multipurpose, to avoid overheating.
Wiring harnesses fray at stress points near the throttle trigger and kill switch. Solder connections, then heat-shrink tubing (not electrical tape) for waterproofing. Test continuity with a multimeter; resistance above 2 ohms at any connection mandates full harness replacement for safety compliance.
Identifying the Motor Housing and Intake Screen Unit in Schematics
Examine the exploded view for a large, often oblong shroud positioned near the top right quadrant–this is the engine cover typically highlighted in contrasting tones like gray or dark blue. The intake screen housing attaches directly beneath it, secured by two to four fasteners, often depicted as black dots or hexagonal icons.
Look for reference numbers adjacent to these components. The cover usually carries a three-digit identifier starting with “2,” while the air filter assembly follows with a prefix of “3” or “4.” Cross-reference these codes in the legend, where descriptions will specify phrases like “protective casing” or “filter bracket.”
Trace the fuel line and ignition wiring in the illustration–both should terminate at or pass near the engine cover, confirming its correct placement. The air filter unit’s silhouette normally resembles a shallow tray with a mesh or pleated element inside, distinguishable from solid plastic parts by hatching or dotted fill patterns.

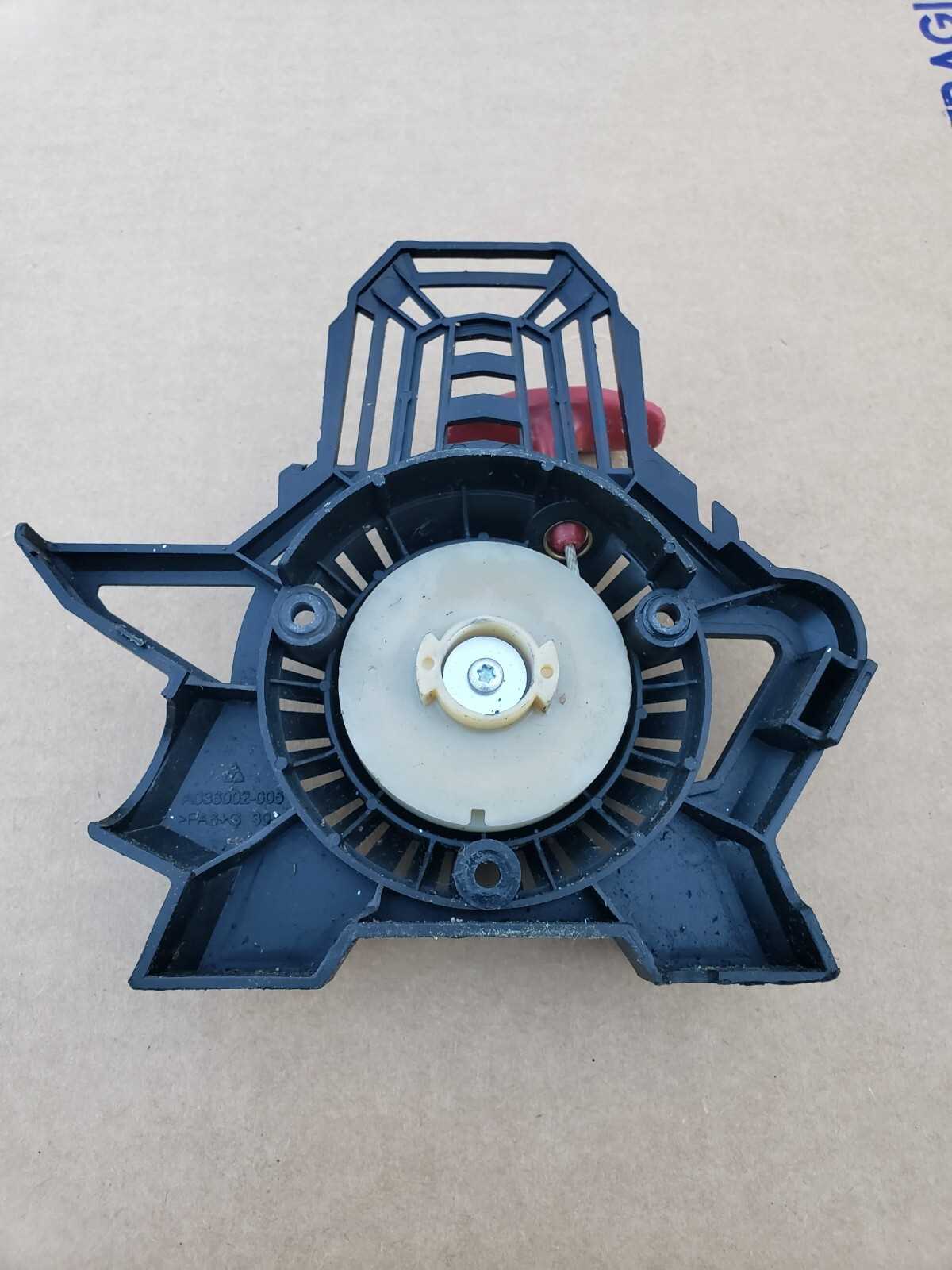

Verify alignment with the recoil starter, which sits directly above or adjacent to the cover in most configurations. If the starter’s pulley system intersects with the shroud’s outline, the identification is accurate. Misalignment suggests the diagram may be inverted or scaled improperly–adjust viewing orientation accordingly.
Measure approximate dimensions if numeric labels are absent. The cover spans roughly 12–15 cm in width, while the filter assembly extends 8–10 cm, forming a compact rectangular footprint. Smaller ancillary clips or gaskets–marked with higher numeric codes–will congregate along their edges.
Print or digitally isolate the identified sections at 150% zoom to inspect fastener types. Phillips-head screws dominate, but some models integrate Torx or hex bolts, indicated by distinct cross-section icons. Note these variations for disassembly tool selection.
Identifying the Fuel System Components: Carburetor and Fuel Lines

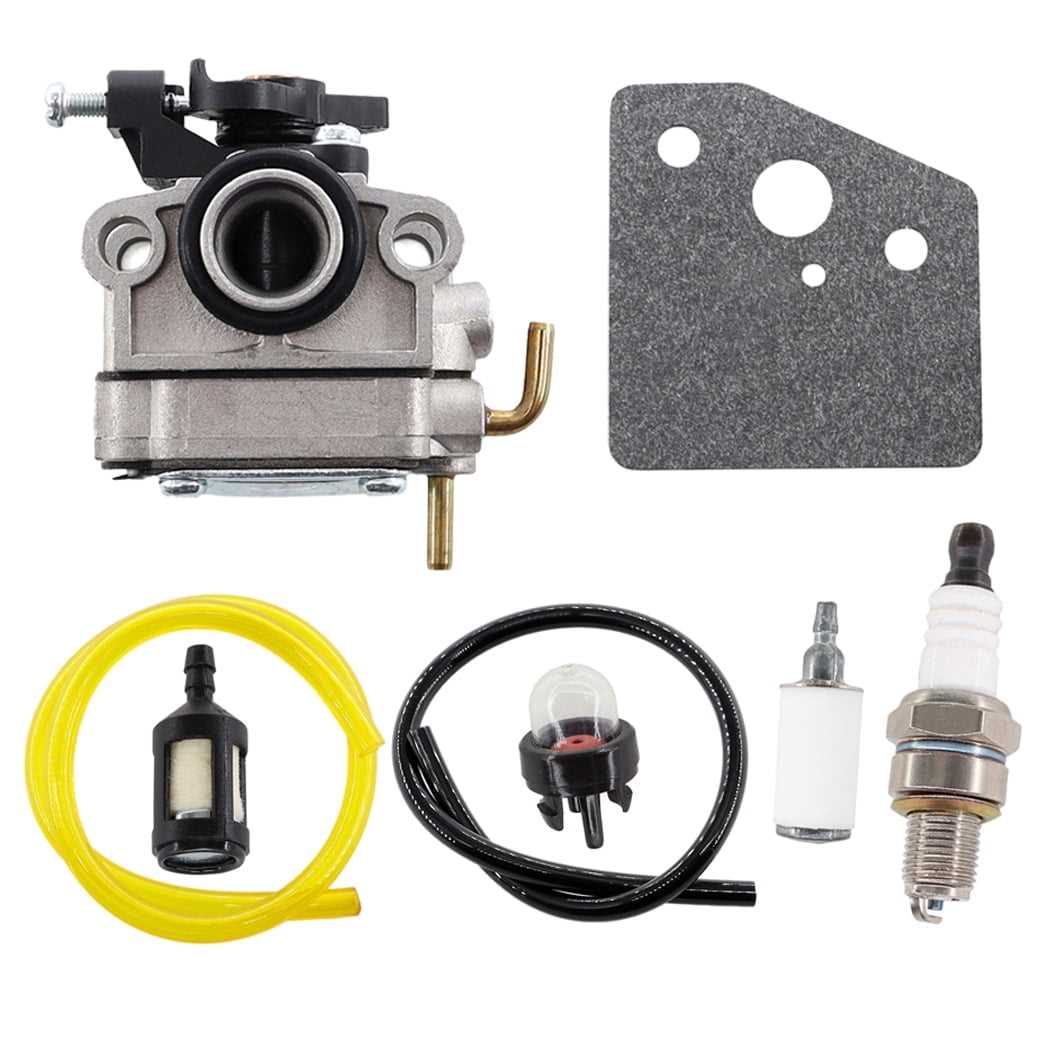

Start by locating the carburetor on the engine block–it’s typically mounted near the air filter housing or intake manifold. Check for a small, metal or plastic component with screws securing it to the engine. The primary parts include:
- Throttle valve: Regulates airflow; inspect for damage or clogging.
- Choke plate: Controls fuel mixture during startup; ensure it moves freely.
- Fuel inlet needle: Often brass, seals the fuel passage; replace if worn.
- Idle speed screw: Adjusts engine RPM at rest; turn clockwise to increase.
Trace the fuel lines from the tank to the carburetor. Most models use two lines:
- Feed line: Transports fuel from the tank to the carburetor. Look for a clear or translucent hose, often positioned at the tank’s lower outlet. Replace if brittle, cracked, or discolored.
- Return/vacuum line: Connects the tank’s upper outlet to the carburetor’s pulse port. Check for blockages or leaks–this line ensures consistent fuel flow.
Inspect the fuel filter, usually inline between the tank and carburetor. A small, cylindrical component with mesh screens; remove and clean if debris is visible. Clogged filters restrict flow, causing hard starts or stalling. Replace filters older than 24 months, regardless of condition.
Examine the primer bulb–if present–on the feed line. A small, rubber button that draws fuel manually. Press repeatedly to test resistance; a collapsed bulb requires replacement. Look for fuel seepage around the bulb’s base, indicating a faulty seal.
Check the carburetor gaskets for cracks or hardening. The intake manifold gasket (between carburetor and engine) and bowl gasket (beneath the carburetor) prevent air leaks. Use a flashlight to spot light gaps; replace compromised gaskets immediately.
Adjust the carburetor after reassembly. Start the engine and let it warm for 3 minutes. Turn the idle screw until the cutting head spins smoothly without surging. For lean conditions (high RPM, popping), enrich the mixture by turning the adjustment screw 1/8 turn counterclockwise. For rich conditions (smoky exhaust, fouled spark plug), lean the mixture by turning 1/8 turn clockwise.
Store fuel-related components properly. Drain the tank and run the engine dry if storing for over 30 days. Fuel stabilizer prevents gumming in the carburetor; add it to fresh gasoline before long-term storage. Remove and clean the carburetor bowl annually to prevent varnish buildup.
Understanding the Cutting Head and Spool Replacement Steps
Always disconnect the spark plug before servicing the cutting attachment to prevent accidental ignition. Press the tabs on the head’s underside while rotating the bump knob counterclockwise to release the spool cover. If corrosion prevents separation, apply penetrating oil to the threads and wait 10 minutes before retrying.
Remove debris from the head cavity using a brass brush; avoid compressed air as it embeds particles deeper into bearings. Inspect the spool’s eyelets for wear–replace if grooves exceed 0.5mm. A table of compatible line diameters and recommended materials:
| Vegetation Type | Line Diameter (mm) | Material |
|---|---|---|
| Light grass | 1.3–1.6 | Nylon |
| Thick weeds | 2.0–2.4 | Blended copolymer |
| Saplings | 2.7–3.0 | Reinforced polyester |
Cut 6 meters of line, ensuring both ends are squared with scissors–frayed edges reduce cutting efficiency by 30%. Insert one end through the upper eyelet, then wind evenly in the direction indicated by the arrow on the spool. Leave 15cm free to pull through the lower eyelet after securing the cover.
If the spool jams during operation, check the spring under the bump knob for proper tension. Stretch it to 120% of its resting length; if it doesn’t rebound, replace the assembly. Lubricate the spool shaft with lithium grease to reduce friction, but avoid over-application–excess attracts dirt.
Align the spool’s tabs with the head’s slots before pressing the cover into place. Rotate the bump knob clockwise until it clicks twice; skipping this step causes line feed failure. Test the head by tapping it lightly on the ground–the line should extend 5cm with each impact. If not, disassemble and recheck spring tension.
For stubborn spools, heat the cover with a heat gun for 30 seconds–expansion breaks corrosion bonds. Never use pliers; they strip the plastic threads. Replace the entire head if cracks appear near the line exit ports, as fractured housings cannot maintain proper tension.
Store replacement spools in airtight containers with silica packs to prevent moisture absorption. Exposed line deteriorates 40% faster and loses cutting sharpness within 12 months. Mark the installation date on the spool to track wear.
After reassembly, run the engine at half throttle for 30 seconds to seat internal components. Avoid full throttle immediately–rapid rotation can unravel improperly wound spools. Record the number of refills per spool; a drop below 80% of the original count indicates head wear requiring inspection.
