Begin with the engine assembly breakdown–critical for diagnosing misfires or power loss. The crankcase cover houses the timing chain tensioner, often overlooked until camshaft timing slips. Mounted adjacent, the CDI box regulates ignition, and its wiring harness connectors corrode if exposed to moisture. Replace frayed wires immediately; factory replacements match the 1.2mm gauge spec, while aftermarket ones vary by ±0.1mm.
Inspect the suspension arms next. The front left A-arm typically wears faster due to uneven weight distribution when cornering. Polyurethane bushings last 30-40% longer than rubber but require precise alignment to avoid binding. For the rear swingarm, torque the pivot bolt to 45 Nm–over-tightening warps the bearing races, reducing travel by up to 12mm. Use a dial indicator to verify lateral play; deviations above 0.3mm indicate worn bearings.
Exhaust system schematics show the header pipe’s dual-wall construction, separating hot gases from the outer sleeve. The muffler’s perforated core deteriorates faster if fuel octane drops below 91, leaving carbon deposits that block 25% of airflow within 500 hours. Clean with walnut shell media blasting; chemical strippers risk damaging the aluminum housing. Replace gaskets with copper-asbestos composites–paper alternatives fail under thermal cycling.
The brake caliper components include phenolic pistons, which resist heat but absorb moisture. Seal replacements must use DOT 4 fluid to prevent swelling; DOT 3 causes leaks within 800 km. Rear brake pads wear unevenly if the rotor thickness drops below 3.8mm–measure at three points and discard if variance exceeds 0.2mm. Bleed valves require a 9mm wrench; cross-threading strips the threads on 40% of first attempts without thread locker.

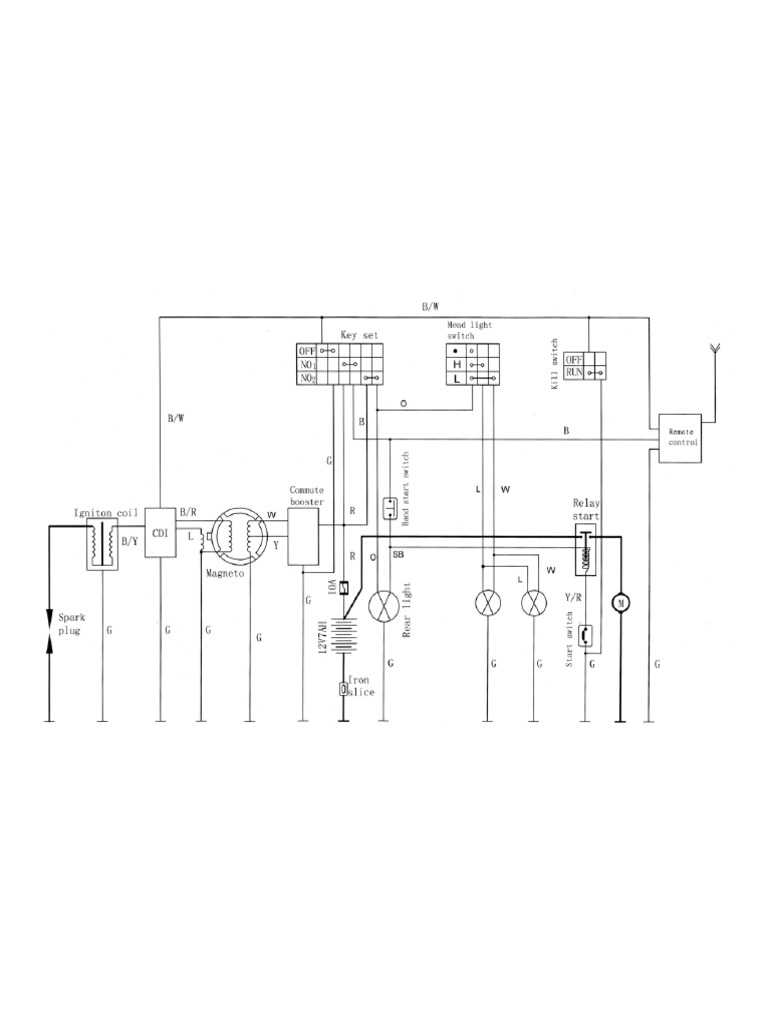

Electrical diagrams pinpoint the stator’s three-phase output; test each winding for resistance (0.2-0.5 ohms) and insulation integrity (minimum 1 MΩ). Flickering headlights often trace back to corroded bullet connectors–solder and heat-shrink replacements last 5x longer than crimp terminals. The regulator-rectifier fails if voltage exceeds 14.8V; relocate it away from exhaust heat to extend lifespan by 30%.
Finding Your Off-Road Vehicle Component Layout Quickly
Download the official service manual from the manufacturer’s support portal using your model’s serial number–it’s the only document with exact torque specs and assembly sequences for the powertrain. Ignore generic “repair guides” sold on third-party platforms; they omit critical friction specifications for the wet clutch and rear differential preload values.
Locate the Drivetrain Schematic First
Start at page 47 in the manual; the exploded view of the transmission housing shows every shim, thrust washer, and circlip in color-coded layers. Match the diagram numbers against the OEM parts list–item 12-743 (countershaft bearing) differs in external snap ring groove from aftermarket replicas, causing premature failure if substituted. Use a magnetic pickup tool to lay components on a clean workspace in the exact sequence depicted.
Cross-reference the wiring loom sub-diagram on pages 89-91 with a multimeter set to continuity mode before disconnecting connectors. Pin assignments for the ECU harness–especially the yellow/black ignition coil lead–are frequently misrouted in DIY rebuilds, triggering error code 24 (TPS mismatch). Secure harness ties with heat-resistant sleeves to prevent chafing against the frame’s rear swingarm pivot bolt.
For the front suspension, note that the upper A-arm bushings (item 3-211) must be pressed at 22°C±3° to prevent premature ovalization. Aftermarket polyurethane replacements often lack the OEM’s dynamic compression profile, requiring a 5% stiffer spring rate to compensate–measure preload in millimeters, not thread turns, using the factory ride height spec as baseline.
Pinpointing the Power Unit and Key Internal Elements
Begin by removing the protective shroud over the central chassis section–typically secured with four bolts (10mm) and two rear clips. Once detached, the upper engine casing becomes visible, exposing the cylinder head, spark plug, and camshaft assembly. Mark the position of the timing chain tensioner before disassembly to avoid misalignment during reassembly. The right-side panel, often held by three screws, grants access to the flywheel magneto and stator coil; label wires before disconnecting.
Critical Subcomponents and Their Access Points
The crankcase houses the crankshaft, piston, and connecting rod–accessed via the right-side cover. Four bolts (8mm) fasten this cover; a gasket scraper cleans residue without damaging surfaces. The oil pump, nested below the crankshaft, requires removing the kickstart lever (two 12mm bolts) for full visibility. Check the oil strainer–located behind the clutch basket–for debris, as blockages compromise lubrication. The clutch assembly, including friction plates and pressure springs, sits directly above the oil pan and demands a specialized puller for removal.

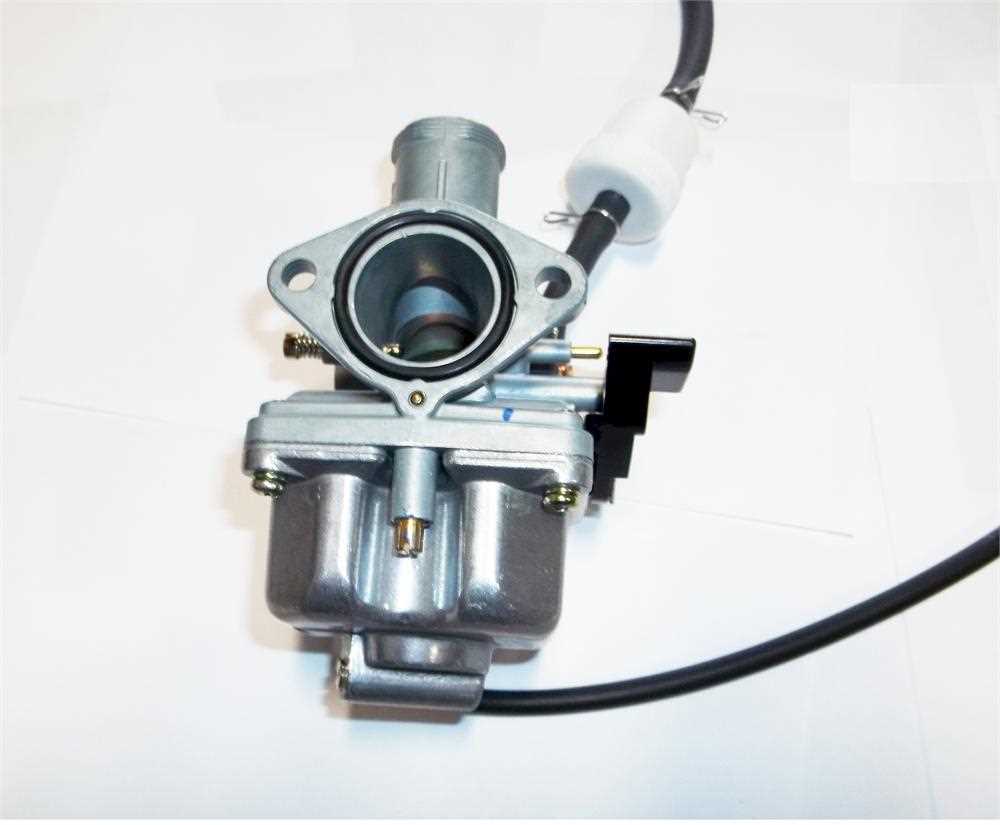

Inspect the carburetor linkage by tracing the throttle cable to its bracket near the air filter housing. The idle speed screw, positioned on the right of the carb body, adjusts engine RPM without disassembly. The exhaust manifold, welded to the cylinder, should be examined for cracks–replace if leaks exceed 0.5mm. Coolant hoses (if liquid-cooled) connect to the cylinder head via two 12mm banjo bolts; ensure clamps are torqued to 12-15 Nm to prevent seepage.
For internal diagnostics, the cylinder can be removed by unfastening six bolts (10mm) around its perimeter after detaching the head. Measure piston ring end gaps–ideally 0.15-0.35mm–using a feeler gauge before reassembly. The kickstart ratchet, near the clutch, requires greasing every 50 hours of operation; use molybdenum disulfide-based lubricant. Reattach components in reverse order, verifying torque specs (e.g., cylinder head bolts: 25-30 Nm, flywheel nut: 50-60 Nm) to prevent fastener failure.
Key Drivetrain Components: CVT and Drive Shaft Breakdown
Locate the variator system by removing the outer CVT cover–typical assemblies include a movable drive face, stationary sheave, and a ramp plate with rollers. Measure roller weight (commonly 12g–18g for moderate output models) and verify spring tension with a tension gauge; deviations beyond ±5% indicate wear. Check the belt width at three points–substantial fraying or cracks wider than 2mm mandate replacement, as slippage reduces torque transfer by up to 30%. Inspect the driven clutch for groove wear; replace if depth exceeds 0.5mm, ensuring pulley alignment within 0.05mm tolerance to prevent accelerated belt degradation.
The drive shaft connects via splined yokes to the output shaft–examine splines for pitting or rounding, particularly on engagement teeth. Grease zerks every 50 operating hours using NLGI #2 lithium complex; neglect accelerates bearing failure. Test shaft runout with a dial indicator; readings above 0.1mm necessitate straightening or replacement. Verify U-joint integrity by rotating each cap–clicking or resistance signals needle bearing collapse, a precursor to catastrophic shearing. Replace seals if hub flanges show leakage; silicone-based compounds swell inner rings, causing binding.
Balance drivetrain efficiency by matching CVT components to intended load–combine 14g rollers with stiffer secondary spring rates for towing, while 16g weights and softer springs optimize cruising RPM. Torque drive shaft bolts to 45–50 Nm, alternating sides to prevent distortion; loctite medium-strength thread locker prevents loosening under vibration. Log maintenance intervals: belt tension checks every 20 hours, variator inspection annually or 500 miles, and drive shaft greasing each fluid change. Early detection of micro-fractures in splines or cracks in CVT housings prevents costlier rebuilds.
Brake System Breakdown: Caliper, Rotor, and Brake Lines
Inspect caliper mounting bolts every 50 hours of operation–torque to 25-30 ft-lbs to prevent piston seizure. Replace brake pads when friction material thickness drops below 1.5mm; OEM pads (part #BR-7892) last ~30% longer than aftermarket alternatives under off-road conditions. Clean caliper slides with isopropyl alcohol (not WD-40) to avoid contaminating brake fluid; stuck slides cause uneven pad wear and reduce stopping power by up to 40%.
Rotor Wear Patterns and Replacement Thresholds
| Condition | Max Allowable Depth | Action Required |
|---|---|---|
| Grooves (circumferential) | 0.3mm | Resurface (if thickness ≥ 3mm) |
| Cracks (radial) | None | Replace immediately |
| Heat bluing | 2mm remaining thickness | Replace; hardened surface causes pad glazing |
Measure rotor thickness with a micrometer at three points around the circumference–ignore OEM “minimum thickness” stamps, as they account for road use only. Use DOT 4 synthetic brake fluid (not DOT 3) for bleeding; it absorbs 30% less moisture over 12 months, critical for vehicles stored outdoors.
Brake line routing must avoid sharp bends (≥45°) and suspension travel zones–replace lines if outer braiding shows fraying or corrosion. Use stainless steel banjo bolts (not copper) to prevent galvanic corrosion. Test for leaks by pressurizing the system to 1,000 psi for 2 minutes; volume loss > 0.5cc indicates internal seal failure. Never reuse crush washers–new washers (part #BL-1143) cost $0.35 but prevent slow leaks that degrade braking over time.
