Order a OEM factory schematic specific to your model year–2018 and newer editions include precise alignment markers for collision sensors. Avoid aftermarket blueprints; tolerances differ by up to 2 mm, risking ADAS calibration failure. Local dealership manuals contain section 10-37, covering front fascia, quarter panels, and tailgate sub-assemblies with torque specs listed in Nm.
Use ultraviolet magnetic toner vellum when tracing damaged sections–visible lines map weld points on inner reinforcement rails. Third-party parts catalogs often mislabel fender liners; cross-reference with GM part numbers starting 845 or 058. Disconnect the battery before removing the cowl vent grille–hidden T20 screws secure the washer fluid reservoir bracket.
Hot-air plastic welding temp: 290°C for TPO bumpers, cool cycle 3 minutes. Rear liftgate struts fail at 60k miles–upgrade to heavy-duty aftermarket units rated 150 lbs. Rocker panels rust in zones 1-A and 3-D; use seam sealer MS-907 before painting. Early models lack drainage channels in doors–add DIY tubes to prevent moisture build-up.
Transmission cooler lines connect beneath the front valence–vent with a nitrogen purge to clear debris. Replace side markers with LED units meeting DOT SAE-J575; amber for front, red-lens rear. Hood hinges require grease NLGI Grade 2 during reassembly.
Schematic Guide for the GMC Compact SUV Exterior Components
Begin by locating the front fascia assembly–typically cataloged under OEM number 22970860–when replacing impact-prone sections like the grille or bumper cover. Mistakes here often stem from mismatched clips; use plastic rivets (#11564325) rather than generic hardware to prevent vibration rattles.
Key Subassemblies and Their Fasteners
- Hood latch support: Requires a 10mm wrench for the primary bolt and a T30 torx for the secondary bracket (PN 95310737). Failure to secure both leads to misalignment during closure.

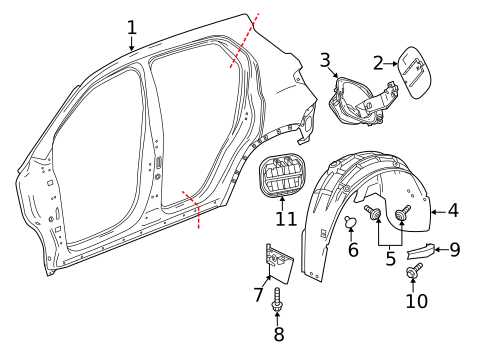

- Quarter panel reinforcements: Access requires removing the rear wheel liner and disconnecting the fuel filler tube. Use a panel adhesive (3M PN 08115) when reattaching–welding weakens corrosion resistance.
- Roof rail caps: Press-fit design means no tools are needed, but inspect the weatherstripping (PN 15229501) for cracks before reinstallation to prevent wind noise.
For side mirrors, disconnect the wiring harness first by releasing the retaining tab (located behind the door card) before unbolting the mirror base. The replacement procedure reverses this order, but torque the 8mm bolts to 22 Nm–overtightening damages the door frame threading.

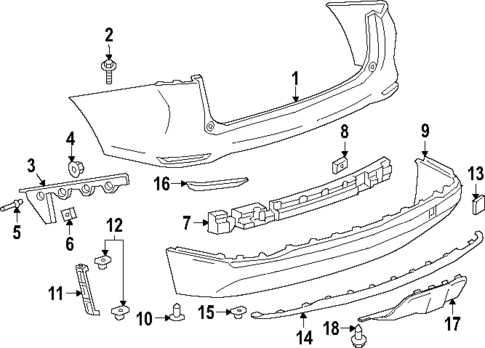

- Remove the tailgate by disconnecting struts at both hinge points–mark their positions with tape to simplify reassembly.
- Unplug the rear wiper motor connector hidden beneath the trim panel near the latch mechanism.
- Detach the license plate bracket before accessing the lower bumper bolts; corrosion often seizes these–apply penetrating oil 24 hours prior.
Fender flares attach via six push-pin clips along the wheel well edge; pry them carefully with a plastic trim tool to avoid breaking the fragile plastic. The inner liner (PN 22817322) frequently traps debris, so clean it thoroughly before reattachment to prevent premature tire wear.
Collision Repair Precautions
Align replacement doors using the factory hinge slots–no adjustment is possible after welding. For rocker panels, overlap seams by 10mm and use a seam sealer (Permatex 81158) before painting to seal hidden moisture pockets. Skip this step and rust will form within six months on galvanized steel.
Identifying Front Bumper Assembly Elements in Your Vehicle’s Schematic
Begin by obtaining the official repair manual for your model year–Snap-on’s ProDemand or ALLDATA Repair often include labeled illustrations with precise part names and numbers. Focus on the section titled “Exterior Front End Components” or “Collision Repair,” where the bumper system is typically isolated in exploded views.
Locate the primary mounting points first: the bumper cover will be anchored to the energy absorbers or reinforcement beam at three key attachment zones. In the diagram, these are usually marked as “upper tie bar,” “lower valence bracket,” and “side support flange.” Verify the alignment of these connections matches the factory specifications–misalignment here indicates damage or incorrect reassembly.
Key Components Breakdown
- Bumper Fascia: The outer plastic shell visible from the front; in diagrams, it’s often colored differently (e.g., beige or light gray) to distinguish it from underlying structures.
- Absorber Foam: Positioned directly behind the fascia, this compressible material is highlighted in cross-section views as a striped or dotted pattern. Note its thickness–varies by model year (2018+ models use denser foam).
- Reinforcement Bar: The rigid metal beam running horizontally behind the absorber. It’s labeled with torque specs (e.g., 44 lb-ft for front bolts) in the schematic–exceeding this can warp the chassis.
- Fog Light Housing: Integrated into the lower fascia; look for wiring harness connectors marked with color codes (e.g., “BLK/VT” for black/violet). Disconnect these before detaching the bumper.
- Air Dam/Spoiler: The lower plastic panel beneath the fascia; its fasteners are usually small Torx screws (T25) hidden behind wheel well liners in the diagram.
Pay attention to hidden clips and fasteners–many assemblies fail prematurely due to overlooked plastic rivets. In the schematic, these appear as small circles with arrows pointing to their locations. For example, the upper tie bar typically uses four “push-in” rivets (part #20947346), which snap into fender brackets. Remove these last to avoid stress fractures.
For 2020–2023 variants, check the adaptive cruise control sensor (if equipped) mounted behind the front grille. The diagram labels it as “Radar Module” with a caution note (“Do not paint–affects calibration”). Its wiring harness plugs into a dedicated port marked “X15” near the driver-side headlight.
To cross-reference parts, use the illustration’s grid references (e.g., “E-12” next to the side marker light) paired with the parts catalog. For example, if the absorber foam is torn, search for its OEM number (likely GM-13320350) rather than relying on aftermarket generic labels.
Procedural Notes from Schematics
- Disable the SRS system before working near the bumper–diagrams include a warning icon (⚠️) near the inflatable knee bolster connector.
- Release the hood latch cable if it runs through the front end; it’s visible in the schematic as a thin dashed line labeled “Secondary Release.”
- For AWD models, the under-engine shield (labeled “Front Closure Panel”) has additional fasteners requiring a 10mm socket–remove it last to prevent fluid leaks.
If the diagram lacks detail, overlay it with a photograph of your vehicle’s underside taken from a phone–compare fastener counts and wire routing. Deviations often point to aftermarket modifications or collision repairs that weren’t documented.
Locating Genuine Front End Panel and Radiator Support Components with Schematics
Purchase factory-approved replacements directly from GM Parts Direct (gmpartsdirect.com) by entering your VIN. Their exploded-view illustrations label each OEM component with seven-digit GM part numbers–match these precisely when ordering online. Warehouses stock exact-fit panels, including pre-painted hoods and mesh grilles, eliminating color-matching guesswork.
Local dealership service departments maintain in-stock OE assemblies for immediate pickup. Request a printed or emailed schematic from the parts counter; technicians reference these diagrams daily to identify adjacent brackets, clips, and fasteners that often require simultaneous replacement. Labor time calculators on Mitchell1 and ALLDATA detail associated hardware, preventing omission of small but critical retainers.
RockAuto (rockauto.com) cross-references GM’s OE catalog using VIN decoding–filter results by “Sheet Metal” or “Exterior Components” to reveal AC DELCO-branded items identical to dealership inventory. Shipping verification images display part orientation, ensuring alignment tabs and drain holes match your vehicle’s assembly layout before finalizing checkout.
Locating Door Assembly and Reflector Components in a Compact SUV Schematic
Begin by referencing the upper-left quadrant of the exploded illustration–here, the outer shell sections for side entryways are mapped with numerical labels. Focus on tags #4501 through #4509 for primary panel elements, including the acoustic insulator (#4503), trim fastener clips (#4506), and the integrated speaker grille (#4508). Cross-reference the factory repair manual to confirm torque specifications for each clip (typically 3-5 Nm) to prevent over-tightening during reassembly. Adjacent to these, the side mirror sub-assembly appears as a separate cluster, identified by labels #6101–#6107; note that #6102 denotes the mirror housing while #6104 marks the heating element, often requiring a multimeter test (resistance 15-25 ohms) if defrost function fails.
Verifying Alignment of Modular Subcomponents
Use calipers to measure the clearance between the door outer skin (#4501) and the inner structural reinforcement (#4502)–ideal gap is 0.8–1.2 mm; deviations suggest bent brackets or improper seal adhesion. For mirrors, ensure the glass (#6101) sits flush within the housing; misalignment often stems from a dislodged pivot ball (#6105), which can be re-seated using a plastic pry tool. If replacing the entire mirror unit, disconnect the wiring harness (#6107) at the vehicle-side junction, noting the pin configuration to avoid reversed polarity during reconnection. Always test power-fold and tilt mechanisms before finalizing installation, as corrupted ECU signals may require a scan tool reset to restore functionality.
