Begin by locating the cylinder assembly–this is the core rotating element where cartridges are loaded. Reference the exploded view model to match each component with its corresponding number. Manufacturers often provide distinct markings, such as alphanumeric codes or color-coded lines, to simplify identification. If these labels are absent, measure critical dimensions like barrel length, frame width, and cylinder diameter to cross-check against official specifications.
Examine the trigger mechanism next. Note the interplay between the hammer, sear, and rebound slide, as these dictate firing behavior. A common error occurs when reinstalling the mainspring–ensure it sits flush against the frame with consistent tension. Improper alignment here leads to misfires or double-action failures. Use calipers to verify pivot pin diameters if replacing worn parts.
For the extractor rod, confirm its thread pitch matches the cylinder’s retention slot. Over-tightening this component risks stripping the frame. Check the crane arm for lateral play; excessive movement indicates worn locking surfaces. Lubricate friction points–particularly the ejector rod and cylinder stop–with a dry-film lubricant to prevent fouling from powder residue.
When assembling the grip panels, torque screws incrementally to avoid cracking synthetic materials. Test the firing pin channel for obstructions; even minor debris can cause light primer strikes. Store diagrams in a protected format, such as laminated copies or vector-based digital files, to preserve clarity during repeat disassembly.

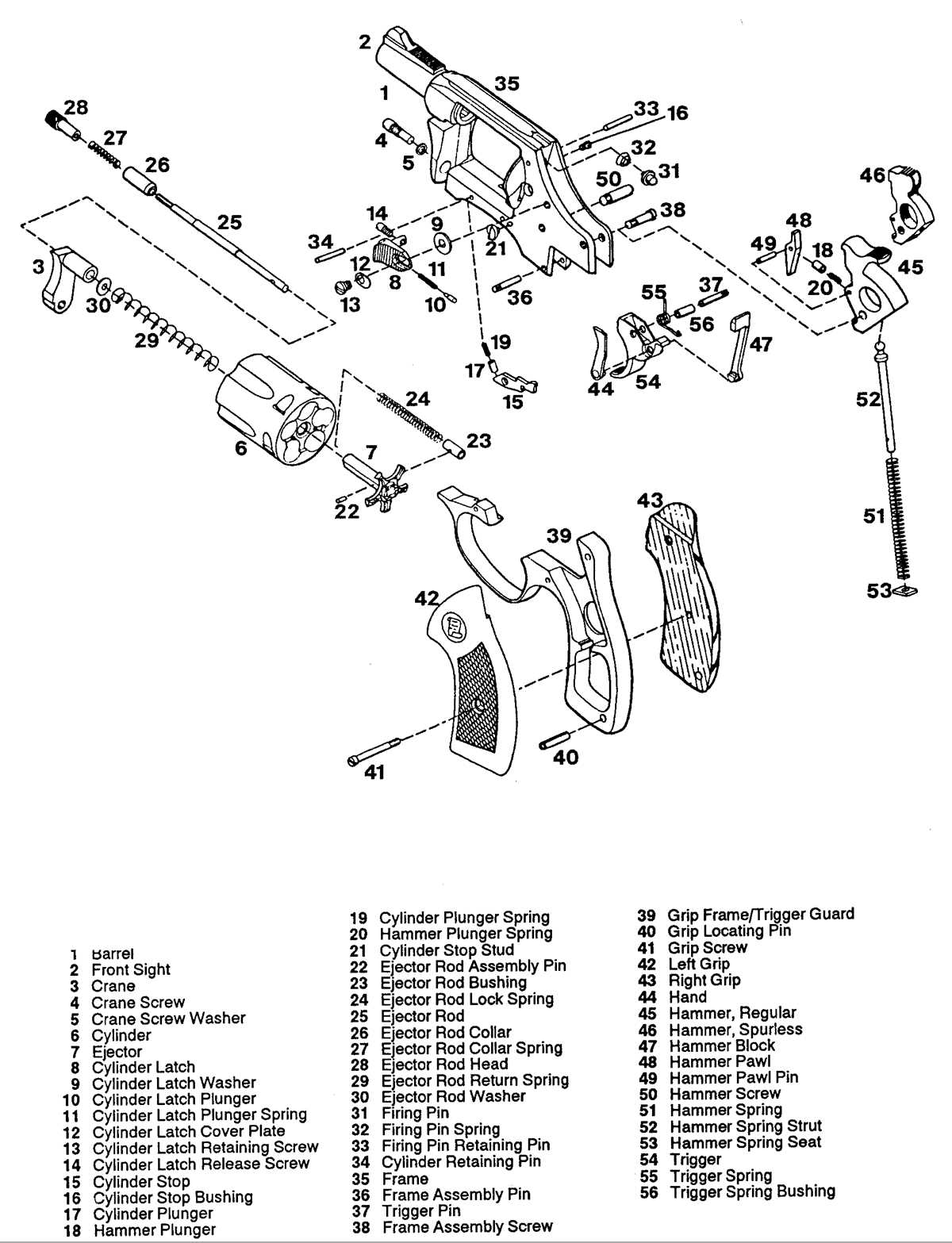

Exploded View of Revolver Components: A Practical Reference
Begin by locating the sideplate screws–typically two on most models–using a precision screwdriver with a hollow-ground tip to prevent stripping. Apply downward pressure while turning to avoid misalignment during reassembly.
Once the sideplate is removed, note the orientation of the cylinder stop spring. It rests within a milled slot in the frame, with its curved end engaging the cylinder stop. Replace it if the coiled section shows signs of fatigue or flattening, as failure here causes inconsistent cylinder indexing.
Trigger Mechanism Breakdown
The trigger connects to the hammer via a strut, often mistakenly called a “stirrup” in older manuals. Verify the strut’s pivot pin isn’t worn; excessive play here results in sluggish trigger reset. Use a digital caliper to measure pin diameter–anything under 0.123 inches warrants replacement.
Inspect the hand, the pointed component that rotates the cylinder during cocking. Its tip should be sharp and free of burrs. If rounding is visible, dress it with a fine-cut file, then polish with 1200-grit wet sandpaper. A compromised hand leads to skip-firing or cylinder lockup.
The rebound slide, frequently overlooked, governs trigger travel limits. Check for cracks near the mounting tab–even hairline fractures can cause erratic trigger behavior. Test its tension by pressing lightly with a brass punch; it should return under smooth resistance, not snap back abruptly.
Barrel and Cylinder Alignment Checks
After separating the barrel from the frame, examine the forcing cone for erosion or pitting. A depth gauge should read no more than 0.008 inches at the cone’s base. Exceeding this requires re-cutting to factory specs, typically a 90-degree angle with a 0.02-inch radius.
Cylinder chambers must align perfectly with the bore. Use a go/no-go gauge inserted from the breech end. If the gauge binds, the cylinder axis pin may be bent or the crane alignment is off. Replace the pin if lateral runout exceeds 0.002 inches.
Retaining screws, particularly those securing the extractor rod, often loosen over time. Apply thread locker rated for high temperatures (250°C+) before tightening to 12 inch-pounds. Torque specifications vary by model–consult the original schematics for exact values.
Locating Critical Elements in a Bulldog-Style Firearm Schematic
Begin by isolating the cylinder assembly–typically depicted centrally in schematics–where the six chambers and extractor star are housed. Verify alignment pins and the crane arm, as misidentification here risks improper reassembly. Note that modern variants often integrate a one-piece frame, simplifying disassembly but requiring precise torque values for screws linking the barrel (usually 25–30 ft-lbs). Avoid substituting tools; calipers or a gunsmith’s micrometer ensure measurements like cylinder gap (.004–.006 inches) remain within factory specs.
| Component | Visual Cue | Inspection Priority |
|---|---|---|
| Firing pin | Projection on recoil plate | Check for deformation; replace if flattened |
| Hand | Curved lever beneath cylinder | Ensure engagement with ratchet teeth |
| Main spring | Flat steel leaf behind trigger | Test tension; 12–15 lbs trigger pull is optimal |
| Ejector rod bushing | Threaded sleeve at muzzle end | Inspect for wear; replace if grooves exceed .002 inches |
For trigger mechanisms, distinguish the rebound slide (resets hammer) from the sear (holds cocked position). The former’s engagement surface must be polished to mirror finish–use 1200-grit wet/dry paper in circular motions, then apply dry lubricant sparingly to avoid fouling. If the diagram includes a transfer bar safety, confirm its path aligns with the hammer’s strike face; misalignment causes light primer strikes. Disregard generic spring kits–only OEM replacements guarantee consistent tension for double-action operation.
Decoding a Revolver Assembly Blueprint: A Field-Ready Walkthrough
Locate the serial number first–typically engraved on the frame near the grip. Cross-reference this with the manufacturer’s official nomenclature index to confirm the exact model variant. Variances in small mechanical elements, like trigger springs or hammer notches, can render incorrect substitutions useless or dangerous.
Study the exploded schematic’s orientation markers. Most illustrations position the firearm’s muzzle pointing upward and the trigger guard facing you. This consistent layout prevents disassembly errors when reassembling firing pins, cylinder stops, or rebound slides–components that must align precisely for safe operation.
- Identify core groupings by functional zones:
- Firing mechanism: Hammer, sear, mainspring, trigger
- Rotating assembly: Cylinder, crane, extractor rod
- Frame interface: Grip panels, screws, frame itself
- Each group is color-coded or bordered in professional schematics–use these cues to isolate related elements.
Examine numerical callouts tied to a legend. Each number corresponds to a precise designation in the parts inventory–verify against the service manual’s parts list before procuring. Misnumbered components like firing pins or cylinder stop plungers will bind or fail under recoil.
- Trace the disassembly sequence from numeric labels. Initiate at the highest number (typically grip screws or sideplate fasteners) and proceed retrograde.
- Note directional arrows indicating rotational orientation for screws, ejector rods, or springs–reverse tread patterns demand exact threading to avoid stripping.
- Mark fragile components like leaf springs with temporary labels to ensure correct reassembly tension.
End with a tactile check: cycle the action dry before loading. Test all mechanical interfaces–trigger reset, cylinder rotation, hammer drop–without ammunition. A single misaligned element can prevent ignition or induce accidental discharge.
Retain the exploded schematic as a baseline–compare post-maintenance with the original layout to detect unaccounted modifications, swapped fasteners, or missing washers. Regular cross-checking preserves both performance and safety standards.
Key Components Found in Revolver Blueprints: What Needs Swapping Most Often
Start with the firing pin–a critical wear item in most compact handgun schematics. Models like the Undercover or Pathfinder typically show measurable erosion after 3,000–5,000 rounds, especially with +P ammunition. Always match the original dimensions (length: 0.180″ ±0.002″, diameter: 0.085″ ±0.001″) when sourcing replacements. Stainless steel variants last 20–30% longer but may require modified springs for consistent ignition.
Trigger Assembly and Related Wear Points
The sear and hammer strut demand attention if trigger pull becomes inconsistent or reset feels gritty. Schematics often mark the sear as heat-treated steel, so replacements must meet Rockwell 48-52C hardness to avoid premature chipping. Pay special note to the disconnector–mismatched tolerances here cause double-feeds in semi-auto conversions. Measure the coil spring tension (target: 12–14 lbs) to maintain crisp breaks.
Extractor rods sheared at the head account for 15% of revolver malfunctions. Check schematics for thread pitch (typically 1/4″-28) and rod length (3.5″ for snub-nose models) before ordering. Anodized aluminum rods crack after 1,200 rounds; chrome-molybdenum alloys handle twice the stress. Install with 15 in-lbs torque to prevent thread stripping.
Cylinder stops and ejector rods exhibit wear first in heavy-use revolvers. Look for flat spots on the stop’s engagement surface or bending in the rod (straightness:
Aligning Schematic References with Firearm Component Listings
Locate the serial number plate on the revolver frame–typically etched near the grip or cylinder crane. Cross-reference this marking with the first two digits in the exploded view’s callouts; these denote the model variant (e.g., “12” for Pathfinder, “40” for Undercover). Use the manufacturer’s official parts inventory PDF, filtering by this prefix before consulting any sub-assembly numbers. Discrepancies often arise from post-1990 production updates; verify the build date if the component appears absent in later catalog editions.
- Grip screws: match thread pitch (metric M3.5 for early runs, unified #8-32 after 2005).
- Trigger mechanisms: check sear geometry–hook angle differs between spurless and serrated variants.
- Barrel shrouds: note marked gas port spacing–0.5mm variance invalidates OEM replacements.
For ambiguous references in the illustration, measure the disputed piece against known dimensions from the service manual. Example: a cylinder stop labeled “PN 17″ may show 0.405″ height in the drawing but require 0.410″ if sourced from aftermarket suppliers like Wolff or Cylinder & Slide. Keep a micrometer calibrated to 0.001” tolerance when confirming tolerances listed in the catalog’s fine-print appendices–these often include undocumented deviations for discontinued finishes or special-order configurations.
