Examine the tank assembly first–locate the sealing gasket at the base, typically a rubberized ring that prevents leaks under pressure. Inspect the threaded collar; if corrosion is present, replace it immediately to avoid failure during operation. Verify the locknut tightness using a torque wrench, targeting 12-15 ft-lbs for standard models to ensure proper engagement without stripping.
Next, focus on the wand and trigger mechanism. The trigger piston should slide smoothly within its housing; apply silicone-based lubricant to high-friction points if resistance is detected. Check the nozzle assembly for clogs–use a 0.4mm wire probe to clear debris from the orifice. Replace the filter screen if it shows signs of wear, as even microscopic damage can disrupt flow rates.
For the pressure regulator, disassemble the valve carefully. The spring’s tension determines output–adjust it by turning the calibration screw in quarter-turn increments, testing after each adjustment. Record the ideal PSI for your application (common range: 20-60 PSI) to maintain consistency. If the valve fails to hold pressure, inspect the diaphragm for cracks, as this is the most frequent point of failure.
Finally, assess the pump seals and O-rings. Use a flashlight to check for brittleness or distortion–replace any components showing discoloration or deformation. Apply TEFLON tape to threaded connections during reassembly to prevent leaks. Store disassembled units in a dry environment to avoid premature degradation of rubber components.
Understanding Your Pump Assembly: Key Components Layout
Start by locating the pressure regulator valve–typically positioned near the base of the wand connector. This small brass component controls flow rate and prevents system overload. If clogging occurs, disassemble it by twisting counterclockwise; clean with compressed air or a 0.5mm wire, as solvent residue left inside may corrode internal seals within 48 hours.
Inspect the piston cup assembly next. The neoprene seal degrades faster when exposed to petroleum-based solutions. Replace it every 150 operating hours or when compression drops below 25 PSI during priming tests. Use model-specific part numbers–cross-referencing with generic seals risks mismatched tolerances leading to bypass leaks at the cylinder bore junction.
The trigger mechanism contains three critical sub-assemblies: the latch spring (tension: 0.8-1.2 Nm), ball check valve (3/16” diameter, Viton material for chemical resistance), and actuation rod (stainless steel, 4.75” length). Lubricate the rod with silicone grease sparingly; excess attracts abrasive dust particles that score the guide bushing over time.
| Component | Material | Replacement Interval | Failure Symptoms |
|---|---|---|---|
| Nozzle filter screen | 316 stainless steel mesh (100 micron) | Every 80 gallons | Uneven spray pattern, reduced flow rate |
| Vent cap gasket | EPDM rubber | Annually | Tank deformation, pressure build-up |
| Internal agitator paddle | Polypropylene | Biannually | Settling in suspension formulas |
Hose connections require torque specifications: 12-15 ft-lbs for the tank outlet fitting and 9-11 ft-lbs for wand couplings. Over-tightening cracks nylon fittings; under-tightening causes leaks at pressures above 40 PSI. Use a digital torque wrench with a 3/8” drive adapter for consistent results.
For wand repairs, focus on the tip selector dial. The ceramic orifice in the yellow-coded tip (0.024” diameter) erodes 0.001” per 20 gallons of abrasive slurry. Replace when spray fan angle narrows below 80° or droplets exceed 300 microns in size. Always store wands vertically to prevent fluid pooling in the lower section, which accelerates corrosion at the stainless steel joint.
Document each disassembly step with photographs–note the orientation of the flat washer under the tank lid seal (groove facing downward) and the specific sequence of O-rings around the piston rod (durometer ratings: 70±5 for the outer ring, 50±5 for the inner). Incorrect assembly reduces pump efficiency by 18-22%.
How to Recognize Critical Elements in Your Pump System
Begin by locating the pressure cylinder–often a vertical metal or reinforced plastic tube near the base. This component regulates liquid compression and must be checked for cracks or wear before operation. Damaged cylinders lead to inconsistent flow, wasting solution and reducing precision. Measure the inner diameter; deviations from manufacturer specs signal potential failures.
Examine the wand and control valve assembly next. The wand’s length determines spray reach, while the valve–usually beneath the handle–adjusts output pressure. Test the valve’s action: if it sticks or leaks, debris may be obstructing the mechanism. Remove the valve cover and inspect the spring and seals. Replace worn seals immediately; silicone-based variants last longer than rubber.
Feeding Mechanism Components
- Dip tube: Submerged in solution, this slender pipe transfers liquid to the cylinder. Verify its integrity by blowing air through it–the pathway must be unobstructed. Clogs here cause erratic spraying.
- Gasket set: Found between mating surfaces, gaskets prevent leaks. Silicone or neoprene variants are standard; check for brittleness or deformation every 50 hours of use.
- Nozzle tip: Different orifice sizes (0.15–0.5 mm) affect spray patterns. Clean tips with a soft brush–never metal tools–to avoid damaging precision bores.
Inspect the piston pump mechanism located behind the cylinder. The piston rod should move smoothly without lateral play. Lubricate the rod with food-grade silicone grease every 3 months; petroleum-based products degrade seals. Listen for unusual noises during operation–grinding indicates internal wear requiring disassembly.
Focus on the tank lid’s sealing system. The O-ring must create an airtight seal; failure causes suction loss. Apply a thin layer of vegetable oil to the O-ring to maintain pliability. Over-tightening strips threads–hand-tight plus a quarter turn is sufficient.
Maintenance Schedule for Durability
- After each use: Rinse with clean water, particularly the nozzle and wand.
- Monthly: Check all fasteners for torque specifications (typically 10–15 Nm).
- Quarterly: Disassemble piston pump, clean valve seats with isopropyl alcohol.
- Annually: Replace all seals, even if no visible damage appears.
Label each disassembled piece with masking tape if storing temporarily–mismatched parts during reassembly disrupt calibration. Store assemblies in a dry environment; moisture causes corrosion on steel components within 48 hours. Use protective caps for openings to prevent dust ingress.

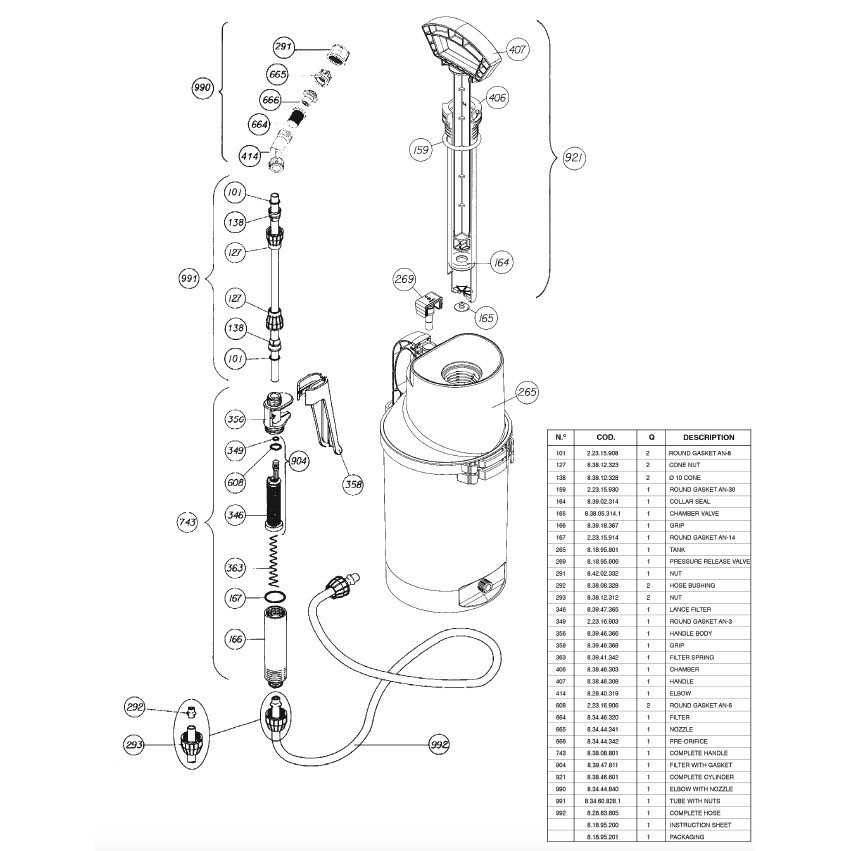

Step-by-Step Guide to Identifying Components on Schematics
Begin by isolating the broken or worn element in your equipment’s visual layout. Cross-reference the item’s position–marked by alphanumeric codes or color-coded labels–with the legend at the bottom or side margins. Common identifiers include the nozzle assembly (often near the front), pressure regulator (mid-section), and gasket seals (circled in red or yellow). If codes are missing, trace the airflow or liquid path on the schematic to pinpoint the exact piece.
Matching Codes to Physical Pieces
Note the 4-6 digit serial number adjacent to each symbol on the chart–this corresponds to the manufacturer’s inventory system. Input this code into the supplier’s search tool to pull up compatible replacements. For example, a valve labeled “VL-2040” will pair with seals cataloged as “SV-2040-KIT” or pumps marked “PM-1170” link to diaphragms listed as “DP-1170-BL.” Avoid approximations; subtleties like material grade or pressure rating can invalidate compatibility.
Verify dimensions by comparing the schematic’s scale–often 1:1 or 1:2–to the actual piece using calipers. A mismatch as small as 1mm in gasket thickness can cause leaks. If the chart lacks scale, measure the distance between fixed points, like mounting holes, then divide by the corresponding measurement on the map. Document each step; photographs of the disassembled system layered over the visual chart prevent reassembly errors.
Frequently Replaced Components and Their Positions in the Schematic
Inspect the trigger mechanism first–this assembly suffers the most stress. Locate it near the handle base, where the lever connects to the pump rod. Replace cracked or sticky triggers immediately; delay causes inconsistent pressure output. Look for model-specific part numbers stamped on the housing.
The pump seal, typically a rubber O-ring, sits at the cylinder’s lower end. Check for deformation or hardening; a faulty seal reduces suction efficiency. Clean the area thoroughly before installation to prevent debris from compromising the new seal. Use silicone grease sparingly to extend its lifespan.
Hose and Nozzle Checkpoints
- High-pressure hose: Trace it from the tank outlet to the wand grip. Kinks or abrasions signal imminent failure. Replace any hose showing bulges or discoloration–fluid leaks here create hazardous spray patterns.
- Wand tip: Remove the nozzle and examine the internal screen. Clogged filters distort spray angles. Soak in vinegar solution if mineral deposits are present, then rinse with distilled water.
Gaskets inside the lid and tank openings degrade faster than other elements. Look for flattened or brittle gaskets; these create slow leaks that reduce pressure. Match replacements to the original thickness–thinner gaskets won’t seal properly. Apply food-safe lubricant if the unit handles acidic solutions.
Wheels and axle bearings wear unevenly on uneven terrain. Spin them manually; grinding noises indicate bearing failure. Dust caps often crack first–replace these before bearings seize. Use heavier-duty grease if the device operates in sandy conditions.
Internal Valve Assembly
- Check valve: Found near the tank inlet, this prevents backflow. Test by blowing air through; resistance confirms proper function. Replace if air passes freely.
- Pressure relief valve: Located adjacent to the pump, it vents excess pressure. Depress the button–sticking means corrosion. Lubricate or replace if unresponsive.
Stainless steel wand tubes corrode along weld points. Sand minor rust spots and apply a zinc-rich primer to deter recurrence. For pitted tubes, measure the inner diameter–even slight warping disrupts spray consistency. Order replacements cut to exact length; longer tubes introduce flow resistance.
Quick-connect couplings (if equipped) loosen over time. Tighten retaining clips, but avoid overtightening–plastic housing cracks under excessive torque. Grease threads annually to prevent galling. Replace cracked couplings immediately; leaks here often go unnoticed until pressure drops.
