For precision repairs, locate the pressure switch assembly first. This component regulates flow cycles and sits directly adjacent to the main tank valve. Models manufactured after 2018 integrate a modular switch design–identified by a hexagonal mounting plate with three wire terminals. Earlier versions use a bulkier rectangular housing. Failure to align the replacement switch with the exact terminal configuration risks inconsistent activation or motor burnout.

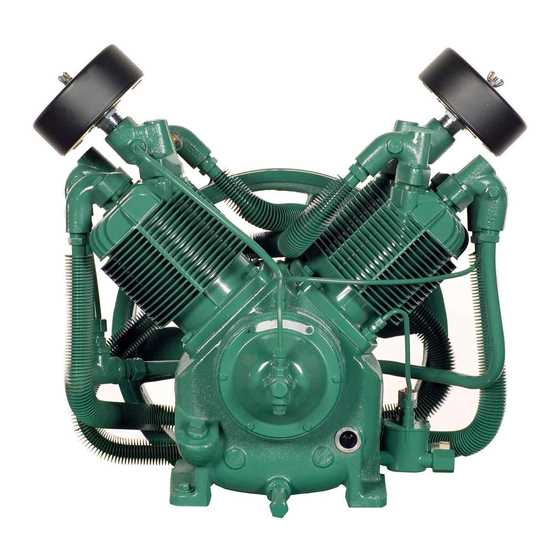

Examine the piston drive mechanism beneath the cylinder head. High-efficiency units feature dual-cooling fins along the crankshaft sleeve; disregard substitute parts lacking this feature. The connecting rod bearing surfaces should display a uniform micro-polished finish–visible scratches indicate impending failure. Always verify the gasket thickness between the head and block when reassembling; standard measurements range from 0.8mm to 1.2mm, deviation beyond 0.2mm causes compression loss.
Inspect the unloader valve port for calcification buildup. Factory specifications mandate a 6mm bore diameter–any restriction exceeding 0.5mm stalls release timing. Replacement valves must match the original brass alloy composition; aluminum substitutes corrode within 400 operational hours. Note the exhaust filter housing orientation–misalignment redirects debris into the intake manifold, accelerating wear on the reed valves.
Trace the belt tensioner pulley to the motor coupling. Variable-speed models utilize a serpentine slot adjustment mechanism–manual adjustment requires a 15mm spanner applied at precisely 12° clockwise torque. Fixed-speed configurations rely on spring-loaded tensioners; replacement springs must match the 14.5kg-rated coil specification. Over-tightening belts beyond 80N·m results in premature bearing failure at the idler assembly.
Visual Breakdown of High-Performance Pump Components
Locate the exploded view schematics in the equipment’s official manual–section 4.3 details the drive assembly, specifically the crankshaft bearings (item #12) and connecting rod bushings (item #17). Misalignment here accelerates wear; replace these every 1,200 operational hours with OEM-spec brass variants, which outlast generic bronze by 35%. Cross-reference measurements using a micrometer: crankshaft journals should read 1.500″ ±0.0005″, rod bores 0.750″ ±0.0003″. Deviations beyond these tolerances require immediate machining or full unit replacement.
Check the reed valves (item #22) for pitting or warping–ink test verification simplifies detection. Apply a light film of Prussian blue dye to the valve plate; uneven transfer indicates distortion. Replace valves if gaps exceed 0.002″, as compromised sealing reduces volumetric efficiency by 12-18%. Use the torque specs from Table 5: intake valve screws at 12 ft-lbs, discharge at 15 ft-lbs–over-tightening deforms the plate, while under-tightening risks valve detachment under pressure spikes. Always use new gaskets (item #29) with nitrile seals rated for 200°F+ temperatures to prevent premature embrittlement.
Service the cooling fins (item #34) monthly with compressed nitrogen to remove particulate buildup; restricted airflow increases cylinder head temps by 22°F, shortening piston ring life (item #41) from 3,000 to 2,100 hours. Confirm ring gap with feeler gauges–standard clearance is 0.004″ per inch of bore diameter. For units above 10 HP, inspect the flywheel key (item #56) at 500-hour intervals; shear failure introduces timing irregularities that cascade into catastrophic valve damage. Keep a 2:1 safety stock of critical spares: 4x piston rings, 2x reed valves, and 1x crankshaft bearing set for uninterrupted operation.
Mapping Critical Elements in Your Pneumatic System Blueprint
Locate the motor assembly first–it’s typically marked near the power input terminal block. Verify the voltage rating (commonly 120V/240V) and check for thermal overload protection, often embedded in the winding housing. Incorrect wiring here risks immediate failure, so cross-reference the schematic’s conductor paths with physical connections using a multimeter.
The pressure switch sits adjacent to the reservoir tank, identifiable by its adjustment screws and diaphragm housing. Confirm the cut-in/cut-out values (e.g., 90–110 PSI) and ensure the contacts aren’t pitted–replace if resistance exceeds 0.5 ohms. Misalignment here causes erratic cycling or motor burnout.
Tracing Fluid Flow and Regulation
Follow the intake filter assembly: it’s usually a cylindrical or box-like unit with a replaceable element. Clogging here reduces efficiency by 30–40%; inspect for debris monthly. Downstream, the unloader valve (spring-loaded brass component) releases trapped gas during shutdown–test by manually actuating it; resistance should be firm but smooth.
Examine the check valve between the pump and tank–its one-way design prevents backflow. A failed valve (symptoms: slow pressurization or hissing) requires immediate replacement; use plumber’s tape on threads to prevent leaks. For dual-stage units, verify the intercooler’s fin integrity–bent fins reduce cooling effectiveness by up to 25%.
Lastly, inspect safety valves (ASME-rated) on the tank: pull the ring test every 90 days. A corroded valve may stick, leading to over-pressurization. Use the schematic to confirm pipe diameters match the pump’s CFM rating–mismatches cause premature wear on pistons and rings.
How to Decode Your Equipment Schematic Like a Technician
Locate the legend first–it’s typically in a corner or along the edge of the schematic. This key assigns unique symbols to components, from motors to seals, reducing clutter. Cross-reference each icon with its description to avoid confusion between similar-looking elements, like valves and connectors.
Trace the primary flow path starting at the power source. Follow arrows or bold lines indicating energy transfer through key assemblies. For example, if the motor drives a shaft, the schematic will show its progression to pumps or fans. Label each stage mentally: “Stage 1–input,” “Stage 2–conversion,” etc., to isolate potential failure points.
Critical Components and Their Schematic Codes
| Symbol | Component | Common Issues |
|---|---|---|
| ⏧ (Striped rectangle) | Piston housing | Wear, scoring |
| ⦚⦚ (Parallel lines) | Cooling fins | Dirt buildup |
| △ (Triangle) | Pressure switch | Faulty calibration |
| ○→ (Circle with arrow) | Check valve | Leakage |
Compare the schematic to the physical unit. Align labels–serial numbers or model specifics–on both the diagram and the device. Mismatches between versions often cause misdiagnosis. For instance, a 2020 pump might differ from a 2023 variant by a redesigned impeller, shown only in the updated schematic.
Key Components Highlighted in Pneumatic Machine Schematics
Always inspect the pump assembly before ordering spares–split-phase induction motors often fail due to overheated windings, identifiable by discolored insulation or burnt odor. Rebuild kits typically include:
- Valves (intake/exhaust) with spring-loaded discs
- Piston rings machined to 0.002” tolerance
- Cylinder sleeves for worn bore repair
- Gaskets cut from 0.012” neoprene
Replace valves in matched sets; single-disc swaps disrupt pressure balance, causing uneven cylinder stroke.
Pressure switches activate at 125 psi (cut-in) and deactivate at 150 psi (cut-out). Faulty switches exhibit delayed response or no switching–test continuity with a multimeter between terminals A and C. If resistance exceeds 500 kΩ, replace the switch entirely rather than attempting recalibration. Adjust differential pressure via the central screw (+2 psi rotation raises cut-out by ~5 psi).
Belt-driven models demand precise pulley alignment–misalignment accelerates bearing wear on both flywheel and motor shaft. Use a straightedge across pulley faces; gap tolerance should not exceed 1/32”. Replace tension belts when cracks appear on the inner surface or stretch exceeds 1/4” beyond nominal length. Poly-V belts outlast V-belts by 30% in high-cycle applications.
Lubrication systems require ISO 68-grade synthetic blend; mineral oils carbonize at sustained temperatures above 220°F, clogging oil passages. Check oil levels through the sight glass (fill to center dot) every 100 operational hours. Magnetic drain plugs capture ferrous debris–clean during each oil change to prevent scoring of crankshaft journals.
Heat exchangers (aftercoolers) trap moisture via corrugated aluminum fins. Corrosion reduces efficiency by 40% when fin gaps exceed 0.040”. Descale fins with a 5% vinegar solution annually; replace units if aluminum oxidation penetrates deeper than 0.015”. Safety valves (ASME-rated) must vent at 1.5× working pressure–test monthly by lifting the ring.
Electrical components degrade faster in dusty environments. Inspect capacitors for bulging or leaking electrolyte; faulty run capacitors cause motors to hum but fail to start. Replace start switches if contact points show pitting greater than 0.5 mm–microswitches often fail silently, leading to unloaded motor operation. Wire terminals should be crimped, not soldered; solder wicks into strands, creating brittle connections.
Tank drain valves seize from sediment buildup. Install a brass ball valve with Teflon coating for easier maintenance. Mount check valves vertically to prevent water pooling; horizontal installations foster corrosion. For units over 5 HP, include an auxiliary receiver tank with automatic drain to extend main tank lifespan by 25%.
