Begin with the terminal post – critical for structural stability. Install these at every corner, gate opening, and endpoint, spaced no farther than 20 feet apart. Use a minimum 2.5-inch diameter schedule-40 galvanized pipe, embedded 36 inches deep in concrete for permanent setups. Temporary installations require a 30-inch burial with a drive sleeve for quick removal.
The line posts carry the primary load between terminals. Space them 6 to 10 feet apart, depending on height: 6 feet for 4-foot barriers, 8 feet for 5-foot, and 10 feet for 6-foot variants. Opt for 1.66-inch diameter posts in high-wind zones or where snow accumulation is expected. Always align the top edge with a tension wire, secured by a fence tie every 12 inches.
Secure the mesh using heavy-duty clips at 18-inch intervals. Choose 9-gauge hog rings for most applications, but upgrade to 6-gauge if security against cutting is a priority. For slopes steeper than 10 degrees, employ staggered posts: reduce spacing by 2 feet and alternate heights to follow the terrain. Use barb arms on top for deterrence – three strands of 12.5-gauge barbed wire, angled outward at 45 degrees.
Gates demand reinforced hinges and a drop-rod latch. For pedestrian gates, install a 6-foot by 3-foot frame with self-closing hinges. Vehicle gates require a dual-wheel track system, with posts set 24 inches deeper than standard. Include a bracing diagonal on frames wider than 12 feet to prevent sagging.
Concrete footings should cure for 72 hours before attaching any hardware. Use a post-driving cap for dry, rocky soil, but switch to auger-drilled holes with gravel backfill for sandy or loose substrates. Apply anti-corrosion coating to all metal-on-metal contact points, especially turnbuckles and end fittings, using zinc-rich paint.

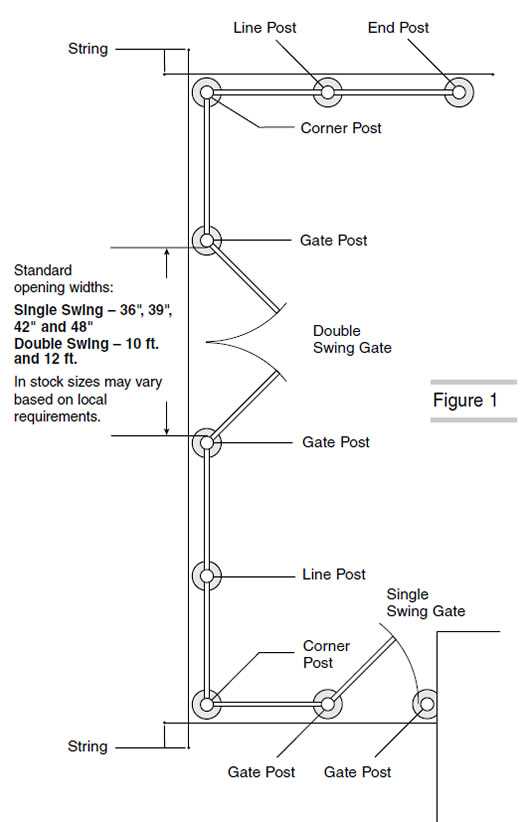

Visual Guide to Perimeter Barrier Components
Start by identifying the terminal posts–typically 2.5 to 3 inches in diameter–as the structural backbone of any woven mesh installation. Use galvanized steel (ASTM F1083) for outdoor applications to prevent corrosion or aluminum (ASTM B429) for lighter setups. Space them every 6 to 10 feet, ensuring each is set 24 inches deep in 4000 psi concrete to counteract wind load and lateral pressure.
Line posts–sized at 1.66 to 2 inches–should align vertically between terminals, secured with rail end bands if horizontal rails span the structure. For 4-foot-high barriers, opt for top rails made of 1.5-inch diameter pipe, while 6-foot systems require 1.9-inch pipe to maintain rigidity. Attach rails using rail clamps spaced no more than 48 inches apart to prevent sagging.
Fastening and Tensioning Elements
Use tension bands (1.75 inches wide, 0.065 gauge) around terminal posts to anchor the mesh fabric. Stretch the woven material with a come-along tool or manual winch, applying 20–30 pounds of tension per foot of height to eliminate slack. Secure excess mesh at the base with b tension wire (0.177 gauge, Class 1 galvanized) stapled every 12 inches to deter small animals.

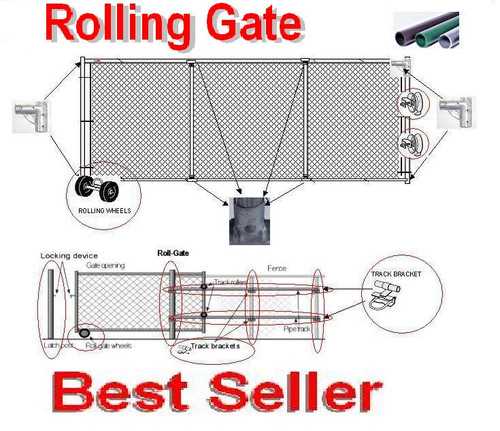

Gate hardware demands precision: install swing gates with self-latching hinges (minimum 1/4-inch thick) and drop-rod latches for single gates wider than 4 feet. For sliding entrances, use track rollers (polyurethane or steel, 2-inch diameter) and a header rail with a 1/8-inch clearance on each side to prevent binding. Reinforce gate posts with 6-inch concrete footings for configurations over 8 feet wide.
Label all components in your schematic with their ANSI code (e.g., ASTM F626 for fittings) and note the coating weight (e.g., 1.2 oz/ft² for Class 1 zinc) to ensure compliance with local wind and snow load calculations. Include a scale measurement (e.g., 1/4″ = 1′) and specify post caps (plastic or steel) to prevent water intrusion, which can reduce post lifespan by 30% if omitted.
Understanding Core Elements in a Barrier Grid Construction
Start by verifying the integrity of the terminal posts–these vertical supports bear the primary load and must be spaced no more than 10 feet apart for optimal stability. Galvanized steel posts (typically 2 3/8-inch diameter) are standard, but heavier-duty applications require 2 7/8-inch or larger. Check for proper embedment depth: 30–36 inches for line posts, 42–48 inches for terminal posts in frost-prone regions. Concrete footings should cure for 72 hours before tensioning any mesh.
The twisted wire fabric demands consistent tensioning–use a come-along or fence stretcher to eliminate sag. Tension should deflect no more than 1/2 inch when pressed mid-span. Secure the fabric with aluminum or galvanized ties every 12–18 inches along terminal posts, switching to 24-inch intervals for line posts. For gates, swap standard hinges for heavy-duty strap hinges rated for at least 200 pounds if pedestrian traffic is expected; commercial gates require self-closing mechanisms with adjustable tension springs.
Inspect rail fittings–top rails should overlap posts by 4 inches, secured with rail end cups crimped using a fence plier. Bottom rails (if used) prevent lateral movement; attach them with rail clamps or tie wires. For sloped terrain, swaged posts allow gradual elevation changes without cutting mesh. Replace standard post caps with weatherproof snap caps on terminal posts to prevent moisture ingress in humid climates.
Step-by-Step Guide to Interpreting a Barrier Component Schematic
Begin by identifying the anchor points–terminal posts, braces, and corner assemblies–marked on the schematic with distinct symbols. Terminal posts (T-posts) are typically represented by circles or squares with perpendicular lines, while braces use diagonals. Measure distances between these points first, as they dictate the placement of intermediate supports and mesh rolls. Ensure the schematic includes scale markings (e.g., feet, meters) to translate measurements accurately to the installation site.
Decoding Material Specifications
| Symbol | Component Type | Material Gauge | Common Dimensions |
|---|---|---|---|
| ⊙ | End/Corner Post | 7-9 gauge | 2.5″–4″ diameter |
| │ | Line Post | 9-11 gauge | 1.66″–2.5″ diameter |
| ≡ | Top Rail | 12-14 gauge | 1.315″–1.66″ diameter |
| ∧ | Tension Wire | 9-12 gauge | 0.120″–0.192″ diameter |
Match symbols to the table above to confirm material specifications. For instance, line posts (│) are often 1.66″ galvanized steel with a 9-gauge thickness, while tension wires (∧) require specific tensile strength–typically 80,000–120,000 psi. Cross-reference these details with the schematic’s legend to avoid mismatches between planned and actual materials.
Verifying Fastening Systems
Locate fastening elements–ties, bands, and tension bars–on the schematic. Tie wires (≈) appear at 12–18″ intervals along horizontal rails and posts; use 12.5-gauge aluminum or galvanized steel for durability. Tension bars (rectangular or oval symbols) secure woven mesh at terminal posts–confirm their placement at both ends of each panel. Pre-assembled kits may include hog rings (◐) for attaching mesh to rails; replace these every 5–7 years if corrosion is visible.
Essential Fixings and Components for Metal Barrier Assembly
Opt for self-tapping screws (Tek screws) with neoprene washers for secure, weather-resistant attachments. These fasteners penetrate galvanized steel posts without pre-drilling, saving installation time. Use #12 or #14 gauge screws (minimum 1.5″ length) for rail and fabric connections, ensuring they extend at least 0.5″ beyond the material to prevent pull-through. Stainless steel variants resist corrosion better than zinc-plated options in coastal or high-moisture areas, though they cost 30-40% more.
Tension bands and hog rings require precise specifications:
- Tension bands: 0.048″ (20-gauge) thickness; 1″ width for standard 4’–6′ barriers, 1.25″ for 8’–10′ heights. Galvanized steel bands should have a minimum coating weight of G60 to withstand 3,000+ PSI tensile force.
- Hog rings: 11-gauge (0.120″) aluminum or stainless steel; oval shape (0.5″ width) for permanent installations, round (0.375″) for temporary setups. Apply rings every 12″ along the mesh edge, staggering placement to distribute stress evenly. Avoid monel or copper rings–galvanic corrosion occurs when paired with galvanized components.
Specialty Hardware for Durability and Security
For gate hinges, select ball-bearing pivot hinges rated for 300+ lbs lateral load. Upper hinges should have a 0.75″ diameter pin, lower hinges 0.5″–this differential prevents sagging over time. Use drop-forged aluminum or malleable iron latches (not cast aluminum) with hardened steel striker bolts; look for ASTM F2200 compliance for commercial-grade security. In high-traffic areas, specify pear-shaped lock holes on posts to accommodate vertical gate movement without binding. For anti-climb applications, replace standard ties with 9-gauge twisted steel wire secured via crimp sleeves; this combination withstands 50% more cut attempts than vinyl-coated ties.
Selecting the Right Barrier Components for Your Setup
Measure perimeter soil composition before ordering hardware–clay-heavy earth demands heavier stakes (minimum 8-gauge wire) spaced no wider than 6 feet, while sandy or loamy ground can use standard 9-gauge posts at 8-foot intervals. Confirm local frost line depths–anything deeper than 18 inches requires galvanized posts with concrete footings to prevent heaving.
Match mesh gauge to function: 11-gauge twisted wire suits residential boundaries, while 6-gauge reinforced panels secure high-traffic zones like schools or storage yards. Calculate tension bands and rail thickness based on wind load–areas with 90+ mph gusts need schedule-40 rails, not lighter schedule-20 options.
Coordinate gate dimensions with access needs–pedestrian openings should be no narrower than 36 inches and no taller than 48 inches; vehicle gates require at least 10 feet of clearance and must align with drive slope gradients to avoid sagging. Use self-closing hinges for security gates in commercial settings, but opt for heavy-duty butt hinges for high-cycle residential use.
Color-code components by purpose: galvanized steel resists corrosion for 20+ years in humid climates, while vinyl-coated units last longer in coastal regions but degrade faster under UV exposure. Verify coating thickness–standard 6-mil layers suffice inland, but marine environments need 9-mil or thicker.
Install terminal posts first–space them at critical junctions, corners, and every 50 linear feet along straight runs. Offset posts by half a panel width at turns to maintain uniform tension without overstretching fabric. Anchor gate posts separately with deeper footings–bury them 6 inches below frost lines and brace with diagonal tension wires if local codes require it.
Adapt fastening methods to terrain: rocky ground calls for drive sleeves and sledgehammer-installed posts, whereas softer soil works best with augured holes. Avoid mixing aluminum fasteners with steel units–galvanic corrosion will weaken joints within 3-5 years. Test all connectors with a torque wrench; bolts should require 30-35 ft-lbs of force for proper tension without stripping threads.
