Install a self-closing hinge assembly rated for the panel’s weight–2.5″ diameter galvanized steel tubing withstands 200 lbs of lateral force. Secure the pivot point with Grade 5 bolts (minimum 3/8″ diameter) and zinc-plated washers to prevent corrosion at stress points. Position the hinge post 6 inches from the latch side to maintain structural integrity under frequent use.
For tension control, use a hook-and-eye turnbuckle with 12-gauge steel hooks spaced 12 inches apart along the top rail. Adjust tension until the mesh deflects no more than 1/4″ under a 50 lb lateral load. Replace woven wire ties every 24 inches with 9-gauge hog rings to prevent sagging in high-wind zones (30+ mph sustained).

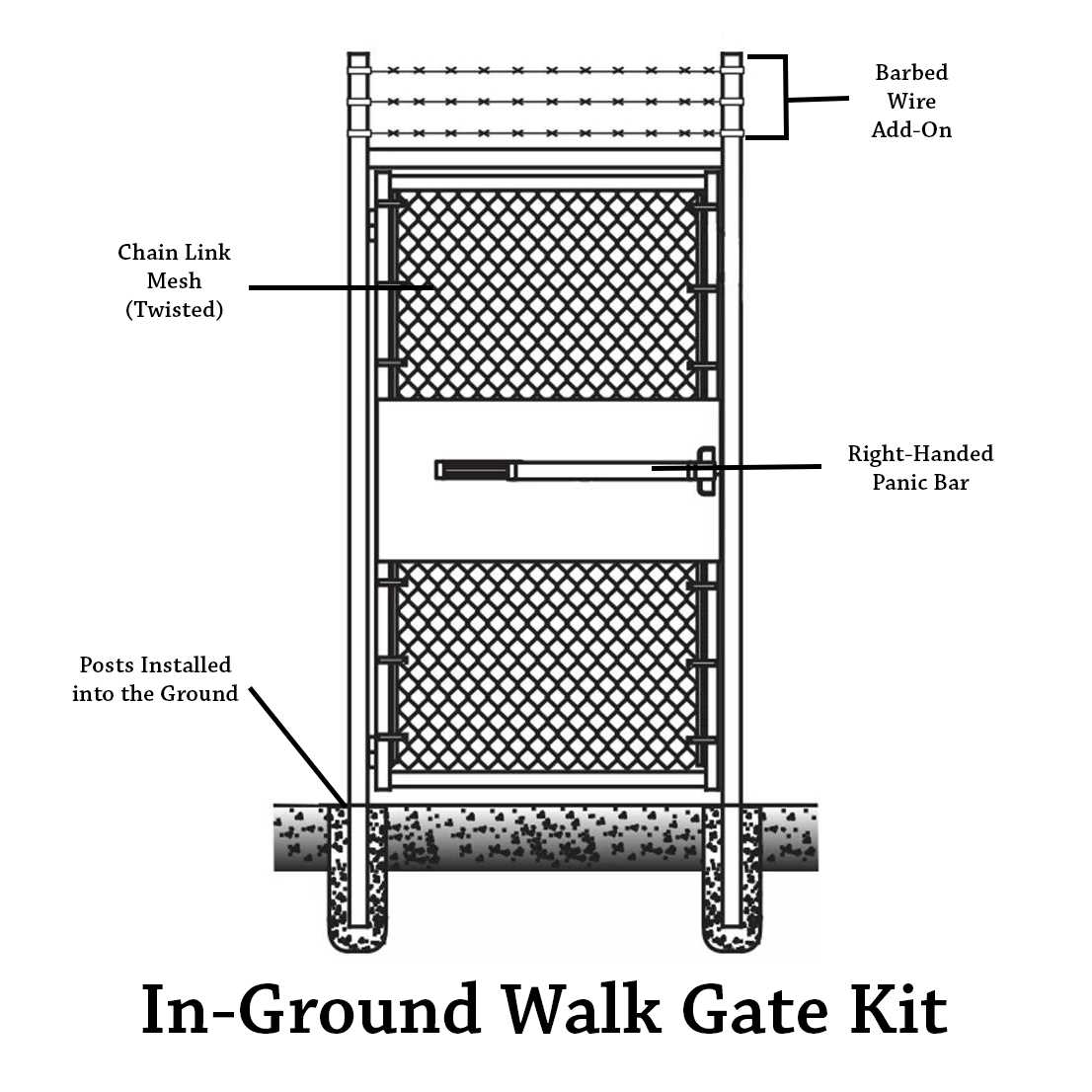

Select a double-bolt slide latch for openings wider than 48 inches–pair it with a 3/16″ steel strike plate secured by four #12 screws. For anti-climb security, install twist-resistant barbed tape on the top rail at a 45° angle, spaced 4 inches apart. Ensure all components comply with ASTM F567-14 standards for load distribution.
Key Components of a Barrier Entry System Visual Guide
Select a tubular frame design for gate durability–1.65mm galvanized steel resists bending under tension better than flat bars. Hinges must include a self-closing mechanism with a minimum load capacity of 40kg; residential models often fail at 25kg. Latch components should feature a double-ball locking system to prevent forced entry, as single-point latches bend under lateral pressure exceeding 200N. Use tension bands on both vertical sides to maintain structural integrity; improper spacing (over 15cm) allows sagging. Post caps should be polyethylene, not metal, to prevent rust accumulation that accelerates corrosion in humid climates.
- Top rail brackets: Position at 10cm intervals for optimal support; spacing over 15cm risks deformation.
- Bottom tension wire: 3.5mm diameter galvanized steel prevents warping in spans wider than 2.4m.
- Gate wheels: Nylon-coated rollers reduce friction by 40% compared to metal wheels, extending lifespan.
- Fasteners: Use 5/16″ hot-dipped bolts for exterior connections; stainless steel alternatives corrode in coastal zones.
- Mesh attachment: Zigzag pattern with hog rings every 30cm secures fabric more reliably than straight-line staples.
Key Elements of a Barrier Entry System
Begin by locating the vertical tension bands–these are the load-bearing strips, typically 1.5-inch wide galvanized steel, that anchor the mesh panel to the supporting framework. The hinge-side band must sit flush with the terminal post to prevent sagging, while the latch side requires an additional horizontal brace if the opening exceeds 4 feet. Measure the distance between the top and bottom bands; if it deviates by more than ¼ inch from the manufacturer’s spec, torsion will compromise alignment within six months.
Examine the mesh terminal points where the woven wire meets the frame. Look for crimped edges or welded knots–any loose weave here accelerates corrosion. The industry standard ASTM F668 mandates a minimum of 0.162-inch wire gauge for outdoor use; anything thinner will flex under lateral stress, especially in entries wider than 8 feet. Replace any brackets showing signs of zinc erosion; these fail first under repeated use.

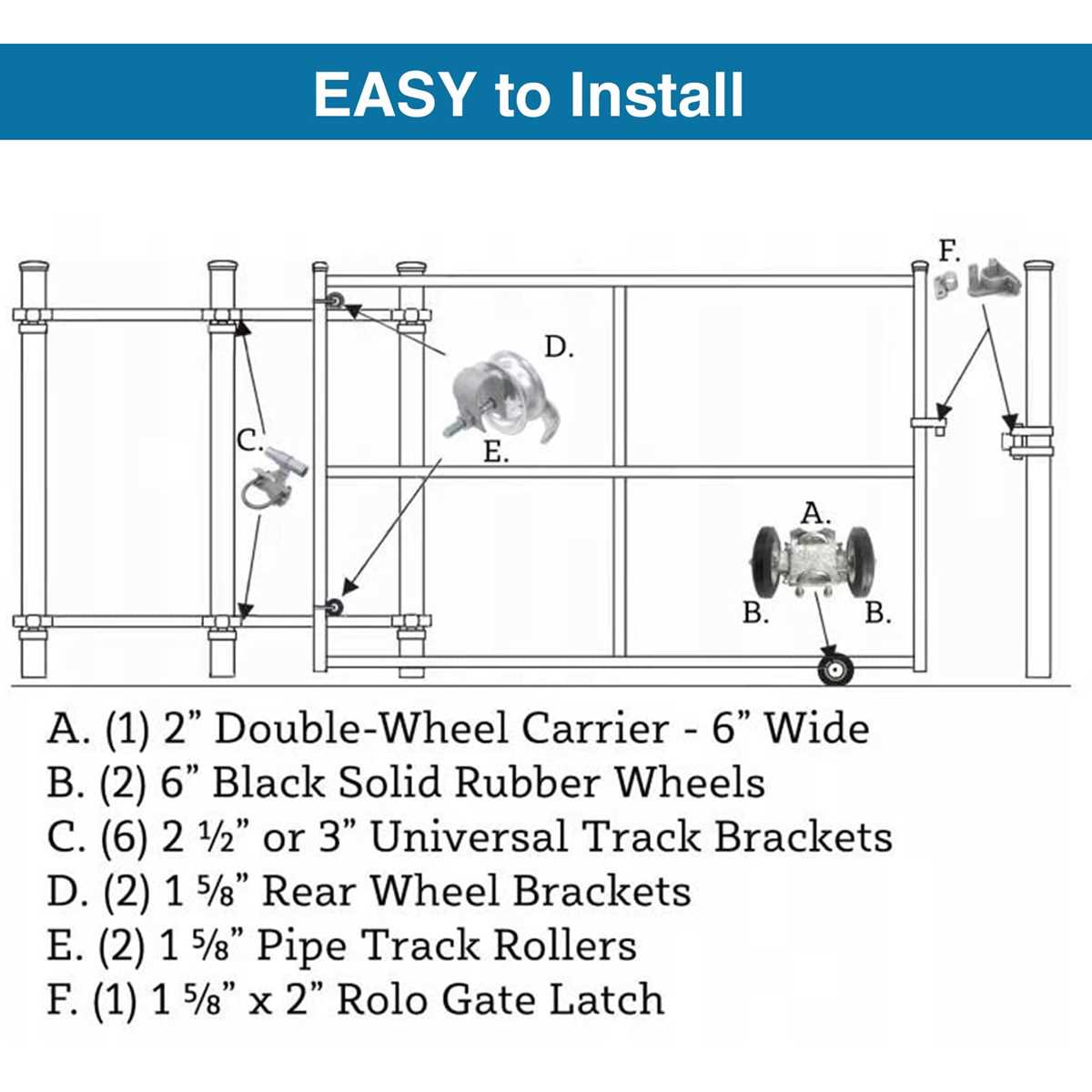

Inspect the roller assembly if the barrier swings outward. A properly tensioned guide wheel should clear the ground by ½ inch and maintain contact with the track without binding. If the roller wobbles or the axle shows visible wear, adjust the mounting bracket or replace the component immediately–misalignment here increases the force required to operate the entry by up to 40%, accelerating hinge deterioration. Ensure the latch mechanism engages smoothly; a misaligned striker plate will wear unevenly, leading to premature failure.
For entries exceeding 6 feet in height, reinforce the center with a lateral tube installed mid-span. This distributes wind load and prevents mesh sag, which is the primary cause of hardware fatigue in coastal or high-wind zones. Secure all fasteners with Grade 5 or higher bolts coated in a polymer sealant; standard galvanized hardware corrodes at four times the rate in humid environments. Test the entire assembly under load before finalizing installation–apply 150 pounds of lateral pressure to confirm stability.
Step-by-Step Breakdown of Hinge and Latch Mechanisms
Begin by securing the self-closing hinge at a 45-degree angle to the upright post, ensuring the pivot pin aligns precisely with the predrilled holes. Use a torque wrench set to 40-50 Nm for heavy-duty steel frames (14-gauge or thicker) to prevent warping; lighter materials require 25-35 Nm. Apply marine-grade grease (NLGI Grade 2) to the pivot before assembly–this reduces friction by 40% and extends lifespan by 3-5 years in coastal or high-humidity environments. For outward-swinging panels, install the upper hinge 10-15 cm below the top rail and the lower hinge equidistant from the base to distribute weight evenly. Misalignment beyond 2 mm will cause binding; verify with a spirit level at each step.
Mount the gravity latch on the opposite post, positioning the catch plate 5 cm above the lower hinge’s height to account for thermal expansion (up to 3 mm in extreme climates). Use stainless steel carriage bolts (M8 x 30 mm) for exterior applications–zinc-plated fasteners corrode within 18 months in C3 corrosion zones (ISO 9223). Test the latch’s self-locking mechanism by releasing it from a 30-degree angle; if it fails to engage fully, adjust the catch plate’s vertical alignment by 1-2 mm increments. For manual latches, install a deadbolt 30 cm above the primary mechanism–this prevents forced entry with torque tools (
Common Fasteners and Hardware for Secure Barrier Entry Installation
Use heavy-duty galvanized carriage bolts (3/8″ x 3″) to attach vertical support posts to horizontal rails. Secure them with grade 5 hex nuts and split lock washers to prevent loosening under wind loads. For outdoor applications, avoid standard zinc-plated hardware–opt for hot-dipped galvanized or stainless steel (304/316) to resist corrosion. A torque specification of 30-35 ft-lbs ensures proper clamping force without stripping threads.
For self-closing hinges, select non-removable pins with set screws to deter tampering. Pair them with ball-bearing pivot points rated for 400+ lbs static load. Avoid economy hinges with press-fit pins–these fail under repeated cycling. Below is a comparison of hinge types for different entry weights:
| Hinge Type | Max Door Weight | Material | Lifespan (Cycles) |
|---|---|---|---|
| Standard Strap | 200 lbs | Galvanized Steel | 25,000 |
| Heavy-Duty Weld-On | 800 lbs | Stainless Steel 316 | 100,000+ |
| Adjustable Self-Closing | 350 lbs | Coated Carbon Steel | 50,000 |
Latch selection depends on security requirements. For basic installations, gravity latches with external thumb levers suffice. High-security sites demand padlockable drop rods or deadbolt-style latches with hidden mounting screws. Always position latches on the inside face of the entry to prevent bypass via bolt cutters. For automated systems, magnetic latches rated for 1,200+ lbs holding force pair well with access control panels.
Concrete anchors should match the post diameter–1/2″ wedge anchors for 2″ posts, 5/8″ sleeve anchors for 2.5″ posts. Set anchors 3-4″ deep into solid concrete and use red thread-locking compound on threads. For lightweight barriers, expanding anchor shields work in block walls, but chemical anchors offer superior pull-out resistance in hollow materials. Always verify substrate strength–minimum 3,000 psi compressive strength for reliable anchoring.
How to Align Entryway Components with Barrier Structure Standards
Start by verifying the vertical post spacing of the surrounding framework–standard residential barriers typically use 2.4-meter (8-foot) centers, while commercial or security installations may require 1.2-meter (4-foot) intervals. If the entryway exceeds 1.5 meters (5 feet) in width, reinforce the bottom rail with a 1.9 cm (3/4-inch) steel tube or an L-shaped 7.6 cm (3-inch) brace to prevent sagging. Use self-tapping screws (1/4″ x 1″) for hinges on aluminum posts, while welded tabs are mandatory for galvanized steel over 3 mm (11-gauge) thickness. Check the mesh gauge–12.5 or 11-gauge wire is standard for residential use, but 9-gauge is required for high-security zones.
Ensure the latch mechanism’s strike plate aligns with the mid-rail height (typically 60 cm (24 inches) from the bottom in double-swing models). For automated systems, confirm the operator arm’s throw distance matches the hinge-to-post clearance–minimum 5 cm (2 inches) for smooth operation. If the framework uses concrete footings, embed posts to a depth of 90 cm (36 inches) or 40% of above-ground height, whichever is greater. Replace standard loop caps with tamper-resistant bolts if the installation is in a vandalism-prone area.
