Guide to Identifying Main Casement Window Components with Labeled Diagram

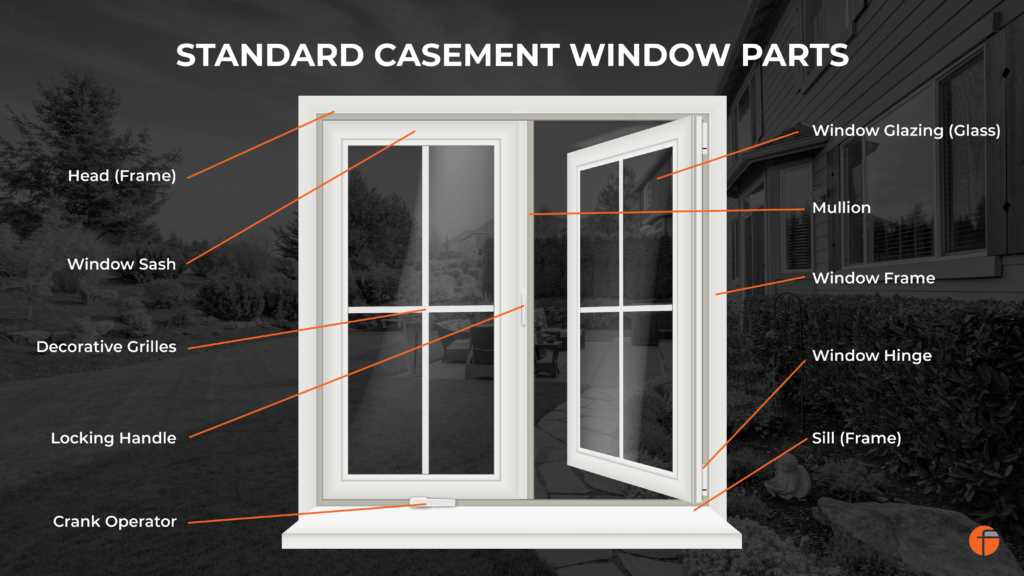

casement window parts diagram

If you need to identify or replace components in a swing-out frame, start with the hinge mechanism. These components–typically spaced along the vertical edge–bear the entire weight of the sash during operation. Inspect for wear on the stainless pins or snap-in bushings; corrosion here directly affects smooth rotation. Keep a gauge handy (e.g., 0.05 mm feeler blade) to verify gap tolerance at each pivot point–any measurement beyond 1.5 mm signals imminent failure.

Locate the operator arm next. This rod, usually aluminum or galvanized steel, connects the crank to the bottom rail and dictates the swing arc. Verify torque rating against manufacturer specs; most residential units tolerate 5–7 Nm, while commercial models may require up to 12 Nm. Replace split pins or swaged ends if any slop exceeds 2 mm under 5 kg applied lateral load–simple tests with a spring scale prevent costly callbacks.

The weatherstrip channel runs along the perimeter of the frame, often overlooked during maintenance. Extruded EPDM is standard, but check edge compression with a 1 mm shim; if the blade slides freely, the profile is under 30% compression and leaks are inevitable. Peel-and-stick TPE strips adhere in minutes but last only 3–5 years against UV exposure–opt for vulcanized corners on south-facing units.

Examine the vent latch assembly last. This catch secures the open sash in wind loads up to 15 m/s; verify alignment by pressing the handle while monitoring engagement depth with a caliper. Misalignment beyond 0.8 mm or cracked nylon gears necessitate full replacement, not lubrication–downtime is shorter than attempted repairs.

Understanding Hinged Glazing Unit Components

Identify the sash frame first–this outer structure secures the glass pane and pivots on side-mounted hinges. Measure its thickness to ensure compatible hardware; standard profiles range from 50mm to 70mm, though custom sizes exist for heritage builds.

Examine the operator arm, typically made of galvanized steel or aluminum, which extends from the sill to the lower sash edge. Opt for models with friction stays to prevent slamming; corrosion-resistant coatings extend lifespan by 30% in coastal climates.

Inspect the handle mechanism before installation. Multi-point locking systems distribute pressure evenly, reducing stress on hinges by 40%. Choose handles with a minimum 6mm spindle diameter for durability under frequent use.

Check the glazing bead–thin strips holding the pane in place–every 12 months. Re-secure loose beads with UV-resistant adhesive; improperly fitted beads can reduce thermal efficiency by 15%. Replace cracked beads immediately to prevent drafts.

Lubricate hinges using silicone spray, not oil-based products, to avoid attracting dust. Apply sparingly to pivot points twice yearly; excess lubricant impairs smooth operation and voids some warranties.

Verify the weatherstripping material. Compression-type EPDM seals outperform foam by lasting 5-7 years without degradation. Install it along the meeting rail, not just the sash edge, for full perimeter protection.

Critical Elements of Outswing Opening Hardware

Always prioritize the operating crank–its gear ratio determines effortless motion. Look for models with a 3:1 or 4:1 ratio to reduce strain on the operator, especially for larger units where torque requirements exceed 25 Nm. Verify that the crank’s steel alloy resists bending under repeated cycles; boron-treated carbon steel lasts 30% longer than untreated alternatives.

The hinge assembly dictates alignment stability. For outward-swinging panels, use dual-pivot hinges with adjustable tension–each pivot should support a minimum of 40 kg per leaf. Avoid single-point hinges for widths over 600 mm; they create uneven stress that warps frames within 18 months. Replace worn hinges when play exceeds 2 mm; past this point, closing mechanisms misalign permanently.

Friction stays maintain position without relying on locks. Specify stays with polymer-coated rods to prevent metal-on-metal wear; uncoated rods corrode at 0.05 mm/year in coastal climates. Test stays by opening the panel to 90 degrees–it should hold without drifting for 30+ seconds. Regulate tension quarterly using a 5 mm hex key to compensate for seasonal frame expansion.

Multi-point locking bars distribute force evenly. Install bars with at least three engagement points per meter of height; fewer points allow forced entry through concentrated pressure. Ensure the locking strip’s zinc plating meets ASTM B633 Type II standards–thinner coatings flake under UV exposure, exposing raw metal to oxidation.

Step-by-Step Guide to Recognizing Components in a Hinged Opening Frame Schematic

casement window parts diagram

Begin by locating the operable sash–the movable panel attached to the frame. This section rotates outward via side-mounted hinges, typically positioned along the vertical edge. Verify its position by checking for a handle or crank mechanism on the opposite side, which controls its movement. If the schematic includes a cross-section, note the overlap where the sash meets the frame; this junction often conceals weatherstripping.

Examine the fixed frame, the outer structure anchoring the entire assembly. Its four segments include:

  • The head (top horizontal piece),
  • The sill (bottom horizontal piece, sloped to drain water),
  • Two jambs (vertical sides, housing hinges on one side).

Mark these on the schematic with distinct labels, ensuring the sill’s tilt is clearly indicated. Mistaking the sill for a flat threshold is a common error.

Identify the operator mechanism–a gear-driven rod or scissor-like arm extending from the frame’s interior edge. On the schematic, trace its path from the handle to the sash’s locking points. Some designs integrate a multi-point lock, where the operator engages multiple latches simultaneously. Circle these latch points and number them sequentially for clarity.

Locate the sealing system, typically a compressible gasket running along the sash’s perimeter. On diagrams, this appears as a thin, often dotted line between the sash and frame. Differentiate it from glazing beads–rigid strips securing the glass–which are positioned inside the sash. Mislabeling these as interchangeable will compromise the schematic’s accuracy.

Inspect the hinge assembly. Most schemes show paired hinges on one jamb, concealed when closed. Label each hinge’s pin (the vertical axle) and leaf (the mounted plates), noting if the design uses friction stays (adjustable arms limiting sash swing). Highlight any restrictor devices, such as chains or rods, which prevent over-extension.

For ventilation control, confirm the presence of limit stops–small protrusions or indentations on the operator’s track. These dictate the maximum opening angle. If the schematic lacks these details, measure the physical unit and annotate degrees of rotation (e.g., “90° max open”). Include arrows to show direction of movement, distinguishing between clockwise (crank) and lateral (hinge) motion.

Essential Gear for Fixing and Fitting Swing-Out Openings

Begin with a T-handled torque wrench (¼” drive, 20–200 in-lbs range). This single tool eliminates stripped screws–critical when adjusting hinges or removing stubborn operator arms. Verify torque settings against the manufacturer’s spec sheet for each model; over-tightening can distort jamb liners.

Keep a feeler gauge set (.001″–.025″ blades) on hand. Use it to measure gaps between the sash and frame, ensuring consistent seals after hinge replacement. Slide the appropriate blade into the gap; if it drags, the sealant needs trimming or the frame requires realignment. Record measurements across all four sides–discrepancies above .005″ signal potential frame warping.

Tool Primary Use Precision Note
Spirit level (24″, ±.0005″/ft) Plumb frame during install Base must be machined flat
Phillips #2 screwdrivers (magnetic tip) Removing operator cranks Tip wear >.02″ reduces grip
Glazing points pliers Securing glass panes Serration pitch = 1.5mm
Dead-blow mallet (16 oz) Seating hinges without marring metal Head density = 1.2g/cm³

Use a mini pry bar (6″ length, beveled tip) to lift glazing beads without snapping them. Insert the tip under the bead’s edge, then pivot the bar 30°; this distributes force along the bead’s length, preventing localized stress. For vinyl beads, apply heat (120°F) with a heat gun first to soften material–cold beads crack easily.

Specialized Consumables

Stock silicone sealant (ASTM C920, Grade NS) for exterior repairs; polyurethane variants yellow under UV. Pre-drill sealant application holes at 1/8″ diameter to prevent air pockets. For interior caulking, use acrylic latex (ASTM C834)–it sands smoothly when dry. Always prime porous substrates (wood, masonry) with a bonding agent; skip this step and adhesion drops 40% after 12 months.

Carry hinge repair washers (zinc-plated, 0.5mm thickness increments from 1.0mm–3.0mm). These compensate for frame settlement or hinge wear, restoring proper leaf engagement. Test fit washers by closing the sash; if resistance increases, reduce thickness by 0.5mm until the sash swings freely with a “click” at 5° from full closure.

Step-by-Step Guide to Taking Apart a Swing-Out Sash for Upkeep

Begin by securing the unit in its closed position using clamps or a sturdy prop to prevent sudden movement. Remove the interior stops–thin trim pieces along the frame–by gently prying them away with a putty knife or flathead screwdriver. Work slowly to avoid cracking the wood or snapping the fasteners. Label each stop with masking tape to ensure correct reinstallation.

Locate the hinge screws on the bottom of the assembly. Most designs use three to four screws per hinge, often Phillips-head or hex bolts. Use the appropriate driver to loosen them completely, but do not remove the hinge from the jamb yet. Keep screws organized in a magnetic tray or small container labeled by their origin.

With the screws loose, lift the sash upward along the hinge track to disengage it from the frame. If resistance occurs, check for hidden screws or adhesive along the top or sides–some models include a secondary latch near the meeting rail. Apply slight pressure outward while lifting to release tension in the pivot mechanism.

Once detached, place the sash on a flat, padded surface. Inspect the hinges for wear; if the pivot pins show signs of corrosion or excessive play, replace them immediately. Clean the hinge mortises with a stiff brush to remove dirt and old lubricant. Use a silicone-based spray rather than oil to prevent dust buildup.

Remove the operator crank assembly by unscrewing the mounting plate from the jamb. Disconnect the linkage arm by pulling it free from the track–some arms snap off, while others require rotation to unlock. Note the arm’s position and orientation for reassembly. If gears show pitting or wear, consider replacing the entire operator mechanism.

Scrape old sealant from the glazing beads using a utility knife, angling the blade away from the glass. Remove the beads in sections, starting with the shortest side, to avoid stressing the pane. Store beads in order, as they often vary slightly in length. Inspect the glass for chips or cracks–minor damage can be repaired with glazing compound; severe damage warrants replacement.

Check the frame channels for debris or deteriorated weatherstripping. Vacuum dust, then wipe down with a damp cloth followed by a dry rag. Replace torn or compressed seals; most hardware stores carry adhesive-backed foam strips cut to size. Ensure new seals lie flat without overlapping to avoid gaps during reinstallation.

Reassembly follows the reverse order: reinstall glazing beads, reattach the operator arm, secure hinges, and replace stops. Test the swing-out mechanism before fully tightening all screws–adjust alignment if binding occurs. Apply a thin bead of caulk along the stop edges to prevent drafts, then wipe excess with a rag dampened in mineral spirits.

Common Pitfalls to Avoid

Never force the sash during removal–misaligned hinges or forgotten screws will strip threads or break components. Avoid using petroleum-based lubricants on moving metal parts; they attract debris and degrade rubber seals. Skip household cleaners containing ammonia, which can corrode aluminum frames.

Tools You’ll Need

Mandatory: Phillips or hex drivers matching hinge screws, putty knife, magnetic tray, silicone spray, utility knife, vacuum with crevice tool, soft-bristle brush.

Optional but useful: Needle-nose pliers for tight gaps, torque screwdriver to prevent over-tightening, non-ammonia glass cleaner (e.g., distilled vinegar and water), replacement seals pre-cut to width.
