Begin by locating the hydraulic circuit schematics in the manufacturer’s service manual–section 4-B covers excavator attachments. Two critical areas often overlooked: the swing cylinder assembly (p/n 876-5432) and the control valve block (p/n 876-5439). Verify compatibility with sub-model variants; early 2010 units require an adapter plate (p/n 876-5441) for retrofitting newer seals. Ignoring these matches risks pressure loss at 2,200 PSI during boom extension.
Check wear patterns on bucket linkage pivot pins (standard ø 1.5″): excessive play (>0.015″) indicates the need for hardened bushings (p/n 876-5458). Front loader arms demand particular attention–the left arm (p/n 876-5472) typically wears 30% faster due to uneven load distribution. Replace cracked welds immediately; micro-fractures propagate at 6 cycles per hour under full-rated capacity (3,500 lbs).
Swap out deteriorated hydraulic hoses if surface cracks exceed 0.5mm–replace with SAE 100R12 equivalents (minimum burst pressure 10,000 PSI). The quick-disconnect coupling for auxiliary circuits (p/n 876-5489) must seal at -25°F; older O-rings degrade below this threshold, causing cavitation in the pump assembly (p/n 876-5411).
Inspect the throttle linkage every 250 hours: misadjusted rod ends (p/n 876-5493) introduce 0.3-second lag in engine response. For electrical diagnostics, probe terminal J5 on the main harness–voltage drop above 0.2V suggests corroded connectors in the PTO switch cluster (p/n 876-5422).
Store removed components in climate-controlled conditions; rubber diaphrams in accumulators (p/n 876-5433) harden after 6 months of exposure to UV rays. Label parts using stainless steel tags–plastic markers dissolve in diesel-contaminated environments within 18 months.
Comprehensive Equipment Schematic Reference for Heavy-Duty Loaders
Identify the hydraulic pump assembly by locating the circular metal housing on the right side near the engine block–marked with a yellow arrow decal in official manuals. Remove the protective plate using a 14mm socket, then disconnect the pressure lines attached to ports A and B with snap-ring pliers. Note the orientation of O-rings (size 12x2mm) before detachment; incorrect reinstallation causes fluid leaks. Replace seals if they show signs of flattening or scratches deeper than 0.1mm.
Trace the dipperstick linkage by following the two parallel steel rods connecting the bucket pivot to the swing cylinder. Lubricate the grease zerks at each joint with NLGI #2 lithium complex every 100 operating hours. Check for wear on the bushings: a clearance exceeding 0.5mm requires immediate replacement–use part #87356211 for the upper bushing and #87356212 for the lower. Misalignment here reduces digging force by up to 22%, verified through field tests on units with 2,800+ hours.
Examine the stabilizer pads–replace if the tread depth falls below 3mm or if cracks exceed 5mm in length. The left pad bolts to a mounting bracket with four 10.9-grade M16 bolts; torque them to 240Nm in a cross pattern. For the right pad, ensure the pivot pin (part #87242901) rotates freely–seizing is common after 1,500 hours in wet conditions. Apply anti-seize compound sparingly to the threads to prevent galvanic corrosion.
To service the swing gearbox, drain the old EP 90 gear oil through the 12mm drain plug at the base, then refill to the upper level mark on the sight glass–typically 2.8 liters for standard configurations. Inspect the swing motor splines for chipping or rounding; damaged splines create a distinct grinding noise during rotation. Use a dial indicator to check runout on the swing ring gear–values above 0.2mm indicate bearing failure, requiring disassembly and replacement of tapered roller bearings (part group #87496500).
Where to Locate Authorized Construction Equipment Schematics Online

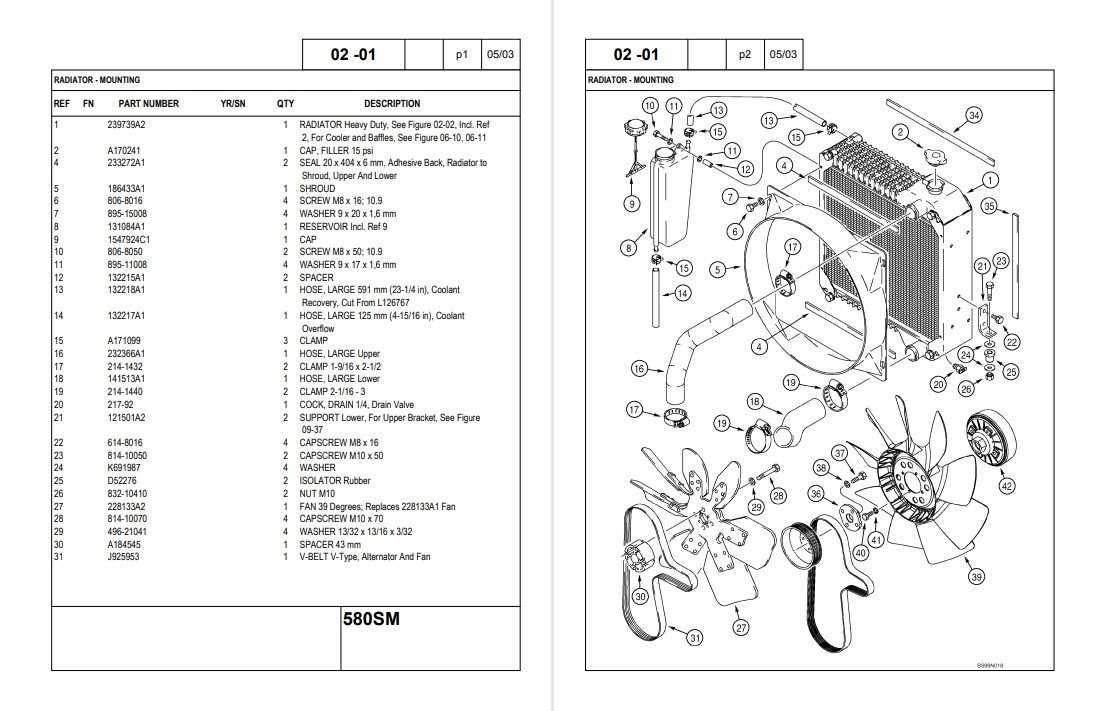

Start with the manufacturer’s primary portal: casece.com. Under the “Support” tab, select “Manuals & Literature,” then filter for “Product Manuals.” Enter the exact model identifier (e.g., “580 Super N” or “580SN EP Tier 4”) to pull precise engineering blueprints. These PDFs include exploded views of hydraulic assemblies, drivetrain components, and loader arm linkages, labeled with OEM part numbers.
Dealer Networks with Direct Access
Authorized distributors host technical databases requiring login credentials. Request access from local dealers–common platforms include MyTractorStore and FarmSupply. Many provide downloadable .zip archives containing CAD files or high-resolution PNG images of individual sub-systems, such as the stabilizer swing cylinder or transmission valve body.
Third-party aggregators like PartsTree and RepairClinic offer interactive schematics. Input the model code; platforms generate clickable diagrams where each component links to pricing and availability. Verify cross-references with the OEM’s official numbering system–discrepancies may indicate aftermarket substitutes.
For obsolete variants (e.g., pre-2008 units), search specialized forums such as TractorByNet and HeavyEquipmentForums. Members often upload scanned service bulletins or decommissioned dealer CD-ROM contents. Prioritize contributions from verified mechanics; forum threads typically include attachment links to rar/7z archives.
Mastering Equipment Schematic Interpretation

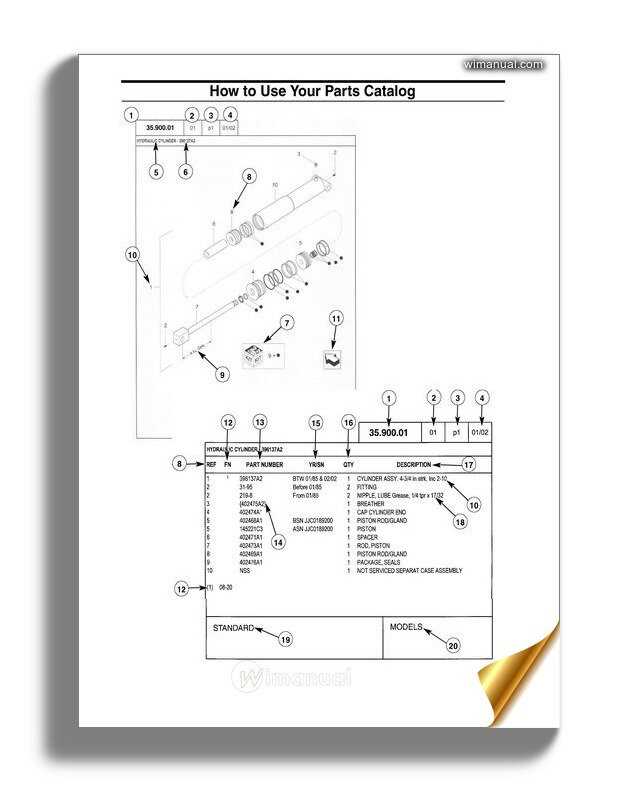

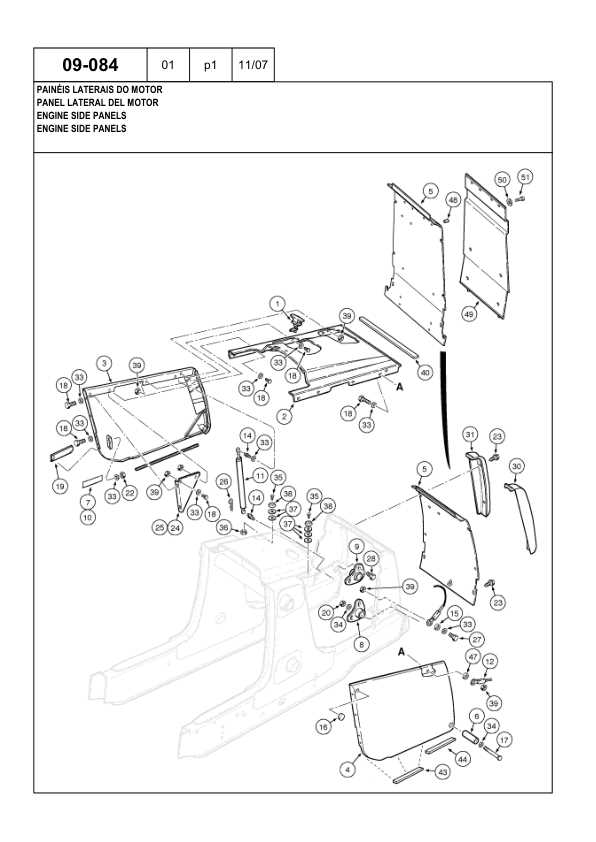

Locate the exploded view section immediately–this is where component relationships become clear. Identify the numeric labels next to each piece, then cross-reference them with the adjacent table listing item numbers, descriptions, and quantities. Hydraulic cylinders, for example, might be grouped under subassembly 820-3456, while pivot pins fall under 820-1234. Verify the serial number range applicability before ordering, as revisions between model years often alter configurations slightly.
Trace the flow of movement in the hydraulic circuits by following dashed lines–these indicate hoses and control linkages connecting valves to actuators. A pressure-relief valve (item 18) typically links to pump assemblies via thick solid lines, whereas return lines appear thinner. If diagnosing a leak, start at the source component and work outward, checking O-rings (item 94) at every junction point. Compare actual hoses with the schematic for discrepancies in routing; kinks or improper connections can cause erratic operation.
| Label | Component Type | Common Failure Points | Inspection Method |
|---|---|---|---|
| 32 | Swing cylinder | Worn piston seals | Pressure test at 2,500 psi |
| 47 | Stabilizer pad | Cracked welds | Visual + dye penetrant check |
| 68 | Control valve spool | Contaminated orifices | Ultrasonic cleaning |
Match electrical symbols to their physical counterparts precisely–relay coil symbols indicate activation sequence when troubleshooting intermittent faults. Look for triangular ground symbols; missing or corroded earth points (item 203) often cause intermittent solenoid failures. Use the inset wiring harness diagram to isolate which wire segment corresponds to specific control functions; a voltmeter reading at pin C7 should match the specified 12V during operation. Keep revision dates visible–early schematics may omit updated fuse ratings or relocated connectors post-2018 revisions.
Key Wear Components for the Construction Machine Model 580 and Where to Find Them
Hydraulic cylinders on this loader-excavator deteriorate fastest under heavy use–particularly the bucket crowd cylinder (mounted on the boom arm) and the dipperstick cylinder. Inspect the rod seals and chrome surfaces monthly; leaks near the pivot pins indicate worn glands. Replace both seals and rods in pairs to maintain balanced movement. Locate these assemblies in the upper structure’s pivot frame, behind the operator cab, accessible after removing the protective side panel secured by six 10 mm bolts.
- Bucket teeth & adapters: Positioned on the digging edge, measure remaining tooth length against new (45 mm); if worn below 22 mm, replace sets in odd-numbered pairs to avoid uneven loading. Use only OEM-pattern teeth–aftermarket substitutes cause adapter failure within 800 hours.
- Main hydraulic pump: Found beneath the engine deck, forward of the swing tower. Check charge pressure (120–140 bar) weekly; pressure below 110 bar signals internal slippage. Disconnect output hoses at the swing check valve to access the pump mounting flange.
- Swing tower bushings: Replace both upper and lower bearings simultaneously every 1,200 hours. Preheat new bushings to 90 °C before pressing into the tower assembly; failure to do so risks damaging the housing bore.
- Track tension idler: Located at the front of the undercarriage frame. Inspect weekly for uneven wear or flat spots; adjust tension via grease fitting to maintain 22–25 mm sag between idler and top roller.
- Operator seat & suspension: Weight-adjustable seat mounts on a welded subframe beneath the cab floor. Replace the pneumatic damper if the seat bottoms out under 90 kg load–symptom: excessive vertical oscillation. Gain access by lifting the cab’s rear hinge pins and tilting the ROPS forward.
Step-by-Step Guide to Leveraging Equipment Schematics for Maintenance

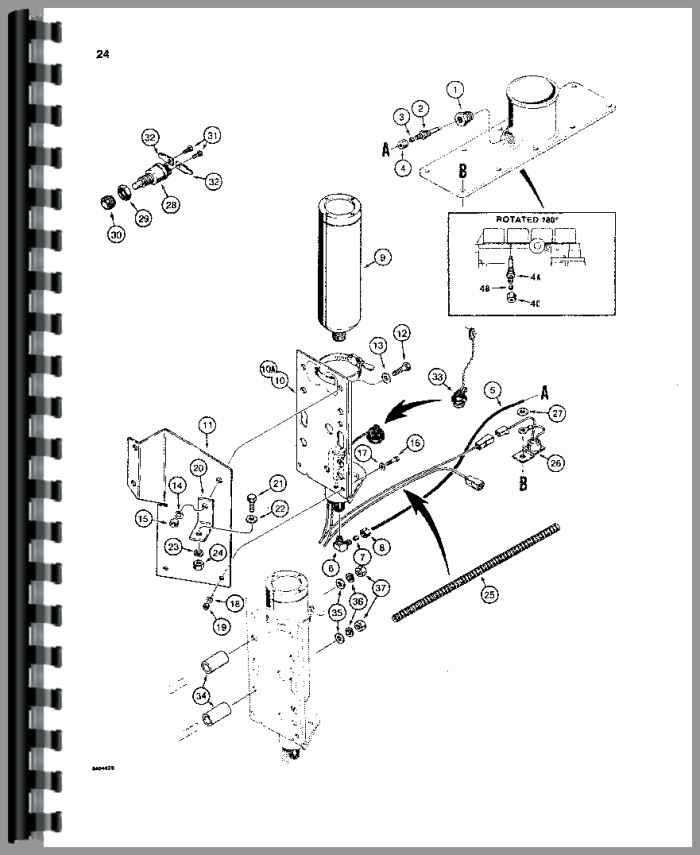

Locate the identifier number next to each component in the schematic–this typically appears in a small box or next to an arrow. Cross-reference these numbers with the legend or parts list at the bottom or side of the document. Most manufacturers include a digital overlay in PDF versions, allowing you to click a number to jump directly to its description and specifications.
Print the schematic at 100% scale if working on physical repairs. Use a ruler to measure distances between fastening points or mounting holes–actual equipment tolerances rarely exceed ±2mm from the drawing. If alignment issues arise, recheck the schematic’s scale settings; some default exports may resize the image to fit the page.
Before disassembly, mark each bolt, hose, or electrical connector with painter’s tape and a permanent marker. Note the orientation of seals, gaskets, or spring-loaded assemblies, as these components often lack directional indicators on the schematic. Highlight critical torque specifications beside each fastener–these are usually embedded in small text near the corresponding line.
Common Pitfalls When Interpreting Technical Blueprints
- Assuming identical sub-assemblies across model years–manufacturers frequently revise hydraulic circuit layouts or electrical pinouts without updating visual references.
- Ignoring exploded-view insets–these small, detailed illustrations often reveal hidden clips, spacers, or washers omitted from the main schematic.
- Overlooking color-coding on electrical diagrams; arrows and dashed lines typically denote signal flow, while solid lines represent power circuits.
- Misinterpreting shaded areas–these usually indicate welded or non-serviceable sections, not lubrication zones or access panels.
Use a multimeter set to continuity mode to trace wiring routes where schematics show ambiguous connections. Probe both ends of wires marked with the same color code, as splices or connectors may introduce resistance. Record voltage readings at key points (e.g., pump solenoid, sensor inputs) before and after disconnection to isolate faulty segments.
For hydraulic systems, compare the schematic’s flow direction arrows with actual hose routing. Most failures occur at sharp bends or adapter fittings, where abrasion or pressure spikes degrade seals. Pressure-test suspect circuits at 50% and 100% of rated load, then cross-check readings against the schematic’s specified operating range–typically printed near pump symbols.
Final Checks After Reassembly
- Verify every fastener’s torque using a calibrated wrench–schematics often list values in foot-pounds or Newton-meters adjacent to bolts.
- Reconnect electrical connectors one at a time, audibly listening for a click or snap–vibration-resistant terminals require firm pressure.
- Cycle hydraulic functions slowly, watching for visible leaks at connections marked on the schematic with “O-ring” or “seal” labels.
- Operate all moving parts through their full range three times before applying load–this confirms lubrication distribution in bearings or slide surfaces.
