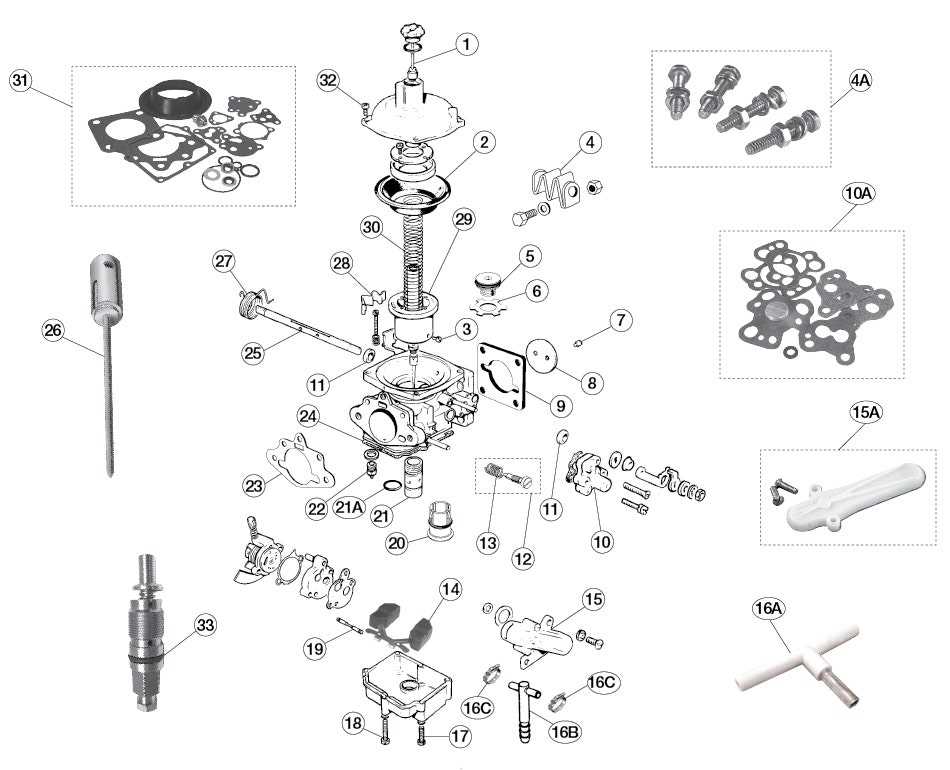

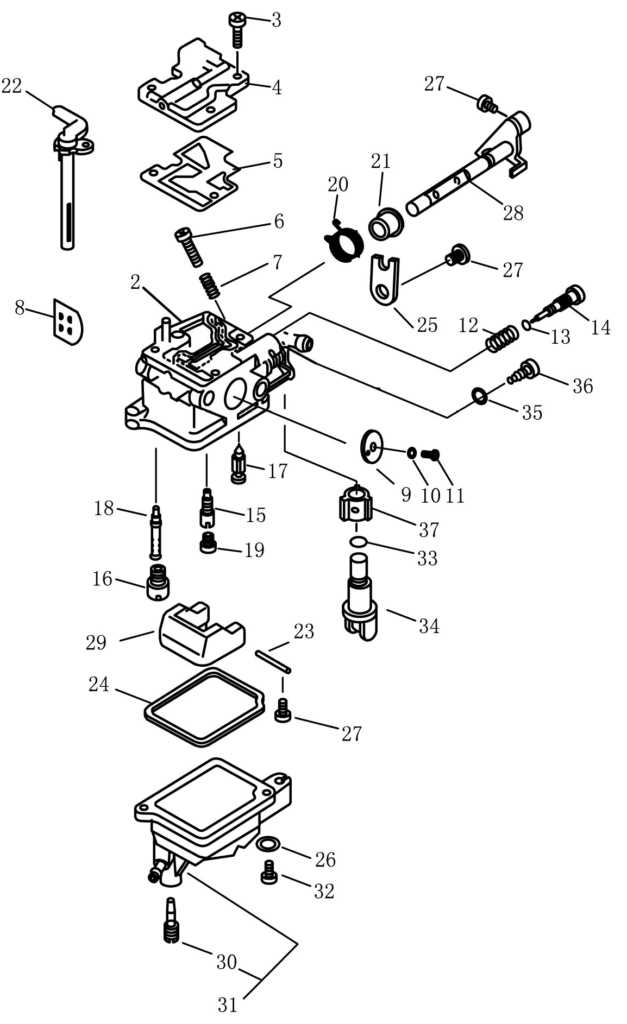

Start by locating the throttle body on any schematic–typically positioned between the intake manifold and air filter. Its linkage connects directly to the accelerator pedal, regulating airflow into the engine. If hesitation occurs during acceleration, inspect the idle speed screw and mixture adjustment needle first: incorrect settings disrupt combustion efficiency. Reference the exploded view for exact positioning of these components, as even a 0.5mm misalignment can reduce performance by up to 12%.
Vacuum lines demand precise routing–crossed or kinked hoses cause erratic idling. Mark each connection in the diagram before disassembly, noting the color-coding (common standards: black for manifold vacuum, red for fuel pressure). A single leak in the power valve diaphragm can drop fuel pressure by 25%, leading to misfires under load. Replace the diaphragm if cracks exceed 1mm in length or if elasticity weakens.
Float level calibration requires specialized tools: a clear sight glass or depth gauge accurate to ±0.1mm. On most models, the optimal setting is 7.5–8.5mm below the float bowl gasket surface. Any deviation outside this range floods or starves the engine at high RPMs. For downdraft assemblies, angle the float bowl at 45° during measurement to avoid false readings caused by residual fuel.
Jet sizing follows altitude and fuel type: a 1,000-meter increase in elevation necessitates a 5% reduction in main jet diameter (e.g., #120 to #115). Ethanol blends require jets 4–6 sizes larger than gasoline to compensate for reduced stoichiometric efficiency. Always cross-reference the schematic with the manufacturer’s tuning guide–aftermarket performance kits often alter OEM specifications.
Heat isolators prevent vapor lock: install them between the fuel bowl and engine block, ensuring at least 3mm of clearance. Without them, temperatures above 90°C force fuel to boil, creating bubbles in the feed lines. Gasket materials matter–silicone withstands 200°C but degrades in 3–5 years, while fiber composites last longer but compress unevenly. Torque specifications range from 6–8 Nm; overtightening cracks the housing.
Understanding Fuel Mixer Components: A Hands-On Reference
Begin by locating the throttle valve–the flat, disc-shaped plate pivoted inside the main bore. Its angle dictates airflow velocity and, consequently, fuel metering. Rotate it manually to verify smooth movement; binding often indicates carbon buildup or a bent shaft. Clean with CRC Carb & Choke Cleaner, focusing on the shaft edges where deposits accumulate. A 0.020-inch gap between the plate and bore ensures proper sealing–measure with a feeler gauge at three equidistant points.
Critical Fuel Delivery Elements
| Component | Function | Common Failure Signs | Maintenance Action |
|---|---|---|---|
| Needle valve | Controls fuel flow from float bowl to venturi | Leaning mixture, hesitation, flooding | Inspect for wear (0.0015″ max clearance); replace if grooves visible |
| Float assembly | Maintains consistent fuel level | Engine stalling, rich running, fuel spillage | Adjust height to 0.500″ (or model-specific spec); check buoyancy in acetone |
| Pilot jet | Meters fuel for idle and low-speed circuits | Hard starting, poor off-idle response | Clean with brass wire; size ranges typically 35–55 (1/1000″) for most engines |
For the accelerator pump circuit, test responsiveness by snap-throttling: a crisp, immediate response indicates proper linkage travel and pump diaphragm function. Diaphragms degrade over time–replace if hesitation or “bogging” occurs. Adjust pump stroke via the screw or cam mechanism (typically 0.02–0.08″ stroke) to match engine demand. The power valve enriches the mixture under load–remove and shake to detect sediment; a rattle signifies internal debris requiring replacement.
Key Elements of a Fuel Mixer in Schematic Illustrations
Begin by locating the venturi tube–a narrowed passage in the central body of the assembly. Its shape accelerates airflow, creating a pressure drop that draws fuel from the reservoir. Most cross-sectional diagrams highlight this component with a curved or hourglass-like contour. Check for labeled airspeed markers near its throat, as manufacturers often denote velocity changes here.
Trace the float chamber next, typically depicted as a rectangular or cylindrical reservoir adjacent to the main bore. Look for:
- A pivot-mounted float (often brass or plastic), shown as a semi-circular or teardrop shape.
- The needle valve, connected to the float’s arm, controlling fuel entry–usually marked by a conical or tapered tip.
- Fuel level lines (dashed or solid) indicating the correct volume for proper operation.
Schematics may exaggerate the float’s size for clarity; compare dimensions to the venturi for scale.
Primary Fuel Delivery Mechanisms
Identify the main jet–a small orifice leading from the float chamber to the discharge nozzle. In diagrams, it’s often circled or colored differently (green or red). Measure its position relative to the venturi; a common alignment is 1-2mm below the fuel level line. Note any secondary passages branching from it, which may indicate:
- An idle circuit (thin lines parallel to the bore).
- A power valve (larger orifice with a spring-loaded diaphragm, shown as a dashed circle).
Spot the discharge nozzle–a narrow tube protruding into the venturi. Diagrams frequently label its tip as the “fuel emission point.” Examine its length; short nozzles (5-8mm) suit high-speed engines, while extended versions (10-15mm) optimize torque. Some schematics include microscopic holes along the nozzle’s side–these are emulsion tubes, mixing air with fuel before atomization.
Inspect the throttle plate, typically a circular disk at the assembly’s widest section. Most illustrations show it in two positions:
- Closed: A thin crescent between the plate and bore, labeled “idle gap” (0.1-0.3mm).
- Open: A full circle with angled arrows indicating airflow direction.
Check for linkage attachment points; diagrams often include a small box with “T” or “L” shapes to denote cable or rod connections.
Auxiliary Circuits and Adjustments
Focus on the idle mixture screw, usually a conical or slotted head near the base of the housing. Schematics mark its range (often 1-3 turns from seated). Count the threads if visible–fine threads (40+ TPI) allow precise tuning, while coarse threads (20 TPI) suit high-vibration applications. Look for companion screws (labeled “air bleed”) directly opposite, regulating idle airflow.
Find the choke mechanism, almost always positioned at the inlet side. Diagrams display it as:
- A butterfly plate (manual choke) with a cable connection.
- A bimetallic spring or electric heater (automatic choke), shown as a coiled line with a “PTC” label.
Measure the choke’s plate angle in the schematic; 90° suggests full enrichment, while 30-45° indicates partial operation. Note any vacuum passages leading from the choke to the intake manifold–these trigger enrichment under load.
Verify the accelerator pump if included. Diagrams represent it with:
- A diaphragm or piston (hatched or shaded area).
- A check ball (small circle at the fuel inlet).
- A spray nozzle directed into the venturi, often connected by a dashed line to the pump linkage.
Color codes matter here: red/orange lines denote fuel flow, blue/yellow for air. Ensure the pump stroke is proportional to the throttle plate movement–schematics may include arrowed arcs to indicate this ratio (e.g., 1:1 or 1:2).
Mapping Fuel Routes on Your Engine’s Fuel System Schematic
Locate the fuel inlet at the base of the assembly–this is where the flow begins. Follow the path upward through the banjo bolt or fuel fitting, ensuring no blockages obstruct the tiny filter screen inside. If debris accumulates, fuel starvation results even before it reaches the float chamber.
Inspect the float bowl next: the needle valve, hinged to the float, regulates flow by opening or sealing the inlet. A faulty float level–either too high or low–floods or starves the engine. Adjust by bending the float tang or replacing the needle seat if wear is visible.
- Check the float drop: it should sit parallel to the bowl gasket when empty.
- Verify needle seating by blowing air through the inlet while pressing the float upward.
Trace fuel past the main jet into the venturi–here, vacuum draws fuel into the airstream. The jet’s orifice size dictates mixture strength: lean conditions cause hesitation, while rich ones foul spark plugs. Thread sealant is unnecessary; brass-to-brass contact seals reliably.
Identify the idle circuit next: a tiny orifice branches off the main fuel passage, metering fuel at low throttle. If the engine stalls when transitioning from idle, the idle mixture screw may need adjustment–turn it fractionally (1/8 turn) until a smooth idle returns.
- Start the engine and let it warm–cold engines require richer mixtures.
- Turn the idle screw in until the RPM drops, then back out to the highest stable RPM.
- Repeat for the idle speed screw if the mix is correct but RPM remains erratic.
Follow the emulsion tube from the main circuit upward–the tiny holes mix air with fuel before it enters the discharge nozzle. Clogged holes create a lean surge; clean them with compressed air, not wire, to avoid damaging the calibrated openings.
Examine the accelerator pump path: when throttle plates open, a piston or diaphragm injects a burst of fuel into the bore. A cracked pump diaphragm leaks, causing hesitation. Test by looking into the bore while operating the throttle linkage–fuel should spray consistently.
End at the choke circuit: a cold engine requires a richer mix, controlled by a butterfly valve or piston. Verify its linkage moves freely; if stuck, clean with solvent and lubricate pivot points. A choke left engaged burns excessive fuel and fouls combustion surfaces.
