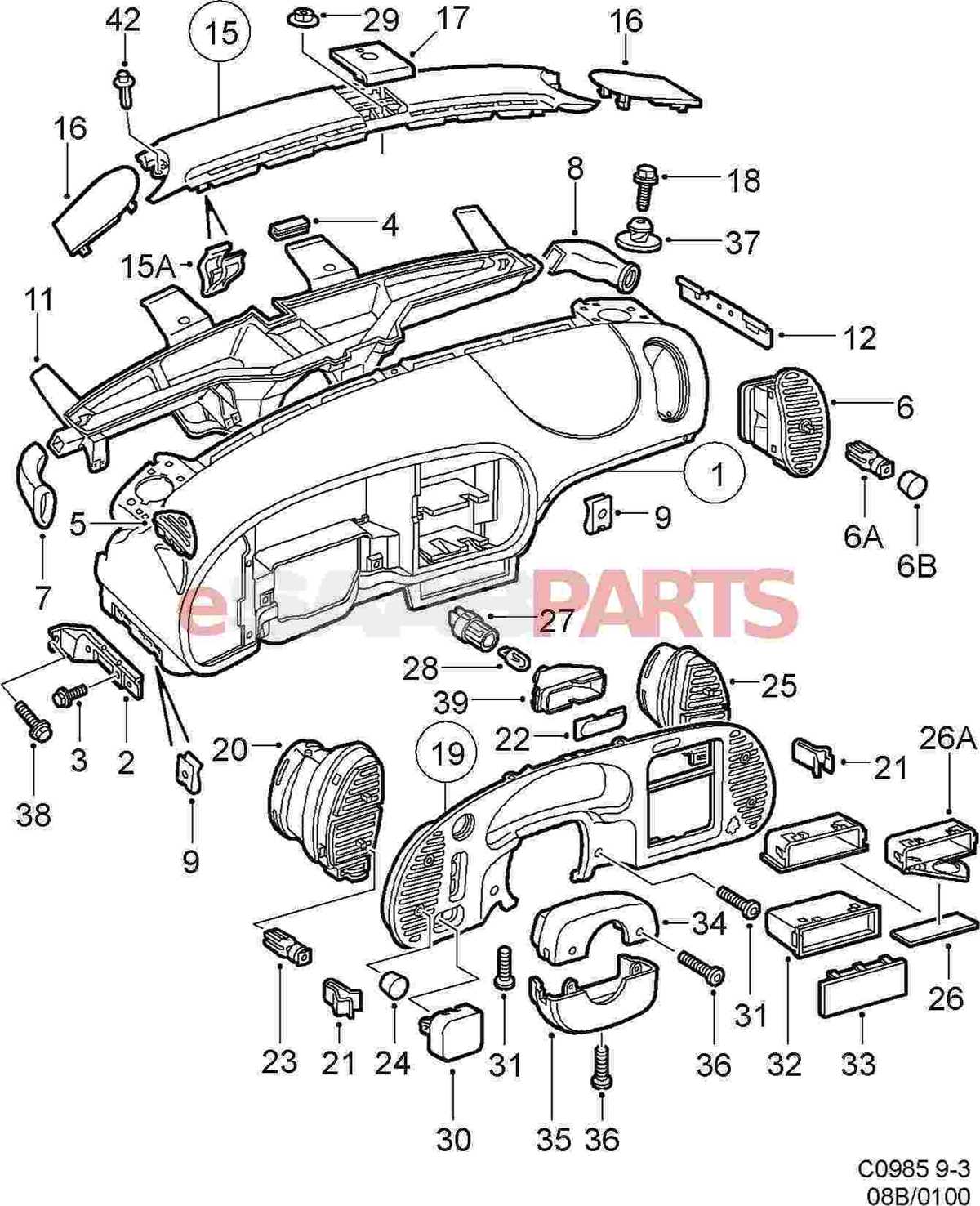

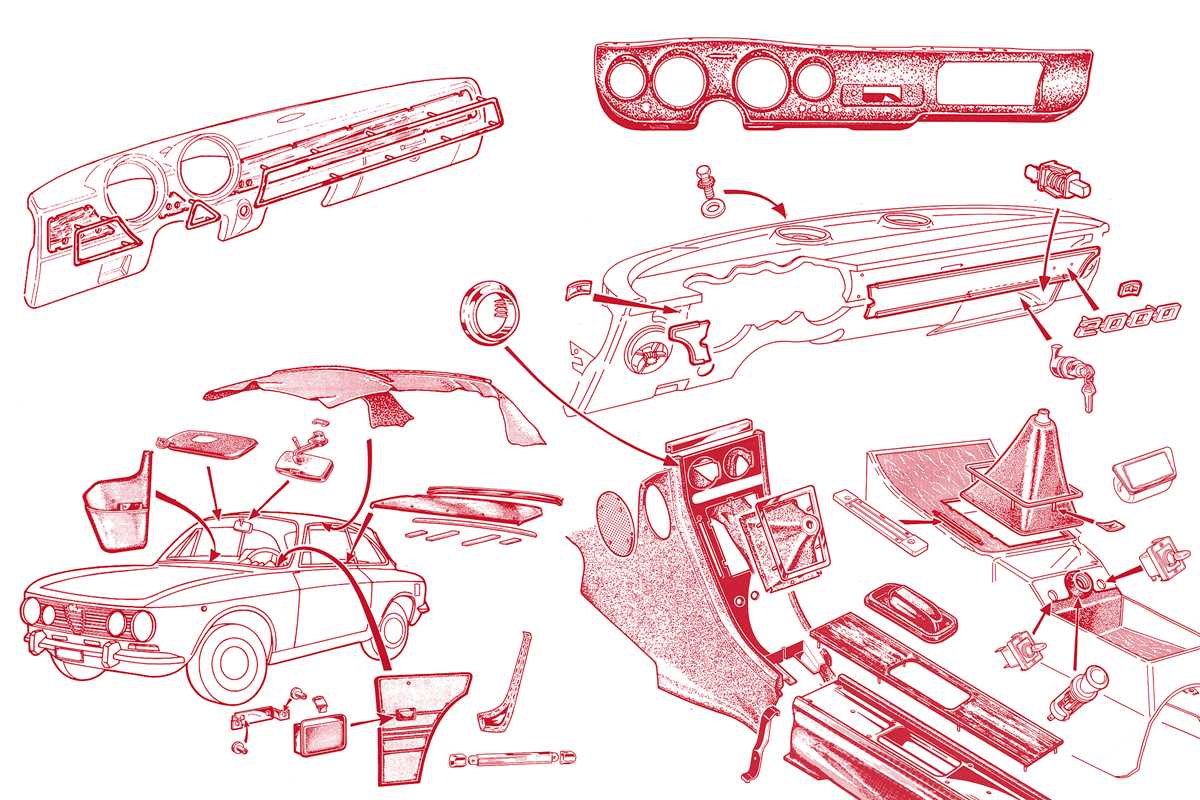

Begin by locating the dashboard fascia panel–this central hub houses critical indicators, climate vents, and infotainment controls. Identify the instrument cluster directly behind the steering wheel, where speed, fuel levels, and warning lights display. Modern designs often integrate digital readouts; ensure the brightness aligns with your visibility needs, especially during nighttime driving.
The center console anchors secondary functions: gear selectors, cup holders, and auxiliary storage. In vehicles with automatic transmissions, note the marginal space between the shifter and parking brake–this area frequently holds USB ports or 12V power outlets. For manual models, verify the clutch pedal’s position relative to the brake and accelerator to optimize foot placement.
Door panels conceal speakers, window regulators, and side airbags. Check the lower section for map pockets, which may interfere with seat adjustments if overfilled. Headliners typically embed dome lights and sunroof motors; excessive sagging indicates moisture retention–address this promptly to prevent mold growth.
Seat frames consist of reclining mechanisms, height adjusters, and lumbar supports. For heated or ventilated variants, locate the wiring harness beneath the upholstery; avoid sharp objects near these components. Rear seating divides into foldable sections–confirm the release levers operate smoothly to maximize cargo flexibility.
Climate control ducts run beneath carpets and trim; rattling noises suggest loose connections or debris interference. Inspect the glove box for alignment with the dashboard–misalignment strains the hinge. Overhead consoles often include reading lamps and microphone arrays for hands-free systems; test these functions during daylight to confirm responsiveness.
Visual Guide to Vehicle Cabin Components
Start by locating the primary control hub on the driver’s side–the steering wheel assembly. Modern variants often integrate multifunctional buttons for audio, cruise control, and phone connectivity. Check the backside for paddle shifters if the vehicle supports manual mode; these replace traditional gear levers in some automatic models.
Positioned directly behind the steering column, the instrument cluster houses critical feedback gauges: speedometer, tachometer, fuel level, and warning indicators. Digital displays may show additional data like tire pressure or navigation prompts. Ensure all bulbs or LEDs illuminate during startup checks–dim or flickering lights signal electrical faults requiring immediate attention.
Storage and Comfort Zones
Center consoles typically combine storage and climate controls. Upper sections frequently hold cupholders or wireless charging pads, while lower compartments store small items. Climate control buttons or rotary dials adjust temperature and airflow direction–single-zone systems target the entire cabin, dual-zone allow driver/passenger preferences. Test vents for consistent airflow; blocked passages indicate cabin air filter replacement.
Door panels conceal speakers, power window switches, and occasionally side airbag modules. The armrest often doubles as a storage pocket–avoid placing heavy objects here to prevent hinge strain. Rear seating may feature fold-down mechanisms for cargo expansion; latch releases vary: pull straps near the seatback or levers along the side.
Passenger Safety and Utility Elements

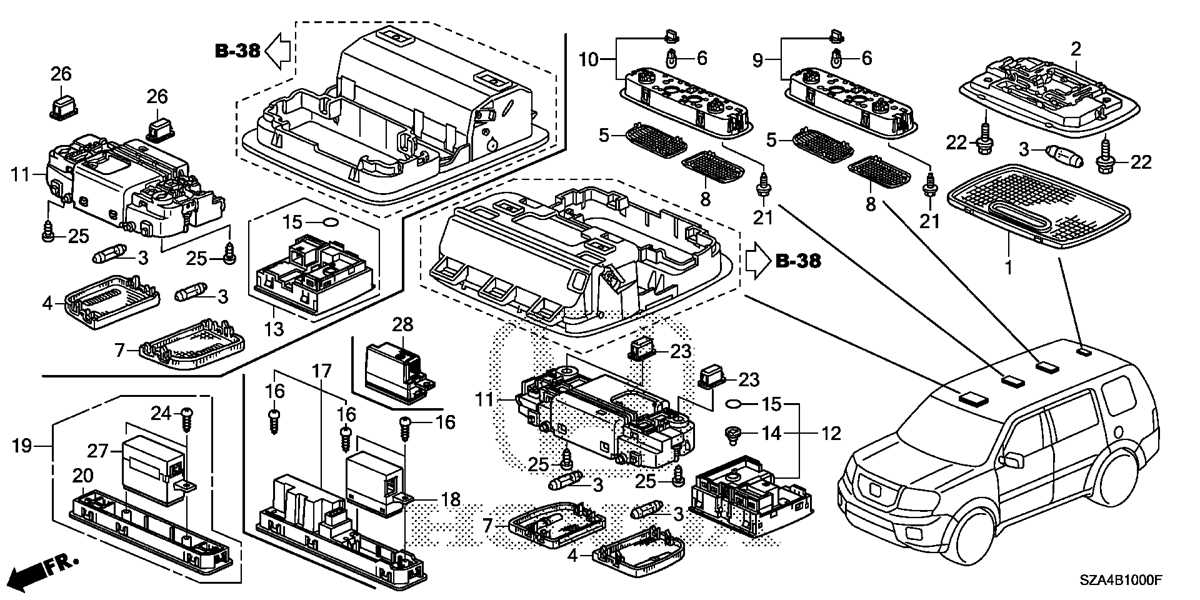

Glove boxes frequently store manuals, registration, and basic tools–secure the latch after access. Overhead modules include reading lights, sunroof controls, and rearview mirror adjustments. Some vehicles integrate HomeLink buttons for garage door operation or SOS emergency services. Replace batteries in keyless entry remotes every 2-3 years to prevent signal failure.
Seat adjustments range from manual levers under the front edge to power controls on the side bolsters. Memory settings recall preferred positions linked to specific keys. Child safety locks on rear doors prevent accidental openings–look for sliding switches or tiny indentations along the door edge. Regularly vacuum under seats to remove debris that may interfere with moving rails or ventilation ducts.
Critical Dashboard Elements and Where to Find Them
Locate the speedometer directly in front of the driver–it’s the largest dial, typically on the left side of the instrument cluster. Ensure it reads in units you’re comfortable with (km/h or mph) before adjusting driving habits. If the needle fluctuates abnormally at consistent speeds, check for sensor issues near the transmission or wheel hubs, as these often trigger false readings. Factory service manuals (FSM) specify exact torque values for sensor mounting bolts–ignore generic “hand-tight” advice to prevent vibrations loosening components.
- Tachometer: Positioned to the right of the speedometer, measures crankshaft RPM. Redline zones vary by engine–consult the owner’s manual for your model’s specific limits. Over-revving, even briefly, risks valve float in naturally aspirated engines or turbo lag compensation in forced-induction systems. Aftermarket shift lights should not exceed 90% of redline to preserve longevity.
- Fuel gauge: Usually right-aligned in the cluster. Empty indications may persist after refueling due to a faulty sending unit in the tank–diagnose by measuring resistance at the float arm terminal (values range 20–300 ohms depending on make). Replace O-rings on the sender unit during any tank access to prevent future leaks.
- Engine temperature: Smaller gauge or warning light near the center. Ideal operating range sits between 185°F–220°F (85°C–105°C). If overheating occurs, bypass the thermostat temporarily to test flow–if temperatures normalize, the stat is defective; if not, suspect air pockets in the cooling system or a failing water pump impeller.
Hidden but Essential: Odometer and Trip Meters
Digital odometers display total mileage at the bottom of the cluster, while mechanical versions appear behind the speedometer face–access requires removing the entire housing via Torx screws (sizes T10–T25 common). Trip meters (A/B) reset via dedicated buttons near the steering column stalks. For accurate fuel economy calculations, reset Trip A at every fill-up and divide miles driven by gallons added. Discrepancies exceeding 10% suggest faulty injectors or O2 sensors–log voltage readings during a highway cruise for diagnostic scans.
- Check warning lights (ABS, traction control) within the first 30 seconds of key-on–illumination should last 2–5 seconds. Persistent lights mandate immediate OBD-II scanning, prioritizing manufacturer-specific codes (e.g., Ford’s P1000 or Toyota’s P0500) over generic P-codes.
- Heating/AC controls sit below the central dash, often flanked by rotary knobs. The blend door actuator (behind the glovebox in most models) requires realignment if airflow toggles between heat/cold without blending. Remove the glovebox to access the actuator–look for a small electric motor with plastic gears; replace if stripped.
- Steering wheel buttons (cruise control, audio) rely on clock-spring connectivity. Erratic function suggests a compromised clock spring–test for resistance across terminals (should be
Mastering Steering Wheel Controls: Practical Uses and Pro Tips
Locate the cruise control buttons on the left spoke–typically marked with *”SET”* and *”RES”* (resume)–to reduce fatigue on long drives. Press *”SET”* at your desired speed when traveling above 30 mph (48 km/h) for most models; release the accelerator and let the system maintain it within ±1 mph. For sudden braking, tap the brake pedal lightly–the system disengages automatically without deactivating. If traffic slows, use *”CANCEL”* to pause cruise control temporarily instead of re-engaging it repeatedly.
Voice command buttons, often a microphone icon, require clear enunciation. Say *”Call [Contact Name]”* rather than *”Dial”*–modern systems prioritize contact lists over manual number input. For music, say *”Play [Song/Artist]”*, not *”Start music”*, to avoid generic radio station playback. If commands fail, check microphone placement near the left sun visor’s “hot zone”–sound waves reflect differently in each cabin, so test volume levels at varying speeds. Factory-installed microphones typically filter 70-85% of road noise above 50 mph (80 km/h).
Volume controls on the right spoke use a rotary dial or rocker switch. A single press adjusts in 2% increments; hold to ramp up/down continuously. Most vehicles mute audio during navigation prompts–override this by pressing *”VOL”* twice quickly to restore playback volume to the pre-prompt level. For phone calls, volume syncs with the audio system, but some models default to 50% call volume, so adjust during the first ring to avoid shouting or missing responses. Check for a *”PHONE”* button on hybrid systems (e.g., BMW, Mercedes) that switches volume control between media and calls.
Lane-keep assist buttons, if present, often double as steering-response adjusters. Press once to toggle gentle guidance; double-press for aggressive corrections. These systems work best on highways with clear lane markings–disengage on rural roads with faded lines to prevent false corrections. On vehicles with adaptive steering, the wheel may self-center with subtle resistance; this is normal, not a malfunction. For manual override, light torque on the wheel (5-7 Nm) disables it briefly–ideal for avoiding debris without full disengagement.
Multi-function levers behind the wheel control wipers, lights, and trip computers. Rotate the end collar to toggle between fuel economy, distance-to-empty, and average speed. Pull the lever toward you for a single wipe; push away for intermittent settings–intervals adjust via the collar’s markings (e.g., 1 = 3 seconds, 5 = 15 seconds). High-beam flippers activate via a forward push; hold to trigger the “flash-to-pass” function, which overrides auto-dimming in oncoming traffic. Some models (e.g., Audi, VW) integrate rain sensors–clean the windshield’s sensor zone (top-center) with a microfiber cloth to prevent false wipe triggers.
Heated wheel buttons, often a small icon near the airbag emblem, activate in 3-5 second increments. First press warms to 85°F (29°C), second to 100°F (38°C)–third press cycles back to off. Avoid prolonged use above medium; most systems cap at 110°F (43°C) to prevent plastic degradation. For vehicles with ventilated wheels (e.g., Lexus, Porsche), the fan operates at 2,200 RPM–pair with seat ventilation for optimal cabin cooling. Reset steering wheel heat after software updates by holding the button for 10 seconds; this recalibrates the temperature sensors embedded in the leather or Alcantara.
