Start by locating the control box beneath the primary access panel–most models place it adjacent to the pump assembly for direct wiring access. Use a schematic labeled for your specific unit (e.g., Ambiente Series or Vanto Line) to cross-reference components; generic labels like “Heater Element” or “High-Limit Switch” won’t suffice. Verify the part number etched on each piece–match it precisely with the manufacturer’s documentation before ordering replacements. Third-party suppliers often stock alternatives, but OEM versions ensure compatibility with voltage regulators and thermostats.

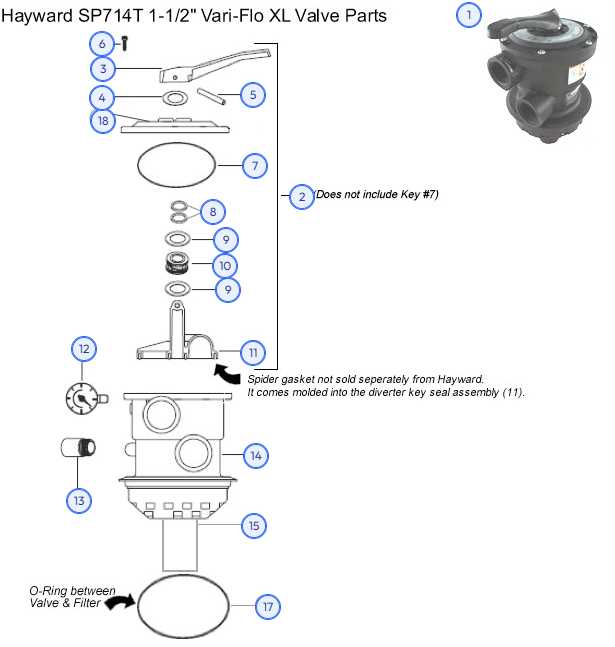

For filtration modules, remove the cartridge housing by twisting counterclockwise while supporting the base to avoid damaging internal seals. Inspect the spider gasket for wear; cracks or deformation signal inevitable leaks, particularly in systems older than five years. Replace it alongside the filter if discoloration or sediment buildup exceeds 3mm, as compromised filtration strains the circulation motor. When reinstalling, apply silicone-based lubricant to O-rings–petroleum jelly degrades rubber over time.
Electrical troubleshooting requires a multimeter set to resistance mode (200 ohms). Test the circuit board by probing connectors for continuity; infinite resistance indicates a blown fuse or severed trace. Prioritize safety cut-offs: the high-limit sensor should trip at 43°C (110°F), resetting only after cooling to 38°C (100°F). Bypass testing (jumping terminals temporarily) risks overheating–limit this to confirmation of a faulty switch, not as a permanent fix. Always disconnect power at the main breaker before handling any wiring.
Hydraulic assemblies demand precise torque settings: over-tightening jets strips threads, while loose fittings cause cavitation. Use a strap wrench to grip the manifold without cracking PVC, securing each joint to 12–15 ft-lbs. For air blower motors, check for excessive vibration–this often points to misaligned impellers or worn bearings. Lubricate bronze bushings with non-detergent oil (SAE 20) sparingly; over-application attracts debris and clogs intake vents. Replace the motor if current draw exceeds 8 amps during operation–controllers aren’t designed for sustained overload conditions.
Document each step with photos or handwritten notes, especially for plumbing layouts. Label removed hoses with masking tape to avoid cross-reconnection (e.g., “Return Line to Jet Pump”). Store small components like screws and washers in a sealed container–magnets help prevent loss during reassembly. If errors occur, consult pressure gauge readings: sudden drops below 10 PSI suggest a ruptured line or blocked inlet, while erratic spikes (above 25 PSI) indicate a failing pressure switch.
Hot Tub Component Schematics: Immediate Troubleshooting Steps
Locate the circulation pump impeller housing by tracing the 1.5-inch PVC intake pipe leading from the filter canister–this connection often conceals the most frequent failure point. Disconnect power at the main breaker (marked “GFCI” on the control panel) before removing the housing’s six Phillips-head screws; corrosion beneath the O-ring (part #HT-1204B) indicates premature degradation, typically requiring replacement every 18 months in high-mineral water regions. For jets with intermittent pressure, check the diverter valve assembly: rotate the manual flow selector counterclockwise while observing the brass indexing plate–misalignment exceeding 2mm disrupts water distribution to side-mounted nozzles.
Replace frayed heater elements (240V/5.5kW) only with manufacturer-approved replacements (model #51127), as third-party coils risk exceeding the pressure switch threshold (2.5–3.0 PSI). Label all wire connections with UV-resistant tape before disassembly–control boards (e.g., Balboa VS501Z) suffer irreversible damage from reversed polarity during reassembly. Clean the ozone injector nozzle (located behind the access panel near the blower) every 90 days using a nylon brush soaked in CLR; scale buildup reduces sanitizer efficiency by 40%.
Finding Critical Hot Tub Elements with Visual Guides
Begin by identifying the control panel on the schematic–it’s typically labeled as the “master switch” or “central interface” near the waterline at the unit’s edge. Most schematics use bold outlines or red shading to highlight this component. Trace its wiring to locate connected relays and sensors, which regulate temperature and filtration cycles.
- Check for annotations like “heating coil” or “resistance unit”–these often sit beneath the seating area and measure 12-18 inches in length.
- Look for circular or oval symbols near pump outlets; these denote jet nozzles, usually spaced 6-8 inches apart along internal walls.
- Locate the filtration intake (marked “skimmer” or “suction port”) on the opposite side of the jets to confirm proper water flow direction.
Examine the electrical harness layout: the power supply entry point is almost always at the base, connected to a fuse box or GFCI breaker. Discrepancies in wire colors (e.g., red for live, green for grounding) help pinpoint short circuits or voltage drops.
Water treatment components–such as ozone generators or chemical dispensers–appear as box-like symbols adjacent to the pump. Their tubing will connect to a dedicated port, often labeled “water sanitation” or “injector outlet.” Verify placement by cross-referencing the tubing diameter (usually 1/4″ or 3/8″) against the guide’s legend.
- Find the drain valve, typically represented by a triangular or square icon at the lowest point of the structure.
- Identify bypass valves (used for winterizing) by their T-shaped symbols near piping intersections.
- Confirm the presence of an emergency shutoff–a lever or button distinctively marked on exterior panels.
For models with lighting, look for dashed lines leading to small bulb icons; these indicate fixture placement and wiring routes. LED variants often require separate low-voltage transformers, shown as rectangular blocks near the main power source.

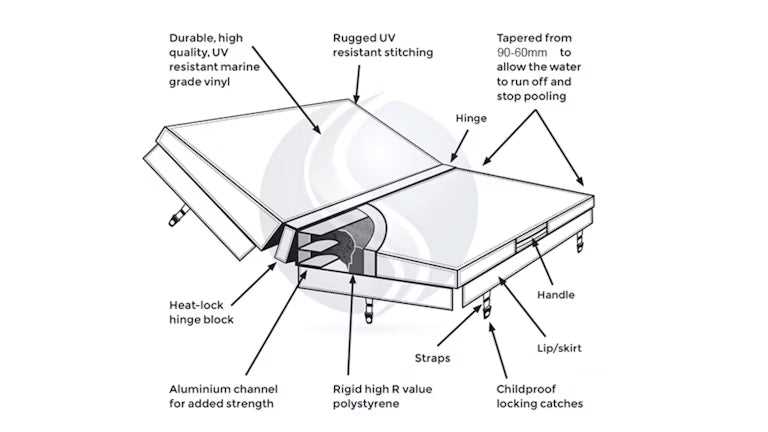

Inspect the lid and cover mechanisms last: hinges and locking systems are depicted as overlapping arcs or dotted lines. Lift points (for solo servicing) may be highlighted with arrows–ensure alignment by measuring the distance from the unit’s edge (standard is 4-6 inches from corner cuts).
How to Locate Heater Components in Hot Tub Instruction Manuals
Open the documentation to the wiring schematic section–typically marked with “Electrical Layout” or “Component Wiring.” Identify the heating element symbol: a coiled resistor icon connected to two straight lines. Trace these lines to their labels, usually “Heater In” and “Heater Out,” adjacent to the flow sensor or pressure switch.
Scan for the control box illustration. The heater relay appears as a rectangle with numbered terminals; cross-reference these numbers with the manual’s parts list to confirm the model-specific relay variant. If the relay shows “SPDT” or “DPDT,” note the coil voltage (often 24VAC) to prevent mismatched replacements.
Verifying Power Supply Components
Locate the transformer–depicted as stacked coils or a labeled “24V Transformer” box. Confirm its input/output voltages match the adjacent fuse ratings (e.g., 250V/10A line-side fuse). Check the heater contactor: a larger relay symbol with “L” and “T” terminals; ensure the manual specifies whether it’s single- or three-phase.
Examine the high-limit thermostat adjacent to the heater assembly. Its symbol resembles a bimetal switch with “HL” or “Hi-Limit” label. Note the reset method: manual push-button or automatic reset. Compare the temperature rating (typically 110–120°F) against the operating thermostat’s range.
Cross-Checking Sensors and Safety Mechanisms
Find the flow sensor or pressure switch marked near the heater’s water path. Its symbol–a circle with a diagonal line–connects to the control board’s “Flow” terminal. Validate whether it’s a normally open or closed type by consulting the manual’s “Safety Interlocks” table. Replace if the manual indicates a “non-adjustable” calibration.
Double-check the heater’s thermal fuse (if present) as a separate symbol labeled “TF” or “Overheat Fuse.” Verify its location in the heater manifold rather than the control panel. Record the fuse’s amp rating (commonly 15–20A) and mounting procedure–some require thermal paste for accurate sensing.
Resolving Hot Tub Malfunctions with an Illustrated Breakdown Guide
Inspect the heater assembly first if temperature fluctuations occur suddenly. Locate the heating element within the schematic–often marked near the circulation pump–and verify it’s securely connected. Loose wiring can cause intermittent heating or total failure. Use a multimeter set to resistance mode (200 ohms) to test continuity. A reading above 25 ohms indicates a faulty component requiring replacement. If the heater operates but water remains cold, check the high-limit sensor adjacent to the element; a tripped sensor cuts power as a safety measure.
For jets losing pressure, examine the filter cartridges referenced in the exploded layout. Clogged filters restrict flow, reducing jet performance. Remove and rinse filters under high-pressure water, soaking them in a vinegar solution if scale buildup is present. If cleaning doesn’t restore pressure, trace the plumbing to the impeller housing. Debris lodged in the impeller blades reduces water movement–disassemble the pump assembly and clear obstructions with a small brush or compressed air. Replace worn seals if leaks appear at the pump connection points.
Electrical issues frequently stem from corroded contactors. Refer to the wiring breakdown to identify the relays controlling power distribution. Scrub oxidation from relay contacts using fine-grit sandpaper, then apply dielectric grease to prevent future corrosion. If the control panel displays error codes (e.g., FLO or OH), cross-reference the code with the schematic to pinpoint the faulty sensor or switch. Test these components with a multimeter–most sensors should read 0-5k ohms when functional at operating temperatures.
| Error Code | Component | Verification Method |
|---|---|---|
| DR | Door switch | Check for 0.2-0.5V across terminals when engaged |
| FLO | Flow sensor | 120-240 ohms at room temperature, 5k ohms when submerged |
| OH | High-limit thermostat | Continuity should break at 43°C (109°F) |
Air lock in the circulation system often mimics pump failure. Identify the manual air bleed valve in the schematic–typically near the heater manifold–and open it briefly to release trapped air. If jets still sputter, isolate the affected line by shutting off valves one at a time while the system runs. Persistent air indicates a leak in the suction side plumbing; pressurize the system with water to pinpoint breaches at fittings or cracked pipes.

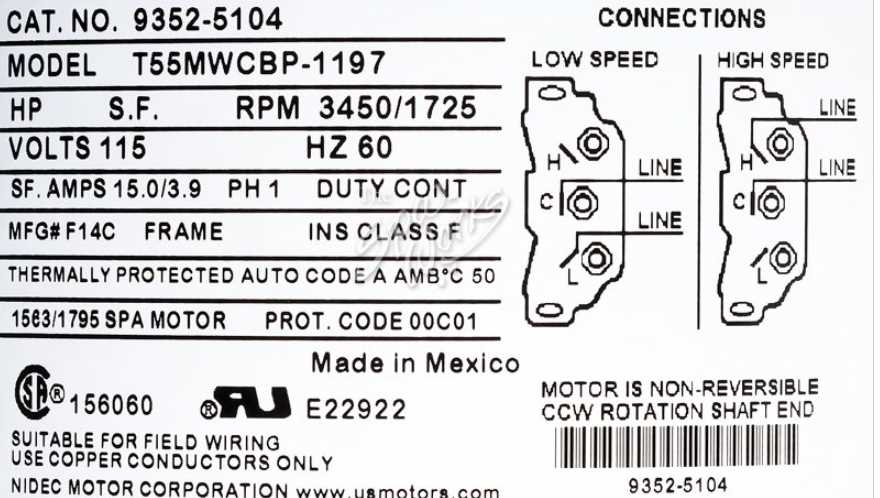

Unusual noises from the equipment compartment usually trace to dry bearings or misaligned motors. Compare the motor mounting position in the diagram to the physical setup–ensure rubber grommets sit flush between the base and housing. Lubricate bearings with manufacturer-approved silicone spray if squealing persists. For humming motors that fail to start, test the capacitor by discharging it safely and checking capacitance with a meter. Most motors require 25-50 μF; deviating values necessitate capacitor replacement.
Ozone generator failures reduce water clarity and create strong chemical odors. Locate the ozone cell in the component layout–follow tubing to the injector nozzle submerged in the plumbing. Disconnect the tube and inspect for blockages; ozone cell output should measure 3-5 mg/L when operational. Replace the cell if output drops below 1 mg/L or the unit emits a burning smell during operation.
Control panel unresponsiveness typically results from moisture ingress or faulty circuit boards. Dry the panel with a heat gun on low setting, ensuring the ribbon cables align correctly with the connectors shown in the schematic. If buttons still fail, test voltage at the panel’s input terminals–absence of 12-24V DC suggests a power supply issue. Swap identical boards with known-working units to isolate the problem. For intermittent glitches, reseat all connectors and apply contact cleaner to edge connectors.
Persistent leaks demand immediate attention to the shell or plumbing. Identify the drain valve in the exploded view–ensure it’s fully closed during operation. For leaks at jet faces, tighten the retaining rings per torque specifications (typically 15-20 Nm). Shell cracks require structural repair kits; clean the area with acetone, apply two-part epoxy, and clamp until cured. Verify all plumbing connections remain leak-free under operating pressure (usually 5-10 PSI) for one hour.
