For precise repairs, refer to the official schematic from the manufacturer–misidentifying components leads to premature wear or failure. The input shaft bearing (part #45102) and slip clutch assembly (part #37891) are among the most frequently replaced items; verify torque specs (25-30 ft-lb for the clutch) before reassembly. If blades show uneven wear, inspect the deck rollers (part #22401) for alignment; even a 2mm deviation causes drag and reduces cutting efficiency.
Hydraulic hoses (part #18763) require annual inspection for cracks–replace if internal diameter exceeds 12.7mm. The gearbox oil (SAE 80W-90, 1.5 quarts) should be drained every 100 hours of operation; overheating often traces to degraded lubricant or a compromised seal (part #11942). Avoid aftermarket blades; only OEM cutting edges (part #50010) maintain balanced rotation at 2,200 RPM.
To remove the tailwheel assembly, detension the spring (part #33205) first–failure risks snapping the mounting bracket. For the PTO shaft (part #60122), ensure splines are free of burrs; misalignment burns through universal joints in under 40 hours. Keep a torque wrench calibrated–over-tightening the blade bolts (90 ft-lb) warps the cutting deck, while under-tightening causes vibration that loosens fasteners within one season.
Schematic Reference for Rotary Cutter Model SQ32P Components
Locate the gearbox housing assembly (Part #45-872) by referencing the exploded view on page 12 of the official service manual–this section illustrates the four-bolt mounting pattern and input shaft alignment required for proper torque specs (45 ft-lbs). Replace the main drive seal (Part #33-619) if fluid leaks exceed 2 oz per 50 operating hours; use a seal puller tool to avoid damaging the casting bore during removal.
Inspect the slip clutch discs (Part #56-204) every 100 hours under heavy load conditions, measuring disc thickness with calipers–minimum tolerance is 0.125 inches. Apply molybdenum disulfide grease to friction surfaces during reassembly, but avoid over-application to prevent slippage under rated load (50 hp PTO). If replacing the entire clutch pack, note the six-disc configuration must alternate steel and composition plates to maintain engagement torque.
Critical Wear Points Checklist
Examine the blade pan (Part #22-981) for cracks radiating from the center hub; repair welds should penetrate 80% of the 3/8-inch material thickness to restore structural integrity. Replace the tailwheel bracket (Part #18-543) if vertical play exceeds 1/4 inch–use shims between the mounting plate and rear frame to adjust alignment before tightening the 5/8-inch bolts. Verify the PTO shaft splines match the 6-tooth, 1.75-inch diameter profile; mismatched shafts risk premature wear on both the tractor and implement.
Identifying Rotary Cutter Gearbox Elements on Schematic
Begin by locating the gear case in the upper-left quadrant of the exploded view–typically marked with reference numbers 1 through 12. The input shaft (item 3) connects directly to the PTO stub, identifiable by its splined end; adjacent components (items 4-7) include bearings, seals, and a snap ring securing the assembly. Verify alignment with the housing (item 1), where the drive gear (item 8) meshes with the output shaft (item 10) downstream. Look for the oil fill plug (item 15) on the case’s side–its position often indicates the top orientation on the schematic.
Cross-reference each numbered part with the legend–gear teeth ratios (usually 3:1) and shaft diameters (1.5″ input, 2.0″ output) confirm critical components. The output shaft (item 10) terminates in a flange or slip clutch (item 12), distinguishable by bolt patterns. Use contrasting color highlights if available: red for high-wear items (bearings, seals), blue for structural parts (housing, cover).
Step-by-Step Identification of Cutter Deck Components in the Mower Reference Guide

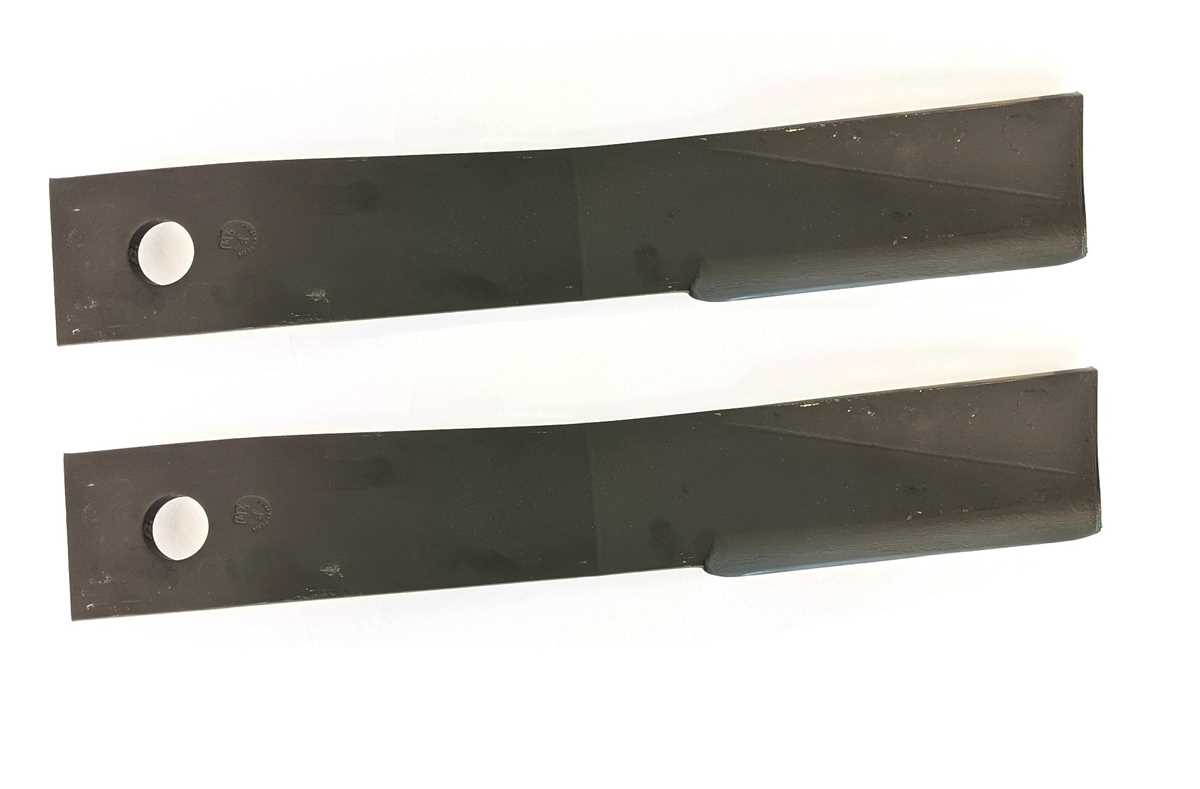

Locate the blade housing section in the manual’s exploded view–typically labeled as “Cutting Assembly” or “Rotary Deck Components”. The primary blades connect to spindles, distinguishable by their elongated shape and curved cutting edges. Cross-reference blade part numbers with the legend adjacent to the diagram: most models use left-hand, right-hand, and center blades in mirrored pairs.
Key Visual Markers for Blade Identification
- Stamping or etching: Check for alphanumeric codes near the blade’s mounting hole (e.g., “LH-42” for left-hand side). These marks often fade–use a flashlight at a 45-degree angle to reveal them.
- Mounting hole pattern: Center blades commonly feature three holes in a straight line, while side blades may have two offset holes for balance.
- Cutting edge curvature: Side blades usually have a pronounced S-curve; center blades are straighter with slight tips at the ends.
Match the blade’s part number to the component list on the preceding page. If the manual lacks a searchable index, scan column headers for terms like “Rotary Mower Blades” or “Deck Spindle Assemblies”. Note discrepancies: some manuals group blades by length (21″, 24″, or 27″), while others categorize by spindle compatibility.
- Inspect the blade’s underside for a raised serial number or casting mark–this confirms OEM specifications.
- Verify blade thickness: 3/16″ for standard duty, 1/4″ for heavy-duty variations.
- Compare the blade’s wear pattern–uneven grooves indicate a bent spindle; uniform dullness suggests normal use.
Troubleshooting Ambiguous Diagrams
If the illustration lacks clarity, focus on fastener types. Blade assemblies usually secure with hex bolts (Grade 5 or 8), while debris shields attach with Torx screws (T25). Use a caliper to measure the blade’s overall length and compare it to the manual’s dimensional callouts–tolerances rarely exceed ±1/8″. For corrupted diagrams, cross-reference with the “Blade Torque Specifications” table; torque values (e.g., 25-30 ft-lbs) often include part numbers in parentheses.
Store identified blades by marking their original position with painter’s tape–label “L-Spindle”, “R-Spindle”, and “Center”. For multi-blade decks, arrange parts numerically using the manual’s itemized sequence (e.g., #12 = Left Blade). Avoid relying solely on memory; note any modifications, such as aftermarket hard-facing, which may affect compatibility.
Locating Replacement Bearings and Seals in the Rotary Cutter Assembly Breakdown
Refer to the exploded schematic for the commercial-grade rotary cutter–specifically zones 3A (input shaft housing) and 5B (gearbox output). Bearings are clearly labeled with OEM codes: NTN 6205LLU (input shaft) and Timken HM807049 (gearbox pins). Seals appear in zone 4C (PTO coupling), marked as National 710100 (outer) and CR 15320 (inner lip). For exact placement, cross-reference the item numbers with the manufacturer’s parts list–most distributors (e.g., Tractor Supply Co., Northern Tool) stock these by SKU.
Supplier Comparison for Critical Components
| Component | OEM Code | Supplier | Price (USD) | Lead Time |
|---|---|---|---|---|
| Input Shaft Bearing | 6205LLU | Motion Industries | 28.50 | 2-3 days |
| Gearbox Pin Bearing | HM807049 | Grainger | 42.75 | 1 day (in-store) |
| Outer PTO Seal | 710100 | eBay (verified seller) | 12.99 | 5-7 days |
| Inner Lip Seal | CR 15320 | Amazon Business | 9.50 | Next day (Prime) |
For urgent replacements, McMaster-Carr offers same-day pickup (bearings under SKU 6138K42, seals 1311T42). Filter results by shaft diameter (25mm for input, 35mm for gearbox) to avoid mismatched fits. Aftermarket alternatives like SKF or NSK may require shim adjustments–stick to OEM-matched tolerances unless modifying torque specs.
Hydraulic Hose Selection for Rotary Cutter Assembly Schematics
Identify hose ports on the gearbox first–most rotary cutters use SAE J1453 ORFS fittings for high-pressure lines, marked in the schematic as “Pressure Line Port A” (typically 3/8″ ID) and “Return Line Port B” (1/2″ ID). Verify thread pitch with a caliper: pitch mismatches (16 vs. 18 TPI) cause leaks even if the diameter appears correct.
Match hose length precisely–flexible lines should route directly from the tractor’s hydraulic outlets to the cutter’s ports without sharp bends or kinks. For 3/8″ pressure hoses, allow a 3-5″ bend radius; 1/2″ return hoses require 5-7″. Use the schematic’s routing notes to trace paths around pivot points, securing clamps at 12-18″ intervals to prevent abrasion.
Select hose material based on pressure ratings–spiral-wire reinforced hoses (rated 3000+ PSI) suit primary circuits, while textile-braid hoses (2000 PSI) work for low-pressure returns. Check the schematic’s legend for pressure symbols (e.g., dashed lines indicate return lines) and cross-reference with hose labels: “-12″ denotes 3/4” OD, “-08″ denotes 1/2”.
Adapter and Fitting Cross-Compatibility
Use O-ring boss (ORB) fittings for tractor-side connections, but confirm compatibility with the cutter’s NPTF or BSPP ports by checking thread taper angles (60° vs. 55°). The schematic’s exploded view often includes part numbers for adapters–common mismatches involve 90° elbows (SAE 45 vs. SAE 90), leading to restricted flow.
Replace hoses in pairs even if only one shows wear–internal degradation isn’t visible, and UV/cold cracks on the outer sheath signal imminent failure. Label new hoses with the schematic’s reference codes (e.g., “Hose-04-Return”) to simplify future troubleshooting.
