Start with the roller assembly–its segments require inspection every 50 operating hours. The pressure bearings (part #RP-2841) wear fastest under dry conditions; replace them if clearance exceeds 0.01 inches. Check the frame cross-members for cracks near weld seams–these often fail first under rocky soil loads.
For the gang arrangement, each section kit consists of:
- Outer rings (4” diameter) – replace if deformed more than 0.2 inches
- Spindle shafts – verify torque at 45 ft-lbs; retighten after initial 10 hours
- Scraper blades – rotate 180° when worn to 0.375 inches thickness
Use heat-treated alloy replacements (grade 1045 steel) for extended service–chinesium replacements fail 40% faster.
Hydraulic circuits need attention:
- Main lift cylinder seals (part #HLX-319) leak at pressures above 2,200 PSI
- Control valves (#CV-703) require annual cleaning–debris under 0.005 inches causes faulty engagement
Apply PTFE paste to all moving joints during reassembly for reliable articulation.
Locate the pull-type model manual (section 4E) for precise spacing adjustments. Newer units use serrated bolts for gang alignment–these resist vibration loosening 3x longer than standard hex fasteners. Keep spare shear pins (part #SC-82) on hand–they fail catastrophically under side loads exceeding 1,800 lbs.
Technical Reference for Heavy-Duty Soil Finishing Equipment

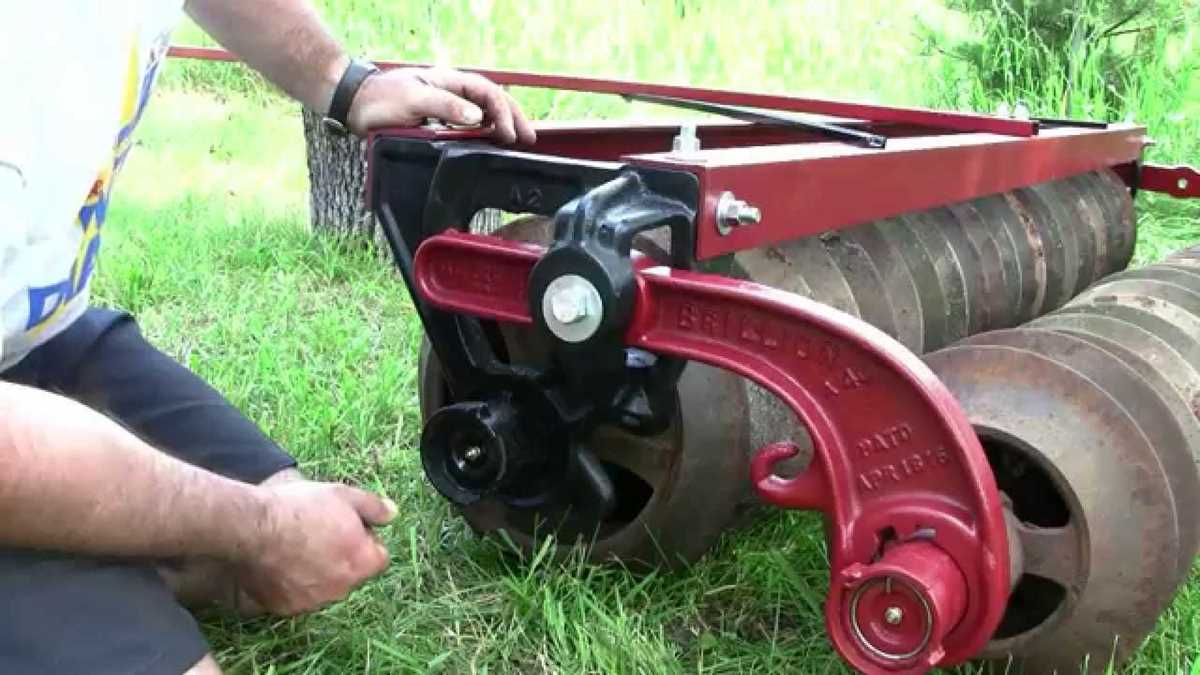

Begin by verifying the model number on the main frame plate–this identifies compatible components. Most models use a three-section roller assembly, but older variants (pre-2015) require special attention to the hub seals and bearing races. Replace worn bearings using a press with a 2.5-inch diameter adapter to avoid damaging the shaft. Always torque hub bolts to 120 ft-lbs; under-tightening causes misalignment, while over-tightening risks thread stripping.
Inspect the scrapers before each use. Mounted at 45-degree angles, they must be adjusted to a 1/4-inch gap from the roller surface–factory settings often shift during transport. For soil buildup issues, retrofit with heavier-gauge steel scrapers; original equipment units deform under clay conditions. Secure scrapers with 5/16-inch Grade 8 bolts to prevent loosening during operation. Replace cracked or bent units immediately; a single compromised scraper reduces seedbed uniformity by up to 30%.
- Roller drums: Check for 0.125-inch minimum wall thickness–thinner steel develops stress cracks near weld points.
- Gang bearings: Use sealed tapered roller bearings (part series 02473) for extended service life; open bearings fail within 150 hours under heavy residue.
- Hitch pins: Upgrade to 1.25-inch diameter heat-treated pins–standard 1-inch pins shear under side-loading.
- Depth control: Replace worn depth wheels with polyurethane-coated units; steel wheels dig unintended trenches at speeds above 8 mph.
Tire pressure directly impacts performance. Maintain 25 PSI in transport wheels and 18 PSI in gang wheels for optimal soil compaction. Overinflation causes surface glazing; underinflation leads to uneven weight distribution. For sandy soils, reduce pressure by 3 PSI to prevent excessive sinking. When storing, elevate units on blocks to avoid flat-spotting–permanent deformation occurs after 72 hours of continuous load.
Lubrication points demand strict adherence to intervals. Grease zerks every 10 operating hours using NLGI #2 lithium complex grease. Failure to lubricate pivot points results in seized linkages within 50 hours. Pay special attention to the tongue pivot–this high-load area requires an additional grease application after heavy residue passes. For units equipped with hydraulic folding mechanisms, check cylinder rod seals weekly; leaks reduce folding pressure by 40% and accelerate cylinder failure.
How to Pinpoint Critical Elements in Your Heavy-Duty Soil Finisher
Begin by examining the frame assembly for visible wear on the main beams and crossmembers. Measure deflection at load-bearing points using a straightedge and feeler gauges–tolerances should not exceed 0.125 inches over a 6-foot span. Any deformation beyond this threshold indicates potential stress fractures requiring immediate reinforcement or weld repair. Check the hitch plate for hairline cracks radiating from bolt holes, particularly around the PTO mounting area, where torque loads are highest during operation.
Inspect the roller segments by rotating them manually to detect irregular drag or resistance. Seized bearings typically emit a metallic grinding noise; replace them if rotation isn’t smooth or if radial play exceeds 0.005 inches. Refer to this table for bearing specifications:
| Segment Type | Bearing Model | Max Radial Load (lbs) | Lubrication Interval (hrs) |
|---|---|---|---|
| Front Packer | UC208-24 | 3,200 | 100 |
| Rear Smoothing | 6207-2RS | 2,800 | 120 |
| V-Break Angles | UCF207 | 2,500 | 80 |
Examine the scraper blades positioned between roller sections. Effective soil displacement requires a blade edge thickness of 0.25 inches; thicker edges create excessive drag and uneven seedbeds. Replace blades if worn below 0.1875 inches or if nicks deeper than 0.0625 inches are present. Verify blade alignment by laying a string line across the entire unit–no segment should deviate more than 0.03125 inches from the line.
Test hydraulic cylinder responsiveness by cycling the raise/lower function at half- and full-stroke positions. Slow actuation or drift greater than 0.5 inches per minute signals internal seal wear or fluid contamination; clean the reservoir and replace seals if debris size exceeds 20 microns. Check ram mounting pins for oval wear–diameters should match specifications within 0.01 inches. Use thread-locking compound (e.g., Loctite 243) when reattaching pins to prevent loosening under vibration.
Assess seedbox components by removing the lid and agitator shaft. Cracked paddles disrupt uniform distribution; replace any paddle with fractures wider than 0.03125 inches. Chain drive tension should allow 0.75 inches of deflection at midpoint–adjust using the eccentric mounting bolts. Inspect the metering roller for grooves or corrosion; surface irregularities larger than 0.015625 inches necessitate replacement to prevent inconsistent seeding rates.
Look for corrosion on the lifting links, especially where paint has chipped. Rust penetration deeper than 0.0625 inches compromises structural integrity–grind affected areas to bare metal and apply weld filler followed by a zinc-rich primer. Check shear bolt functionality by applying incremental torque: bolts should fail at 40-50 ft-lbs to protect driveline components from overload damage.
Step-by-Step Guide to Assembling Your Rolling Soil Finisher Using Visual References
Locate the main frame components first–these are typically the heaviest sections labeled with numeric or alphanumeric identifiers on the schematic. Align the side rails parallel to each other, ensuring the pre-drilled holes match the spacing indicated in the reference sheet. Use a torque wrench set to 120 ft-lbs for all Grade 8 bolts to prevent overtightening or misalignment during field operation.
Attach the crossmembers in sequential order, starting with the front section and progressing rearward. Verify each connection point against the visual aid to confirm correct orientation, as some braces may appear similar but serve different structural roles. For units equipped with seed boxes, secure the mounting brackets before installing the rollers to avoid obstructing access later.
Roller segments should be installed from the center outward to maintain balance. Check that the bearing housings are properly seated in their mounts, applying a light coat of lithium-based grease to the rotating surfaces before final positioning. If the reference shows staggered roller configurations, ensure the offsets align with the specified measurements–typically 1.5 to 2 inches between segments–to prevent soil bridging.
For hydraulic or PTO-driven models, route the hoses or shafts according to the color-coded labels on the schematic, avoiding sharp bends that could restrict flow. Test-run the mechanisms at low RPM before full engagement to confirm smooth rotation and check for unusual vibrations, which may indicate a misaligned shaft or worn coupling.
Adjustable components, such as depth wheels or transport stands, require precise calibration. Set the wheel height according to the soil type: 0.5 inches for sandy loam, 1 inch for clay-heavy fields. Lock the adjustment collars securely, using thread locker on set screws if recommended in the service manual.
Final assembly steps include attaching any remaining shields or guards, verifying that all fasteners meet the specified torque values. Inspect the entire unit for loose components–even minor rattling can lead to premature wear under load. For trailed models, confirm the hitch pin seats fully in its receiver and that the safety chain has enough slack to allow turns but not drag on the ground.
Before field deployment, conduct a ground-level walkaround to ensure no tools or spare hardware remain lodged between moving parts. Record serial numbers of critical wear items (e.g., bearings, seals) to streamline future maintenance scheduling. Keep the visual reference accessible during the first few hours of operation for quick troubleshooting of any unexpected behavior.
Diagnosing Frequent Component Failures and Repairs
Check the roller bearings first if uneven compression occurs during operation. Inspect for play exceeding 0.5mm–anything beyond requires immediate bearing replacement. Use a feeler gauge between the bearing housing and shaft to confirm wear. Replace both bearings simultaneously to prevent uneven load distribution, which accelerates premature failure in the mating unit.
Examine soil-penetrating wheels for cracks or uneven wear along the tread. A 3mm deviation in diameter between wheels demands replacement to avoid inconsistent seeding depth. Measure tread depth at multiple points; irregular patterns indicate misalignment or improper hydraulic pressure, often corrected by recalibrating the implement’s leveling system.
Replace damaged or bent frame crossmembers before structural fatigue compromises adjacent components. Look for rusted-through sections or weld failures near stress points. Reinforce repairs with 6mm-thick steel plates, extending 5cm beyond the damaged area on all sides, to restore load-bearing capacity.
Test hydraulic cylinders for internal leaks by disconnecting hoses and capping ports–if the ram drifts under load, seal kits or complete cylinder replacement is needed. Compare fluid levels before and after a 10-minute test run; a drop exceeding 50ml signals seal failure. Replace rod seals only if scratches on the piston are absent; otherwise, install a new cylinder.
Adjusting and Replacing High-Wear Components
Scrape blades exhibiting more than 20% material loss–waiting until failure risks destroying adjacent soil-engaging tools. Sharpen edges to a 15-degree angle for optimal performance; dull blades increase draft load by 30%. Rotate blades 180 degrees every 50 hours to extend service life before full replacement is unavoidable.
Inspect packer ring segments for flats wider than 6mm–these cause voids during compaction and reduce seedbed uniformity by 40%. Replace individual segments rather than entire rings if damage is isolated. Ensure replacement segments are within 2mm of original diameter to maintain consistent ground pressure.
Grease zerks on pivot points every 8 hours of operation–neglect accelerates wear on bushings by 70%. Use NLGI #2 lithium-based grease; lighter grades wash out in wet conditions. If bushings show grooves deeper than 0.3mm, replace them along with the mating pin to prevent slop in the linkage.
Verify PTO shaft alignment by checking U-joint angles–misalignment above 3 degrees causes vibration that destroys drive components within 100 hours. Replace torn universal joint boots immediately; contaminants turn grease into abrasive paste. Use shear bolts rated for 115% of normal operating torque to prevent driveline overload damage.
