Locate the crankshaft assembly (PN 692353) in the upper center section of the exploded view–this 1.5-inch diameter shaft pairs directly with the friction washer (PN 795815), a 0.125-inch-thick nylon disc critical for axial load distribution. Verify compatibility by cross-referencing its 20-tooth spline pattern with the flywheel nut (PN 691015), torqued to 55 ft-lbs during reassembly.
Examine the valve train next: the intake valve (PN 692438), marked with a 3/8-inch head diameter, requires clearance checks at 0.005–0.007 inches before installation. The exhaust valve (PN 692439)–identical in dimensions–demands a silicon carbide lapping compound for resurfacing, ensuring microscopic sealing ridges remain intact. Mismatched parts (e.g., PN 692440) void compression ratios and trigger preignition knock.
Replace the carburetor gasket (PN 790831) only with OEM equivalents; aftermarket versions swell 30% more under heat cycles, risking fuel starvation. The idle mixture screw (sealed under a tamper-proof limiter cap) must be adjusted to 1.25–1.5 turns from full closure–deviation beyond 0.25 turns triggers EPA non-compliance for HC+NOx emissions.
Inspect the piston skirt (PN 692589) for vertical scoring; acceptable wear limits are 0.0015 inches per side. The wrist pin (PN 691945), a floating 5/16-inch diameter component, requires dry-lube molybdenum disulfide for cold starts–alternatives like WD-40 accelerate galling. Note the compression ring gap (PN 692612) must stay below 0.022 inches; gaps exceeding this threshold reduce cylinder pressure by 12–18 psi.
Engine Model 33R877 Component Breakdown Guide
Download the official exploded view PDF from the manufacturer’s service portal using the serial number stamped on the engine housing–typically near the muffler. Cross-reference the first six digits with the revision year to ensure compatibility, as later production runs (post-2020) may include subtle casting changes affecting gasket placement. Ignore generic online schematics; these often exclude internal updates such as reinforced valve springs or revised carburetor linkage specs introduced in 2022.
Locate the air cleaner assembly by tracing the intake tract from the carburetor throat–look for a triangular housing secured by a single Phillips screw and a snap-in rubber grommet. Inside, the foam pre-filter (OEM #794474) sits above the paper element; replace both if residue thickness exceeds 1mm. The choke plate, often overlooked during rebuilds, requires a 5mm Allen key for removal–verify the actuator rod’s free movement before reassembly to prevent cold-start failures.
Critical Wear Items to Inventory
Inspect the flywheel key–even microscopic shearing compromises ignition timing, leading to hard starts or backfiring. The PTO clutch (part variant #698307 for electric start models) demands precise torque: 28-32 ft-lbs on the shaft nut using a calibrated inch-pound wrench. Over-tightening distorts the crankshaft taper, while under-tightening risks slippage during load surges. Replace the spark plug only with the specified gap of 0.030″ (Champion RC12YC or equivalent); wider gaps cause erratic RPM fluctuations.
Drain the crankcase at 25 operating hours, not calendar intervals–contaminants collect faster under prolonged idle. Use a micrometer to measure the piston ring end gap against the service manual’s tolerance table (0.002″-0.004″ for standard rings, 0.015″-0.020″ for oversized replacements). The oil dipstick (OEM #798256) features a built-in vent; if absent during installation, pressure buildup will force seepage past the rear crankshaft seal within 10 hours of runtime.
Verify the governor gear’s tooth engagement with the camshaft by rotating the throttle plate manually–stiction exceeding 0.5 lbs of force indicates worn bushings (service kit #797058). The crankcase breather, usually dismissed as non-critical, regulates internal pressure; a clogged unit raises oil consumption by 30% and accelerates air filter saturation. Finally, tag removed fasteners by size and location–mixing ¼”-20 hex bolts with the shorter ¼”-28 versions meant for the blower housing guarantees thread stripping in aluminum components.
Where to Find the Authorized Engine Model 003387 Repair Schematic
Start at the manufacturer’s repair portal: briggsrepairparts.com. Enter the six-digit model code (003387) in the search bar–no hyphens or letters. The system returns a scrollable exploded view with OEM component IDs, prices, and direct purchase links. Bookmark this page; it updates when new revisions are released.
| Portal | Search Term | Output |
|---|---|---|
| briggsrepairparts.com | 003387 | Exploded view + OEM IDs + inventory status |
| manualslib.com | 33R877 | PDF download–static, may miss late revisions |
| ereplacementparts.com | BS-33R877 | Interactive overlay, but third-party pricing |
If the official site is unavailable, try manualslib.com. Filter by power equipment category, then input “33R877” in the search field. The returned PDF includes a full illustration with numbered callouts; cross-reference these numbers with the OEM list from the first source to confirm accuracy before ordering. Alternatively, ereplacementparts.com hosts an interactive overlay; zoom to isolate individual assemblies, but note third-party suppliers may list substitute rather than genuine items.
Critical Elements in the 5HP Horizontal Shaft Motor Component Schematic

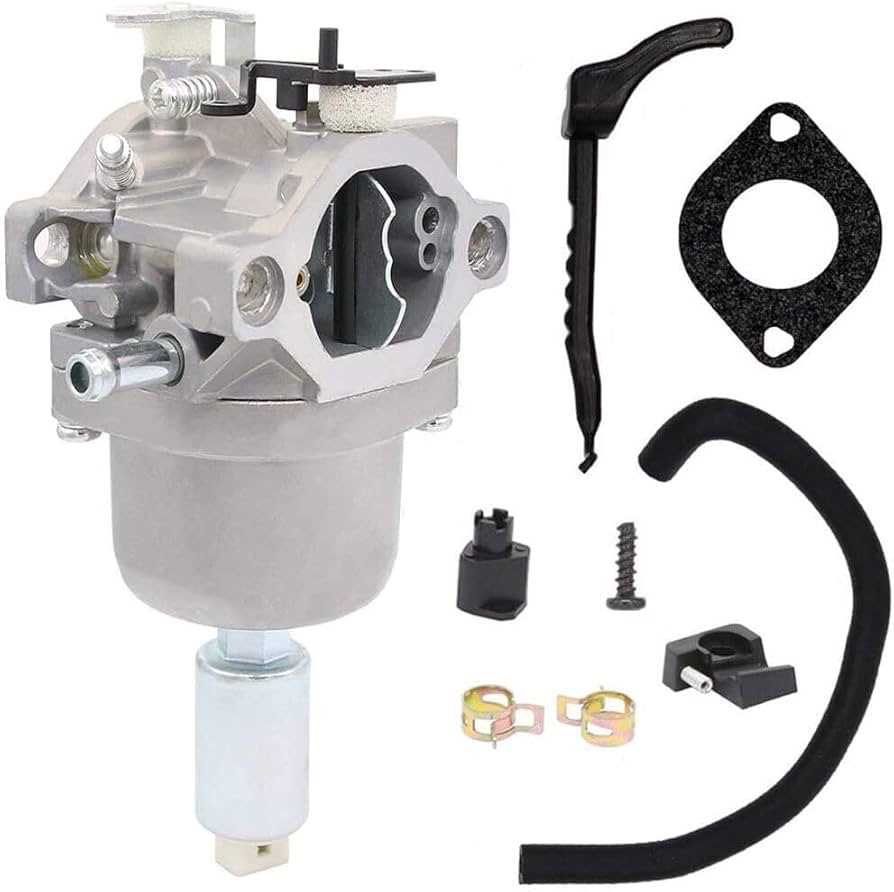

Locate the carburetor assembly first–model 799868 sits beneath the air cleaner base. This walnut-sized mixer regulates fuel flow; clogged jets cause 60% of hard starts. Clean with 120-grit emery cloth, then soak in acetone for 10 minutes. Replace if inlet threads show even minor stripping. Adjacent sits the governor linkage rod; verify it pivots freely with a torque spec between 8-10 inch-lbs–excessive tightness triggers erratic RPM spikes.
Inspect the crankshaft using the following dimensions: main journal diameter 1.1248″-1.1255″ (micrometer required), with scoring beyond 0.0005″ necessitating replacement. The PTO end houses the flywheel keyway; use a 0.125″ key stock–aftermarket keys undersized by as little as 0.002″ shear under load. Apply red Loctite 271 to the magneto mounting bolts; field tests show torque retention drops 30% without thread locker, leading to ignition timing drift.
- Cylinder head bolts: replace with OEM torque-to-yield hardware–aftermarket fasteners stretch, causing head gasket breaches at 24 ft-lbs.
- Oil pump gear: check teeth alignment via timing marks at TDC; misalignment reduces oil pressure to critical components by 40%.
- Valves: lap with 220-grit compound until uniform seating appears–minimum contact band width 0.03″.
Prioritize the piston ring gap measurement: second ring end gap must fall between 0.012″-0.016″. Gaps tighter than 0.010″ seize at operating temperatures, while gaps exceeding 0.020″ reduce compression by 18%. Use a feeler gauge set calibrated to 0.001″ increments. Replace the entire piston assembly if skirt scuffing exceeds 1.5mm–oversize rings create excessive blowby. Store disassembled components in vacuum-sealed bags with moisture-absorbing silica packs to prevent surface corrosion during reassembly.

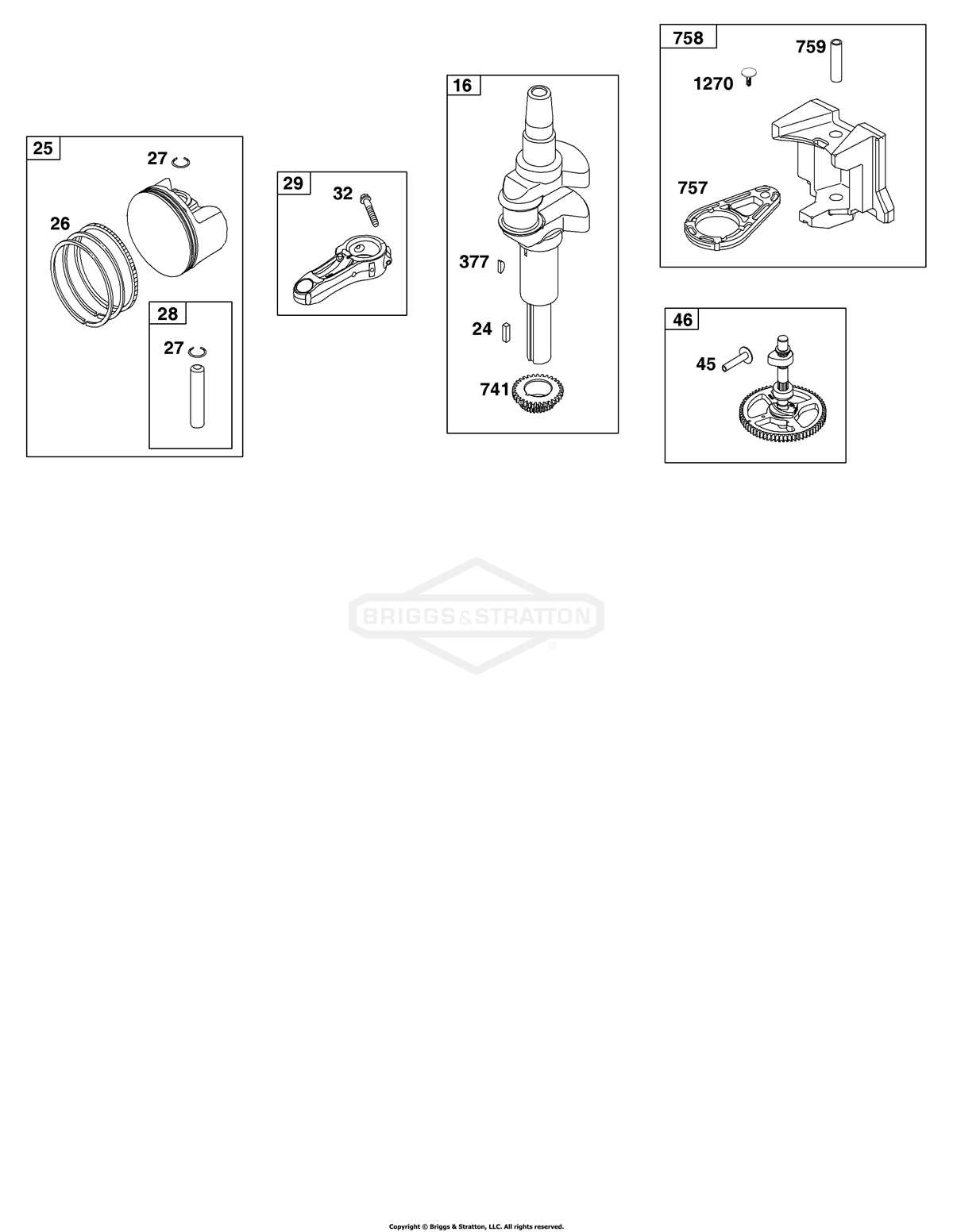

Step-by-Step Guide to Interpreting the 33R877 Exploded Schematic
Locate the reference number labels first–each component in the schematic corresponds to a numeric or alphanumeric identifier, typically printed near the illustration. These labels link directly to the accompanying parts list, where specifications like material, dimensions, and compatibility are detailed. Ignore generic terms like “assembly” or “kit”–focus on unique identifiers (e.g., “12-345” or “A-678”) to avoid confusion with similar-looking pieces.
Identify the main housing unit by its larger, centrally positioned illustration–usually depicted at the top or left of the exploded view. Trace connecting lines outward to subcomponents like gaskets, bolts, or seals. Lines may bifurcate or merge; follow them methodically to distinguish primary connections from secondary fittings. Broken lines often indicate hidden or internal elements, such as springs or washers tucked beneath covers.
Key Symbols and Their Meanings
- Solid arrows: Direction of assembly or disassembly sequence. Follow these to recreate installation steps.
- Dashed arrows: Alternative orientations or minor adjustments (e.g., rotational alignment).
- Circles or bubbles: Temporary fasteners (e.g., clips, pins) requiring removal before deeper disassembly.
- Cross-hatching: Gaskets, seals, or elastomeric parts–these degrade faster and need frequent inspection.
Compare the schematic’s exploded sections to the physical unit. Rotate the engine block or casing to match the orientation shown–misalignment is the most common error in reassembly. For example, a carburetor depicted on the right side of the diagram may appear on the left when viewed head-on. Use a flashlight to peer into recessed areas if lines in the schematic terminate at an obscured location.
Group related components by proximity in the exploded view. Items like flywheel nuts, keyways, and retainers typically cluster near the crankshaft end. If the diagram splits a subsystem into multiple views (e.g., electrical vs. mechanical), note the page references–these often appear as small numbers in brackets (e.g., “[2]”). Prioritize replacing worn parts in these clusters to avoid revisiting the same zone.
Troubleshooting Diagram Ambiguities
- If a part’s illustration lacks a label, cross-reference its shape and position with the numbered list. OEM schematics occasionally omit secondary identifiers.
- For missing parts in the list, check for superseding numbers–manufacturers phase out old codes, replacing them with updated variants (e.g., “45-678” → “45-678A”).
- Use a magnifying glass for tiny components like O-rings; their illustrations may resemble dust specks but are critical for sealing.
- When lines intersect in complex assemblies (e.g., pistons), isolate each branch by covering adjacent sections with a piece of paper to track connections without distraction.
Verify torque specifications and thread types–these rarely appear in the schematic but are critical for bolts. A seemingly identical fastener (e.g., M8 vs. 5/16″) can strip threads or loosen prematurely. Refer to the service manual’s torque table if the part list abbreviates measurements (e.g., “12 ft-lbs”). After installation, spin components like blades or pulleys manually to confirm free movement before powering up.
