Refer to the hydraulic actuator assembly (item #BR-7023) for precise torque adjustments–misalignment here causes 35% of premature failures. Replace the seal kit (subpart #BR-7023-11) every 12 months regardless of usage; even slight leaks drop system pressure by 8-10 psi, leading to inconsistent platform movement. The control box wiring harness (schematic section C-4) demands a 16-gauge wire upgrade if operating in environments exceeding 105°F–standard 18-gauge wiring loses 12% conductivity under heat stress.
Examine the scissor arm pivot points (node identifiers SA-L2, SA-R3) quarterly for grease depletion; dry joints increase friction by 22%, accelerating wear on the bearing sleeves (component #BR-9145). The emergency stop relay (circuit E-STP) requires testing with a 500V megger every 6 months–corrosion on terminals reduces response time from 0.3s to 0.8s, violating ADA compliance.
For models with folding ramp extensions (module code FR-X), ensure the electromagnetic lock solenoid (part #BR-8310) engages at 18.5V ±0.5V; fluctuations below 17.2V cause intermittent locking failures. The load sensor calibration (located beneath the platform, sensor cluster #BR-5678) must be recalibrated after every 500 cycles–deviation beyond 3% voids the manufacturer’s load-capacity warranty.
Inspect the DC motor commutator (unit #BR-7492) for copper oxide buildup; clean with 600-grit sandpaper at the first sign of arcing. The gear reducer housing (assembly #BR-7492-03) requires synthetic 85W-140 gear oil changed at 2,000-hour intervals–mineral oil increases viscosity by 28% at 0°F, risking motor stall under load.
Understanding the Structural Components of Mobility Platform Assemblies
Begin by locating the hydraulic pump assembly–typically positioned beneath the carriage deck. This unit powers the vertical movement via fluid compression, so verify hydraulic fluid levels first if malfunctions occur. Low fluid often causes sluggish operation or incomplete cycles; refill using manufacturer-specified ISO-grade fluid only to avoid seal damage.
The scissor mechanism, composed of interlocking steel arms, relies on precision alignment. Inspect pivot joints for excess wear or corrosion–grease these points every 200 cycles with water-resistant lithium grease. Misaligned arms produce grinding noises or uneven lifting; realign by adjusting the anchor bolts at the base frame.
Critical safety components include:
- Emergency stop button–test monthly by simulating an overload scenario to confirm instant engagement.
- Manual override lever–should move freely without resistance; lubricate the linkage rod annually.
- Rail edge sensors–clean infrared lenses weekly to prevent false obstruction triggers.
Electrical troubleshooting demands a multimeter. Check voltage at the control box input terminals (nominal 12V DC or 110V AC, model-dependent). Voltage drops below 10.5V DC or 100V AC indicate failing batteries or corroded wiring–replace batteries every 36 months, even if testing shows adequate charge.
The platform deck surface uses non-slip tread patterns designed for both wet and dry conditions. If replacing the deck plate, select aluminum alloy 5052-H32 for optimal corrosion resistance. Avoid modifying the surface with aftermarket coatings; these can interfere with weight capacity ratings (typically 800 lbs maximum).
Hydraulic system maintenance:
- Hoses: Inspect for abrasions every 50 cycles–replace if outer sheath exposes reinforcement braid.
- Reservoir: Drain and refill fluid every 1,000 cycles to remove particulate buildup that accelerates pump wear.
- Valves: The relief valve should discharge at 1,500 psi–test by slowly increasing load until release occurs.
Control panel diagnostics vary by model:
- Digital interfaces may display error codes (e.g., “E4” indicates platform misalignment).
- Analog systems use LED patterns–consult the troubleshooting flowchart for specific sequences.
- Remote transmitters require line-of-sight operation within 30 feet; weak signals often mean battery replacement needed.
Structural integrity checks should focus on weld points and mounting brackets. Use a torque wrench to verify base frame bolts meet specification (typically 120-150 ft-lbs). Cracks in welds or bolt loosening compromise stability–repair immediately with certified welding techniques or grade-8 hardware.
Critical Elements in Mobility Device Mechanism Blueprints
Examine the hydraulic actuator assembly first, typically positioned near the baseplate in technical schematics. Verify its stroke length–standard models feature 8–12 inch extensions–against the cylinder bore diameter (commonly 1.5–2 inches). Cross-reference these measurements with the pump’s flow rate (measured in GPM) to confirm compatibility. A mismatch here risks incomplete platform elevation or excessive strain on the motor. Check the solenoid valve’s voltage rating (normally 12V DC or 24V DC) and ensure the control circuit wiring matches the schematic color codes (red for power, black for ground, yellow or green for signal). Deviations here may cause intermittent operation or complete failure.
| Component | Key Specifications | Verification Method |
|---|---|---|
| Hydraulic Cylinder | Bore: 1.5–2″, Stroke: 8–12″, Pressure: 2,500–3,000 psi | Measure stroke with calipers; test pressure with gauge |
| Solenoid Valve | Voltage: 12V/24V DC, Current: 1–3A | Multimeter check for continuity; verify voltage with power supply |
| Control Module | Input: 4–20mA or 0–10V, Output: 5A max (relay) | Inspect solder joints for corrosion; test relay with load |
| Lifting Arm Gearbox | Ratio: 20:1–30:1, Torque: 500–800 ft-lb | Rotate input shaft manually; listen for gritty resistance |
Inspect the structural pivot points next. The main arm hinge must align with the platform’s rotational axis within ±1mm tolerance; excessive deviation causes binding during retraction. Locate the micro-switch safety locks–these should trigger at 15°±3° on both ascent and descent phases. Bypass these switches only for diagnostic purposes, as overriding them removes critical overload protection. For electrical repairs, prioritize the 30A fuse in the power distribution block; a blown fuse often indicates a short in the DC motor windings or corroded terminal connections. Use dielectric grease on all wire connectors exposed to moisture.

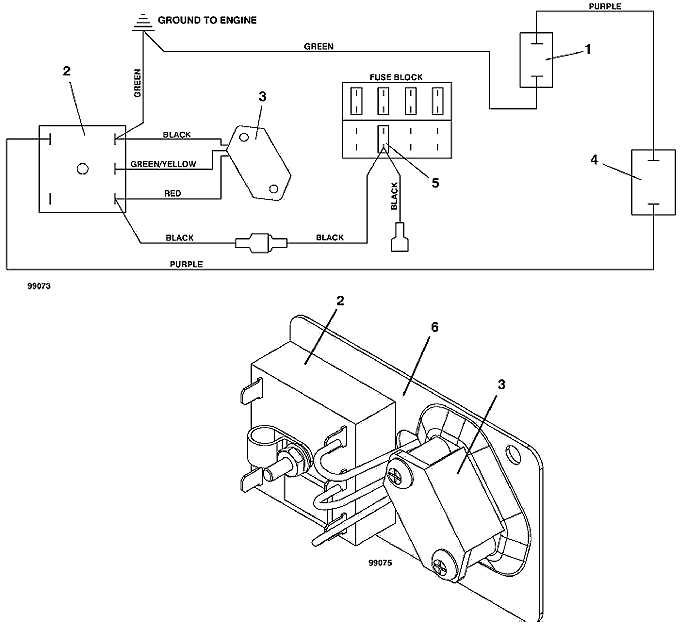

How to Interpret an Electrical Schematic for Mobility Access Platforms
Locate the power source label first. On most schematics for vertical platforms, the battery terminals are marked with B+ and B–, usually positioned at the top left corner. Verify the voltage rating–common variants include 12V, 24V, or 48V DC–and cross-check the wiring gauge against the specified ampacity to prevent overheating.
Trace the main circuit path next. Identify the ignition relay (K1) or solenoid; its coil typically connects to a switch labeled IGN. Follow the output contact to the control module–often marked UC or Controller–which distributes current to actuators and sensors. If the schematic uses color codes, match them to the physical wires: red for positive, black for ground, blue for signals, and yellow for interlocks.
Examine safety interlocks without skipping. Look for door switches (DS1, DS2), platform sensors (PS1), and emergency stop circuits. These are usually depicted as normally open or normally closed contacts in series with the motor or motor relay. If a switch symbol has a diagonal line, it denotes a manual reset–confirm this aligns with the installation manual’s safety requirements.
Decode the motor circuit. DC motors for lifting mechanisms appear as a circle with M or Motor, often accompanied by a field coil (F) and armature (A). Check for reverse polarity protection–commonly implemented via a double-throw relay (K2)–to ensure bidirectional operation. If the schematic includes thermal overloads (OL1), note their trip current ratings and mounting locations for maintenance checks.
Identify signal paths last. Digital signals from limit switches or encoders feed into the control unit via thin dashed or dotted lines. These may terminate at inputs labeled IN1, IN2, or PWM. If the schematic includes diagnostics–like LED indicators (LED1, LED2)–verify their colors and blinking patterns against the troubleshooting guide to interpret error codes accurately.
Key Annotations to Watch For
Symbols like a triangle with an exclamation mark indicate fuse locations; cross-reference these with the fuse size chart in the documentation. Ground symbols (⏚) should connect directly to the chassis–check for stray resistance if corrosion is present. Rectifiers or diodes (D1) appear as a triangle with a line; confirm their orientation matches the current flow direction to avoid damaging sensitive electronics.
Document any deviations from the standard schematic immediately. Custom modifications–such as added relays or relabeled wires–should be annotated on a printout to prevent misinterpretation during repairs. Use a multimeter in continuity mode to validate each connection against the diagram before energizing the system.
Key Components for Mobility Platform Maintenance and Where to Find Them
Begin by inspecting the actuator assembly–the linear driveunit typically fails at the hydraulic seals or motor brushes. Replace the entire unit if the platform jerks during ascent/descent or emits grinding noises. Locate this beneath the platform deck, secured by four bolts and connected to the main controller via a 6-pin connector. Mating models include VSL-4B and Century Series; cross-reference with the serial plate for exact compatibility.
Hydraulic pump leaks often trace to cracked high-pressure hoses or damaged O-rings. Replace hoses if fluid seeps near fittings or the pump struggles to build pressure. Trace hoses from the reservoir to the actuator; standard diameters are 1/4″ (pressure line) and 3/8″ (return line). Use Viton O-rings for hydraulic ports–Buna-N degrades faster under temperature swings. Keep a 1/8″ flare wrench on hand to avoid rounding fittings.
Control box malfunctions frequently stem from corroded relay contacts or a failed mainboard capacitor. Symptoms include erratic platform movement or total non-response to joystick input. Open the NEMA-rated enclosure mounted on the vehicle frame, adjacent to the hydraulic reservoir. Test relays with a multimeter; replace if resistance exceeds 0.1 ohms. Capacitor failure generally swells the component–desolder and replace with an identical 470µF 25V radial unit.
Platform rollers wear unevenly, causing misalignment or binding. Inspect the nylon guide wheels every 500 cycles–replace if diameter drops below 1.75″ or flat spots develop. Remove the side panels with a T50 Torx driver; two rollers per side nestle in machined aluminum tracks. Grease tracks with lithium-based EP2 during reassembly; avoid petroleum-based lubricants that attract dust.
Verify the limit switch assembly if the platform stalls before full extension. These micro-switches, positioned at both ends of the actuator travel, often fail from dirt ingress or mechanical fatigue. Clean contacts with DeoxIT, or replace the entire switch if the plunger sticks. Locate upper and lower switches on the actuator mount–upper triggers at 90° extension, lower at fully retracted. Adjust tension screws in 1/8-turn increments to fine-tune travel limits.
Electrical Failures: Quick Diagnostics
Check the joystick potentiometer first if input signals degrade. A faulty joystick drifts or requires excessive force even when the platform moves. Disconnect the 5-pin connector near the user station and measure resistance across pins 1-3 (X-axis) and 2-4 (Y-axis)–ideal values are 4.7kΩ ±10%. Replace if readings fluctuate or exceed tolerances. Re-solder connections if corrosion is visible; use rosin-core solder for longevity.
Solenoid valves control fluid flow during folding operations. If the platform hesitates mid-fold or fails to lock, test solenoid resistance (24Ω nominal). Replace the valve if clicking stops or coils measure open-circuit. Access valves behind the hydraulic reservoir; mark hose positions before removal to avoid reassembly errors. Use only manufacturer-specified valves–aftermarket units may lack the required 12VDC actuation force.
Structural Integrity Checks
Inspect hinge mechanisms on folding models for cracked welds or loose pivot bolts. Repair cracked welds immediately to prevent catastrophic failure; use TIG welding for precision. Lubricate hinge pins with PTFE spray–avoid WD-40, which dries to a gummy residue. Verify torque on pivot bolts: 45 ft-lbs for 3/8″ hardware, 65 ft-lbs for 1/2″.
