For owners of high-end kitchen appliances, identifying internal components begins with the official service manual–specifically sections on door assembly, spray arm linkage, and circulation pump. If the manual is unavailable, use the appliance’s model number (located inside the door frame or on the side panel) to search the manufacturer’s database. Common failure points include the lower spray arm bearing (part #SHX8PT55UC-03) and the water inlet valve (#00645230), which should be checked first for leaks or clogs.
To access the control module, remove the toe-kick panel and the lower access cover–typically secured by two screws. The wiring harness for the electronic control board (part #SHX8PT55UC-10) can degrade over time; inspect for brittle insulation or loose connections. Replacement filters (microfilter and coarse filter) should be cleaned every 30 cycles; neglect leads to reduced water flow and soap residue, which triggers error codes E24 or E25.
The circulation pump motor (#00175950) is located beneath the stainless steel tub–remove the base plate to replace it. Check the impeller for damage if the appliance fails to drain fully. The detergent dispenser latch (part #SHX8PT55UC-06) often breaks due to overloading; a replacement costs ~$28 and requires no special tools for installation.

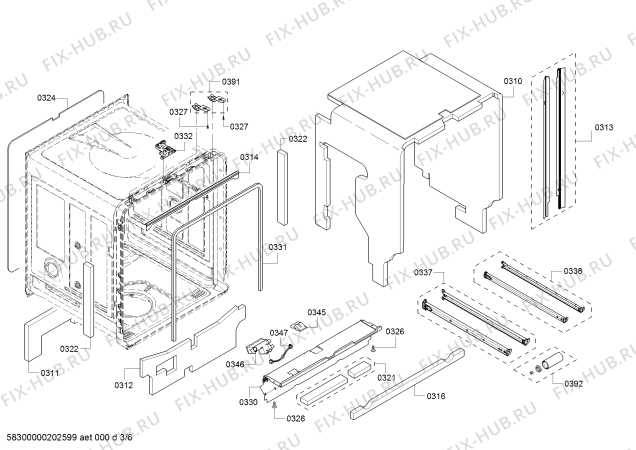

For diagram-based repairs, third-party suppliers like RepairClinic or PartSelect provide exploded-view schematics, but verify compatibility using the model prefix (e.g., SHE8PT). Avoid generic parts; genuine replacements ensure proper operation of the condensation drying system and third-level wash spray. Document each step with photos before disassembly–this prevents incorrect reassembly of the anti-flood switch (#00211937) or salt dispenser gasket.
Guide to Identifying Components in High-End Kitchen Cleaning Appliances
Locate the spray arms first–upper and lower–by removing the bottom rack. The upper arm connects via a plastic nut under the middle rack support; tighten or replace it if loose or cracked. The lower arm secures directly to the pump housing; check for clogs in the nozzles if water pressure drops.
Key Internal Assemblies
The circulation pump, positioned at the base, drives water flow. A faulty pump often causes noise or incomplete cycles; listen for rattling or humming. The drain pump sits adjacent, identifiable by its smaller size and hose connection–replace if standing water remains. The control module, mounted behind the front panel, manages cycles; reset it by pressing the “Start” button for 3 seconds if errors appear.
Inspect the float switch near the tub’s right front corner. Lift it manually–if stuck, debris may block the drain, causing leaks. The detergent dispenser, on the door’s interior, should snap open easily; clean the latch with vinegar if residue builds up. For heating elements, look along the tub’s bottom–a broken one leaves dishes wet; test continuity with a multimeter.
Locating Critical Elements in a High-End Kitchen Appliance Assembly Breakdown
Start by isolating the upper spray arm in the exploded schematic–marked near item #42 in most service manuals. This component, resembling a horizontal cross with jets, sits directly beneath the top rack and requires quarter-turn removal to detach. Verify its condition for clogged nozzles, which often trigger error code E24. Adjacent elements, like the diverter valve (#38), influence water distribution; replace if cracks appear.

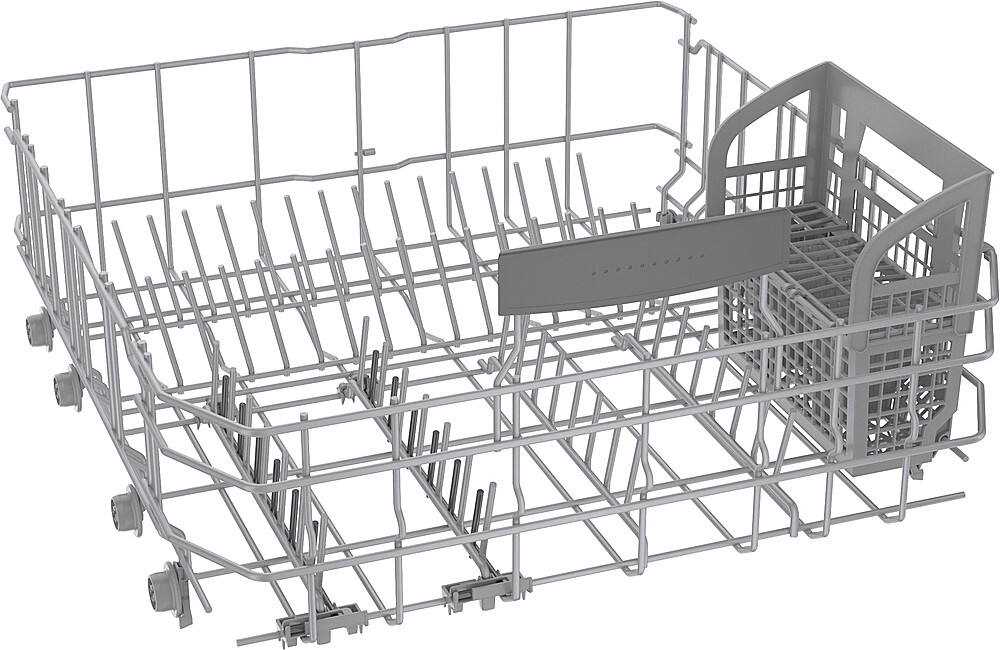

- Lower rack rollers (#67): Lubricate axle points if movement is stiff. Metric 6mm hex bolts secure replacement.
- Drain pump assembly (#15): Test continuity with a multimeter (expected: 100–150 ohms). Disconnect before probing.
- Heating element (#23): Visually inspect sheath for blisters–immediate failure risk. Use a non-contact voltage tester near terminals.
Trace the wiring harness (#7) from the control module to terminals: white clips should snap audibly when reseated. Misaligned connectors, particularly behind the door panel, cause intermittent power loss–a top failure point in models older than three years. For the turbidity sensor (#51), soak in vinegar for 10 minutes if error H04 persists: mineral buildup skews readings.
Step-by-Step Guide to Finding the Circulation Pump in the Technical Schematic
First, identify the lower right quadrant of the exploded view–this is where the hydraulic assembly cluster resides. The circulation pump, marked as “Item 12” in most schematics (verify against your model’s specific documentation), sits adjacent to the heating element bracket, typically labeled with a numerical or alphanumeric code like “V9” or “CIRC-5.” Locate the intake hose (thick black line connecting to the sump) and trace it downward; the pump’s housing will be the cylindrical or rectangular component with inlet/outlet ports, often depicted with a rubber gasket or impeller symbol. Cross-reference the part number listed in the legend–common variants include “WP00341876” or “00643720”–to ensure accuracy before disassembly. If the schematic uses color coding, the pump is frequently highlighted in blue or red to distinguish it from drainage components.
To physically validate, tilt the appliance forward (unplugged) and remove the base panel–two screws at the front corners secure it. Shine a light toward the rear; the circulation pump is directly beneath the spray arms’ feed tube, bolted to the tub’s underside. Its wiring harness (three-pronged plug) connects to the control module, and the motor shaft aligns horizontally. For replacement, note the orientation of the impeller housing: the arrow embossed on the casing must point clockwise when viewed from the motor side to prevent damage during reinstallation.
Locating and Installing the Door Gasket on Your High-Efficiency Appliance
Power off the unit and disconnect it from the electrical outlet before beginning–failure to do so risks short circuits or injury. The door gasket sits along the inner edge of the tub, secured by a groove or clip system. Use a flat-head screwdriver to gently pry the old seal loose, starting at one corner; pull slowly to avoid tearing the rubber. Inspect the channel for debris or mold–clean it with a damp cloth and mild detergent, ensuring no residue remains.
Refer to the exploded-view schematic for your model variant to confirm the correct gasket type. Measure the old seal’s length and cross-section; discrepancies as small as 1-2mm can cause leaks. Order replacements from authorized distributors only–third-party seals may lack UV-resistant coatings or precise molding, leading to premature failure. Common part numbers for compatible gaskets include:
| Model Variant | Gasket Part Number | Cross-Section Dimensions |
|---|---|---|
| SHX878WD5N | 00645031 | 12mm x 4mm |
| SHP878WD5N | 00645032 | 10mm x 5mm |
| SHV878WD5N | 00645033 | 11mm x 4.5mm |
Align the new seal’s thicker edge with the groove, pressing firmly into place. Use a soft cloth to tamp down the entire perimeter, ensuring no gaps or twists exist–air pockets or misalignments will compromise performance. For models with a rear hinge clip, thread the gasket’s end through the slot before seating the front section. Test fit by closing the door; it should require slight resistance to latch.
Run a rinse cycle with the door closed and a flashlight aimed at the seal’s edge–visible leaks indicate improper installation. If moisture appears, reopen the door and adjust the gasket’s tension, focusing on corners where compression is weakest. Lubricate the seal with a silicone-based spray if squeaking occurs during operation, but avoid petroleum-based products–they degrade the rubber over time.
Verify the door’s magnetic latch engages consistently; a weak magnet suggests the seal’s thickness is interfering. Lower the door’s mounting screws slightly if needed, but never exceed 1/4 turn–excessive adjustment strains the tub’s alignment. Replace the lower kickplate and reconnect power only after confirming no tools or debris remain inside the cavity.
Resolving Common Issues with the Rotating Cleaner Mechanism in High-Efficiency Models
Check for obstructions between the sprayer hub and the base unit first. Debris–like seeds, bone fragments, or plastic utensil tags–often lodges in the coupling interface, preventing full rotation. Use a flashlight to inspect the underside of the arm’s mounting point; if particles are visible, remove them with needle-nose pliers or a thin wire hook, ensuring no residue remains.
Verify water pressure by running a short cycle while observing the arm’s movement. If it spins sluggishly or stops intermittently, disconnect the lower rack and feel the water flow from the pump outlet. Low pressure typically points to a clogged filter basket beneath the arm or a failing circulation pump. Clean the basket using a soft brush and hot water, or replace the pump if the flow remains weak after maintenance.
Inspect the arm’s bearings for wear or misalignment. The bearing cup at the center should rotate freely without grinding. If resistance is felt, apply a food-safe silicone lubricant to the bearing surface. For models with a removable bearing assembly, compare the part number against the manufacturer’s replacement guide–mismatched bearings can cause erratic spinning or premature failure.
Examine the arm’s nozzle integrity. Cracked or warped nozzles reduce cleaning efficiency and can lead to uneven water distribution. Run a cycle with detergent-free rinse aid; if residue remains on dishes, replace the arm rather than attempting repairs–most high-capacity units use snap-fit designs for tool-free replacement.
Test the arm’s retention clips by gently pulling upward while the rack is empty. Loose clips may disengage during high-speed rotation, causing the arm to detach or wobble. Re-seat the clips firmly, ensuring both sides align with the guide rails on the tub. If clips are broken, source replacements from the unit’s service parts catalog rather than generic retailers to avoid compatibility issues.
Electrical and Control-Based Faults
If the arm fails to activate despite normal water flow, check the control board for error codes. Models with digital displays may show E15 (water supply fault) or E19 (spray system error). Reset the control panel by unplugging the unit for 5 minutes–this often clears transient glitches. For persistent errors, inspect the wiring harness connecting the motor to the board; frayed wires or loose connectors can disrupt signal transmission.
Preventative Maintenance and Part Longevity
- Rinse dishes thoroughly before loading to minimize food particles entering the system.
- Monthly: Soak the arm in white vinegar to dissolve mineral buildup from hard water.
- Avoid overloading the rack–excessive weight strains the bearing and motor assembly.
- Replace the arm every 2–3 years if cycles exceed 150 annually, even if no visible damage exists.
For models with wireless connectivity, update the firmware via the companion app after major repairs–manufacturers occasionally include optimizations for arm performance in system patches.
