Start by locating the model number on the machine’s identification plate–usually stamped near the engine or on the frame. Cross-reference this with the manufacturer’s official service manual, which offers exploded views and numbered listings of replaceable elements. Third-party suppliers like Jack’s Small Engines or Partstree maintain searchable databases with interactive breakdowns; input the exact model to pull up the relevant blueprint. For older units, check archive forums or enthusiast groups–users often upload scanned copies of vintage manuals.
Identify critical subassemblies such as the transmission housing, gearbox, or rotary shaft by matching components to the numbered illustrations. Pay attention to fastener types and torque specifications listed adjacent to each part–improper installation can lead to premature wear. If the schematic lacks detail on a specific component, examine the unit directly: trace linkages, belts, or slip clutches back to their mounting points to deduce positioning. For electrical systems, use a multimeter to verify circuit continuity before ordering replacement switches or solenoids.
Order replacements from verified distributors to avoid counterfeit or incompatible substitutes. Compare OEM part numbers against aftermarket options–some brands offer enhanced durability at lower cost, but ensure compatibility with the original design. Keep a digital copy of the schematic on hand for field repairs; commercial toughness often means limited access to service centers, making self-reliance essential. Update records after each repair to track wear patterns on frequently replaced components like tines, bearings, or seals.
Locating Genuine Components for Your Garden Power Equipment
Identify the exact model number engraved on the engine housing or stamped on the frame near the rear wheel before searching for replacement elements. Most walk-behind rotary cultivators manufactured between 1985 and 2005 share a unified numbering system–model H14 through H20 variants use identical tine assembles (part #B6418) and belt drives (#R10234), while later G-series units require distinct components. Check the product manual for pages 12-15 where exploded views list compatible alternates with OEM codes cross-referenced to aftermarket equivalents from Stens or Oregon.
| Unit Series | Key Assembly Code | Common Failure Points | Replacement Interval (Hours) |
|---|---|---|---|
| H14-H16 | #B6418, #R10234 | Tine wear, drive belt tension | 75-100 |
| H17-H20 | #B6422, #R10238 | Clutch engagement, wheel bearings | 120-150 |
| G5-G10 | #G8231, #G7654 | Gearbox lubrication, pivot pins | 200+ |
Remove the spark plug wire before servicing. Store detached pieces in labeled plastic bags to prevent mixing similar-looking but non-interchangeable fasteners–M8x45 bolts secure deck covers, while M6x20 bolts fasten handlebars. Verify torque specs using a calibrated wrench: 18-22 ft-lbs for engine mounts, 10-12 ft-lbs for blade hubs. For units with electric start, replace the 12V battery every 36 months regardless of usage; original Yuasa equivalents (#NP7-12) maintain optimal cranking amps.
Locating Authorized Schematics for Gardening Equipment Components
Begin your search at MTD Products’ official portal–the parent company overseeing this brand’s legacy. Navigate to the support section and filter by model number or product category. Here, exploded views and assembly breakdowns are accessible as PDF downloads, often alongside compatible replacement identifiers. Ensure you bookmark the exact sub-page for your machine’s series, as URL structures occasionally shift after site updates.
The Cub Cadet’s online parts lookup tool serves as a secondary source, sharing inventory with sister brands. Select “Garden Tractors & Tillers” then input your unit’s serial tag to pull precise schematics. Cross-reference part codes with eBay’s “Parts Finder” filter–verified sellers list OEM labels alongside aftermarket alternatives, though examine seller ratings for accuracy.
Alternative Channels for Detailed Blueprints
For offline access, Jack’s Small Engines hosts a mirrored database of schematics–enter the engine family code (e.g., “8hp Horizontal”) to retrieve a scrollable inventory map. Local dealerships may email high-resolution scans if you provide proof of ownership; call ahead and specify the transmission or tine housing tree you need reviewed.

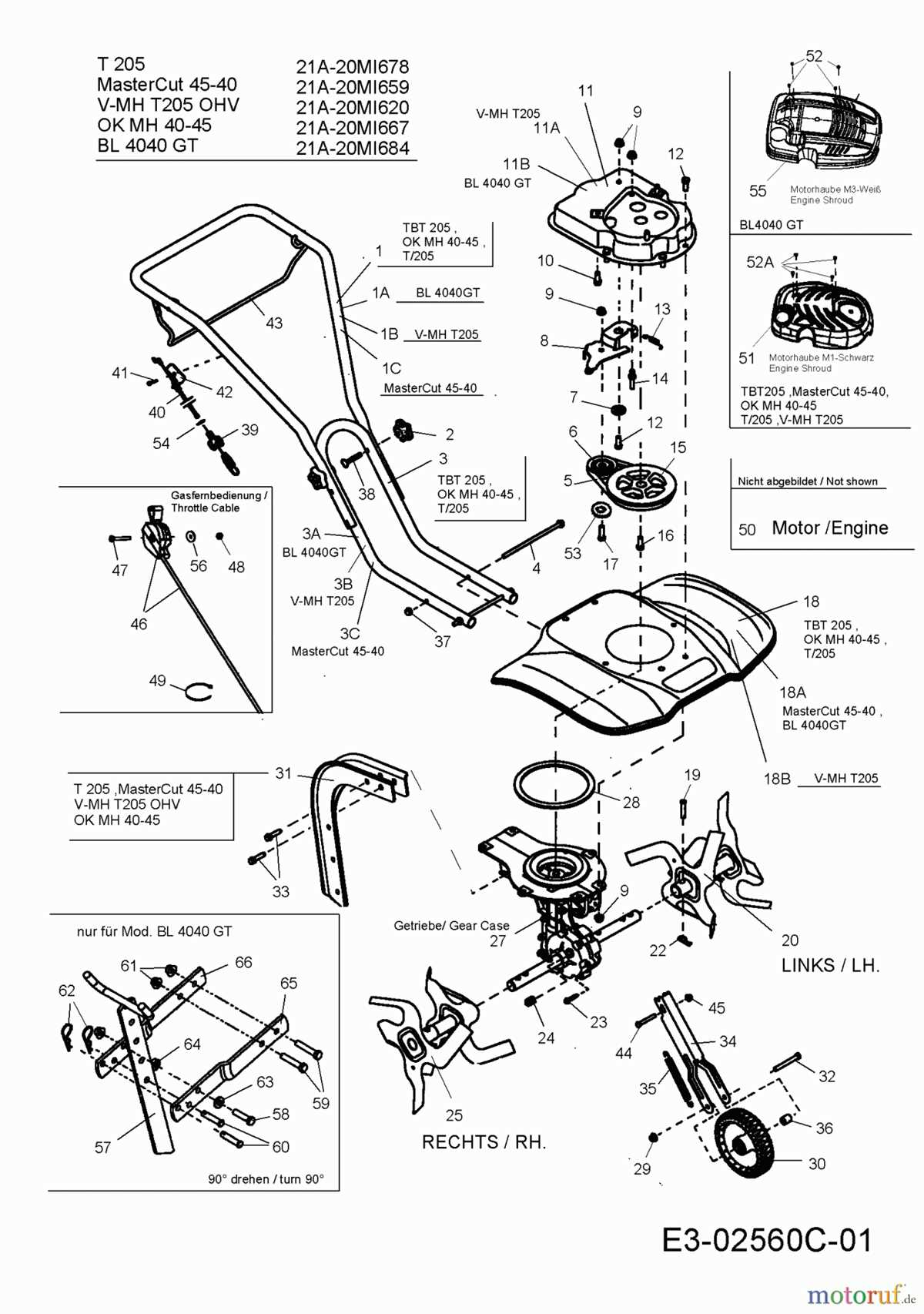

How Exploded Schematics Simplify Component Recognition for Cultivator Repairs
Start by locating the model number on your equipment’s frame–usually stamped near the engine or under the handle assembly. Cross-reference this with manufacturer-issued schematics, where each piece is numbered and labeled with exact specifications. Engine components (e.g., carburetor, flywheel, ignition coil) appear in one section, while rotating assemblies (tines, shift levers, belt pulleys) occupy another. These visual breakdowns eliminate guesswork by mapping every bolt, spring, and bracket to its precise position, reducing misplacement during disassembly.
The tine housing and drive belt group often cause confusion due to similar-looking elements. On schematics, note distinct identifiers: drive belts feature ribbed surfaces, while tine shafts have notched ends or cotter pin slots. Adjacent items–such as the clutch bail and engagement cable–should align as shown; swapping them risks improper tension or slippage. Labels like “OEM 7324-12” or “Ref No. 45” pinpoint exact replacements, avoiding costly trial-and-error ordering.
- Gaskets and seals: Verify thickness and diameter; slight deviations cause compression leaks.
- Wheel axles: Check for spline patterns–some models use left-hand threads.
- Transmission gears: Count teeth; mismatched sets create grinding or skipping.
- Spark plug caps: Measure resistance–high values indicate degraded insulation.
If the schematic lacks clarity, isolate questionable sections using a magnifying tool. Photograph components next to a ruler for scale before removal, then compare against the drawing’s fractional measurements. For worn items, such as blades or bushings, cross-examine part numbers etched on surfaces–these often differ from catalog listings. Store disassembled groupings in labeled containers; this preserves assembly order and prevents small fasteners from vanishing during reassembly.
How to Interpret Your Garden Equipment Replacement Catalog
Locate the model number on the engine housing or main frame–typically stamped near the serial tag. Cross-reference this code with the first column of the catalog page: mismatches here lead to incorrect orders. Check for suffixes like “-B” or “-R” denoting revisions; these modify compatibility.
Break Down Section Codes
- Engine components start with “E” followed by three digits (E105 = air filter).
- Transmission housing uses “T” (T210 = shift lever).
- Tines and cultivating blades carry “C” codes (C300 series = standard blades).
- Fasteners and consumables fall under “F” (F40 = spark plug).
Verify quantities listed in parentheses–some entries represent kits containing multiple sub-items. For assembly sequences, note arrow icons indicating installation direction or torque specifications where applicable.
Finding and Procuring Replacement Garden Equipment Elements
Begin by identifying the exact model number of your rotary cultivator, typically found on a metal plate or decal near the engine or handle assembly. Search for this model on the manufacturer’s official website, where exploded-view schematics display individual pieces with corresponding part codes. Third-party vendors like eReplacementParts or Jack’s Small Engines also catalog these components, cross-referencing them with OEM numbers. Verify compatibility by matching dimensions and attachment points–some elements appear similar but differ in shaft length or gear teeth count.
Order directly from authorized dealers to ensure warranty-backed replacements. Compare prices across platforms: specialized repair shops often price motor gears 15–20% lower than big-box retailers, while auction sites may offer used assemblies at half the cost–but inspect photos for wear on clutch plates or belt grooves. For urgent repairs, check local dealers’ in-stock availability; regional distributors usually ship within 24 hours for common wear items like blades, wheels, or tine clusters.
Verifying Authenticity Before Purchase
Examine product listings for ISO 9001 certification marks or OEM packaging images–counterfeit drive belts or pulleys often lack these details. Request part-specific measurements from sellers if schematics are unclear; authentic idler arms, for example, feature precise bore diameters (e.g., 0.502” ±0.002”). Prioritize vendors offering technical support; reputable suppliers provide installation guides for complex assemblies like transmission housings or engine gaskets, reducing misfitting risks.
